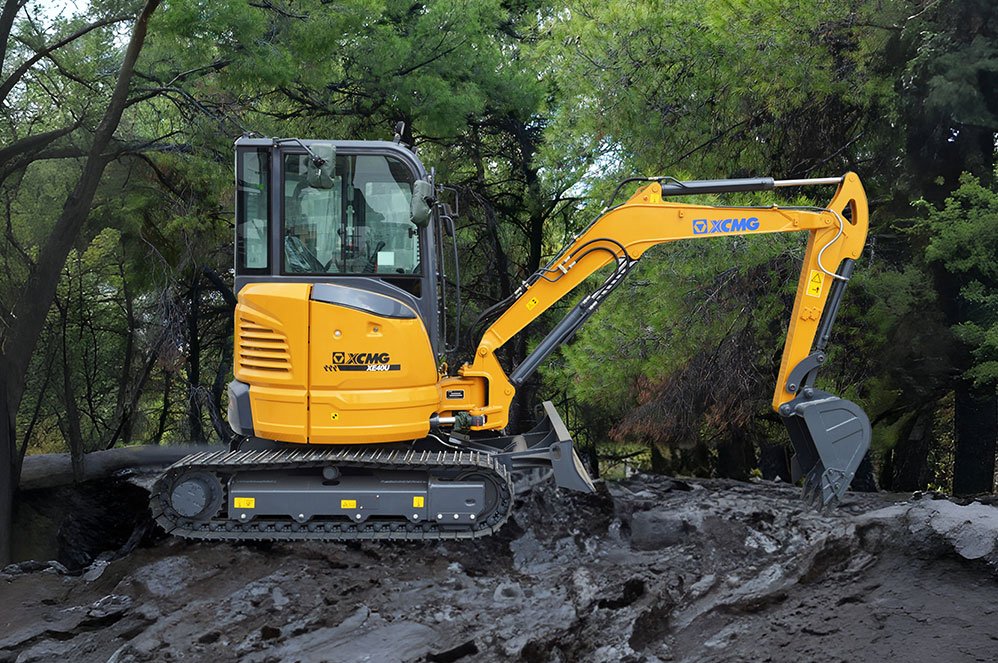

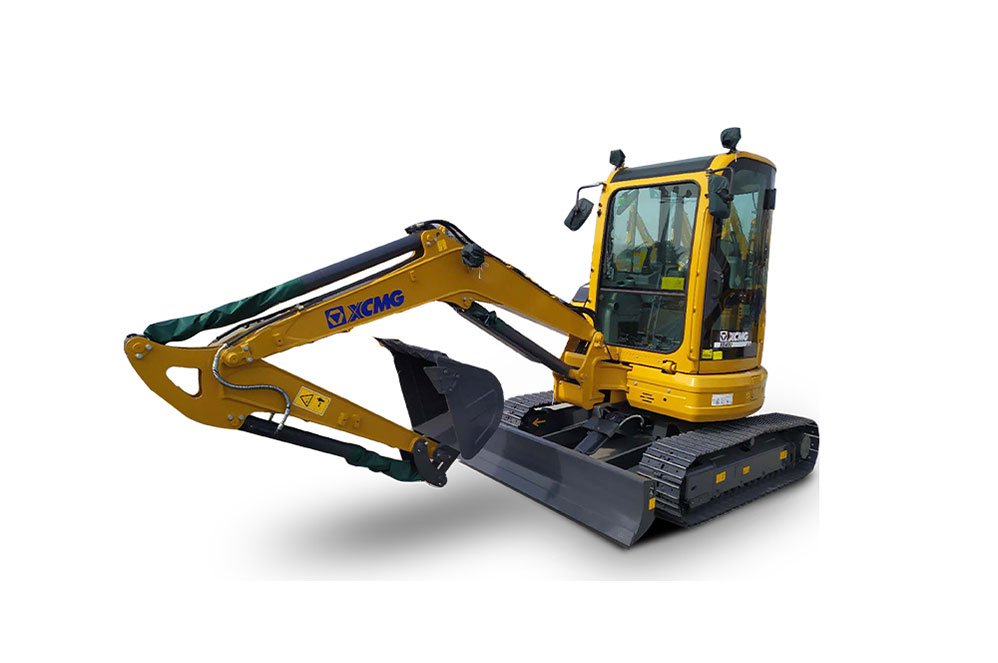

    XCMG XE40U Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      XCMG

    • Type

      Mini (0-6 Ton)

    • Operating Cost

      ₹ 34-35 Lakhs

    • Ex-Showroom Price

      ₹ 34-35 Lakhs

    • Weight

      4200 Kg

    • Bucket

      0.12 m³

    • Digging Depth

      3060 mm

    • Engine

      Yanmar 30 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      2560 mm

    Quick Overview:

    Compact and efficient is the other word for XCMG XE40U mini excavator that delivers precision and versatility for landscaping and small-scale construction.

    Connect With Us:

    Get the best price for the XCMG XE40U Mini Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Yanmar 3TNV88

    Fuel Tank

    40 L

    Engine Displacement

    1.64 L

    Under Carriage

    1721 mm

    Hydraulic System

    1 x 108 L/min

    Arm

    1350 mm

    Max Digging Reach

    5300 mm

    Fuel Consumption

    NA

    Overall Width

    1740 mm

    Overall Length

    4970 mm

    Bucket Digging Force

    NA

    Tailswing Radius

    870 mm

    Track Shoe Width

    300 mm

    AC Cabin

    Standard

    GPS

    Standard

    Features

    Efficient & Economical

    Efficient & Economical

    • Powerful Yanmar Engine ensure optimum power

    • Low fuel Consumption & High Reliability

    Easy Serviceability

    Easy Serviceability

    • All Maintenance points are accessible from Ground level

    • Wide-opening covers for direct access to service points and improved serviceability

    Robust Structure

    Robust Structure

    • Reinforced Boom, Arm & Bucket suitable for Indian conditions

    • Zero tail Radius with Strong Structure

    Strong Undercarriage

    Strong Undercarriage

    • Robust X frame undercarriage with additional reinforcement

    • High wear Resistance Sprocket, Idler, Rollers, track chain reduce cost

    Intelligent Hydraulics

    Intelligent Hydraulics

    • Intelligent control system saves additional Fuel & ensures Higher Productivity

    • Globally Acclaimed Hydraulics for Long Life

    Comfortable Operator Compartment

    Comfortable Operator Compartment

    • All Around 360 degree visibility

    • Spacious HVAC, cabin with FM Radio

    Efficient & Economical

    • Powerful Yanmar Engine ensure optimum power

    • Low fuel Consumption & High Reliability

    Easy Serviceability

    • All Maintenance points are accessible from Ground level

    • Wide-opening covers for direct access to service points and improved serviceability

    Robust Structure

    • Reinforced Boom, Arm & Bucket suitable for Indian conditions

    • Zero tail Radius with Strong Structure

    Strong Undercarriage

    • Robust X frame undercarriage with additional reinforcement

    • High wear Resistance Sprocket, Idler, Rollers, track chain reduce cost

    Intelligent Hydraulics

    • Intelligent control system saves additional Fuel & ensures Higher Productivity

    • Globally Acclaimed Hydraulics for Long Life

    Comfortable Operator Compartment

    • All Around 360 degree visibility

    • Spacious HVAC, cabin with FM Radio

    Specifications

    Product specification of XCMG XE40U Excavator

    ENGINE

    • Model

      Yanmar 3TNV88

    • Fuel

      Diesel

    • Type

      3 cylinder, four stroke water cooled

    • Rated Engine Power

      30 HP (22.4 kW) @ 2400 rpm

    • Maximum Torque

      106.4 Nm @ 1000 rpm

    • Piston Displacement

      1.64 L

    • Alternator

      NA

    • Battery

      12 V x 2

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      1

    • No of Bottom Rollers

      4

    • Track Shoes (Each Side)

      46

    • Track Guard

      NA

    • Track Shoe Width

      300 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Gradeability

      30°

    • Travel Speed-Low

      NA

    • Travel Speed-High

      3.6 Km/h

    • Max Tracking Force

      31.6 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      1 Piston Pump

    • Maximum Flow

      1 x 108 L/min

    • Pilot Pump

      NA

    • Implement Circuit

      23 MPa

    • Swing Circuit

      16.7 MPa

    • Travel Circuit

      21 MPa

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      NA

    • Swing

      NA

    SERVICE CAPACITIES

    • Fuel Tank

      40 L

    • Engine Coolant

      8 L

    • Engine Oil

      7 L

    • Hydraulic System

      60 L

    • Hydraulic Tank

      45 L

    MACHINE WEIGHTS

    • Operating Weight

      4200 Kg

    WORKING RANGE

    • Boom Length

      2560 mm

    • Arm Length

      1350 mm

    • Max. Digging Reach

      5300 mm

    • Max. Digging Reach on Ground

      NA

    • Max. Digging Depth

      3060 mm

    • Max. Digging Height

      5000 mm

    • Max. Dumping Height

      3600 mm

    • Max. Vertical Wallcut Depth

      2260 mm

    • Min. Swing Radius

      2170 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      NA

    • Arm Digging Force

      NA

    • Swing Speed

      9 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      360 mm

    • Vertical Lift from Ground level

      305 mm

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      0.12 m³

    STATIC DIMENSIONS

    • Overall Length

      4970 mm

    • Overall Width

      1740 mm

    • Overall Height

      2535 mm

    • Overall Height of Cab

      NA

    • Upper Width

      NA

    • Track Lengh on Ground

      NA

    • Undercarriage Overall Length

      1721 mm

    • Tailswing Radius

      870 mm

    • Min. Ground Clearance

      297 mm

    • Track Gauge

      1440 mm

    • Width Over Tracks

      1740 mm

    • Track Height

      NA

    • Counterweight Clearence

      587 mm

    • Track Shoe Width

      300 mm

    Frequently Asked Question

    01. What is the XCMG XE40U Excavator price in India?

    Ans.

    The XCMG XE40U Excavator price in India ranges between ₹ 34 – 35 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy a XCMG XE40U excavator?

    Ans.

    You can buy the XCMG XE40U excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the XCMG XE40U Excavator come with financing and insurance options?

    Ans.

    Yes, the XCMG XE40U comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the XCMG XE40U excavator?

    Ans.

    The operating weight of the XCMG XE40U excavator is approximately 4200 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the XCMG XE40U excavator?

    Ans.

    The XCMG XE40U excavator is powered by a Yanmar 3TNV88 engine, delivering 30 HP (22.4 kW) at 2400 rpm.

    06. What is the maximum digging depth of the XCMG XE40U excavator?

    Ans.

    The XCMG XE40U excavator has a maximum digging depth of 3060 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the XCMG XE40U Excavator?

    Ans.

    The bucket capacity of the XCMG XE40U Excavator is 0.12 cubic meters (m³).

    08. What is the warranty period for the XCMG XE40U excavator?

    Ans.

    The XCMG XE40U Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the XCMG XE40U excavator?

    Ans.

    You can find genuine spare parts for the XCMG XE40U excavator at authorized XCMG dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the XCMG XE40U Excavator?

    Ans.

    The XCMG XE40U excavator has a 40 litres diesel fuel tank, providing extended operation time without frequent refueling.
