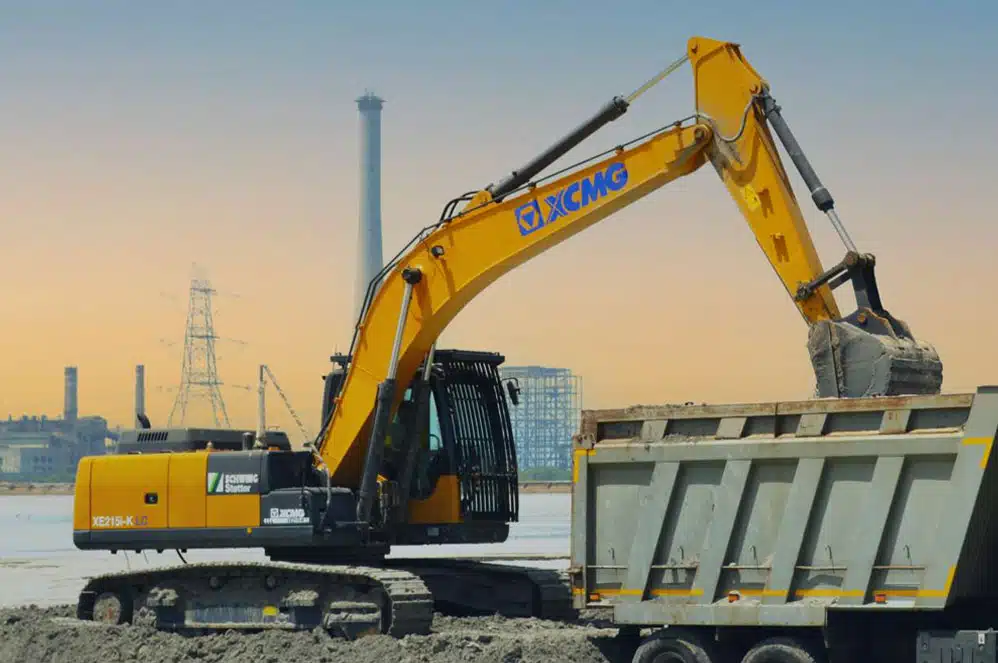

Designed for precision, XE215i-K LC medium excavator from XCMG is suitable for earthmoving and construction tasks.
XCMG
Medium (15-25 Ton)
₹ 58-62 Lakhs
₹ 58-62 Lakhs
21500 kg
0.9 - 1.2 m³
6197 mm
Cummins 141.4 HP
1 Yr. / 2500 hr.
5680 mm
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Cummins 6BT5.9
360 L
5.9 L
4445 mm
448 L/min
2400 mm
9440 mm
NA
2990 mm
9582 mm
NA
2728 mm
600 mm
Standard
Not Available
Reliable Cummins (India) Engine ensures optimum power
Low fuel Consumption & High Reliability
Ground Accessible Maintenance Points
Maintenance free Air Pre filter system
ROPS/FOPS# certified Cabin for Max Safety
Intelligent control system saves additional Fuel & ensures Higher Productivity
Globally Acclaimed Hydraulics components - Long Life
Reinforced Boom, Arm & Bucket for Tough Indian conditions
Single piece Bucket Link Cast for long life
Wear resistance HD buckets
All Around 360 degree visibility
Spacious HVAC Cabin, with Audio system
Integrated 7’’ instrument Cluster
Product specification of XCMG XE215i-KLC Excavator
Model
Cummins 6BT5.9
Fuel
Diesel
Type
6 Cylinder Turbocharged
Rated Engine Power
141.4 HP (105.5 kW) @ 2000 rpm
Maximum Torque
564 Nm @ 1600 rpm
Piston Displacement
5.9 L
Alternator
NA
Battery
12 V x 2
Starting Motor
NA
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
49
Track Guard
NA
Track Shoe Width
600 mm
Ground Bearing Pressure
NA
Track Tensioning
Grease
Gradeability
35°
Travel Speed-Low
2.8 Km/h
Travel Speed-High
5.2 Km/h
Max Tracking Force
184 kN
Hydraulic Pump
2 Variable Axle Piston Pumps
Maximum Flow
448 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
34.3 MPa / 37 MPa
Swing Circuit
28 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
3.9 MPa
Travel
NA
Swing
NA
Fuel Tank
360 L
Engine Coolant
23 L
Engine Oil
16 L
Hydraulic System
300 L
Hydraulic Tank
220 L
Operating Weight
21500 kg
Boom Length
5680 mm
Arm Length
2400 mm
Max. Digging Reach
9440 mm
Max. Digging Reach on Ground
NA
Max. Digging Depth
6197 mm
Max. Digging Height
9245 mm
Max. Dumping Height
6440 mm
Max. Vertical Wallcut Depth
5575 mm
Min. Swing Radius
3515 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
NA
Arm Digging Force
NA
Swing Speed
13 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.9 - 1.2 m³
Overall Length
9582 mm
Overall Width
2990 mm
Overall Height
3034 mm
Overall Height of Cab
NA
Upper Width
2710 mm
Track Lengh on Ground
3647 mm
Undercarriage Overall Length
4445 mm
Tailswing Radius
2728 mm
Min. Ground Clearance
477 mm
Track Gauge
2390 mm
Width Over Tracks
2990 mm
Track Height
937 mm
Counterweight Clearence
1000 mm
Track Shoe Width
600 mm
The XCMG XE215i-K LC Excavator price in India ranges between ₹ 58 – 62 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.
You can buy the XCMG XE215i-K LC excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the XCMG XE215i-K LC comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the XCMG XE215i-K LC excavator is approximately 21500 kg. The operating weight may vary slightly depending on specific configurations and attachments.
The XCMG XE215i-K LC excavator is powered by a Cummins 6BT5.9 engine, delivering 141.4 HP (105.5 kW) at 2000 rpm.
The XCMG XE215i-K LC excavator has a maximum digging depth of 6197 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the XCMG XE215i-K LC Excavator is 0.9 to 1.2 cubic meters (m³).
The XCMG XE215i-K LC Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the XCMG XE215i-K LC excavator at authorized XCMG dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The XCMG XE215i-K LC excavator has a 360 litres diesel fuel tank, providing extended operation time without frequent refueling.
XCMG is a well-known construction and mining equipment brand that has been steadily gaining trust across India. Contractors value XCMG machines for their durability, practical design, and reliable performance on real job sites. The company offers excavators, loaders, graders, cranes, and road construction equipment suited for Indian conditions. With growing local support, service reach, and parts availability, XCMG continues to be a dependable choice for infrastructure and earthmoving projects.
