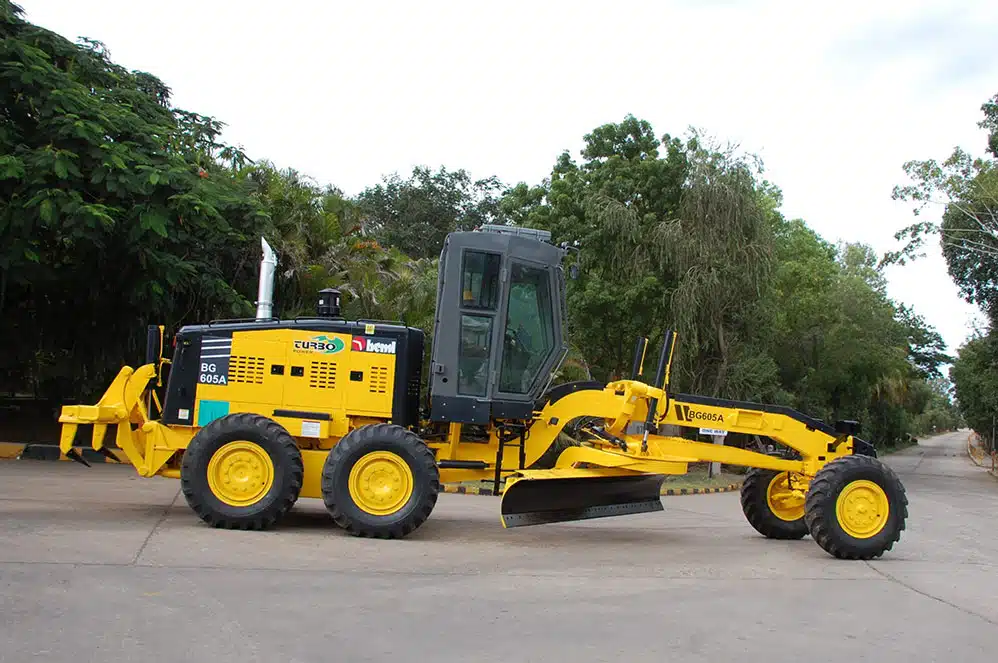

    BEML BG605A Motor Grader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      BEML

    • Type

      Medium

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      BEML 170.3 HP

    • Blade

      3665 mm

    • icon alt1
      Weight

      15800 kg

    • Turning Radius

      7400 mm

    • Forward Speed

      44.2 km/hr

    • Reverse Speed

      31.3 km/hr

    Quick Overview:

    The BEML BG605A motor grader is built to endure long-term road development tasks, offering consistent, reliable performance in all work environments.

    Connect With Us:

    Looking for the best price on a BEML BG605A from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    engine-make-alt
    Engine Make

    BEML BSAA6D125 BSIII CEV

    Max Torque

    785 Nm @ 1200 rpm

    Fuel Tank

    250 L

    Hydraulic System

    2 x 39 L/min

    Tires

    14.00 x 24 - 16 PR (Tube type) G-2 type tyre

    Frame Height

    NA

    Max Lift Above Ground

    400 mm

    Max Cutting Depth

    500 mm

    Blade Pitch Angle

    NA

    Wheel Base

    6570 mm

    Overall Length

    10490 mm

    Overall Height

    3679 mm

    Medal Image
    Warranty

    1 Yr. / 2500 hr.

    air-conditioner-alt
    AC Cabin

    Not Available

    GPS Tracking
    GPS

    Not Available

    Features

    Engine

    Engine

    • BEML BG605A Motor Grader has been fitted with Bharat Stage III-BEMLCEV Compliant Engine.

    High Performance

    High Performance

    • With its high engine horse power and operating weight BG605A is ideal for heavy duty road constructions/ maintenance jobs at mining and at demanding job sites.

    Enhanced Productivity

    Enhanced Productivity

    • High Power engine, coupled with high performance blade ensure high productivity. Finger tip control of transmission gear shifting provides high manoeuvrability.

    Operator Comfort

    Operator Comfort

    • Front Frame mounted operator's compartment enables ease of viewing the machines traveling direction. Operator's comfort is enhanced by adjustable suspension seats & rubber pad mounted operator's compartment.

    Engine

    • BEML BG605A Motor Grader has been fitted with Bharat Stage III-BEMLCEV Compliant Engine.

    High Performance

    • With its high engine horse power and operating weight BG605A is ideal for heavy duty road constructions/ maintenance jobs at mining and at demanding job sites.

    Enhanced Productivity

    • High Power engine, coupled with high performance blade ensure high productivity. Finger tip control of transmission gear shifting provides high manoeuvrability.

    Operator Comfort

    • Front Frame mounted operator's compartment enables ease of viewing the machines traveling direction. Operator's comfort is enhanced by adjustable suspension seats & rubber pad mounted operator's compartment.

    Specifications

    Product specification of BEML BG605A Motor Grader

    ENGINE

    • Model

      BEML BSAA6D125 BSIII CEV

    • Fuel

      Diesel

    • Type

      4 stroke, water-cooled, Turbocharged overhead valve, direct injection, mechanical variable speed governor.

    • Number of Cylinders

      6 inline

    • Gross Power

      170.3 HP (127 kW) @ 1800 rpm

    • Max Torque

      785 Nm @ 1200 rpm

    • Displacement

      11.04 L

    • Battery

      2 x 12 / 200Ah

    • Alternator

      24V, 45A

    TRANSMISSION

    • Type

      BEML - Hydroshift Transmission

    SPEED

    • Max. Forward Speed

      44.2 km/hr

    • Max. Reverse Speed

      31.3 km/hr

    AXLES

    • Rear Axle

      Full floating rear axle is made of forged heat treated steel.

    • Front Axle

      Elliot - type

    TIRES

    • Size

      14.00 x 24 - 16 PR (Tube type) G-2 type tyre

    STEERING

    • Type

      Orbitrol, Full Hydraulic Steering System

    • Minimum Turning Radius

      7400 mm

    • Steering Angle

      40°

    BRAKES

    • Service

      Foot operated, oil disk brakes, Air actuated on four wheels and sealed for adjustment-free operation. Two cross brake lines for sure braking.

    • Parking

      Hand operated internal expanding, shoe type, duo-servo type actuated on transmission output shaft.

    FRAME

    • Front Frame Structure - Height

      NA

    • Front Frame Structure - Width

      NA

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      Box-section construction with wear resistant steel, hydraulic blade side shift and tip control, cutting edges and side edges are attached.

    • Blade Length

      3665 mm

    • Blade Height

      540 mm

    • Blade Thickness

      20 mm

    • Cutting Edge

      152 mm x 27 mm

    • Blade Pull

      NA

    • Blade Down Pressure

      NA

    • Moldboard Side Shift (Right/Left)

      NA

    • Maximum Shoulder Reach (Right/Left)

      1955 mm / 1670 mm

    • Maximum Lift Above Ground

      400 mm

    • Maximum Cutting Depth

      500 mm

    • Blade Pitch Angle

      NA

    HYDRAULICS

    • Type

      Four gear pumps powering the work equipment, steering and transmission, differential lock - unlock and hydraulic circuits

    • Maximum Pump Flow

      2 x 39 L/min

    • Maximum System Pressure

      17.2 MPa

    SERVICE CAPACITIES

    • Fuel Tank

      250 L

    • Cooling System

      55 L

    • Engine Oil

      26 L

    • DEF Tank

      NA

    • Transmission Oil

      36 L

    • Final Drive

      30 L

    • Hydraulic System

      58 L

    • Circle Reverse Housing

      NA

    WEIGHT

    • Gross Vehicle Weight

      15800 kg

    STATIC DIMENSIONS

    • Overall Height

      3679 mm

    • Moldboard Base

      2640 mm

    • Wheelbase

      6570 mm

    • Tandem Wheelbase

      1515 mm

    • Width of Standard Moldboard

      3665 mm

    • Overall Length

      10490 mm

    • Tread Gauge

      2209 mm

    • Width of Tires

      2524 mm

    • Articulation, left or right

      NA

    • Minimum Ground Clearence

      325 mm

    Frequently Asked Question

    01. What is the price of the BEML BG605A Motor Grader in India?

    Ans.

    The price of the BEML BG605A Motor Grader in India will be available soon. Stay connected with Desi Machines to get the latest and most accurate pricing updates as soon as they are released.

    02. Where can I buy BEML BG605A motor grader in india?

    Ans.

    You can buy the BEML BG605A motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the BEML BG605A motor grader comes with financing & insurance options?

    Ans.

    Yes, the BEML BG605A motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the BEML BG605A Motor Grader?

    Ans.

    The BEML BG605A motor grader is powered by a BEML BSAA6D125 BSIII CEV diesel engine, delivering 170.3 HP (127 kW) @ 1800 rpm.

    05. What is the weight of the BEML BG605A Motor Grader?

    Ans.

    The weight of the BEML BG605A motor grader is approximately 15800 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the BEML BG605A Motor Grader?

    Ans.

    The BEML BG605A Motor Grader features a blade width of 3665 mm (12.02 feet), making it ideal for medium to heavy-duty grading needs.

    07. What is the turning radius of the BEML BG605A Motor Grader?

    Ans.

    The BEML BG605A Motor Grader has a turning radius of 7400 mm, making it suitable for intermediate-level road works.

    08. What is the fuel tank capacity of the BEML BG605A Motor Grader?

    Ans.

    The BEML BG605A motor grader has a 250-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of BEML BG605A motor grader?

    Ans.

    The BEML BG605A in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the BEML BG605A motor grader?

    Ans.

    You can find genuine spare parts for the BEML BG605A at authorized BEML dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
