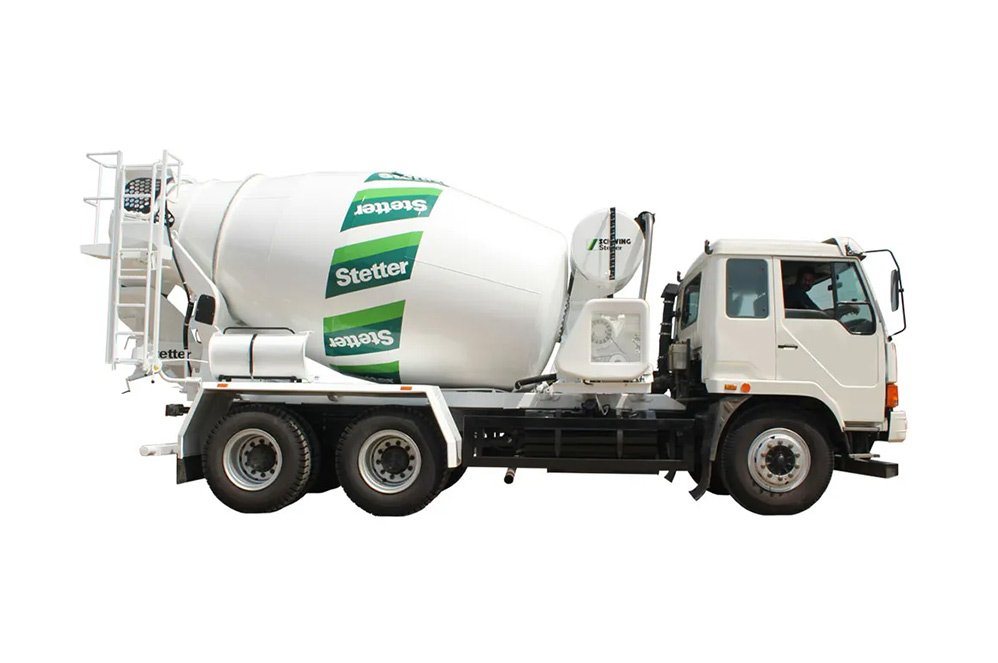

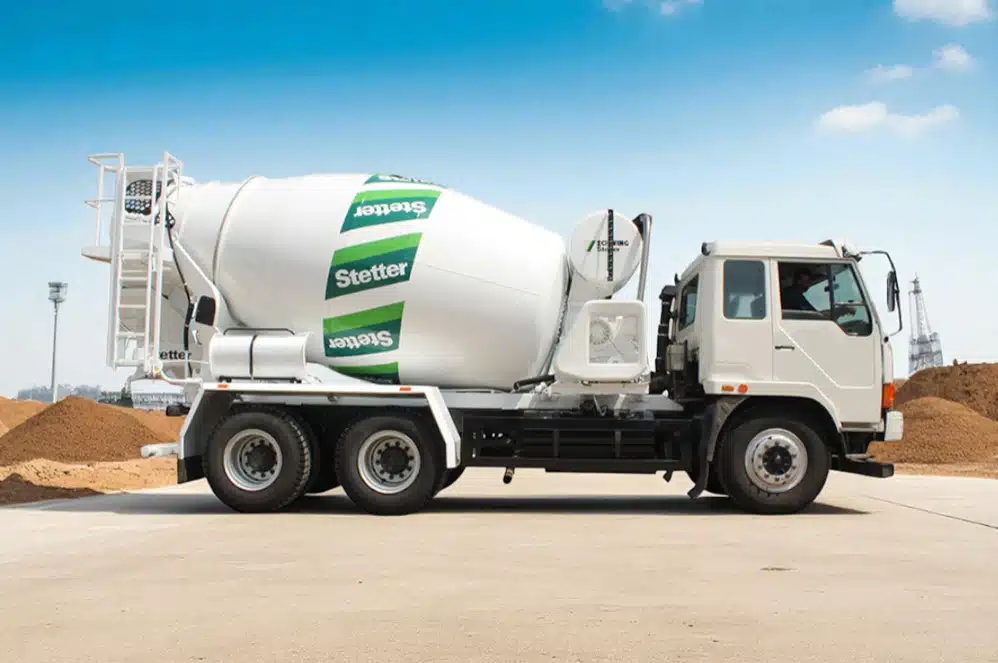

Schwing Stetter AM 6 (C2) Transit Mixer has a nominal capacity of 6 cubic meters. It is built for consistent batching on midsize construction projects.
Schwing Stetter
Standard Transit Mixer
Price Available Soon
Price Available Soon
6.0 m³
3750 kg
11580 L
52%
450 L
0-12 rpm
Looking for the best price on a Schwing Stetter AM 6 (C2) Concrete Truck Mixer? Connect with authorized dealers today for exclusive deals!
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
P.T.O. /Slave Engine
7250 L
NA
2300 mm
NA
3 Axle
6000 mm / 6200 mm
2400 mm
2570 mm
70 HP (52 kW)
The 6 m³ nominal capacity (6,000 L) is perfect for Indian construction needs.
The 52% filling ratio ensures an optimal blend without overloading.
A drum diameter of 2,300 mm boosts efficiency and load volume.
It comes with a 52 kW (70 hp) engine, making it suitable for heavy-duty mixer operations.
The adjustable drum speed of 0–12 rpm ensures consistent mixing.
PTO/engine flexibility works well in Indian site conditions.
The 450–500 L water tank supports hydration on long-haul routes.
A high water-line volume prevents spillage during transport.
Admixture dosing options improve mix quality.
The folding/swivel chute allows for precise concrete placement.
An advanced discharge system prevents dripping and spillage.
Hydraulic hopper cleaning is available as an option.
Thick spirals and T-Protection ensure an even mix and minimal wear.
Wear-resistant plates protect the heavy-duty spirals.
This design is ideal for frequent use on Indian sites. equipmentrentalsindia.com
Side service panels provide quick access to the pump and engine.
A central grease strip makes daily lubrication easier.
Nationwide support is available through Schwing-Stetter service centers.
The 6 m³ nominal capacity (6,000 L) is perfect for Indian construction needs.
The 52% filling ratio ensures an optimal blend without overloading.
A drum diameter of 2,300 mm boosts efficiency and load volume.
It comes with a 52 kW (70 hp) engine, making it suitable for heavy-duty mixer operations.
The adjustable drum speed of 0–12 rpm ensures consistent mixing.
PTO/engine flexibility works well in Indian site conditions.
The 450–500 L water tank supports hydration on long-haul routes.
A high water-line volume prevents spillage during transport.
Admixture dosing options improve mix quality.
The folding/swivel chute allows for precise concrete placement.
An advanced discharge system prevents dripping and spillage.
Hydraulic hopper cleaning is available as an option.
Thick spirals and T-Protection ensure an even mix and minimal wear.
Wear-resistant plates protect the heavy-duty spirals.
This design is ideal for frequent use on Indian sites. equipmentrentalsindia.com
Side service panels provide quick access to the pump and engine.
A central grease strip makes daily lubrication easier.
Nationwide support is available through Schwing-Stetter service centers.
Product specification of Schwing Stetter AM 6 (C2) Concrete Mixer
Length of Mixer Sub Frame
NA
Mixer Length
6150 mm / 6000 mm
Mixer Height
2570 mm
Over Hang
NA
Mixer Width
2400 mm
Truck Specifications
3 Axle
Shell Thickness
NA
Mixer Weight (Empty)
3750 kg
Mixer Weight (Concrete)
14400 kg
Nomial Filling Capacity
6.0 m³
Geometric Volume
11580 L
Water Line Volume
7250 L
Filling Ratio
52%
Rotation Speed
0-12 rpm
Drum Diameter
2300 mm
No. of Rollers
2
Water Tank Capacity
450 L
Water Pump Pressure
NA
Water Pump Outlet
NA
Water Meter Scale
NA
Drum Drive
P.T.O. /Slave Engine
Engine Power
70 HP (52 kW)
Engine Make
NA
The Schwing Stetter AM 6 (C2) Transit Mixer price in India is available on request. To get the latest on-road price of the Schwing Stetter Concrete Truck Mixer based on your location, simply fill out the inquiry form. Desi Machines will provide customized pricing and financing options tailored to your region and needs.
The Schwing Stetter AM 6 (C2) Transit Mixer has a drum capacity of 6 m³ (6,000 litres), with a geometric volume of 11,580 litres and a water line volume of 7,250 litres. It delivers an efficient filling ratio of approximately 52%.
The empty mixer weight of the Schwing Stetter AM 6 (C2) Transit Mixer is approximately 3,750 kg, making it a reliable and efficient cement mixer truck for transporting concrete on construction sites.
Schwing Stetter AM 6 (C2) Transit Mixer is compatible with 3-axle trucks from brands like Ashok Leyland, Tata Motors, Eicher, BharatBenz, and Mahindra.
The Schwing Stetter AM 6 (C2) transit mixer features a drum rotation speed range of 0 to 12 rpm for charging, mixing, and discharging operations.
The Schwing Stetter AM 6 (C2) RMC truck features a drum diameter of 2300 mm, ensuring efficient concrete mixing and discharge for ready-mix applications.
The Schwing Stetter AM 6 (C2) transit mixer, known for high performance, includes a 450-litre water tank for consistent mixing in transit.
The Schwing Stetter AM 6 (C2) transit mixer runs on a PTO or Slave Engine system to deliver optimal concrete consistency.
The Schwing Stetter AM 12 (C) Transit Mixer delivers a nominal capacity of 12 cu m. It is built for maximum volume transport in mega-construction projects.
The Schwing Stetter AM 10 (C2) Transit Mixer also has a 10 cu m nominal capacity. It is optimized for consistent concrete batching in heavy-duty operations.
Schwing Stetter AM 9 (C2) Transit Mixer has a 9 cu m nominal capacity. It enables high-volume delivery, making it suitable for demanding infrastructure projects.
The Schwing Stetter AM 8 (C2) Transit Mixer comes with an 8 cu m nominal capacity. It is built for logistics efficiency and reliable concrete transport.
The Schwing Stetter AM 7 (C2) Transit Mixer delivers a nominal capacity of 7 cu m. It meets diverse jobsite concrete needs with efficient throughput.
Schwing Stetter AM 6 (N2) Transit Mixer features a nominal capacity of 6 cu m. It is designed for steady batching on midsize construction jobs.
Compact but powerful, the Schwing Stetter AM 4 Transit Mixer has a nominal capacity of 4 cu m. It is perfect for small-scale, efficient concrete delivery.
Schwing Stetter India is a leading provider of advanced concrete equipment, specializing in concrete mixer trucks, also known as cement mixer trucks, and self-loading concrete mixers. Engineered with German precision and localized for Indian conditions, their mixers ensure efficient, reliable concrete transport and on-site mixing. Schwing’s extensive product portfolio also includes batching plants, concrete pumps, recycling systems, and shotcrete equipment. With strong after-sales support, cutting-edge R&D, and a nationwide dealer network, the brand is trusted across India’s infrastructure, real estate, and industrial construction sectors.
Product Portfolio: Transit Mixer, Self Loading Transit Mixer
