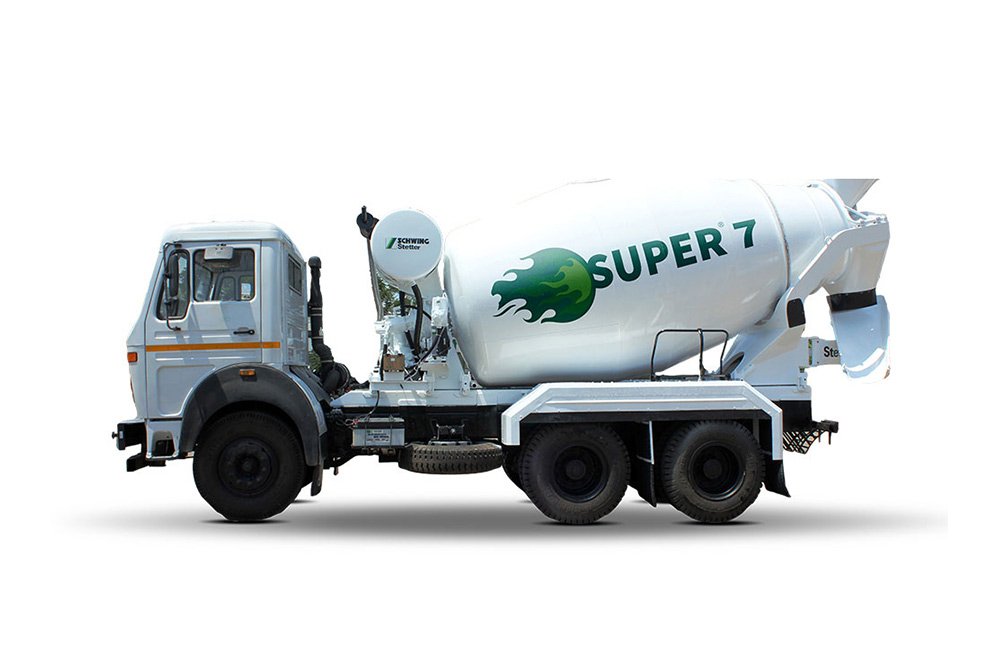

Schwing Stetter AM 7 (C2) Transit Mixer

The nominal filling capacity is 7 m³, making it ideal for medium-sized concrete delivery projects.

The total geometric volume is 12,750 L, providing plenty of mixing space.

The water line volume is 8,250 L, which improves mixing efficiency and concrete quality.

The drum diameter is 2,300 mm, which promotes efficient mixing and smooth batching.

The filling ratio is 55%, optimized for load balance and reducing spillage.

The mixer weight ranges from 3.5 to 3.9 tonnes (without carrier), allowing for high payload capacity.

The prime mover power is 52 kW (70 HP), ensuring strong rotation and mixing.

The drum speed varies from 0 to 12 rpm for smooth, controlled discharge operations.

It has efficient torque performance, suitable for tough construction demands.

The generous 500 L water tank supports high-quality concrete consistency.

The integrated water line is 8.25 m³ and helps achieve uniform mixing across the full volume.

Streamlined hydraulic systems reduce downtime and improve workflow.

The low-center-of-gravity frame enhances driving stability and safety.

Wear-resistant plates in the feed hopper and discharge shell extend component lifespan.

Handling interfaces are simple, making it easy for operators and maintenance crews to access.

The drive characteristics are optimal and compatible with MAN, Mercedes, or Scania carriers.

It features low maintenance technology thanks to modern design and quality welds.

The high payload-to-weight ratio maximizes revenue while reducing operating costs.
