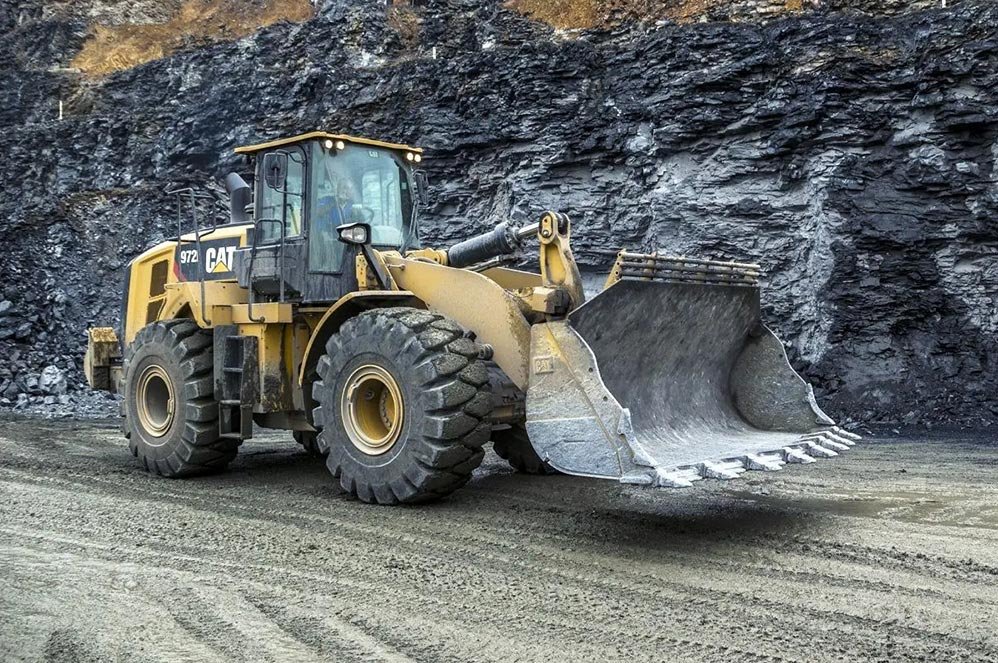

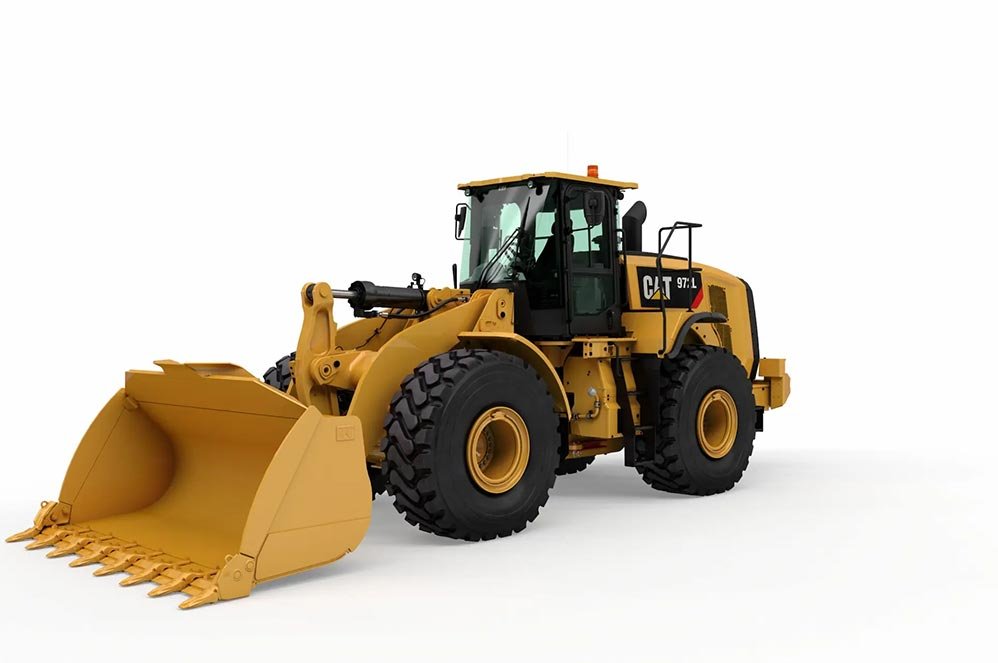

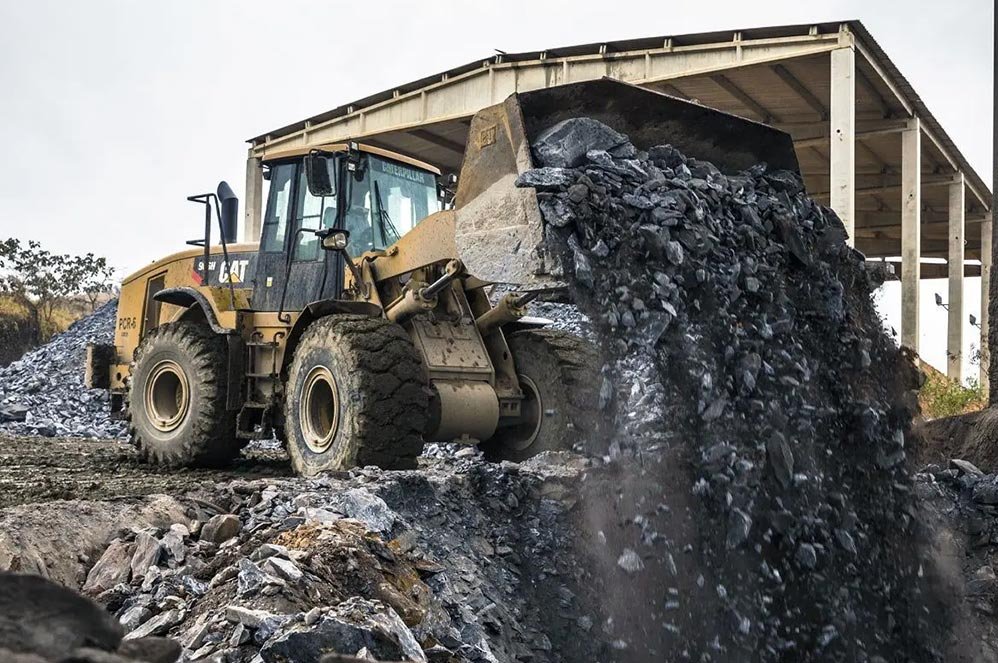

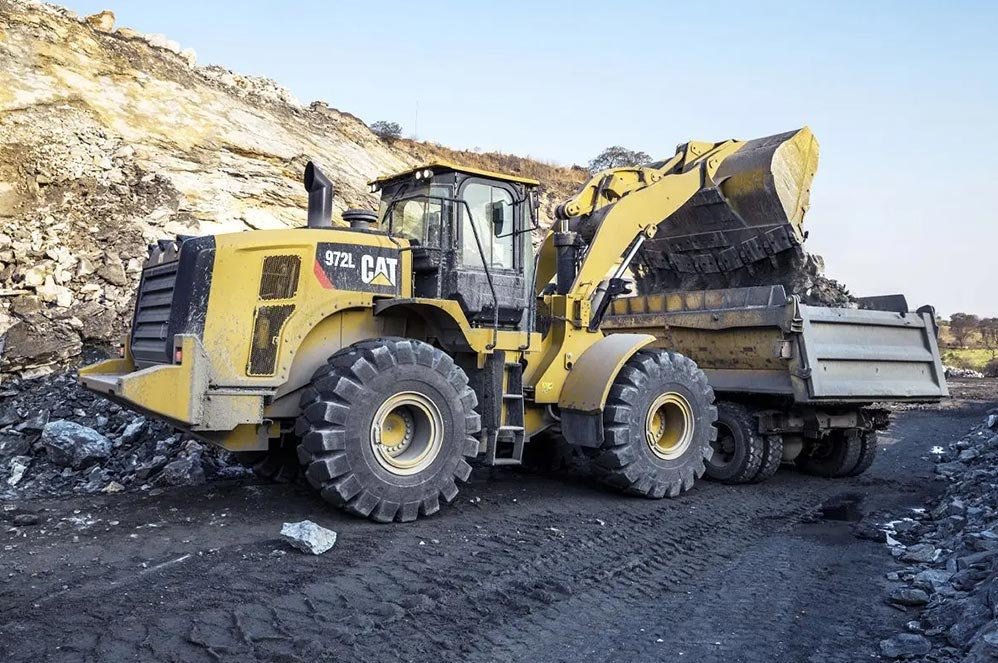

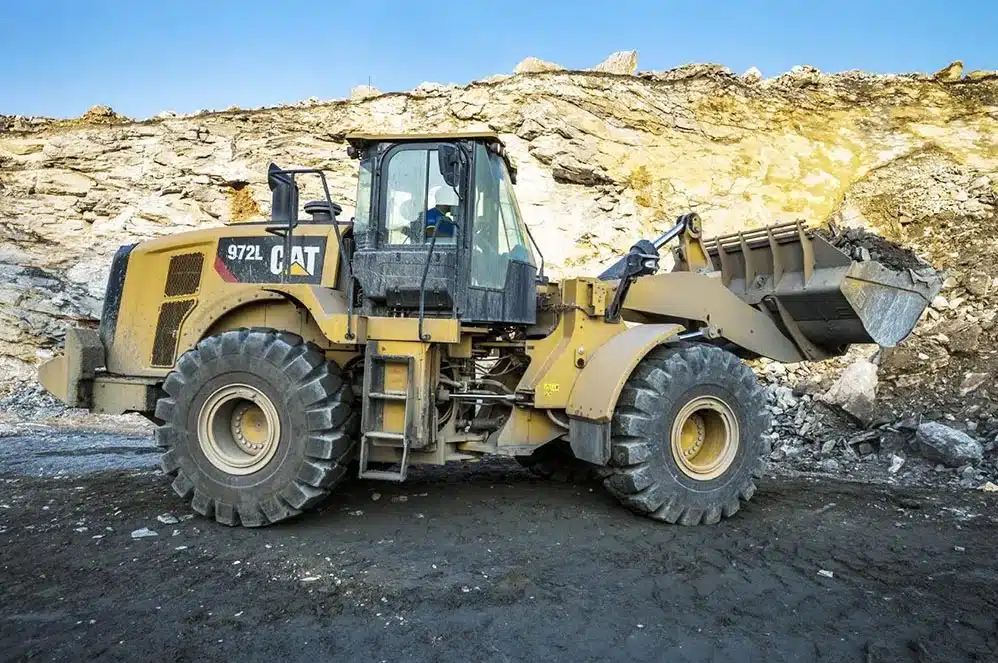

Cat 972L Wheel Loader

The Cat 972L Wheel Loader offers enhanced lifting capabilities, ideal for India’s large-scale material handling tasks.

  • Brand

    Caterpillar

  • Type

    Medium (15-30 Ton)

  • Operating Cost

    Price Available Soon

  • Ex-Showroom Price

    Price Available Soon

  • Engine

    Cat 302 HP

  • featIcon2 (1) alt
    Bucket

    3.4-9.90 m³

  • icon alt1
    Weight

    24897 kg

  • Fwd. Speed

    39.5 km/h

  • dumping height loader
    Dump Height

    3154 mm

  • tipping load
    Tipping Load

    16164 kg

Connect With Us:

Get the best price for the Cat 972L wheel loader from authorized dealers. Contact us now for exclusive deals!

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Cat C9.3 ACERT

Max Torque

1710 Nm @ 1200 rpm

Fuel Tank

303 L

Hydraulic System

360 L/min

grounding
Min. Ground Clearance

434 mm

desi machines payload
Payload

NA

360 degree
Steering Angle

±40°

Drive Type

4-wheel drive (4WD)

Wheelbase

3550 mm

Tyres

26.5R25 L3

down
Max. Breakout Force

196 KN

Overall Length

9315 mm

Medal Image
Warranty

1 Year

air-conditioner-alt
AC Cabin

Standard

GPS Tracking
GPS

Standard

Features

Unmatched Reliability for Demanding Jobs

Unmatched Reliability for Demanding Jobs

  • Cat C9.3 ACERT engine offers a combination of proven electronic, fuel and air systems and meets U.S. EPA Tier 3/EU Stage IIIA, or emissions equivalent to Tier 2/Stage II emissions standards.

  • Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Built for Long-Lasting Durability

Built for Long-Lasting Durability

  • Heavy-duty powershift transmission and axles handle extreme applications.

  • Improved hydraulic hose routing reduces potential hose wear.

  • Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Boosted Productivity with Every Load

Boosted Productivity with Every Load

  • Increased engine power improves machine performance and response.

  • Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.

  • High capacity torque converter results in greater digging efficiency.

  • Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.

Superior Fuel Efficiency, Lower Operating Costs

Superior Fuel Efficiency, Lower Operating Costs

  • Up to 15% lower fuel consumption than H Series.*

  • Power dense ACERT engine burns less fuel by providing power and torque when needed.

  • Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

Effortless Operation and Easy Serviceability

Effortless Operation and Easy Serviceability

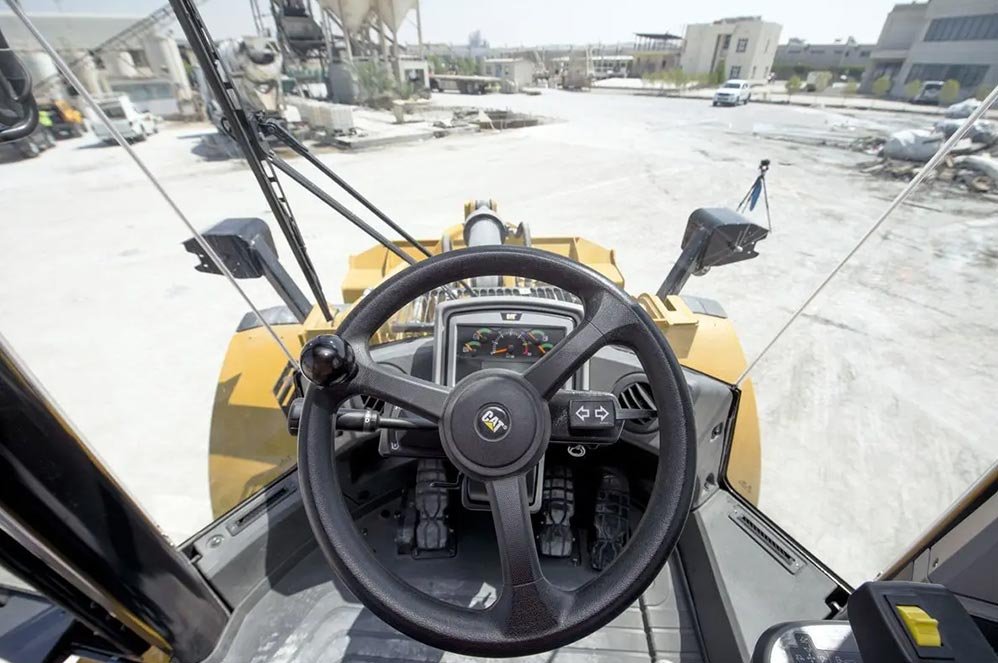

  • Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.

  • Intuitive, ergonomic controls keep operators focused on their work.

  • One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.

  • Convenient access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.

Advanced Safety Features for Operator Protection

Advanced Safety Features for Operator Protection

  • Excellent cab access with wide door and stair-like steps.

  • Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Unmatched Reliability for Demanding Jobs

  • Cat C9.3 ACERT engine offers a combination of proven electronic, fuel and air systems and meets U.S. EPA Tier 3/EU Stage IIIA, or emissions equivalent to Tier 2/Stage II emissions standards.

  • Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Built for Long-Lasting Durability

  • Heavy-duty powershift transmission and axles handle extreme applications.

  • Improved hydraulic hose routing reduces potential hose wear.

  • Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Boosted Productivity with Every Load

  • Increased engine power improves machine performance and response.

  • Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.

  • High capacity torque converter results in greater digging efficiency.

  • Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.

Superior Fuel Efficiency, Lower Operating Costs

  • Up to 15% lower fuel consumption than H Series.*

  • Power dense ACERT engine burns less fuel by providing power and torque when needed.

  • Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

Effortless Operation and Easy Serviceability

  • Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.

  • Intuitive, ergonomic controls keep operators focused on their work.

  • One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.

  • Convenient access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.

Advanced Safety Features for Operator Protection

  • Excellent cab access with wide door and stair-like steps.

  • Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Specifications

Product specification of Cat 972L Wheel Loader

ENGINE

  • Make

    Cat C9.3 ACERT

  • Type

    4-stroke, turbocharged, inline 6-cylinder diesel engine with ACERT™ technology

  • Aspiration

    Turbocharged-Aftercooled

  • Emission

    U.S. EPA Tier 4 Final and EU Stage IV

  • Max. Power

    302 HP (242 kW) @ 1800 rpm

  • Max Torque

    1710 Nm @ 1200 rpm

  • Piston Displacement

    9.3 L

  • No. of Cylinders

    6 Cylinders

  • Battery

    2 x 12V / 1400 CCA

  • Alternator

    24V / 145A

POWER TRAIN

  • Transmission

    Cat Planetary Power Shift Transmission

  • Drive Type

    4-wheel drive (4WD)

  • Torque Converter

    Single-stage torque converter with lock-up clutch

BRAKES

  • Service

    Wet, multi-disc, hydraulic-actuated, oil-cooled brakes on both axles.

  • Parking

    Spring-applied, hydraulically released, external caliper disc brake.

STEERING SYSTEM

  • Type

    Load-Sensing Hydrostatic Articulated Steering

  • Steering Angle

    ±40°

AXLE AND FINAL DRIVE

  • Front Axle Type

    Fixed

  • Rear Axle Type

    Oscillating

  • Oscillation Angle

    ±13°

SPEED

  • Top Forward Speed

    39.5 km/h

  • Top Reverse Speed

    39.5 km/h

HYDRAULIC SYSTEM

  • System Type

    Load-Sensing Hydraulic System

  • Pump Type

    Variable Displacement Piston

  • Max. Pump Flow

    360 L/min

  • System Pressure

    310 bar

SERVICE REFILL CAPACITIES

  • Fuel Tank

    303 L

  • Hydraulic System

    NA

  • Engine Oil

    24.5 L

  • Cooling System

    71.6 L

  • Rear Axle Oil

    57 L

  • Front Axle Oil

    57 L

  • Hydraulic Tank

    125 L

  • Transmission Oil

    58.5 L

  • DEF Tank

    NA

DIMENSIONS

  • Overall Length With Bucket

    9315 mm

  • Wheel Base

    3550 mm

  • Height Over Cab

    3587 mm

  • Height Over Exhaust

    3522 mm

  • Min. Ground Clearance

    434 mm

  • Width Over Tyres

    3009 mm

  • Wheel Tread

    2230 mm

  • Tyre Size

    26.5R25 L3

PERFORMANCE

  • Bucket Capacity

    3.4-9.90 m³

  • Bucket Width

    3220 mm

  • Payload

    NA

  • Tipping Load Straight

    18502 kg

  • Tipping Load Full Turn

    16164 kg

  • Max. Breakout Force

    196 KN

  • Operating Weight

    24897 kg

  • Maximum Dump Angle

    48°

  • Bucket Roll Back Angle Full Height

    56°

  • Bucket Roll Back At Carry

    50°

  • Bucket Roll Back At Ground Level

    41°

  • Dumping Height, Fully Raised

    3154 mm

  • Dumping Reach, Fully Raised

    1357 mm

  • Max. Hinge Pin Height

    4458 mm

  • Max. Digging Depth

    103 mm

  • Turning Radius Over Tyres

    NA

  • Turning Radius Over Bucket

    NA

Frequently Asked Question

01. What is the Cat 972L wheel loader price in India?

Ans.

The Cat 972L wheel loader price in India is available on request. To get the latest on-road price of the Cat 972L based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Cat 972L wheel loader in India at the best price?

Ans.

You can buy the Cat 972L wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Cat dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Cat 972L price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Cat 972L wheel loader?

Ans.

The Cat 972L wheel loader is powered by a Cat C9.3 ACERT diesel engine, delivering 302 HP (242 kW) @ 1800 rpm.

04. What is the operating weight of the Cat 972L wheel loader?

Ans.

The operating weight of the Cat 972L wheel loader is approximately 24897 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Cat 972L wheel loader?

Ans.

The Cat 972L wheel loader has a 303 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Cat 972L wheel loader?

Ans.

The bucket capacity of the Cat 972L is 3.4 – 9.90 cubic meters (m³).

07. What is the dump height of the Cat 972L wheel loader?

Ans.

The Cat 972L wheel loader has a dump height of 3154 mm, supporting smooth and efficient unloading.

08. What is the warranty period of Cat 972L wheel loader?

Ans.

The Cat 972L wheel loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Cat 972L wheel loader?

Ans.

The Cat 972L wheel loader features a 4-wheel drive (4WD) system with a Cat Planetary Power Shift Transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 39.5 km/h.

10. What are the key applications and uses of the Cat 972L wheel loader?

Ans.

The Cat 972L is a powerful loader perfect for tough earthmoving and loading tasks in construction and mining, with excellent hydraulic control.

11. Where can I find spare parts for the Cat 972L wheel loader?

Ans.

You can find genuine spare parts for the Cat 972L wheeled loader at authorized Caterpillar (Cat) dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
