Komatsu WA470-6A Wheel Loader

Name: Komatsu WA470-6A Wheel Loader
Brand: L&T Komatsu
Rating: 4.6 (75 reviews)

The Komatsu WA470-6A Wheel Loader stands out in Indian mining and heavy-duty applications, providing unmatched productivity and reliability.

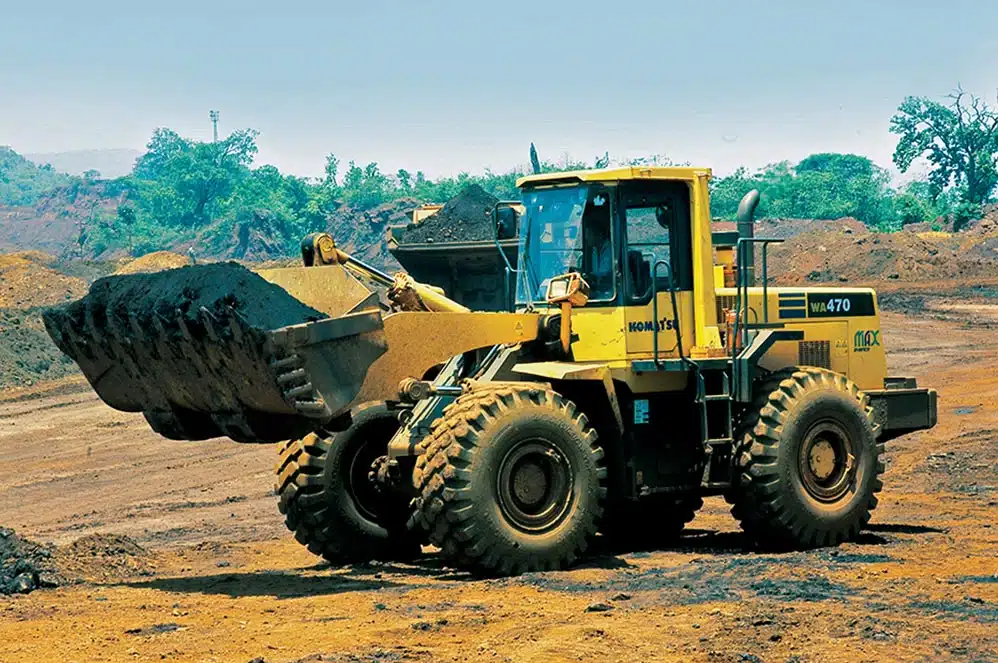

desi machines komatsu wa470 6a wheel loader 1

Brand
L&T Komatsu
Type
Large (>30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Komatsu 273 HP
Bucket
3.6 – 5.2 m³
Weight
34470 kg
Fwd. Speed
36.2 km/h
Dump Height
3185 mm
Tipping Load
15720 kg

Connect With Us:

Get the best price for the Komatsu WA470-6A wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Komatsu SAA6D125E-5

Max Torque

Fuel Tank

413 L

Hydraulic System

260 L/min

Min. Ground Clearance

525 mm

Payload

Steering Angle

±35°

Drive Type

4-wheel drive (4WD)

Wheelbase

3450 mm

Tyres

23.5-25 / 26.5-25 tires

Max. Breakout Force

192 kN

Overall Length

8825 mm

Warranty

1 Yr. / 3000 hr.

AC Cabin

Optional

GPS

Standard

Features

Engine Performance & Fuel Efficiency

Driven by a high-power Komatsu SAA6D125E-5 diesel engine, delivering best-in-class power for heavy-duty applications.
Equipped with a dual-mode engine power select system to alternate between Power and Economy modes depending on job needs.
Comes integrated with a high-capacity torque converter and shift timing select system, providing smoother gear shifting and fuel conservation.

Hydraulic System & Loading Capability

Fitted with a variable displacement piston pump and Closed Load Sensing System (CLSS) for effective hydraulic management.
Offers high breakout and lifting forces, suitable for the transportation of large quantities of material.
Designed for high-cycle efficiency, minimizing work time and enhancing overall productivity.

Operator Comfort & Safety

Has low-noise, ROPS/FOPS-integrated pillar-less wide visibility cab for secure operation in all conditions.
Equipped with fingertip control levers, an electronic transmission lever, and a tilt/telescopic steering column for comfortable control.
Simple entry is provided with a rear-hinged door, wide steps, and a large operator platform for comfort on extended shifts.

Durability & Reliability

Constructed with dependable Komatsu-designed parts and a strong main frame for long-term reliability on challenging job sites.
Equipped with maintenance-free wet disc brakes and flat face O-ring seals to provide leak-proof, long-lasting hydraulic connections.
Shielded with electrodeposition primer and powder coat, protecting against corrosion, dust, and weathering.

Maintenance & Serviceability

Equipped with EMMS (Equipment Monitoring and Management System) for real-time diagnostics and predictive maintenance notifications.
Gull-wing type engine doors provide broad access for complete inspection and service work.
An optional automatic reversible fan, which maintains the cooling system free from dust and in top condition.

Environmental Compliance & Cost-Effectiveness

Meets EPA Tier 3 and EU Stage 3A emission standards, enabling sustainable and regulation-compliant operation.
Provides low fuel use with cutting-edge engine technology, reducing the overall cost of ownership.
Developed for extended lifespan and minimized downtime, leading to higher ROI over the life of the machine.

Engine Performance & Fuel Efficiency

Driven by a high-power Komatsu SAA6D125E-5 diesel engine, delivering best-in-class power for heavy-duty applications.
Equipped with a dual-mode engine power select system to alternate between Power and Economy modes depending on job needs.
Comes integrated with a high-capacity torque converter and shift timing select system, providing smoother gear shifting and fuel conservation.

Hydraulic System & Loading Capability

Fitted with a variable displacement piston pump and Closed Load Sensing System (CLSS) for effective hydraulic management.
Offers high breakout and lifting forces, suitable for the transportation of large quantities of material.
Designed for high-cycle efficiency, minimizing work time and enhancing overall productivity.

Operator Comfort & Safety

Has low-noise, ROPS/FOPS-integrated pillar-less wide visibility cab for secure operation in all conditions.
Equipped with fingertip control levers, an electronic transmission lever, and a tilt/telescopic steering column for comfortable control.
Simple entry is provided with a rear-hinged door, wide steps, and a large operator platform for comfort on extended shifts.

Durability & Reliability

Constructed with dependable Komatsu-designed parts and a strong main frame for long-term reliability on challenging job sites.
Equipped with maintenance-free wet disc brakes and flat face O-ring seals to provide leak-proof, long-lasting hydraulic connections.
Shielded with electrodeposition primer and powder coat, protecting against corrosion, dust, and weathering.

Maintenance & Serviceability

Equipped with EMMS (Equipment Monitoring and Management System) for real-time diagnostics and predictive maintenance notifications.
Gull-wing type engine doors provide broad access for complete inspection and service work.
An optional automatic reversible fan, which maintains the cooling system free from dust and in top condition.

Environmental Compliance & Cost-Effectiveness

Meets EPA Tier 3 and EU Stage 3A emission standards, enabling sustainable and regulation-compliant operation.
Provides low fuel use with cutting-edge engine technology, reducing the overall cost of ownership.
Developed for extended lifespan and minimized downtime, leading to higher ROI over the life of the machine.

Specifications

Product specification of Komatsu WA470-6A Wheel Loader

ENGINE

Make

Komatsu SAA6D125E-5
Type

Water-cooled, 4-cycle
Aspiration

Turbocharged, aftercooled, cooled EGR
Emission

EPA Tier 3 / EU Stage IIIA
Max. Power

273 HP (204 kW) @ 2000 rpm
Max Torque

NA
Piston Displacement

11.04 L
No. of Cylinders

6 Cylinders
Battery

12V x 2 / 136 Ah
Alternator

24V / 50A

POWER TRAIN

Transmission

Full-Powershift, Contershaft Type
Drive Type

4-wheel drive (4WD)
Torque Converter

3-element, single-stage, single-phase

BRAKES

Service

Hydraulically actuated, wet disc brakes actuate on four wheels
Parking

Wet disc brake

STEERING SYSTEM

Type

Articulated Type, Full-Hydraulic Power Steering
Steering Angle

±35°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed, semi-floating
Rear Axle Type

Center-pin support, semi-floating
Oscillation Angle

±13°

SPEED

Top Forward Speed

36.2 km/h
Top Reverse Speed

37.3 km/h

HYDRAULIC SYSTEM

System Type

Closed-Center, Load-Sensing System
Pump Type

Piston pump
Max. Pump Flow

260 L/min
System Pressure

343 bar

SERVICE REFILL CAPACITIES

Fuel Tank

413 L
Hydraulic System

173 L
Engine Oil

38 L
Cooling System

61 L
Rear Axle Oil

56 L
Front Axle Oil

60 L
Hydraulic Tank

NA
Transmission Oil

65 L
DEF Tank

NA

DIMENSIONS

Overall Length With Bucket

8825 mm
Wheel Base

3450 mm
Height Over Cab

3500 mm
Height Over Exhaust

NA
Min. Ground Clearance

525 mm
Width Over Tyres

3010 mm
Wheel Tread

2300 mm
Tyre Size

23.5-25 / 26.5-25 tires

PERFORMANCE

Bucket Capacity

3.6 – 5.2 m³
Bucket Width

3170 mm
Payload

NA
Tipping Load Straight

18295 kg
Tipping Load Full Turn

15720 kg
Max. Breakout Force

192 kN
Operating Weight

33150 -34470 kg
Maximum Dump Angle

45°
Bucket Roll Back Angle Full Height

NA
Bucket Roll Back At Carry

NA
Bucket Roll Back At Ground Level

NA
Dumping Height, Fully Raised

3185 mm
Dumping Reach, Fully Raised

1235 mm
Max. Hinge Pin Height

4360 mm
Max. Digging Depth

80 mm
Turning Radius Over Tyres

NA
Turning Radius Over Bucket

NA

Frequently Asked Question

01. What is the Komatsu WA470-6A wheel loader price in India?

Ans.

The Komatsu WA470-6A wheel loader price in India is available on request. To get the latest on-road price of the Komatsu WA470-6A based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Komatsu WA470-6A wheel loader in India at the best price?

Ans.

You can buy the Komatsu WA470-6A wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Komatsu dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Komatsu WA470-6A price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A wheel loader is powered by a Komatsu SAA6D125E-5 diesel engine, delivering 273 HP (204 kW) @ 2000 rpm.

04. What is the operating weight of the Komatsu WA470-6A wheel loader?

Ans.

The operating weight of the Komatsu WA470-6A wheel loader ranges from 33150 to 34470 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A wheel loader has a 413 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Komatsu WA470-6A wheel loader?

Ans.

The bucket capacity of the Komatsu WA470-6A is 3.6 – 5.2 cubic meters (m³).

07. What is the dump height of the Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A wheel loader has a dump height of 3185 mm, perfect for construction and mining material handling.

08. What is the warranty period of Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A wheel loader in India typically comes with a standard warranty of 1 year or 3000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A wheel loader features a 4-wheel drive (4WD) system with a Full-Powershift & Countershaft Type transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 36.2 km/h.

10. What are the key applications and uses of the Komatsu WA470-6A wheel loader?

Ans.

The Komatsu WA470-6A is a heavy-duty loader offering strong breakout force, reliable hydraulics, and fuel efficiency, perfect for construction and mining applications involving large material volumes.

11. Where can I find spare parts for the Komatsu WA470-6A wheel loader?

Ans.

You can find genuine spare parts for the Komatsu WA470-6A wheeled loader at authorized Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
