Liebherr L566 Wheel Loader

Name: Liebherr L566 Wheel Loader
Brand: Liebherr
Rating: 4.1 (53 reviews)

The Liebherr L566 Wheel Loader handles heavy-duty lifting and transportation, trusted by Indian cement and port operations.

Liebherr L566 Wheel Loader price in India

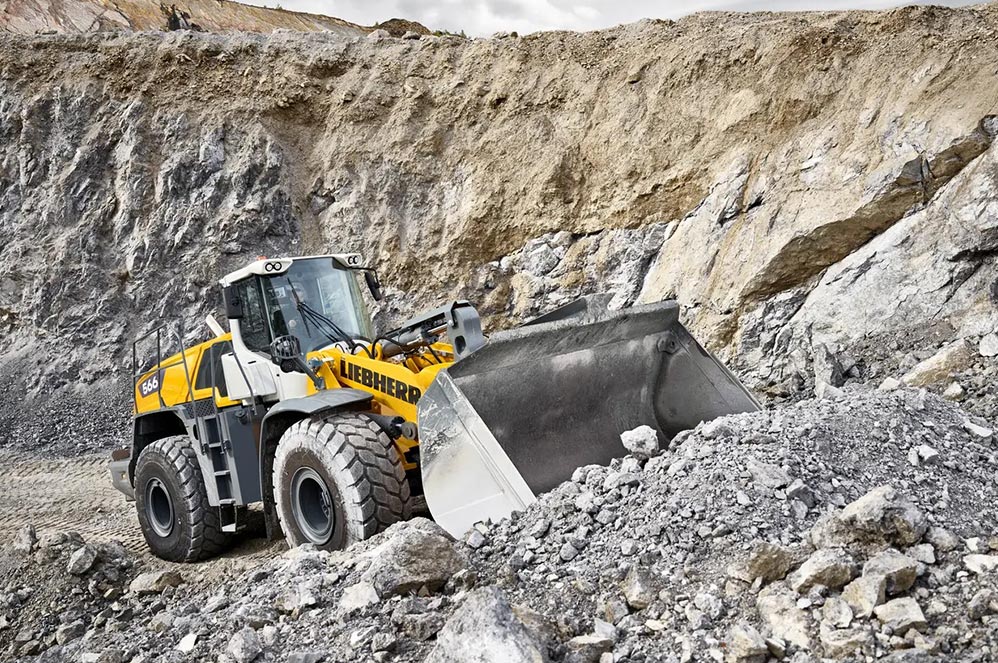

desi machines liebherr l566 wheel loader 1

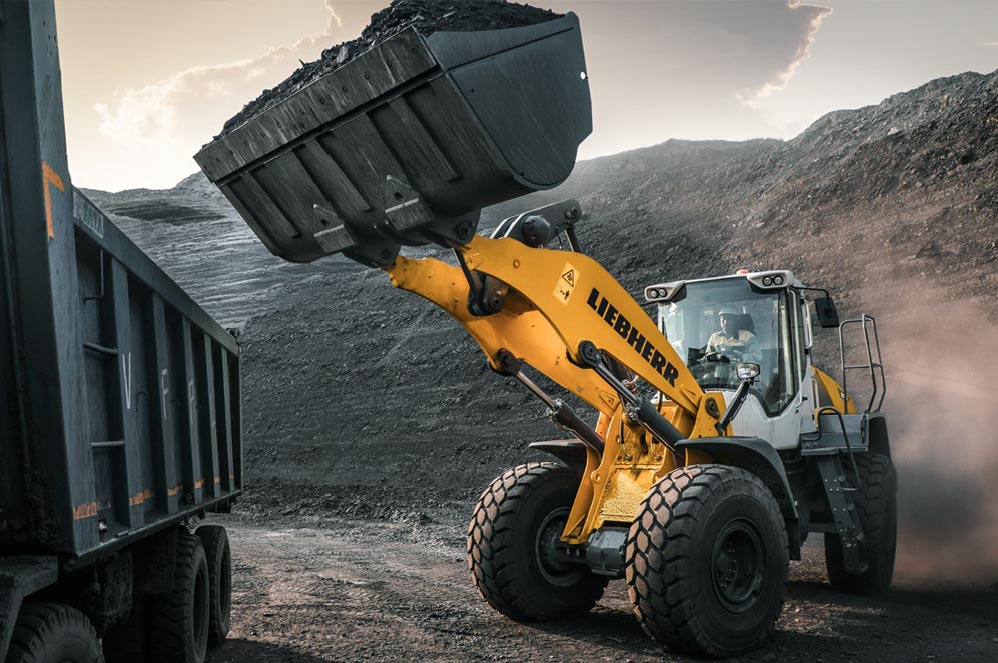

desi machines liebherr l566 wheel loader 2

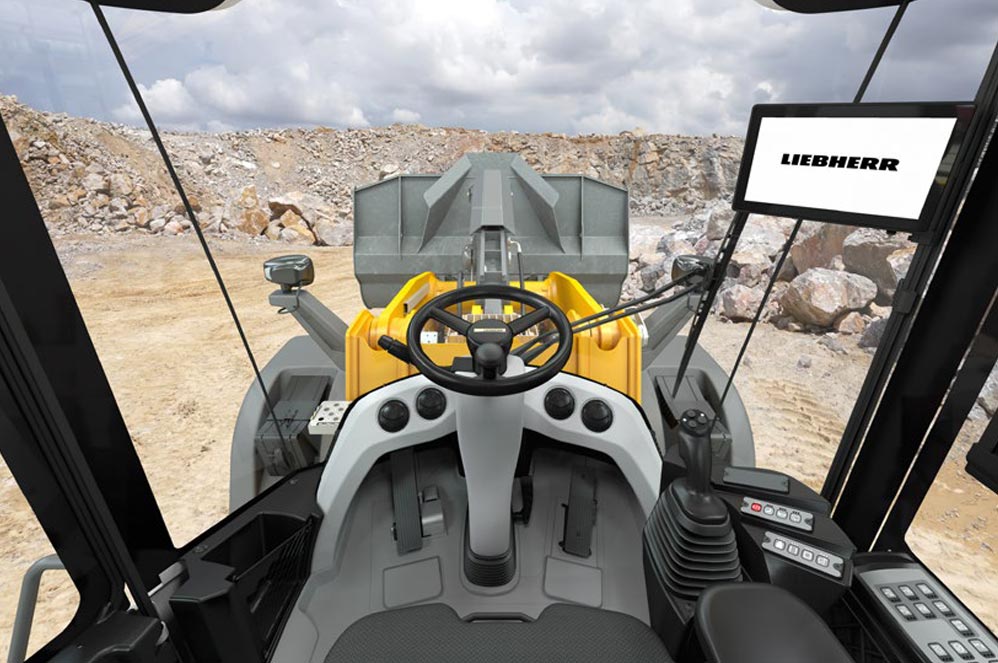

desi machines liebherr l566 wheel loader 3

Brand
Liebherr
Type
Medium (15-30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
John Deere 272 HP
Bucket
4.2 m³
Weight
23450 kg
Fwd. Speed
40 km/h
Dump Height
3090 mm
Tipping Load
15900 kg

Connect With Us:

Get the best price for the Liebherr L566 wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

John Deere 6090HFL75

Max Torque

1353 Nm @ 1400 rpm

Fuel Tank

450 L

Hydraulic System

290 L/min

Min. Ground Clearance

535 mm

Payload

7140 kg

Steering Angle

±38°

Drive Type

4-wheel drive (4WD)

Wheelbase

3820 mm

Tyres

26.5R25 L3

Max. Breakout Force

190 kN

Overall Length

9200 mm

Warranty

1 Yr. / 2000 hr.

AC Cabin

Standard

GPS

Optional

Features

Built for Heavy Lifting

The Liebherr L566 wheel loader in India provides a superior breakout force for mining and material handling.
Ideal for heavy-duty Indian operations involving high output with minimal wear and tear.

Fast & Simple Service Access

Single-door access to the majority of maintenance points for rapid checks and refills.
Centralized daily maintenance points assist in saving operating time over shifts.

Reduced Cooling Issues

The radiator located behind the cab is dust-resistant—ideal for dusty, arid Indian working conditions.
Improved airflow translates into improved performance with reduced overheating issues.

Low-Cost Operation

Liebherr's dealer network in India guarantees the availability of spare parts and technical assistance.
On-site service and remote troubleshooting enhance machine uptime and customer satisfaction.

Trusted After-Sales Network

Optional CarePack warranty plans offered for the L566 are engine, transmission, and full-machine coverage.
Select the plan that suits your project size, usage, and Indian climate requirements.

Extended Protection Plans

Optional CarePack warranty plans are available for the L566, including engine, transmission, and full-machine coverage.
Choose the plan that fits your project size, usage, and Indian climate demands.

Are you interested in buying Liebherr L566 Wheel Loader

Specifications

Product specification of Liebherr L566 Wheel Loader

ENGINE
POWER TRAIN
BRAKES
STEERING SYSTEM
AXLE AND FINAL DRIVE
SPEED
HYDRAULIC SYSTEM
SERVICE REFILL CAPACITIES
DIMENSIONS
PERFORMANCE

ENGINE

Make

John Deere 6090HFL75
Type

Water-cooled, turbo charged, intercooled, Electronic Common Rail high-pressure injection
Aspiration

Turbocharged
Emission

Stage II
Max. Power

272 HP (200 kW) @ 2000 rpm
Max Torque

1353 Nm @ 1400 rpm
Piston Displacement

9.0 L
No. of Cylinders

6 Cylinders
Battery

24V / 180Ah
Alternator

24V / 100A

POWER TRAIN

Transmission

Hydrostatic
Drive Type

4-wheel drive (4WD)
Torque Converter

NA

BRAKES

Service

Self-locking of the hydrostatic driveline (acting on all four wheels) and additional pumpaccumulator brake system with wet multi- disc brakes (two seperate brake circuits)
Parking

Electro-hydraulically actuated spring-loaded disc brake system on the transmission

STEERING SYSTEM

Type

Load-sensing articulated steering
Steering Angle

±38°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed
Rear Axle Type

Centre pivot, oscillating
Oscillation Angle

±13°

SPEED

Top Forward Speed

40 km/h
Top Reverse Speed

NA

HYDRAULIC SYSTEM

System Type

Load-sensing
Pump Type

Swash plate type variable flow pump
Max. Pump Flow

290 L/min
System Pressure

380 bar

SERVICE REFILL CAPACITIES

Fuel Tank

450 L
Hydraulic System

280 L
Engine Oil

34 L
Cooling System

55 L
Rear Axle Oil

42 L
Front Axle Oil

42 L
Hydraulic Tank

160 L
Transmission Oil

12.5 L
DEF Tank

20 L

DIMENSIONS

Overall Length With Bucket

9200 mm
Wheel Base

3820 mm
Height Over Cab

3590 mm
Height Over Exhaust

3315 mm
Min. Ground Clearance

535 mm
Width Over Tyres

2960 mm
Wheel Tread

2230 mm
Tyre Size

26.5R25 L3

PERFORMANCE

Bucket Capacity

4.2 m³
Bucket Width

3000 mm
Payload

7140 kg
Tipping Load Straight

18150 kg
Tipping Load Full Turn

15900 kg
Max. Breakout Force

190 kN
Operating Weight

23450 kg
Maximum Dump Angle

NA
Bucket Roll Back Angle Full Height

NA
Bucket Roll Back At Carry

NA
Bucket Roll Back At Ground Level

NA
Dumping Height, Fully Raised

3090 mm
Dumping Reach, Fully Raised

1305 mm
Max. Hinge Pin Height

4360 mm
Max. Digging Depth

100 mm
Turning Radius Over Tyres

7110 mm
Turning Radius Over Bucket

7690 mm

Faq's

Common Questions about Liebherr L566

What is the Liebherr L566 wheel loader price in India?

The Liebherr L566 wheel loader price in India is available on request. To get the latest on-road price of the Liebherr L566 based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

Where can I buy the Liebherr L566 wheel loader in India at the best price?

You can buy the Liebherr L566 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Liebherr dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Liebherr L566 price, compare dealer quotes, and enjoy expert assistance—all in one place.

What is the engine power of the Liebherr L566 wheel loader?

The Liebherr L566 wheel loader is powered by a John Deere 6090HFL75 diesel engine, delivering 272 HP (200 kW) @ 2000 rpm.

What is the operating weight of the Liebherr L566 wheel loader?

The operating weight of the Liebherr L566 wheel loader is approximately 23450 kg. The operating weight may vary slightly depending on specific configurations and attachments.

What is the fuel tank capacity of the Liebherr L566 wheel loader?

The Liebherr L566 wheel loader has a 450 litres diesel fuel tank, providing extended operation time without frequent refueling.

What is the bucket capacity of the Liebherr L566 wheel loader?

The bucket capacity of the Liebherr L566 is 4.2 cubic meters (m³).

What is the dump height of the Liebherr L566 wheel loader?

The Liebherr L566 wheel loader features a dump height of 3090 mm, ideal for heavy-duty construction tasks.

What is the warranty period of Liebherr L566 wheel loader?

The Liebherr L566 wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

How many gears are available in the Liebherr L566 wheel loader?

The Liebherr L566 wheel loader features a 4-wheel drive (4WD) system with a Hydrostatic transmission. It uses a continuously variable transmission (CVT) system, enabling efficient operation at speeds up to 40 km/h.

What are the key applications and uses of the Liebherr L566 wheel loader?

The Liebherr L566 is a heavy-duty loader designed for demanding material handling, with strong breakout force and smooth operation.

Where can I find spare parts for the Liebherr L566 wheel loader?
