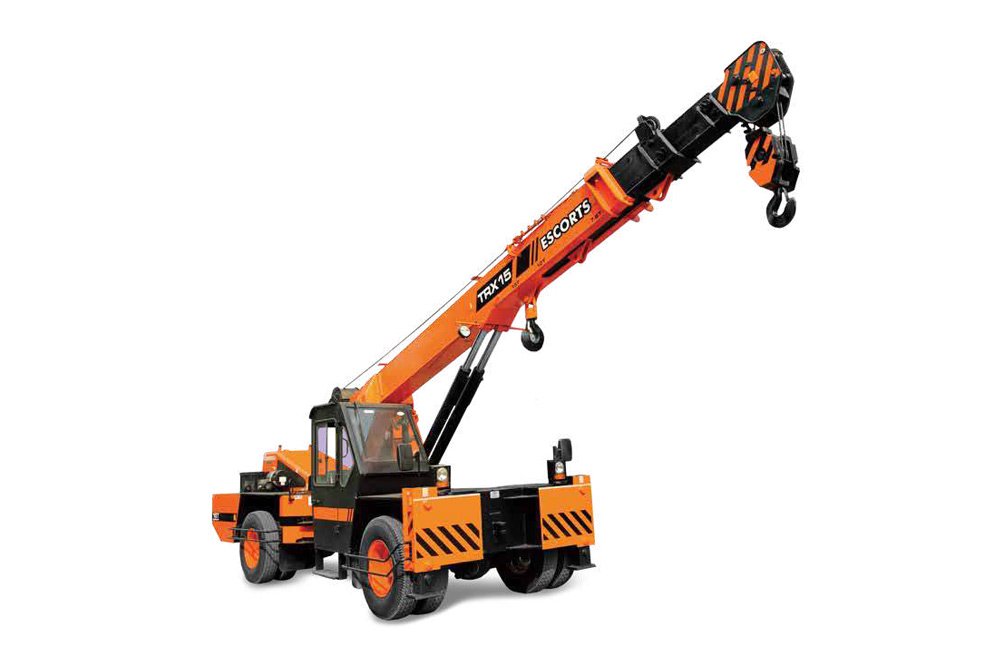

Escorts TRX 15 Crane

Escorts TRX 15 offers robust 15 tonne lift at 1.5 m radius, ideal for heavy-duty construction, industrial, and infrastructure material handling tasks.

Capable of lifting 0.9 tonne at 15.8 m reach, ensuring excellent reach versatility in urban and tight-jobsite environments.

Maximum hook height of 21 m supports elevated lifting needs, including multi-level maintenance and installation operations.

Powered by 75 HP (56 kW) Tata‑497 TC water‑cooled turbo diesel engine with 345 Nm torque @ 1400 rpm for dependable heavy-duty performance.

Engine is CEV Stage IV/V compliant, featuring turbocharging and ECU management, delivering fuel-efficient and emission-conscious operation.

Equipped with single dry‑type clutch and synchromesh 10F+2R gearbox, offering smooth gear shifts and precise terrain adaptability.

Four‑wheel drive grants exceptional traction on rough, uneven surfaces, ideal for mining sites and challenging project terrains.

Compact 7.2 m turning radius and travel speed up to 40–44 km/h ensure swift on-site mobility and tight space navigation.

Creep speed of 1.3 km/h enables precise load placement during lifting operations in confined or sensitive environments.

Four‑part boom includes three hydraulically powered sections plus fourth manually pinned for safety, easing extension control and operator precision.

Slotted boom design with rope‑compensation snatch block ensures balanced, vibration‑free lifts and structural longevity.

Boom luffing range from –10° to +65° supports flexible jobsite positioning in diverse terrains and structure types.

Front‑mounted all‑weather cabin offers excellent 360° visibility, large rear‑view mirror, reverse alarm, and adjustable seat for operator comfort.

Full pneumatic air‑S‑cam brakes dual‑circuit and spring‑fail‑safe parking brakes ensure dependable stopping, enhancing site safety.

Safety systems include overload audio warning, automatic rope‑compensation leveling, hose‑burst device, wheel guards and reverse gear camera.

Built with rugged chassis, industrial pneumatic tyres (11x20‑16 PR), and 250 mm clearance, ideal for Indian terrains and site roughness.

Unladen weight ~16 645 kg, fuel tank 220 L, hydraulic oil change period 1 000 hours ensures long, uninterrupted working cycles.

Supported by Escorts’ nationwide dealer network, spare‑parts availability, and ARAI‑certified IS:4573 compliance warranty, ensuring high uptime and resale value.
