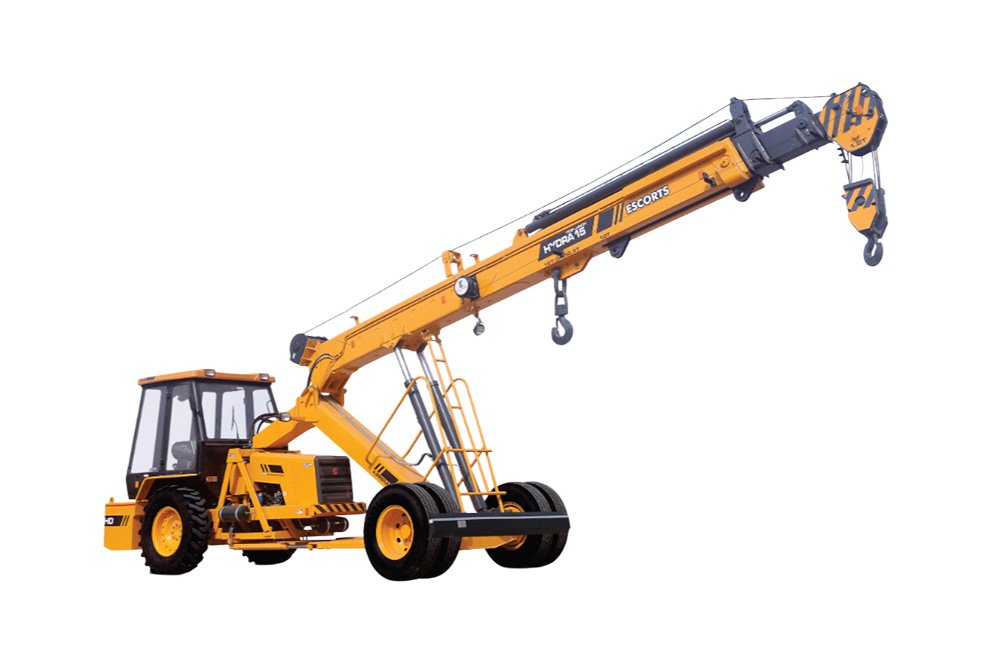

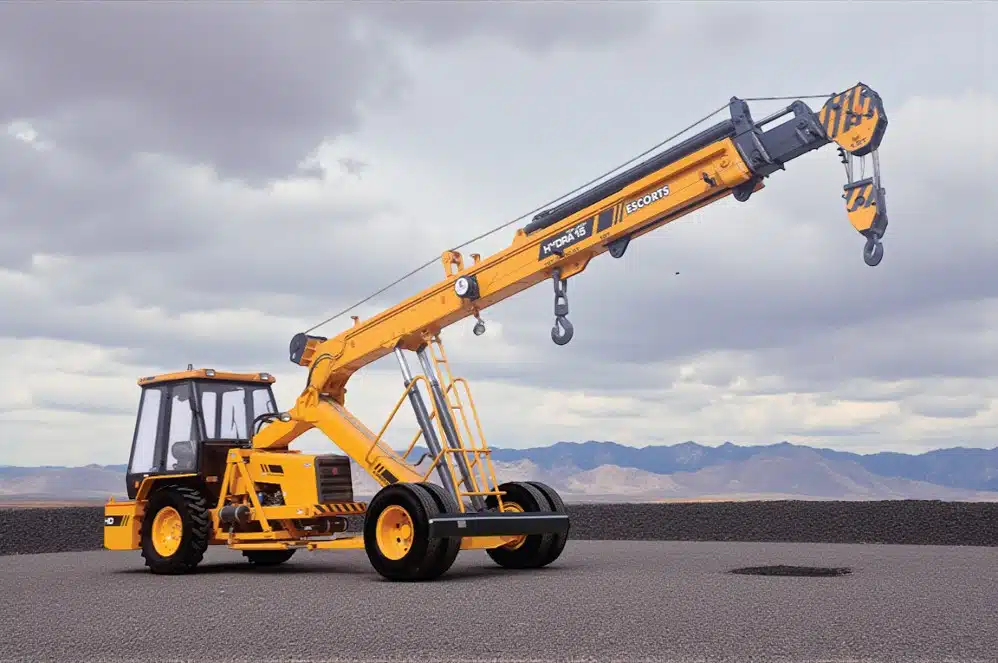

Escorts HYDRA 15 Top-Jack Crane

Escorts Hydra 15 Top Jack is a 15-ton hydra crane fitted with a roof-mounted top jack system for specialized lifting in construction, maintenance, and low-headroom situations across India. Powered by an Escorts Kubota diesel engine producing 50 HP, it provides dependable hydraulic performance in both standard and top jack modes. The crane has a 15-ton rated lifting capacity and a boom reaching 17.2 meters for various lifting needs. The top jack setup allows vertical lift operations in tunnels, underpasses, and low-headroom industrial facilities. Hydraulic load lock valves ensure load safety during both standard and inverted lift operations. The price for the Escorts Hydra 15 Top Jack crane in India ranges from ₹21 lakh to ₹24 lakh, depending on specifications and working conditions. It is ideal for specialized contractors, tunnel work, and crane rental businesses managing restricted-access sites.

  • Lifting Capacity

    15 Tonnes

  • Boom Height

    17.2 m

  • Engine

    Escorts Kubota 50 HP

  • icon alt1
    Weight

    12050 kg

  • Turning Radius

    7000 mm

  • Drive Type

    2 Wheel drive

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of Escorts HYDRA 15 Top-Jack

Engine Make

Escorts Kubota E4.391NA

Articulation

Up to 48°

Max. Speed

29 km/h

Fuel Tank

38 L

Hydraulic Tank

83 L

Overall Length

11900 mm

Overall Width

2550 mm

Wheel Base

4880 mm

Boom Luffing Range

-5° to + 55°

Medal Image
Warranty

1 Year

Features of Escorts HYDRA 15 Top-Jack

Powerful Kubota Engine Performance

  • The Escort Hydra 15 Top Jack crane runs on a dependable Kubota diesel engine, which delivers consistent performance for heavy-duty construction tasks.

  • The engine's design supports fuel efficiency, lowers emissions, and allows for long operational hours at busy infrastructure and industrial sites.

  • Its high torque output facilitates smooth lifting, carrying, and maneuvering, even when fully loaded on uneven terrain.

  • Kubota's proven engine technology boosts machine reliability, reduces downtime, and enables continuous pick and carry operations.

Heavy-Duty Top Jack Lifting Capability

  • The Hydra 15 Top Jack crane is built for strong vertical lifting, making it ideal for erecting, placing, and handling materials.

  • The Top Jack design improves load stability and control during lifting, lowering, and positioning tasks at construction sites.

  • This crane's structure supports efficient lifting in tight spaces where precision and safety are crucial.

  • Its lifting mechanism enhances productivity in civil construction, precast handling, and industrial maintenance projects.

Pick and Carry Crane Design Efficiency

  • The Escort Hydra 15 serves as an effective pick and carry crane, cutting the need for extra material handling equipment.

  • Its built-in mobility allows for lifting and moving loads over short distances without moving the machine each time.

  • This design saves significant time, labor, and operational costs on construction and infrastructure projects.

  • It is perfect for urban construction sites where space limitations require compact yet powerful crane solutions.

Strong Chassis and Structural Durability

  • The sturdy chassis ensures long service life and reliable performance in tough working conditions.

  • High-strength structural parts provide stability during lifting, transporting, and turning loads.

  • The durable frame design reduces vibration and boosts operator confidence during extended crane operations.

  • It is made to endure harsh site conditions, including rough ground, heavy loads, and daily repeated use.

Operator Comfort and Safety Features

  • The Escort Hydra 15 Top Jack crane features an ergonomically designed operator cabin, which helps reduce fatigue during long shifts.

  • Clear visibility around the crane enhances operational accuracy and improves job site safety.

  • The user-friendly control layout allows for smooth operation, precise load handling, and quick learning for operators.

  • The safety-focused design supports controlled lifting, contributing to safer construction and material handling settings.

Low Maintenance and Cost-Effective Operation

  • The Hydra 15 Top Jack crane is designed for easy upkeep, cutting down service time and overall ownership costs.

  • Reliable parts and proven engineering help reduce breakdowns and extend the equipment's life.

  • Fuel-efficient operation lowers daily running costs for construction, industrial, and infrastructure projects.

  • The Escort crane support system ensures long-term value and dependable performance for contractors and fleet owners.

Are you interested in buying Escorts HYDRA 15 Top-Jack Crane

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of Escorts HYDRA 15 Top-Jack

    Engine

    • Model

      Escorts Kubota E4.391NA

    • Type

      4 cylinders (3.9 L), Naturally Aspirated, Electronic, Common Rail Direct Injection, CEV-V diesel engine

    • Max. Power

      50 HP (37 kW) @ 2200 RPM

    • Battery

      12 V, Negative Earth, 88 Ah

    Transmission & Clutch

    • Drive

      2 Wheel drive

    • Type

      Heavy duty transmission especially developed for crane application, constant mesh gearbox coupled with straight drive axle, 8F & 2R speeds with high/low selector lever

    • Creep Speed

      1.7 km/h

    • Max. Speed (Without Load)

      29 km/h

    • Clutch

      Heavy duty cerametallic clutch, asbestos free for longer life

    Steering

    • Type

      Articulated power steering hydraulically controlled through 2 hydraulic jacks

    • Articulation

      Up to 48°

    • Min. Turning Radius

      7000 mm

    Hoist Mechanism

    • Hoist

      6 falls, Hydraulic winch (Winch Capacity 12T), Rope dia 13 mm

    Brakes

    • Front Wheel

      ‘S’ cam pneumatically actuated drum brakes

    • Rear Wheel

      Pneumatically actuated disc brakes

    • Parking

      Hand control valve operated, Air-assisted parking brake at front wheels

    Hydraulic System

    • Pump

      Vane type hydraulic pump

    • Control Valve

      4 spool control valve with built in pressure relief valve

    • Hydraulic Filter

      Suction Line has 100 mesh inline strainer while return line has 25 microns full flow filte

    Service Capacity

    • Fuel Tank

      38 L

    • Hydraulic Tank

      83 L

    Track

    • Front

      1980 mm

    • Rear

      1680 mm

    Overall Dimensions & Weight

    • Length

      11900 mm

    • Width

      2550 mm

    • Height

      3100 mm

    • Wheel Base

      4880 mm

    • Operating Weight

      12050 kg

    Boom

    • Telescoping

      4-part, 3 part hydraulically powered & fully synchronized, 4th part power extended & manually pinned

    • Derricking

      Through double acting jacks

    • Boom Luffing Range

      -5° to + 55°

    • Height

      17.2 m

    Tyres

    • Front

      11.00 x 20-16 PR (4 Nos.)

    • Rear

      13.00 x 24-12 PR (2 Nos.)

    Why Choose Escorts HYDRA 15 Top-Jack

    • The HYDRA 15 Top-Jack is a specific application variant of the mainstream HYDRA 15 — same Escorts Kubota 50 HP engine and 15T capacity, but with a top-mounted hydraulic jack system that changes lifting geometry and unlocks specific working scenarios.
    • Why does the Top-Jack variant matter? Because top-mounted jack configuration extends lifting reach in vertical dimension beyond what standard HYDRA 15 can do. Specific applications that benefit. Warehouse mezzanine and high-rack stacking operations; two-storey industrial building maintenance where height reach matters more than raw capacity; tall steel-fabrication and truss-lifting work; pre-cast concrete panel stacking at height.
    • The top-jack geometry isn't a universal upgrade — it trades horizontal reach for vertical reach. For applications where vertical access is the operational bottleneck, the Top-Jack variant solves a problem the standard HYDRA 15 cannot.
    • Escorts Kubota 50 HP engine brings the same Japanese engineering discipline and tractor-network service reach through India's deepest rural mechanic footprint. Constant-mesh gearbox with 8F+2R and high/low selector suits the specialised working pattern.
    • HYDRA brand heritage carries the operator-familiarity and resale-value advantages of the category-defining line.
    • For warehouse, two-storey industrial maintenance and specialised height-reach 15T operators, the HYDRA 15 Top-Jack is the considered geometry-specialist variant.
    Common Questions

    FAQs about Escorts HYDRA 15 Top-Jack

    What is the Escorts HYDRA 15 Top-Jack crane price in India?

    The Escorts HYDRA 15 Top – Jack Hydra crane price in India ranges from ₹ 21 – 24 Lakhs. However, the on-road price may vary depending on the location, dealer, taxes, insurance, and additional features.

    What is the engine power of the Escorts HYDRA 15 Top-Jack crane?

    The Escorts HYDRA 15 Top-Jack is powered by an Escorts Kubota E4.391NA CEV-5 diesel engine, delivering 50 HP (37 kW) @ 2200 RPM.

    What is the lifting capacity of the Escorts HYDRA 15 Top-Jack crane?

    The Escorts HYDRA 15 Top-Jack crane has a lifting capacity of 15 tonnes.

    What is the maximum boom height of the Escorts HYDRA 15 Top-Jack crane?

    The maximum boom height of the Escorts HYDRA 15 Top-Jack crane is 17.2 meters (when fully extended).

    Where can I buy the Escorts HYDRA 15 Top-Jack in India at the best price?

    You can purchase the Escorts HYDRA 15 Top-Jack crane in India through Desi Machines, the best online platform for comparing and purchasing construction equipment from verified dealers near you. We connect you with authorized Escorts dealers across India and help you get multiple price quotes from different vendors so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Escorts HYDRA 15 Top-Jack on-road price, compare dealer quotes, and enjoy expert assistance—all in one place.

    What is the warranty period of the Escorts HYDRA 15 Top-Jack?

    The Escorts HYDRA 15 Top-Jack in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    Where can I find spare parts for the Escorts HYDRA 15 Top-Jack crane?

    You can find genuine spare parts for the Escorts HYDRA 15 Top-Jack at authorized Escorts dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on crane spare parts.
