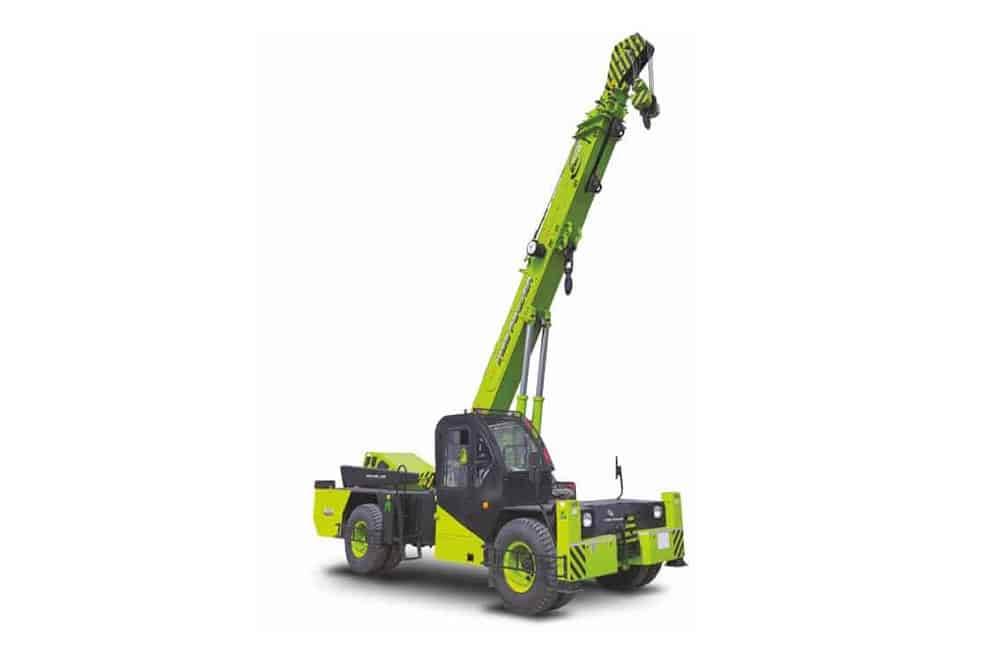

Indo Power 20FNT Crane

The Indo Power 20FNT farana crane delivers 20-ton lifting capacity powered by a BS-IV 101 HP engine and a 4-part telescopic boom reaching up to 22.6 m. Its heavy-duty winch and articulated steering enhance maneuverability. This hydraulic farana crane is ideal for demanding sites that require smooth operation, maximum reach, and superior load-handling efficiency.

Indo Power 20FNT Hydra Crane | Desi Machines

Type
Pick & Carry Crane
Operating Cost
₹ 40 - 42 Lakhs
Ex-Showroom Price
₹ 40 - 42 Lakhs

Weight
16430 kg

Connect With Us:

Get the best Indo Power 20FNT farana crane price in India from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Features

Powerful Engine and Performance

It has a 101 HP DI, TCIC water-cooled diesel engine, providing high torque and excellent fuel efficiency for heavy lifting operations.
The durable transmission system has eight forward gears and two reverse gears, delivering consistent power for demanding crane jobs.
It can achieve a top travel speed of 50 km/h, allowing quick movement between sites and boosting project productivity.

Hydraulic and Hoist System

Features a six-fall hydraulic winch system with fail-safe brakes for safety and lifting accuracy.
The vane-type hydraulic pump uses a 5/6 spool control valve to ensure smooth, reliable, and efficient crane operation.
A fully synchronized four-part telescopic boom offers excellent lifting height and reach for various construction tasks.

Boom Reach and Lifting Capacity

Provides a boom height of 19.59 meters for high-reach tasks.
Offers a horizontal reach of 17 meters, perfect for industrial and infrastructure projects.
With a 20-ton load capacity, it delivers remarkable strength for heavy lifting and boosts efficiency on job sites.

Safety and Stability Features

Includes fail-safe air brakes and counterbalance valves for maximum safety on rough terrain.
Equipped with a self-adjusting hook block and a hydraulic cut-off load indicator for secure lifting.
Optional accessories such as a fire extinguisher, beacon light, and front sensors improve workplace safety.

Operator Comfort and Ergonomic Cabin

The cabin is designed for all weather with wide visibility, ensuring comfort and safety during long hours.
Ergonomic control systems and a rear-view camera enhance operator precision and convenience.
An optional air-conditioned cabin and helper seat provide extra comfort in extreme weather and during long shifts.

Heavy-Duty Build and Reliable Design

Built on a strong chassis with articulated power steering, ensuring stability on loose, sandy, or rocky surfaces.
High ground clearance and a 4-wheel drive system improve mobility across all job site conditions.
Includes a dragging winch, outriggers, and a heavy-duty axle design that offer superior durability and strength.

Powerful Engine and Performance

It has a 101 HP DI, TCIC water-cooled diesel engine, providing high torque and excellent fuel efficiency for heavy lifting operations.
The durable transmission system has eight forward gears and two reverse gears, delivering consistent power for demanding crane jobs.
It can achieve a top travel speed of 50 km/h, allowing quick movement between sites and boosting project productivity.

Hydraulic and Hoist System

Features a six-fall hydraulic winch system with fail-safe brakes for safety and lifting accuracy.
The vane-type hydraulic pump uses a 5/6 spool control valve to ensure smooth, reliable, and efficient crane operation.
A fully synchronized four-part telescopic boom offers excellent lifting height and reach for various construction tasks.

Boom Reach and Lifting Capacity

Provides a boom height of 19.59 meters for high-reach tasks.
Offers a horizontal reach of 17 meters, perfect for industrial and infrastructure projects.
With a 20-ton load capacity, it delivers remarkable strength for heavy lifting and boosts efficiency on job sites.

Safety and Stability Features

Includes fail-safe air brakes and counterbalance valves for maximum safety on rough terrain.
Equipped with a self-adjusting hook block and a hydraulic cut-off load indicator for secure lifting.
Optional accessories such as a fire extinguisher, beacon light, and front sensors improve workplace safety.

Operator Comfort and Ergonomic Cabin

The cabin is designed for all weather with wide visibility, ensuring comfort and safety during long hours.
Ergonomic control systems and a rear-view camera enhance operator precision and convenience.
An optional air-conditioned cabin and helper seat provide extra comfort in extreme weather and during long shifts.

Heavy-Duty Build and Reliable Design

Built on a strong chassis with articulated power steering, ensuring stability on loose, sandy, or rocky surfaces.
High ground clearance and a 4-wheel drive system improve mobility across all job site conditions.
Includes a dragging winch, outriggers, and a heavy-duty axle design that offer superior durability and strength.

Specifications

Product specification of Indo Power 20FNT Crane

Engine

Model

Volvo Eicher - CEV BS IV
Type

DI, TCIC water cooled diesel engine
Max. Power

101 HP (74 kW) @ 2300 RPM
Battery

12V - DC
Alternator

NA

Lifting Capacity

Max. Lifiting Capacity

20 Tonnes

Tranmission & Clutch

Drive

4WD
Type

Heavy-duty transmission for crane application. Synchromesh gearbox with auxiliary gearbox, 8 forward and 2 reverse speeds with the high and low selectors.
Creep Speed

NA
Axles

Front axle is rigidly mounted, and the Rear axle is mounted with two semi-elliptical Springs
Max. Speed (Without Load)

50 km/h
Clutch

Single plate, heavy duty dry friction type clutch plate especially designed for crane application.

Steering

Type

Articulated power steering, hydraulically controlled through two double acting hydraulic rams.
Articulation

Upto 40°
Min. Turning Radius

7000 mm

Hoist Mechanism

Hoist

Six falls with fail safe brake.
Hoist Speed

NA

Brakes

Front Wheel

Fully air operated ‘S’ cam dual circuit brakes on front wheels
Rear Wheel

Fully air operated ‘S’ cam dual circuit brakes on rear wheels
Parking Brake

Air operated fail safe brakes on front & rear wheels.

Hydraulics

Pump Type

Vane type hydraulic pump.
Control Valve

5/6 spool control valve double acting with built in pressure relief valve for trouble free operation.
Hydraulic Filter

NA

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

10300 mm
Overall Width

2450 mm
Overall Height

3050 mm
Wheel Base

4000 mm
Operating Weight

16430 kg
Front Track

1830 mm
Rear Track

1830 mm
Front Tyres

12.00 x 20 - 18 PR (4 Nos.)
Rear Tyres

12.00 x 20 - 18 PR (4 Nos.)

Boom

Telescoping

4 part boom, 3 part hydraulically powered & fully synchronised. 4th part power extended and manually pinned for safety
Derricking

Through two double acting cylinders.
Boom Luffing Time

NA
Boom Luffing Range

NA
Height

19.59 m

Frequently Asked Question

01. What is the Indo Power 20FNT crane price in India?

Ans.

The Indo Power 20FNT crane price in India ranges between ₹ 40 – 42 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.

02. What is the engine power of the Indo Power 20FNT crane?

Ans.

The Indo Power 20FNT crane is powered by a Volvo Eicher – CEV BS IV diesel engine, delivering 101 HP (74 kW) @ 2300 RPM.

03. What is the lifting capacity of the Indo Power 20FNT crane?

Ans.

The Indo Power 20FNT crane has a lifting capacity of 20 tonnes.

04. What is the maximum boom height of the Indo Power 20FNT crane?

Ans.

The maximum boom height of the Indo Power 20FNT crane is 19.59 m meters (when fully extended).

05. What is the operating weight of the Indo Power 20FNT crane?

Ans.

The operating weight of the Indo Power 20FNT crane is approximately 16430 kg.

06. Where can I buy the Indo Power 20FNT in India at the best price?

Ans.

You can buy the Indo Power 20FNT farana crane from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

07. What is the warranty period of the Indo Power 20FNT?

Ans.

The Indo Power 20FNT in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

08. Where can I find spare parts for the Indo Power 20FNT crane?

Ans.

You can find genuine spare parts for the Indo Power 20FNT at authorized Indo Farm dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on crane spare parts.
