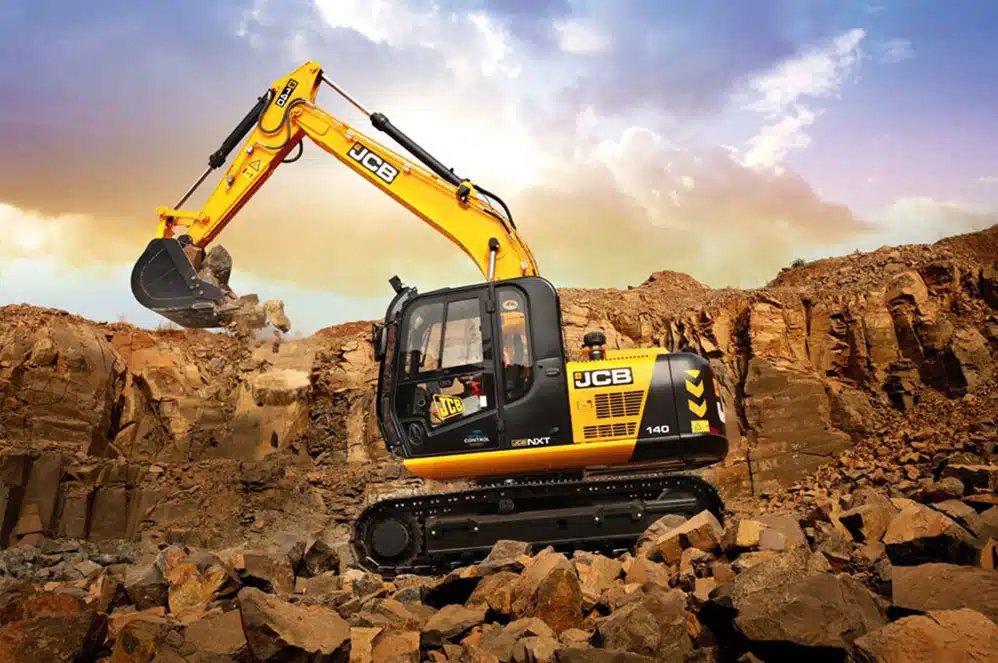

JCB NXT 140 Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
JCB
Type
Small (6-15 Ton)
Operating Cost
₹ 49-50 Lakhs
Ex-Showroom Price
₹ 49-50 Lakhs

Weight
14320 Kg
Bucket
0.63 - 0.72 m³
Digging Depth
5200 mm
Engine
Cummins 100 HP
Warranty
1 Yr. / 2000 hr.
Boom
4700 mm

Quick Overview:

With unmatched efficiency and versatile performance, JCB NXT 140 small excavator is suited for construction and earthmoving tasks.

Connect With Us:

Get the best price for the JCB NXT 140 Small Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins 4BT 3.9C

Fuel Tank

253 L

Engine Displacement

3.9 L

Under Carriage

3550 mm

Hydraulic System

2 x 120 L/min

Arm

2100 mm

Max Digging Reach

8030 mm

Fuel Consumption

10 L/hour

Overall Width

2410 mm

Overall Length

7630 mm

Bucket Digging Force

88 kN

Tailswing Radius

2150 mm

Track Shoe Width

500 mm

AC Cabin

Optional

GPS

Standard

Features

NXT Level of Reliability

With reinforced boom and arm, dust and waterproof electrical connectors and more structural enhancements, the JCB NXT 140 provides the NXT level of reliability.
Heavy duty track link with higher sectional area provides higher strength and durability even while working in hard strata.
Reinforced boom and arm are made of high tensile steel that offers higher strength & longer life in most arduous applications
Dust and waterproof IP67 / IP69 connectors have been used in electrical connectors for longer life.
0.72 cum. bucket is designed for longer life in general applications and 0.63 cum. stronger bucket with side cutter specially designed for quarry application.

NXT Level of Intelligence

The JCB NXT 140 comes with a built-in digital display screen that shows real-time operational data, powered by IntelliControl. See the amount of fuel left in the tank, engine modes and much more with IntelliControl.
Best-in-class digital display screen with anti-glare informative colour display.
Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto idle status & time setting and much more.
Critical maintenance information like colour coded health alerts, easy diagnostic system, service warning alerts and much more.

NXT Level of Maintenance

The JCB NXT 140 comes with a new power mode, regenerative hydraulic circuit and more for the NXT level of performance.
New Power Plus mode for 6%* higher output.
Regenerative hydraulic circuit.
High operating weight for high stability & lift capacity.
Excellent bucket and arm tear out forces result in higher output and faster completion of work.

NXT Level of Connect

With Advanced Telematics Technology on the JCB NXT 140 – controlled by the Live Link mobile application, you can monitor your machine remotely. Get health and maintenance alerts, mode wise machine usage and more with Live Link mobile application.
Live Link application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
Advanced Telematics Technology for idle time monitoring.
Customised report on performance and fleet management.
Critical health alerts and maintenance reminders through Live Link application.

NXT Level of Care

Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care.
Huge network of 700+ dealer outlets and over 5 000 trained engineers.
Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
Our service engineers are equipped with Smart Serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
Easy access to genuine parts through JCB Genuine Parts mobile application.

NXT Level of Reliability

With reinforced boom and arm, dust and waterproof electrical connectors and more structural enhancements, the JCB NXT 140 provides the NXT level of reliability.
Heavy duty track link with higher sectional area provides higher strength and durability even while working in hard strata.
Reinforced boom and arm are made of high tensile steel that offers higher strength & longer life in most arduous applications
Dust and waterproof IP67 / IP69 connectors have been used in electrical connectors for longer life.
0.72 cum. bucket is designed for longer life in general applications and 0.63 cum. stronger bucket with side cutter specially designed for quarry application.

NXT Level of Intelligence

The JCB NXT 140 comes with a built-in digital display screen that shows real-time operational data, powered by IntelliControl. See the amount of fuel left in the tank, engine modes and much more with IntelliControl.
Best-in-class digital display screen with anti-glare informative colour display.
Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto idle status & time setting and much more.
Critical maintenance information like colour coded health alerts, easy diagnostic system, service warning alerts and much more.

NXT Level of Maintenance

The JCB NXT 140 comes with a new power mode, regenerative hydraulic circuit and more for the NXT level of performance.
New Power Plus mode for 6%* higher output.
Regenerative hydraulic circuit.
High operating weight for high stability & lift capacity.
Excellent bucket and arm tear out forces result in higher output and faster completion of work.

NXT Level of Connect

With Advanced Telematics Technology on the JCB NXT 140 – controlled by the Live Link mobile application, you can monitor your machine remotely. Get health and maintenance alerts, mode wise machine usage and more with Live Link mobile application.
Live Link application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
Advanced Telematics Technology for idle time monitoring.
Customised report on performance and fleet management.
Critical health alerts and maintenance reminders through Live Link application.

NXT Level of Care

Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care.
Huge network of 700+ dealer outlets and over 5 000 trained engineers.
Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
Our service engineers are equipped with Smart Serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
Easy access to genuine parts through JCB Genuine Parts mobile application.

Specifications

Product specification of JCB NXT 140 Excavator

ENGINE

Model

Cummins 4BT 3.9C
Fuel

Diesel
Type

Water cooled, 4 stroke, 4-cylinder in line, direct injection, turbocharged.
Rated Engine Power

100 HP (75 kW) @ 2000 rpm
Maximum Torque

NA
Piston Displacement

3.9 L
Alternator

24V / 75A
Battery

2 x 12V
Starting Motor

24V

UNDERCARRIAGE

No of Top Rollers

1
No of Bottom Rollers

7
Track Shoes (Each Side)

44
Track Guard

1
Track Shoe Width

500 mm
Ground Bearing Pressure

50.9 kPa
Track Tensioning

Grease
Gradeability

70% (35°)
Travel Speed-Low

3.6 Km/h
Travel Speed-High

NA
Max Tracking Force

104.1 kN

HYDRAULIC SYSTEM

Hydraulic Pump

2 variable displacement axial piston type
Maximum Flow

2 x 120 L/min
Pilot Pump

Gear Pump
Implement Circuit

33.0 MPa
Swing Circuit

27.9 MPa
Travel Circuit

33.0 MPa
Pilot Circuit

4.0 MPa

HYDRAULIC MOTORS

Travel

Axial piston type, fully guarded within undercarriage frame. Hydraulic counter balance valve to prevent overspeeding on gradients.
Swing

Axial piston type Hydraulic braking plus, spring applied disc type parking brake.

SERVICE CAPACITIES

Fuel Tank

253 L
Engine Coolant

21.2 L
Engine Oil

13.5 L
Hydraulic System

173 L
Hydraulic Tank

73 L

MACHINE WEIGHTS

Operating Weight

14320 Kg

WORKING RANGE

Boom Length

4700 mm
Arm Length

2100 mm
Max. Digging Reach

8030 mm
Max. Digging Reach on Ground

7880 mm
Max. Digging Depth

5200 mm
Max. Digging Height

8800 mm
Max. Dumping Height

6370 mm
Max. Vertical Wallcut Depth

4520 mm
Min. Swing Radius

2160 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

88 kN
Arm Digging Force

71.5 kN
Swing Speed

13.6 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.63 - 0.72 m³

STATIC DIMENSIONS

Overall Length

7630 mm
Overall Width

2410 mm
Overall Height

3000 mm
Overall Height of Cab

3000 mm
Upper Width

NA
Track Lengh on Ground

2780 mm
Undercarriage Overall Length

3550 mm
Tailswing Radius

2150 mm
Min. Ground Clearance

460 mm
Track Gauge

1990 mm
Width Over Tracks

2490 mm
Track Height

815 mm
Counterweight Clearence

910 mm
Track Shoe Width

500 mm

Frequently Asked Question

01. What is the JCB NXT 140 Excavator price in India?

Ans.

The JCB NXT 140 Excavator price in India ranges between ₹ 49 – 50 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a JCB NXT 140 excavator?

Ans.

You can buy the JCB NXT 140 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the JCB NXT 140 Excavator come with financing and insurance options?

Ans.

Yes, the JCB NXT 140 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the JCB NXT 140 excavator?

Ans.

The operating weight of the JCB NXT 140 excavator is approximately 14320 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the JCB NXT 140 excavator?

Ans.

The JCB NXT 140 excavator is powered by a Cummins 4BT 3.9C engine, delivering 100 HP (75 kW) at 2000 rpm.

06. What is the maximum digging depth of the JCB NXT 140 excavator?

Ans.

The JCB NXT 140 excavator has a maximum digging depth of 5200 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the JCB NXT 140 Excavator?

Ans.

The bucket capacity of the JCB NXT 140 Excavator ranges from 0.63 to 0.72 cubic meters (m³).

08. What is the warranty period for the JCB NXT 140 excavator?

Ans.

The JCB NXT 140 Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the JCB NXT 140 excavator?

Ans.

You can find genuine spare parts for the JCB NXT 140 excavator at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the JCB NXT 140 Excavator?

Ans.

The JCB NXT 140 excavator has a 253 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the JCB NXT 140 excavator?

Ans.

The JCB NXT 140 excavator has an average fuel consumption of 10 litres per hour, depending on factors such as load, terrain, and operating conditions
