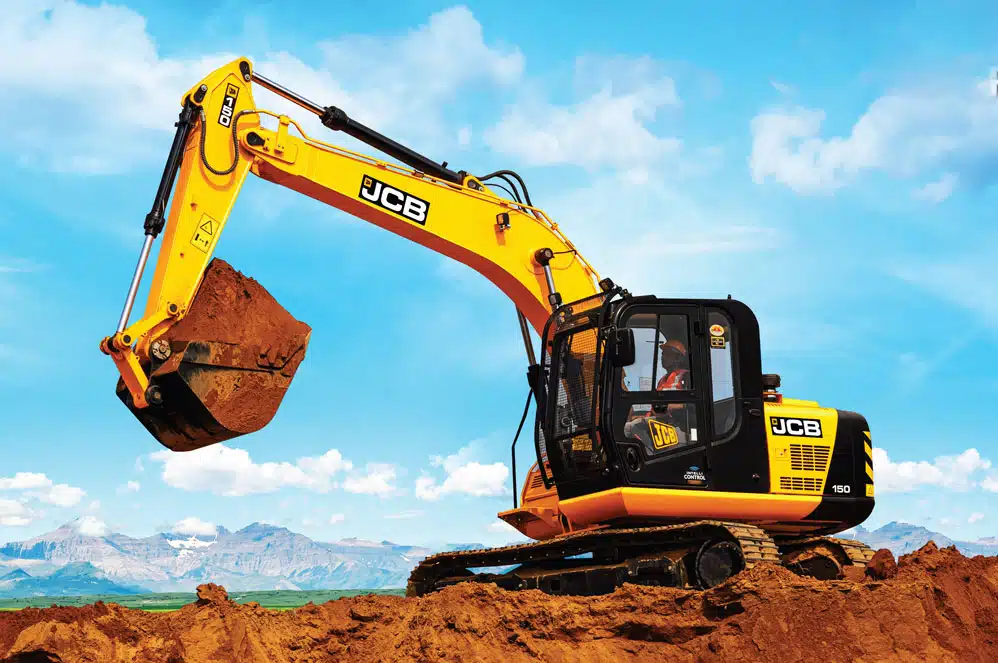

JCB NXT 150 Excavator

desi-machines-jcb-excavator-nxt-150-featured

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
JCB
Type
Small (6-15 Ton)
Operating Cost
₹ 50-52 Lakhs
Ex-Showroom Price
₹ 50-52 Lakhs

Weight
14700 Kg
Bucket
0.75 m³
Digging Depth
5210 mm
Engine
Cummins 100 HP
Warranty
1 Yr. / 2000 hr.
Boom
4700 mm

Quick Overview:

Featuring exceptional power and cost-effective performance, the JCB NXT 150 small excavator is used for construction and light engineering tasks.

Connect With Us:

Get the best price for the JCB NXT 150 Small Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins 4BT 3.9C

Fuel Tank

253 L

Engine Displacement

3.9 L

Under Carriage

3550 mm

Hydraulic System

2 x 120 L/min

Arm

2100 mm

Max Digging Reach

8030 mm

Fuel Consumption

Overall Width

2410 mm

Overall Length

7710 mm

Bucket Digging Force

92.4 kN

Tailswing Radius

2150 mm

Track Shoe Width

600 mm

AC Cabin

Optional

GPS

Standard

Features

NXT Level of Efficiency & Comfort

The JCB NXT 150 is highly fuel-efficient with the energy-saving ecoHYDRAULICS .
ecoHYDRAULICS minimise the hydraulic losses resulting in enhanced fuel efficiency, thus increasing savings.
A one-touch idler deceleration system helps to reduce engine rpm by just giving one touch to the switch.
Regenerative Hydraulic System for higher operating speeds
Enhanced operating weight for better stability, and evenly distributed load for low ground bearing pressure.
A powerful AC cabin with rotary switch controls and a thin and easy-to-use joystick.
Laminated glass on the front and right-hand side of the cabin.
Heavy-duty cab guards and 6 nos. viscous mounts to absorb vibration for operator comfort.

NXT Level of Performance

Achieve the NXT level of performance with 3 different power modes and higher output.
3 user-friendly power modes- Power Plus, Power, Economy.
Excellent bucket and arm tear-out forces resulting in higher output.
A 3.6 rpm swing speed completes digging in lesser time and increases the productivity of the machine.

NXT Level of Care & Easy Maintenance

Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care and ease of maintenance with leading service intervals.
A huge network of 700+ dealer outlets and over 5 000 trained engineers.
Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
Our service engineers are equipped with Smart Serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
Easy access to genuine parts through JCB Genuine Parts mobile application.
Enhanced maintenance intervals for Engine Oil and Filters of 500 Hours, hydraulic filter replacement at 1000 hours, and hydraulic oil replacement at every 5000 hours.

NXT Level of Reliability

With a new heavy-duty boom and arm, the JCB NXT 150 Excavator is dependable and durable.
0.75 cum heavy-duty bucket for high output.
600mm wider & strong shoe track with large section links & rollers for better stability in slush grounds.
Heavy Duty track frame with idler area reinforcements.
2 nos. of track guides on each side-retain the track in its position while working in tough underfoot conditions.
Heavy-duty Front Guard and upper frame with reinforced side member.
New heavy-duty boom with reinforcement and cast pivot end at boom foot joint. Improved cross-section area for high strength.

NXT Level of Intelligence & Connect

Be assured of your JCB excavator’s service, operation, and security with the advanced telematics system, LiveLink.
Stay connected 24x7 and monitor your machine operations.
LiveLink application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
Advanced Telematics Technology for idle time monitoring.
Customised daily reports on performance and fleet management.
Critical health alerts and maintenance reminders through the JCB LiveLink mobile and website application.
Advanced self-diagnosis system with error codes and multi-coloured warning alerts for easy and quick maintenance.

NXT Level of Intelligence

IntelliControl is a new intelligent way to offer excellent fuel efficiency and productivity with the utmost ease of use and control.
Best-in-class digital display screen with anti-glare informative colour display.
Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto-idle status & time setting, and much more.
Critical maintenance information like colour coded health alerts, an easy diagnostic system, service warning alerts, and much more.

NXT Level of Efficiency & Comfort

The JCB NXT 150 is highly fuel-efficient with the energy-saving ecoHYDRAULICS .
ecoHYDRAULICS minimise the hydraulic losses resulting in enhanced fuel efficiency, thus increasing savings.
A one-touch idler deceleration system helps to reduce engine rpm by just giving one touch to the switch.
Regenerative Hydraulic System for higher operating speeds
Enhanced operating weight for better stability, and evenly distributed load for low ground bearing pressure.
A powerful AC cabin with rotary switch controls and a thin and easy-to-use joystick.
Laminated glass on the front and right-hand side of the cabin.
Heavy-duty cab guards and 6 nos. viscous mounts to absorb vibration for operator comfort.

NXT Level of Performance

Achieve the NXT level of performance with 3 different power modes and higher output.
3 user-friendly power modes- Power Plus, Power, Economy.
Excellent bucket and arm tear-out forces resulting in higher output.
A 3.6 rpm swing speed completes digging in lesser time and increases the productivity of the machine.

NXT Level of Care & Easy Maintenance

Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care and ease of maintenance with leading service intervals.
A huge network of 700+ dealer outlets and over 5 000 trained engineers.
Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
Our service engineers are equipped with Smart Serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
Easy access to genuine parts through JCB Genuine Parts mobile application.
Enhanced maintenance intervals for Engine Oil and Filters of 500 Hours, hydraulic filter replacement at 1000 hours, and hydraulic oil replacement at every 5000 hours.

NXT Level of Reliability

With a new heavy-duty boom and arm, the JCB NXT 150 Excavator is dependable and durable.
0.75 cum heavy-duty bucket for high output.
600mm wider & strong shoe track with large section links & rollers for better stability in slush grounds.
Heavy Duty track frame with idler area reinforcements.
2 nos. of track guides on each side-retain the track in its position while working in tough underfoot conditions.
Heavy-duty Front Guard and upper frame with reinforced side member.
New heavy-duty boom with reinforcement and cast pivot end at boom foot joint. Improved cross-section area for high strength.

NXT Level of Intelligence & Connect

Be assured of your JCB excavator’s service, operation, and security with the advanced telematics system, LiveLink.
Stay connected 24x7 and monitor your machine operations.
LiveLink application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
Advanced Telematics Technology for idle time monitoring.
Customised daily reports on performance and fleet management.
Critical health alerts and maintenance reminders through the JCB LiveLink mobile and website application.
Advanced self-diagnosis system with error codes and multi-coloured warning alerts for easy and quick maintenance.

NXT Level of Intelligence

IntelliControl is a new intelligent way to offer excellent fuel efficiency and productivity with the utmost ease of use and control.
Best-in-class digital display screen with anti-glare informative colour display.
Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto-idle status & time setting, and much more.
Critical maintenance information like colour coded health alerts, an easy diagnostic system, service warning alerts, and much more.

Specifications

Product specification of JCB NXT 150 Excavator

ENGINE

Model

Cummins 4BT 3.9C
Fuel

Diesel
Type

NA
Rated Engine Power

100 HP (75 kW) @ 2000 rpm
Maximum Torque

NA
Piston Displacement

3.9 L
Alternator

NA
Battery

NA
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

1
No of Bottom Rollers

7
Track Shoes (Each Side)

44
Track Guard

2
Track Shoe Width

600 mm
Ground Bearing Pressure

39.1 kPa
Track Tensioning

Grease
Gradeability

70% (35°)
Travel Speed-Low

3.6 Km/h
Travel Speed-High

NA
Max Tracking Force

104.1 kN

HYDRAULIC SYSTEM

Hydraulic Pump

2 variable displacement axial piston type.
Maximum Flow

2 x 120 L/min
Pilot Pump

Gear Pump
Implement Circuit

33.0 MPa
Swing Circuit

27.9 MPa
Travel Circuit

33.0 MPa
Pilot Circuit

4.0 MPa

HYDRAULIC MOTORS

Travel

NA
Swing

Axial piston type. Hydraulic braking, electrically operated spring applied disc type parking brake.

SERVICE CAPACITIES

Fuel Tank

253 L
Engine Coolant

21.2 L
Engine Oil

13.5 L
Hydraulic System

173 L
Hydraulic Tank

73 L

MACHINE WEIGHTS

Operating Weight

14700 Kg

WORKING RANGE

Boom Length

4700 mm
Arm Length

2100 mm
Max. Digging Reach

8030 mm
Max. Digging Reach on Ground

7890 mm
Max. Digging Depth

5210 mm
Max. Digging Height

8880 mm
Max. Dumping Height

6380 mm
Max. Vertical Wallcut Depth

4630 mm
Min. Swing Radius

2120 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

92.4 kN
Arm Digging Force

74.1 kN
Swing Speed

13.6 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.75 m³

STATIC DIMENSIONS

Overall Length

7710 mm
Overall Width

2410 mm
Overall Height

2813 mm
Overall Height of Cab

2760 mm
Upper Width

NA
Track Lengh on Ground

2780 mm
Undercarriage Overall Length

3550 mm
Tailswing Radius

2150 mm
Min. Ground Clearance

460 mm
Track Gauge

1990 mm
Width Over Tracks

2590 mm
Track Height

815 mm
Counterweight Clearence

910 mm
Track Shoe Width

500 mm

Frequently Asked Question

01. What is the JCB NXT 150 Excavator price in India?

Ans.

The JCB NXT 150 Excavator price in India ranges between ₹ 50 – 52 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a JCB NXT 150 excavator?

Ans.

You can buy the JCB NXT 150 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the JCB NXT 150 Excavator come with financing and insurance options?

Ans.

Yes, the JCB NXT 150 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the JCB NXT 150 excavator?

Ans.

The operating weight of the JCB NXT 150 excavator is approximately 14700 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the JCB NXT 150 excavator?

Ans.

The JCB NXT 150 excavator is powered by a Cummins 4BT 3.9C engine, delivering 100 HP (75 kW) at 2000 rpm.

06. What is the maximum digging depth of the JCB NXT 150 excavator?

Ans.

The JCB NXT 150 excavator has a maximum digging depth of 5210 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the JCB NXT 150 Excavator?

Ans.

The bucket capacity of the JCB NXT 150 Excavator is 0.75 cubic meters (m³).

08. What is the warranty period for the JCB NXT 150 excavator?

Ans.

The JCB NXT 150 Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the JCB NXT 150 excavator?

Ans.

You can find genuine spare parts for the JCB NXT 150 excavator at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the JCB NXT 150 Excavator?

Ans.

The JCB NXT 150 excavator has a 253 litres diesel fuel tank, providing extended operation time without frequent refueling.

Popular Comparisons with JCB NXT 150

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

SDLG

SDLG E6150F

4.5 rating

Price Available Soon

13800 kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Caterpillar

CAT 316 GC

4.5 rating

Price Available Soon

14400 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

XCMG

XCMG XE140i K HD

4.5 rating

Price Available Soon

13700 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

XCMG

XCMG XE140C

4.5 rating

₹ 48-50 Lakhs

13000 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

XCMG

XCMG XE140i HD

4.5 rating

₹ 46-48 Lakhs

13400 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Volvo

Volvo EC140D

4.5 rating

Price Available Soon

13130 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Volvo

Volvo EC120D

4.5 rating

Price Available Soon

12800 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Tata Hitachi

Tata Hitachi EX 130 Prime

4.5 rating

₹ 50 - 52 Lakhs

12518 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Tata Hitachi

Tata Hitachi ZAXIS 140H Ultra

4.5 rating

₹ 52 - 54 Lakhs

13360 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Sany

Sany SY140C-9/9S Quarry

4.5 rating

₹ 44-46 Lakhs

14030 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Sany

Sany SY140C-9/9S Tunnel

4.5 rating

₹ 52-53 Lakhs

14260 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Sany

Sany SY120C-9

4.5 rating

₹ 55-56 Lakhs

12400 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

LiuGong

Liugong 915E

4.5 rating

Price Available Soon

13800 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

desi-machines-komatsu-excavator-pc130-7-featured

L&T Komatsu

Komatsu PC130-7

4.5 rating

Price Available Soon

12800 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

desi-machines-komatsu-excavator-pc136-featured

L&T Komatsu

Komatsu PC136

4.5 rating

₹ 49.5-51.5 Lakhs

13000 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Kobelco

Kobelco SK145XDLC

4.5 rating

Price Available Soon

13800 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Kobelco

Kobelco SK140

4.5 rating

Price Available Soon

13000 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

desi-machines-jcb-excavator-145-quarry-master-1

JCB

JCB NXT 145 Quarry Master

4.5 rating

₹ 48-49 Lakhs

14500 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

JCB

JCB 130

4.5 rating

₹ 43-44 Lakhs

12800 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

JCB

JCB NXT 140

4.5 rating

₹ 49-50 Lakhs

14320 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Hyundai

Hyundai R150L SMART Plus

4.5 rating

Price Available Soon

14200 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Hyundai

Hyundai R140L Smart Plus

4.5 rating

Price Available Soon

14000 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Hyundai

Hyundai R130 SMART

4.5 rating

₹ 48-50 Lakhs

12100 Kg

Compare

JCB

JCB NXT 150

4.5 rating

₹ 50-52 Lakhs

14700 Kg

Caterpillar

CAT 313D2 L

4.5 rating

Price Available Soon

13500 Kg

Compare

Are you interested in buying JCB NXT 150 Excavator

Products

Related Excavator

JCB NXT 215 LC Fuel Master

Weight

21500 Kg
Bucket

0.8 - 1.02 m³
Dig. Depth

6140 mm

₹ 57-59 Lakhs^*

Medium (15-25 Ton)

JCB NXT 215 LC Fuel Master

₹ 57-59 Lakhs ^*

JCB NXT 215 LC Fuel Master

₹ 57-59 Lakhs ^*

JCB NXT 215 LC Fuel Master ensures optimized fuel efficiency and durability, making it a reliable choice for medium-scale construction projects.

Weight

21500 Kg
Bucket

0.8 - 1.02 m³
Dig. Depth

6140 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

desi-machines-jcb-excavator-nxt-245hd-lr-featured

JCB NXT 245HD LR

Weight

23850 Kg
Bucket

0.45 m³
Dig. Depth

12040 mm

₹ 81-83 Lakhs^*

Long Reach

JCB NXT 245HD LR

₹ 81-83 Lakhs ^*

JCB NXT 245HD LR

₹ 81-83 Lakhs ^*

Ensuring precision and reliability JCB NXT 245HD LR long-reach excavator used for dredging, mining, and waterfront construction projects.

Weight

23850 Kg
Bucket

0.45 m³
Dig. Depth

12040 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2000 hr.
Boom

8700 mm

Compare

desi-machines-jcb-excavator-225-lc-eco+-featured

JCB 225LC Eco Plus

Weight

21750 Kg
Bucket

0.9-1.2 m³
Dig. Depth

6140 mm

₹ 50-52 Lakhs^*

Medium (15-25 Ton)

JCB 225LC Eco Plus

₹ 50-52 Lakhs ^*

JCB 225LC Eco Plus

₹ 50-52 Lakhs ^*

The JCB 225LC Eco Plus medium excavator offers unmatched fuel efficiency and reliable performance for heavy-duty construction.

Weight

21750 Kg
Bucket

0.9-1.2 m³
Dig. Depth

6140 mm
Engine

JCB 170 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

desi-machines-jcb-excavator-345lc-hd-featured

JCB 345LC HD

Weight

34462 Kg
Bucket

1.24-1.80 m³
Dig. Depth

6570 mm

Price Available Soon^*

Large (25-50 Ton)

JCB 345LC HD

Price Available Soon ^*

JCB 345LC HD

Price Available Soon ^*

Tailored for mining and large-scale earthmoving, JCB 345LC HD large excavator delivers exceptional durability and power.

Weight

34462 Kg
Bucket

1.24-1.80 m³
Dig. Depth

6570 mm
Engine

JCB 221 HP
Warranty

1 Yr. / 2000 hr.
Boom

6200 mm

Compare

desi-machines-jcb-excavator-385lc-quarry-master-featured

JCB 385LC Quarry Master

Weight

37733 Kg
Bucket

1.4 - 1.6 m³
Dig. Depth

6800 mm

₹ 1.25-1.27 Crore^*

Large (25-50 Ton)

JCB 385LC Quarry Master

₹ 1.25-1.27 Crore ^*

JCB 385LC Quarry Master

₹ 1.25-1.27 Crore ^*

Made for tough environments, the JCB 385LC QUARRY MASTER large excavator excels in quarrying and mining projects.

Weight

37733 Kg
Bucket

1.4 - 1.6 m³
Dig. Depth

6800 mm
Engine

JCB 284 HP
Warranty

1 Yr. / 2000 hr.
Boom

6450 mm

Compare

desi-machines-jcb-excavator-385lc-featured

JCB 385LC

Weight

37331 Kg
Bucket

1.4 - 2.3 m³
Dig. Depth

6390 mm

₹ 1.20-1.22 Crore^*

Large (25-50 Ton)

JCB 385LC

₹ 1.20-1.22 Crore ^*

JCB 385LC

₹ 1.20-1.22 Crore ^*

Perfect for heavy-duty mining and earthmoving tasks JCB 385LC large excavator offers powerful and efficient performance.

Weight

37331 Kg
Bucket

1.4 - 2.3 m³
Dig. Depth

6390 mm
Engine

JCB 284 HP
Warranty

1 Yr. / 2000 hr.
Boom

6450 mm

Compare

desi-machines-jcb-excavator-nxt-225lc-m-2

JCB NXT 225LC M

Weight

22200Kg
Bucket

0.9 - 1.05 m³
Dig. Depth

6140 mm

₹ 65-67 Lakhs^*

Medium (15-25 Ton)

JCB NXT 225LC M

₹ 65-67 Lakhs ^*

JCB NXT 225LC M

₹ 65-67 Lakhs ^*

JCB NXT 225LC M is a medium excavator designed for peak performance and excels in mining and heavy-duty construction tasks.

Weight

22200Kg
Bucket

0.9 - 1.05 m³
Dig. Depth

6140 mm
Engine

Cummins 148 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

desi-machines-jcb-excavator-315lc-hd-featured

JCB 315LC HD

Weight

34462 Kg
Bucket

1.24 - 1.80 m³
Dig. Depth

6570 mm

₹ 1.10-1.12 Crore^*

Large (25-50 Ton)

JCB 315LC HD

₹ 1.10-1.12 Crore ^*

JCB 315LC HD

₹ 1.10-1.12 Crore ^*

Meeting the demand for mining and heavy engineering operations, the durable JCB 315LC HD large excavator is ideal.

Weight

34462 Kg
Bucket

1.24 - 1.80 m³
Dig. Depth

6570 mm
Engine

JCB 221 HP
Warranty

1 Yr. / 2000 hr.
Boom

6200 mm

Compare

JCB NXT 205LC

Weight

21250 Kg
Bucket

0.9 m³
Dig. Depth

6140 mm

₹ 56-58 Lakhs^*

Medium (15-25 Ton)

JCB NXT 205LC

₹ 56-58 Lakhs ^*

JCB NXT 205LC

₹ 56-58 Lakhs ^*

Energy-efficient JCB NXT 205LC optimizes productivity, suited for earthmoving for construction and mining operations.

Weight

21250 Kg
Bucket

0.9 m³
Dig. Depth

6140 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

desi-machines-jcb-excavator-nxt-215lc-featured1

JCB NXT 215LC

Weight

21500 Kg
Bucket

0.8 - 1.02 m³
Dig. Depth

6140 mm

₹ 60-62 Lakhs^*

Medium (15-25 Ton)

JCB NXT 215LC

₹ 60-62 Lakhs ^*

JCB NXT 215LC

₹ 60-62 Lakhs ^*

JCB NXT 215LC medium excavator equipped with advanced technology is a reliable solution for heavy-duty construction and earthmoving.

Weight

21500 Kg
Bucket

0.8 - 1.02 m³
Dig. Depth

6140 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

JCB NXT 205

Weight

20500 Kg
Bucket

0.9 m³
Dig. Depth

6140 mm

₹ 56-58 Lakhs^*

Medium (15-25 Ton)

JCB NXT 205

₹ 56-58 Lakhs ^*

JCB NXT 205

₹ 56-58 Lakhs ^*

The JCB NXT 205 medium excavator performs heavily and is ideal for mining and heavy construction projects.

Weight

20500 Kg
Bucket

0.9 m³
Dig. Depth

6140 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2000 hr.
Boom

5700 mm

Compare

JCB NXT 145 Quarry Master

Weight

14500 Kg
Bucket

0.63 - 0.72 m³
Dig. Depth

5210 mm

₹ 48-49 Lakhs^*

Small (6-15 Ton)

JCB NXT 145 Quarry Master

₹ 48-49 Lakhs ^*

JCB NXT 145 Quarry Master

₹ 48-49 Lakhs ^*

Designed for quarrying and light mining applications, the JCB NXT 145 QUARRY MASTER small excavator is perfect and durable.

Weight

14500 Kg
Bucket

0.63 - 0.72 m³
Dig. Depth

5210 mm
Engine

Cummins 100 HP
Warranty

1 Yr. / 2000 hr.
Boom

4700 mm

Compare

JCB 130

Weight

12800 Kg
Bucket

0.5 - 0.65 m³
Dig. Depth

4830 mm

₹ 43-44 Lakhs^*

Small (6-15 Ton)

JCB 130

₹ 43-44 Lakhs ^*

JCB 130

₹ 43-44 Lakhs ^*

JCB 130 small excavator features enhanced safety and precision suited for agriculture and small construction & infrastructure jobs.

Weight

12800 Kg
Bucket

0.5 - 0.65 m³
Dig. Depth

4830 mm
Engine

JCB 80 HP
Warranty

1 Yr. / 2000 hr.
Boom

4400 mm

Compare

JCB NXT 140

Weight

14320 Kg
Bucket

0.63 - 0.72 m³
Dig. Depth

5200 mm

₹ 49-50 Lakhs^*

Small (6-15 Ton)

JCB NXT 140

₹ 49-50 Lakhs ^*

JCB NXT 140

₹ 49-50 Lakhs ^*

With unmatched efficiency and versatile performance, JCB NXT 140 small excavator is suited for construction and earthmoving tasks.

Weight

14320 Kg
Bucket

0.63 - 0.72 m³
Dig. Depth

5200 mm
Engine

Cummins 100 HP
Warranty

1 Yr. / 2000 hr.
Boom

4700 mm

Compare

desi-machines-jcb-excavator-55z-featured

JCB 55Z

Weight

5520 Kg
Bucket

0.22 m³
Dig. Depth

3600 mm

₹ 37-38 Lakhs^*

Mini (0-6 Ton)

JCB 55Z

₹ 37-38 Lakhs ^*

JCB 55Z

₹ 37-38 Lakhs ^*

Excels in landscaping and precise construction applications, JCB 55Z mini excavator is designed for reliability.

Weight

5520 Kg
Bucket

0.22 m³
Dig. Depth

3600 mm
Engine

Stage 47.8 HP
Warranty

1 Yr. / 2000 hr.
Boom

2866 mm

Compare

JCB 81

Weight

8050 Kg
Bucket

0.24 - 0.32 m³
Dig. Depth

4080 mm

₹ 34-35 Lakhs^*

Small (6-15 Ton)

JCB 81

₹ 34-35 Lakhs ^*

JCB 81

₹ 34-35 Lakhs ^*

Designed for powerful and efficient operation, JCB’s 81 small excavator is perfect for compact earthmoving and light construction tasks.

Weight

8050 Kg
Bucket

0.24 - 0.32 m³
Dig. Depth

4080 mm
Engine

Kirloskar 76 HP
Warranty

1 Yr. / 2000 hr.
Boom

3700 mm

Compare

desi-machines-jcb-excavator-50z-featured

JCB 50Z

Weight

4946 Kg
Bucket

0.22 m³
Dig. Depth

3330 mm

₹ 37-38 Lakhs^*

Mini (0-6 Ton)

JCB 50Z

₹ 37-38 Lakhs ^*

JCB 50Z

₹ 37-38 Lakhs ^*

Targeted for small-scale construction and landscaping work the JCB 50Z mini excavator offers advanced functionality and fuel efficiency.

Weight

4946 Kg
Bucket

0.22 m³
Dig. Depth

3330 mm
Engine

Stage 47.8 HP
Warranty

1 Yr. / 2000 hr.
Boom

2700 mm

Compare

desi-machines-jcb-excavator-51r-featured

JCB 51R

Weight

5266 Kg
Bucket

0.17 - 0.22 m³
Dig. Depth

3450 mm

₹ 37-38 Lakhs^*

Mini (0-6 Ton)

JCB 51R

₹ 37-38 Lakhs ^*

JCB 51R

₹ 37-38 Lakhs ^*

The JCB 51R is a mini excavator with innovative features and is effective for earthmoving and small construction in tight spaces.

Weight

5266 Kg
Bucket

0.17 - 0.22 m³
Dig. Depth

3450 mm
Engine

Stage 47.8 HP
Warranty

1 Yr. / 2000 hr.
Boom

2700 mm

Compare

desi-machines-jcb-excavator-35z-featured

JCB 35Z HD

Weight

3790 Kg
Bucket

0.11 m³
Dig. Depth

3040 mm

₹ 33-35 Lakhs^*

Mini (0-6 Ton)

JCB 35Z HD

₹ 33-35 Lakhs ^*

JCB 35Z HD

₹ 33-35 Lakhs ^*

The JCB 35Z HD mini excavator is efficient and reliable, ideal for landscaping and heavy-duty construction projects.

Weight

3790 Kg
Bucket

0.11 m³
Dig. Depth

3040 mm
Engine

Perkins 25.3 HP
Warranty

1 Yr. / 2000 hr.
Boom

2450 mm

Compare

desi-machines-jcb-excavator-37c-featured

JCB 37C HD

Weight

4052 Kg
Bucket

0.11 m³
Dig. Depth

3340 mm

₹ 33-35 Lakhs^*

Mini (0-6 Ton)

JCB 37C HD

₹ 33-35 Lakhs ^*

JCB 37C HD

₹ 33-35 Lakhs ^*

A Compact excavator with durability, high performance, superior fuel efficiency, and operator comfort, the JCB 37C HD is a super product.

Weight

4052 Kg
Bucket

0.11 m³
Dig. Depth

3340 mm
Engine

Perkins 25.3 HP
Warranty

1 Yr. / 2500 hr.
Boom

2450 mm

Compare

desi-machines-jcb-excavator-30-plus-featured

JCB 30 PLUS

Weight

2870 Kg
Bucket

0.08 m³
Dig. Depth

2740 mm

₹ 26 - 27 Lakhs^*

Mini (0-6 Ton)

JCB 30 PLUS

₹ 26 - 27 Lakhs ^*

JCB 30 PLUS

₹ 26 - 27 Lakhs ^*

Mini excavator JCB 30 Plus offers compact versatility perfect for precise landscaping and small construction tasks.

Weight

2870 Kg
Bucket

0.08 m³
Dig. Depth

2740 mm
Engine

Perkins 24.7 HP
Warranty

1 Yr. / 2000 hr.
Boom

2130 mm

Compare

About JCB

JCB India, part of the UK based JCB (Joseph Cyril Bamford) Group, is a prominent manufacturer of construction and earthmoving equipment. Established in 1979, it operates five manufacturing plants in India that utilize cutting-edge technologies. Known for its popular backhoe loaders, JCB India also manufactures and delivers excavators, compactors, and skid-steer loaders, caring for infrastructure, construction, and mining sectors. The organization underscores advancement, quality, and sustainability, which helps in India’s development and export, contributing essentially to India’s turn of events and products. It upholds clients with a broad dealer network across the country.

Product Portfolio: Excavators, Backhoe Loaders, Wheel Loaders
