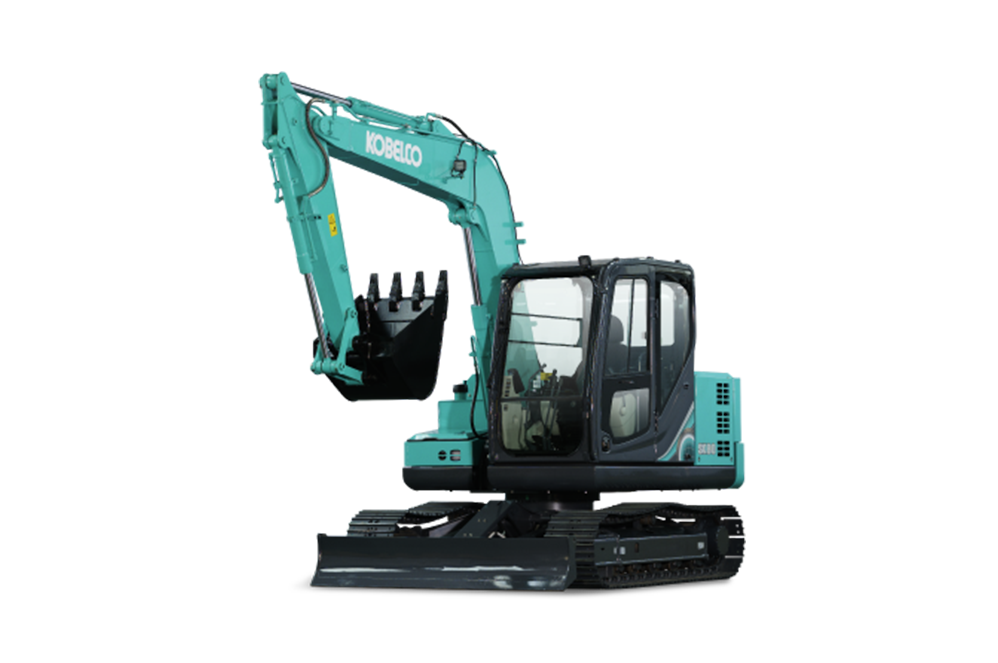

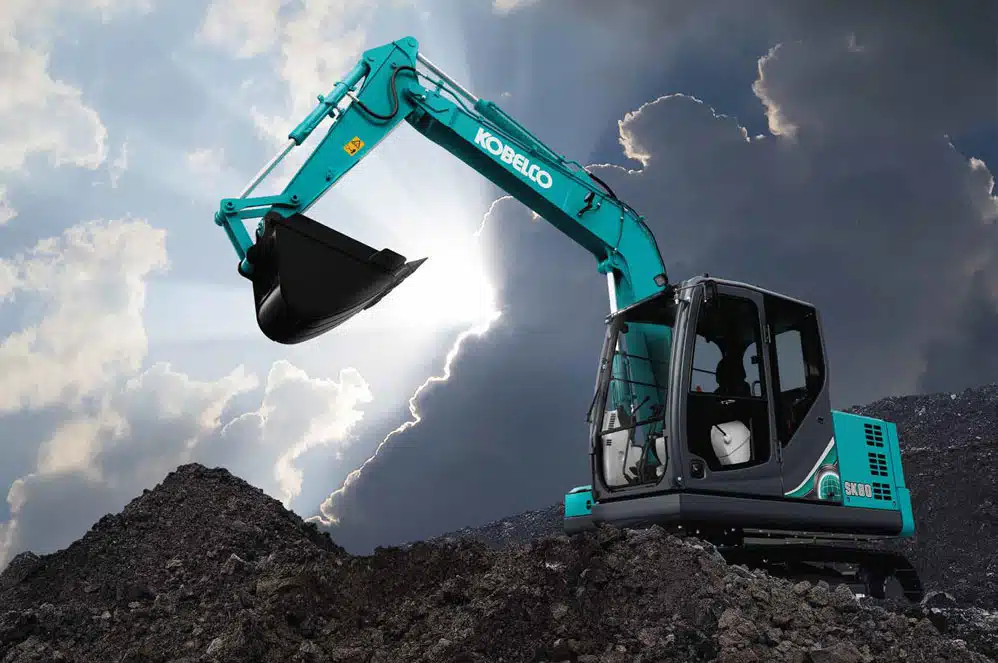

    Kobelco SK80 Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Kobelco

    • Type

      Small (6-15 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Weight

      7660 Kg

    • Bucket

      0.35 m³

    • Digging Depth

      4170 mm

    • Engine

      Yanmar 46.7 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      3840 mm

    Quick Overview:

    Tailored for light earthmoving and compact construction tasks, Kobelco SK80 small excavator offers reliable and fuel-efficient performance.

    Connect With Us:

    Get the best price for the Kobelco SK80 Small Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Yanmar 4TN98S

    Fuel Tank

    143 L

    Engine Displacement

    3.319 L

    Under Carriage

    2830 mm

    Hydraulic System

    1 x 126, 1 x 12.6 L/min

    Arm

    1710 mm

    Max Digging Reach

    6470 mm

    Fuel Consumption

    NA

    Overall Width

    2320 mm

    Overall Length

    6270 mm

    Bucket Digging Force

    52.7 kN

    Tailswing Radius

    1960 mm

    Track Shoe Width

    450 mm

    AC Cabin

    Optional

    GPS

    Not Available

    Features

    Performance

    Performance

    • High torque and high power engine

    • Engine Speed Control via an Accelerator Dial

    • Dozer that fits the width of the crawler

    • Large bucket to handle big amount with one stroke

    • Suited for range of utility applications

    Performance

    • High torque and high power engine

    • Engine Speed Control via an Accelerator Dial

    • Dozer that fits the width of the crawler

    • Large bucket to handle big amount with one stroke

    • Suited for range of utility applications

    Fuel Efficiency

    • Made in India engine with advance Japanese technology

    • ECO Mode maximises operating efficiency

    • 20% reduction in fuel consumption compared to the Standard Mode

    Comfort & Safety

    • Large cab like higher-end, larger excavators

    • Super airtight cab

    • Suspension seats

    • Adjustable armrests

    • Low vibration

    • Rubber coated foot pedals

    • Large cup holder

    • Large touch screen colour monitor

    Maintenance

    • Easily accessible from ground

    • Large rear maintenance space for engine and pump

    • Right side mainline panel for electricals and filters

    • Smaller hydraulic tank

    • Large capacity storage box

    • Compact body can be transported on small truck

    Specifications

    Product specification of Kobelco SK80 Excavator

    ENGINE

    • Model

      Yanmar 4TN98S

    • Fuel

      Diesel

    • Type

      4 Cylinders, Four-cycle, water-cooled, direct injection diesel engine

    • Rated Engine Power

      46.7 HP (34.8 kW) @ 2100 rpm

    • Maximum Torque

      212 Nm @ 1260 rpm

    • Piston Displacement

      3.319 L

    • Alternator

      24 V, 45A

    • Battery

      2 x 12 V - 80 Ah

    • Starting Motor

      24 V - 3.5 kW

    UNDERCARRIAGE

    • No of Top Rollers

      NA

    • No of Bottom Rollers

      NA

    • Track Shoes (Each Side)

      39

    • Track Guard

      NA

    • Track Shoe Width

      450 - 600 mm

    • Ground Bearing Pressure

      31.5 - 24.4 kPa

    • Track Tensioning

      Grease

    • Gradeability

      58% (30°)

    • Travel Speed-Low

      2.6 Km/h

    • Travel Speed-High

      4.7 Km/h

    • Max Tracking Force

      82 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      One variable displacement axial piston pump

    • Maximum Flow

      1 x 126, 1 x 12.6 L/min

    • Pilot Pump

      Gear Pump

    • Implement Circuit

      29.4 MPa

    • Swing Circuit

      24.5 MPa

    • Travel Circuit

      29.4 MPa

    • Pilot Circuit

      3.2 MPa

    HYDRAULIC MOTORS

    • Travel

      2 x Axial Piston, Two-step Motors

    • Swing

      One Fixed Displacement Piston Motor

    SERVICE CAPACITIES

    • Fuel Tank

      143 L

    • Engine Coolant

      9.1 L

    • Engine Oil

      11.2 L

    • Hydraulic System

      93 L

    • Hydraulic Tank

      43 L

    MACHINE WEIGHTS

    • Operating Weight

      7660 Kg

    WORKING RANGE

    • Boom Length

      3840 mm

    • Arm Length

      1710 mm

    • Max. Digging Reach

      6470 mm

    • Max. Digging Reach on Ground

      6310 mm

    • Max. Digging Depth

      4170 mm

    • Max. Digging Height

      7390 mm

    • Max. Dumping Height

      5320 mm

    • Max. Vertical Wallcut Depth

      3740 mm

    • Min. Swing Radius

      1790 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      52.7 kN

    • Arm Digging Force

      39.4 kN

    • Swing Speed

      10.4 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      0.35 m³

    STATIC DIMENSIONS

    • Overall Length

      6270 mm

    • Overall Width

      2320 mm

    • Overall Height

      2710 mm

    • Overall Height of Cab

      2710 mm

    • Upper Width

      2270 mm

    • Track Lengh on Ground

      2210 mm

    • Undercarriage Overall Length

      2830 mm

    • Tailswing Radius

      1960 mm

    • Min. Ground Clearance

      350 mm

    • Track Gauge

      1870 mm

    • Width Over Tracks

      2320 mm

    • Track Height

      NA

    • Counterweight Clearence

      NA

    • Track Shoe Width

      450 mm

    Frequently Asked Question

    01. What is the Kobelco SK80 Excavator price in India?

    Ans.

    The exact Kobelco SK80 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

    02. Where can I buy a Kobelco SK80 excavator?

    Ans.

    You can buy the Kobelco SK80 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Kobelco SK80 Excavator come with financing and insurance options?

    Ans.

    Yes, the Kobelco SK80 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Kobelco SK80 excavator?

    Ans.

    The operating weight of the Kobelco SK80 excavator is approximately 7660 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Kobelco SK80 excavator?

    Ans.

    The Kobelco SK80 excavator is powered by a Yanmar 4TN98S engine, delivering 46.7 HP (34.8 kW) at 2100 rpm.

    06. What is the maximum digging depth of the Kobelco SK80 excavator?

    Ans.

    The Kobelco SK80 excavator has a maximum digging depth of 4170 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Kobelco SK80 Excavator?

    Ans.

    The bucket capacity of the Kobelco SK80 Excavator is 0.35 cubic meters (m³).

    08. What is the warranty period for the Kobelco SK80 excavator?

    Ans.

    The Kobelco SK80 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Kobelco SK80 excavator?

    Ans.

    You can find genuine spare parts for the Kobelco SK80 excavator at authorized Kobelco dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Kobelco SK80 Excavator?

    Ans.

    The Kobelco SK80 excavator has a 143 litres diesel fuel tank, providing extended operation time without frequent refueling.

    Popular Comparisons with Kobelco SK80

    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    Sany

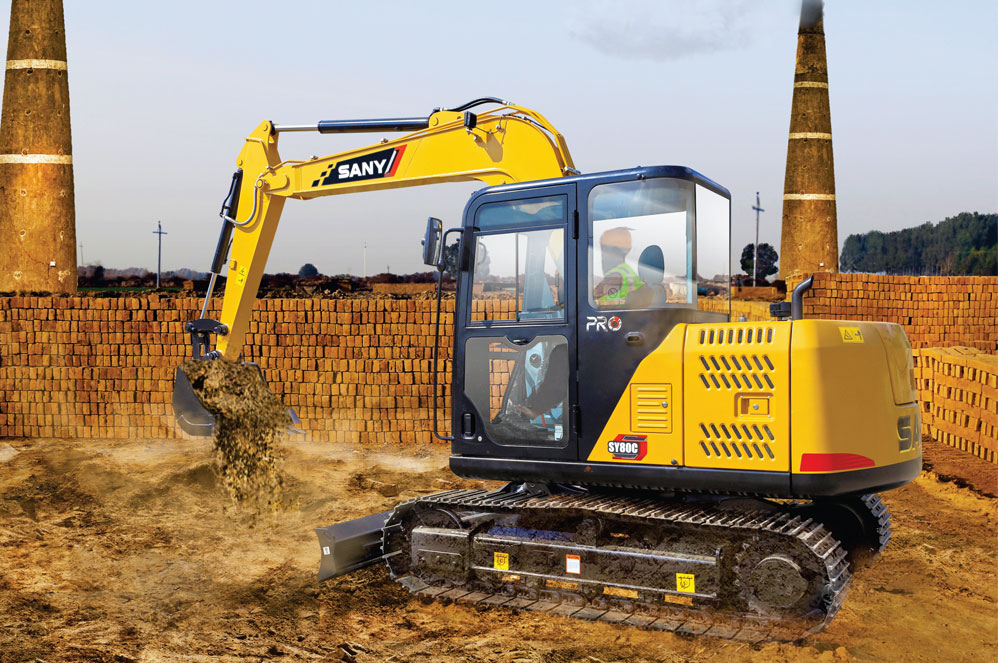

    Sany SY80C-9 PRO

    4.5 rating
    Price Available Soon
    7920 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    XCMG

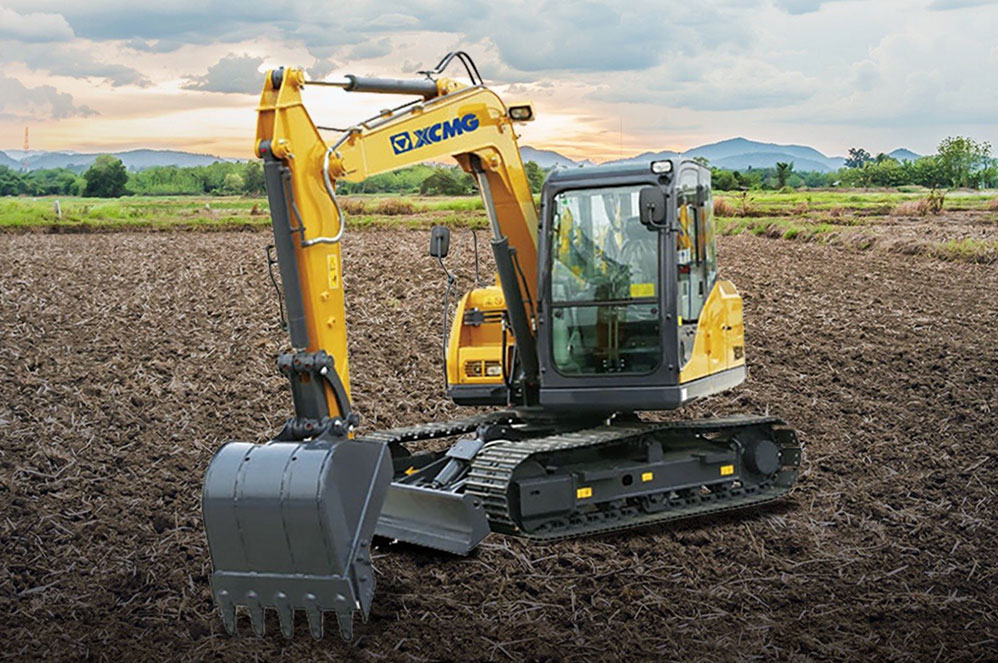

    XCMG XE80C

    4.5 rating
    ₹ 38-39 Lakhs
    7460 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    Tata Hitachi

    Tata Hitachi EX 70 Prime

    4.5 rating
    ₹ 35.25 - 36.25 Lakhs
    7200 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    Sany

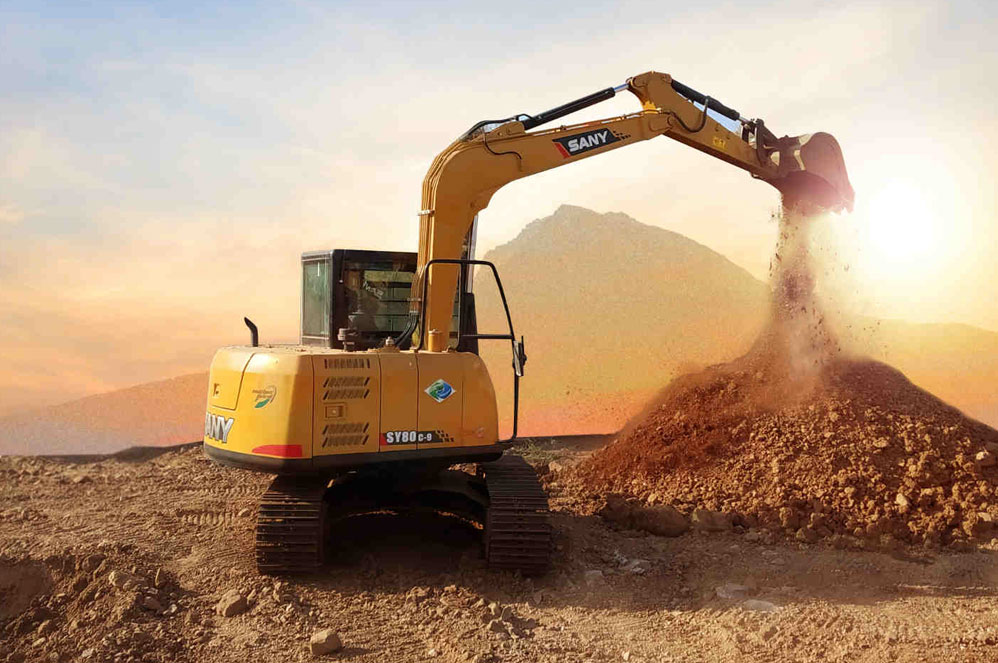

    Sany SY80C-9

    4.5 rating
    ₹ 32-33 Lakhs
    7920 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    Liugong

    Liugong 908E

    4.5 rating
    Price Available Soon
    7500 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    L&T Komatsu

    Komatsu PC71

    4.5 rating
    ₹ 24-26 Lakhs
    7050 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    L&T Komatsu

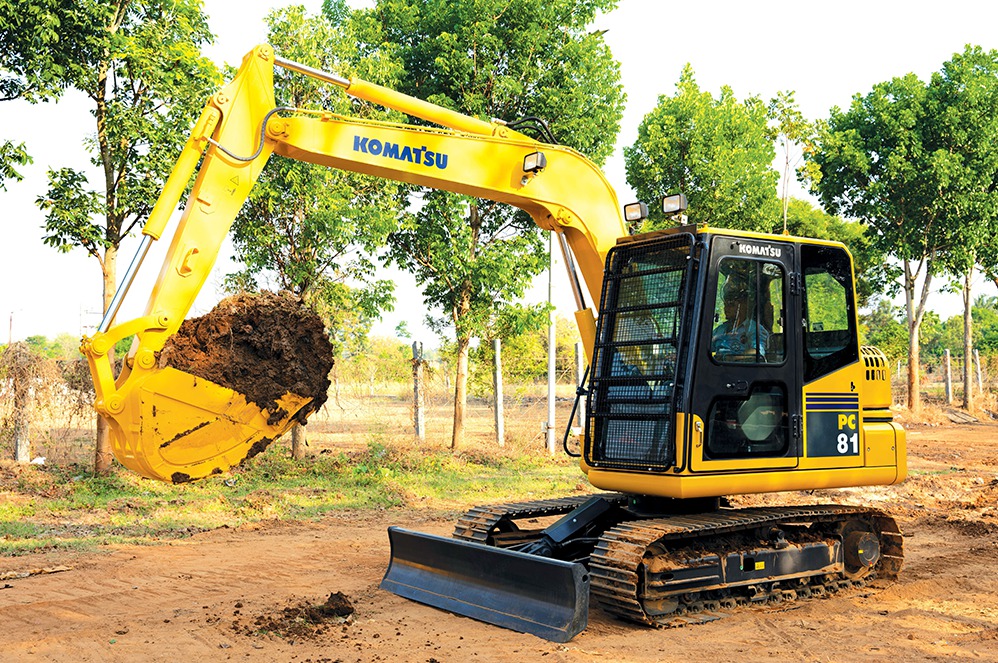

    Komatsu PC81

    4.5 rating
    Price Available Soon
    7350 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    JCB

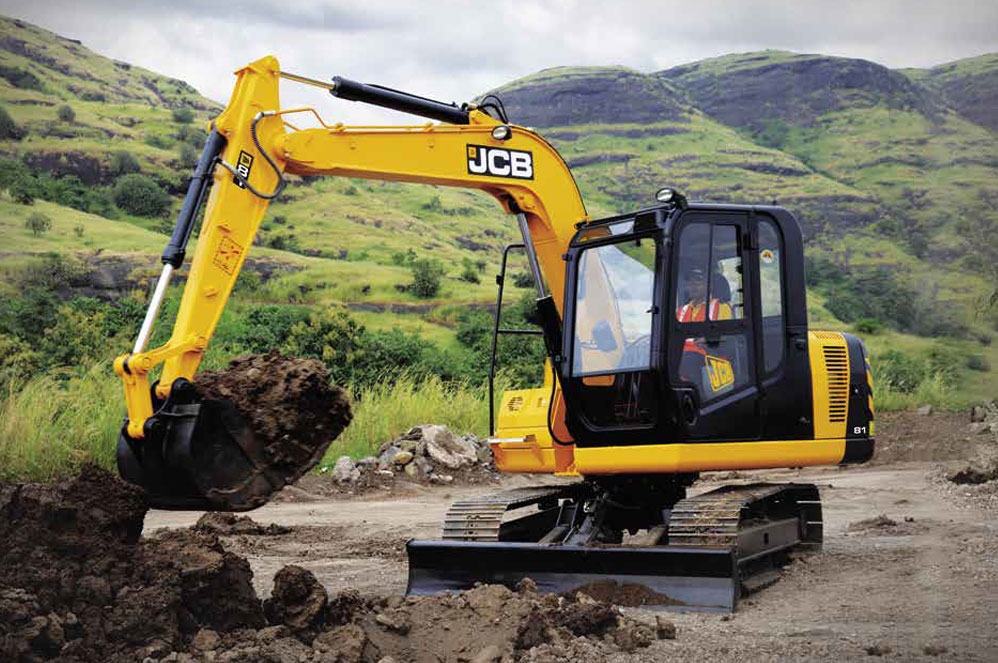

    JCB JS81

    4.5 rating
    ₹ 34-35 Lakhs
    8050 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    Hyundai

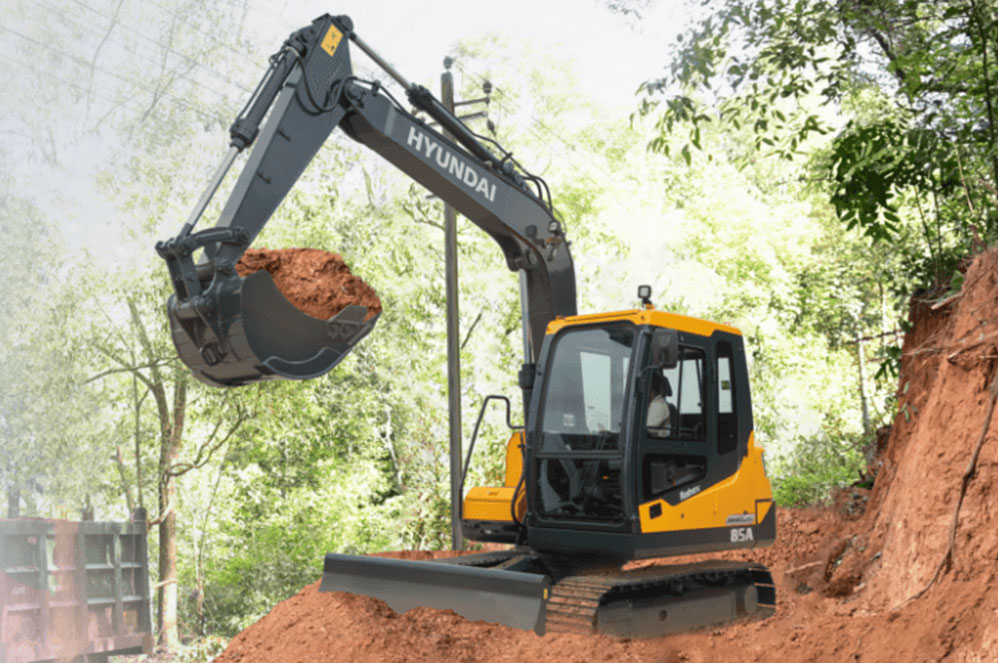

    Hyundai R85A SMART Plus

    4.5 rating
    Price Available Soon
    8100 Kg
    VS
    Kobelco

    Kobelco SK80

    4.5 rating
    Price Available Soon
    7660 Kg
    BEML

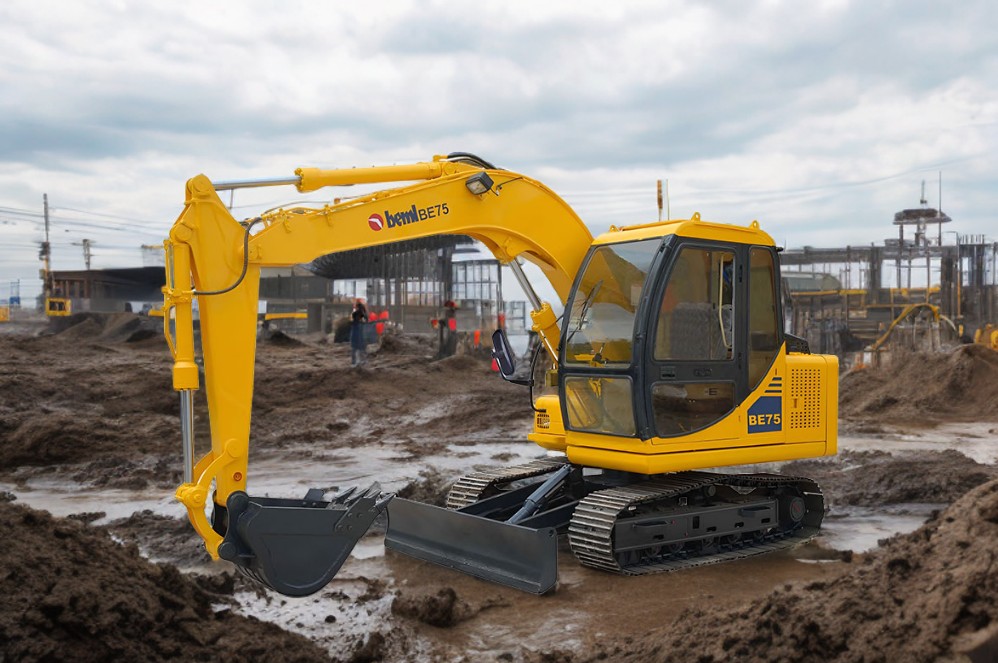

    BEML BE75

    4.5 rating
    Price Available Soon
    7500 Kg

    Products

    Related Excavator

    About Kobelco

    Kobelco Construction Equipment India offers unique solutions involving earth movers and cranes for construction sites. These solutions make creative use of technology, are environment-friendly, and are customized for each jobsite condition.

    Kobelco Construction Equipment India Pvt. Ltd. (KCEI) was established in 2006 and is a subsidiary of Kobelco Construction Machinery, Japan. Producing excavators and cranes in Sri City, Andhra Pradesh, KCEI is also fully equipped to meet customer expectations in terms of service and parts with over 140 outlets in India, Nepal, and Bangladesh.

    Product Portfolio : Excavators

    Kobelco Logo

    Related Blogs

    Exploring the Different Types of Clamshell Buckets & Advantages

    The expansion of the construction industry put forth the need...

    Apr 10, 2025

    Long Boom Excavators: The Power of Long Reach in Construction

    Have you ever wondered how construction, dredging, and mining are...

    Apr 09, 2025

    10 Types of Excavator Buckets and How They Help Your Projects

    Have you ever wondered what makes an excavator so efficient?...

    Apr 08, 2025

    Common Problems in an Excavator's Hydraulic System and How to Fix Them

    The hydraulic system is the heart of an excavator. It...

    Apr 05, 2025

    Top 10 Excavator Manufacturers in India: A Complete Guide

    The construction and mining industries have been growing substantially since...

    Apr 03, 2025

    Top 10 Largest Excavators in India: Specs & Features

    Have you ever wondered how powerful an excavator can be?...

    Apr 02, 2025

    Excavator Price Comparison: Mini, Standard, and Large Excavators

    The excavator plays a crucial role in the construction industry....

    Apr 02, 2025

    Everything About Excavator Attachments: Types, Uses, and Benefits

    Excavator attachments are specialized equipment that adds to an excavator,...

    Mar 26, 2025

    What is a Hydraulic Excavator? Understanding its Working and Benefits

    What is a Hydraulic Excavator? A hydraulic excavator is a...

    Mar 25, 2025

    The Evolution of Long Reach Excavators: From Early Models to Modern Machines

    Long-reach excavators are needed to reach high and low in...

    Mar 25, 2025

    How Mining Excavators Differ from Standard Construction Excavators

    Excavators constitute an important machine in mining and construction industries...

    Mar 25, 2025

    Types of Excavators Used in Construction Sites & Their Applications

    Introduction  The most important equipment in the construction industry is...

    Mar 25, 2025

    Safely Lift and Move Loads With an Excavator

    Did you know that lifting and moving heavy loads using...

    Mar 17, 2025

    The Best Choice for Deep Excavation Projects

    What's the secret to achieving maximum efficiency, safety, and accuracy...

    Mar 17, 2025

    Complete Guide to Medium Excavators

    Introduction Excavators come in essential in construction from all angles,...

    Mar 17, 2025

    Why You Should Avoid Fake Excavator Parts

    In recent times, with the surge in the infrastructure, mining,...

    Mar 17, 2025

    The Best Excavator Grade Control System

    Excavation is a primary and most demanding task for an...

    Mar 17, 2025

    Comparison of SANY SY140C-9 Excavator vs JCB NXT 140 Excavator

    Sany and JCB Excavators are the most commonly used construction...

    Feb 21, 2025

    Top 2 Excavators of 2025: Specification & Price in India

    Sany 120C-9 Excavator vs JCB 130 Excavator The construction and...

    Feb 21, 2025

    Mining Excavators: How to Choose the Best Model for Your Heavy-Duty Needs

    The mining industry has been evolving since its inception. In...

    Feb 21, 2025

    Use of Mini Excavators in Construction Operations

    Excavators are the most commonly used construction equipment. Excavators come...

    Feb 15, 2025

    Why Mini Excavators Are a Smart Investment for Small & Mid-Scale Projects.

    Mini excavators are among the leading products in the construction...

    Feb 15, 2025

    Excavator Specifications: A First-Time Buyer’s Roadmap to Success

    Excavator is the leading and primary product in the construction...

    Feb 15, 2025

    Excavator Rental vs. Purchase: Which Is the Best Option for Your Business?

    The construction industry is in a growth stage, and construction...

    Feb 15, 2025

    How is it Beneficial to Buy from Desi Machines Rather Than Directly from Brands?

    Ever wondered why buying from Desi Machines might be a...

    Feb 04, 2025

    What is an Off-Highway Vehicle (OHV)? (A Complete Guide)

    India is undergoing a transformation period and off-highway vehicles play...

    Jan 31, 2025

    Can I buy Construction Equipment from another state or location in India?

    In India, there is a current surge in demand for...

    Jan 31, 2025

    How Much Down Payment Do You Need Buying Construction Equipment?

    The demand for heavy machinery which is commonly used in...

    Jan 28, 2025

    What Kind of Insurance Should You Buy to Protect Construction Equipment?

    The construction and mining industries are at a growing stage...

    Jan 28, 2025

    Understanding the Lifespan of Heavy Machinery and Construction Equipment

    The construction and mining industry are continuously growing in India...

    Jan 28, 2025

    How to Choose the Right Excavator for Your Project: Key Factors to Consider

    Excavators are a very essential equipment in the construction and...

    Jan 21, 2025

    5 Essential Maintenance Tips for Your Excavators

    Excavators are one of the most important machinery in the...

    Jan 20, 2025

    Backhoe vs Excavator - Which is Better for your project?

    Backhoe loaders and excavators are machineries that are very prominent...

    Jan 20, 2025

    5 Safety Tips Every Excavator Operator Should Follow

    Excavators are the most demanding equipment in the construction and...

    Jan 19, 2025

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    Help Us Reach You!

      Your Captcha*

      captcha

        Kindly fill out the below form. Our representative will get in touch with you

        Or

        Yes

        No

        Your Captcha*

        captcha

        Let's get started

        Disclaimer

        Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

        Compare
