Sany
Small (6-15 Ton)
₹ 55-56 Lakhs
₹ 55-56 Lakhs
12400 Kg
0.65 m³
4750 mm
Cummins 100.5 HP
1 Yr. / 2500 hr.
4260 mm

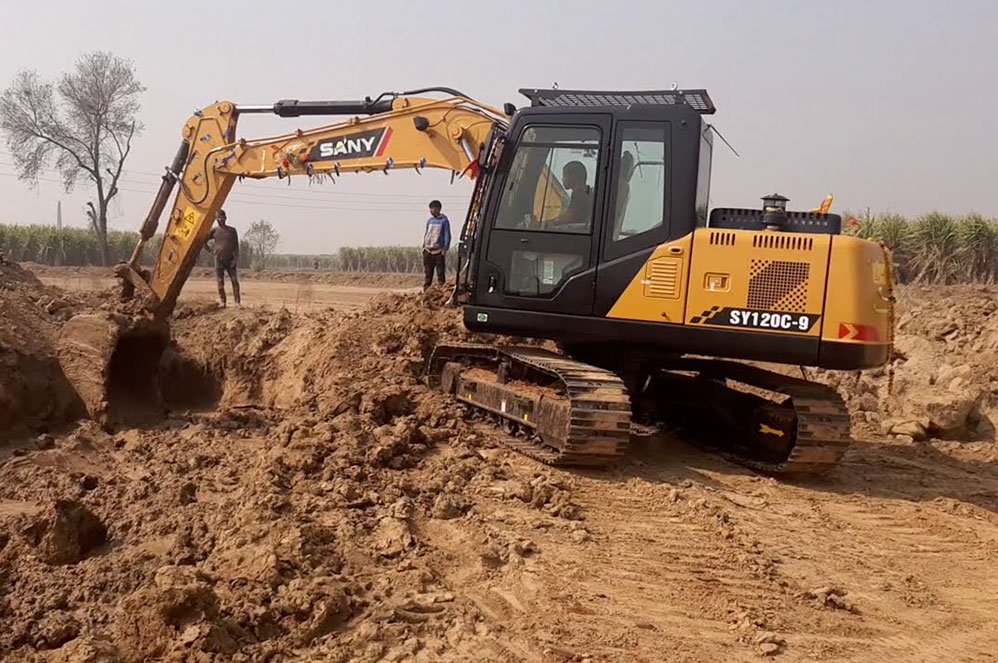

Designed for efficiency, the Sany SY120C-9 small excavator ensures precise construction and earthmoving operations.
Get the best price for the Sany SY120C-9 Small Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Cummins B3.9-100c
240 L
3.9 L
3360 mm
225 L/min
1960 mm
7345 mm
10 L/hour
2510 mm
7280 mm
82.5 kN
2280 mm
500 mm
Optional
Standard
Powered by a well-renowned performance-proven branded engine
Exceptional power and work capacity without compromising fuel economy
4-cylinder water-cooled diesel engine equipped with a turbocharger for improved efficiency
Third Generation Hydraulic Pump for optimum hydraulic flow with minimum wastage
Nine series control valves for smooth combined operations
Swing motor with anti-rebound valve for better accuracy in swinging operation
Reinforced and strengthened structural components for increased lifespan and reduced operating costs
Anti-wear plates added to buckets, extending their life up to 50% more compared to competitors
Powered by a well-renowned performance-proven branded engine
Exceptional power and work capacity without compromising fuel economy
4-cylinder water-cooled diesel engine equipped with a turbocharger for improved efficiency
Third Generation Hydraulic Pump for optimum hydraulic flow with minimum wastage
Nine series control valves for smooth combined operations
Swing motor with anti-rebound valve for better accuracy in swinging operation
Reinforced and strengthened structural components for increased lifespan and reduced operating costs
Anti-wear plates added to buckets, extending their life up to 50% more compared to competitors
Product specification of Sany SY120C-9 Excavator
Model
Cummins B3.9-100c
Fuel
Diesel
Type
4 Cylinder, Inline, Water Cooled
Rated Engine Power
100.5 HP (75 kW) @ 2200 rpm
Maximum Torque
385 Nm @ 1300 rpm
Piston Displacement
3.9 L
Alternator
NA
Battery
12 V System (2-12V)
Starting Motor
NA
No of Top Rollers
1
No of Bottom Rollers
6
Track Shoes (Each Side)
41
Track Guard
1
Track Shoe Width
500 mm
Ground Bearing Pressure
41.6 kPa
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.5 Km/h
Travel Speed-High
5.5 Km/h
Max Tracking Force
113 kN
Hydraulic Pump
1 Variable Displacement Axial Piston Pump
Maximum Flow
225 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
31.4 MPa
Swing Circuit
25.0 MPa
Travel Circuit
31.4 MPa
Pilot Circuit
3.9 MPa
Travel
2 Axial Piston Motor with Parking Brake
Swing
1 Axial Piston Motor with Swing Brake
Fuel Tank
240 L
Engine Coolant
6.7 L
Engine Oil
9 L
Hydraulic System
120 L
Hydraulic Tank
150 L
Operating Weight
12400 Kg
Boom Length
4260 mm
Arm Length
1960 mm
Max. Digging Reach
7345 mm
Max. Digging Reach on Ground
NA
Max. Digging Depth
4750 mm
Max. Digging Height
7415 mm
Max. Dumping Height
5165 mm
Max. Vertical Wallcut Depth
4410 mm
Min. Swing Radius
2625 mm
Max. Height at Min Swing Radius
5900 mm
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
82.5 kN
Arm Digging Force
62.1 kN
Swing Speed
12 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.65 m³
Overall Length
7280 mm
Overall Width
2510 mm
Overall Height
2700 mm
Overall Height of Cab
2740 mm
Upper Width
2525 mm
Track Lengh on Ground
2680 mm
Undercarriage Overall Length
3360 mm
Tailswing Radius
2280 mm
Min. Ground Clearance
425 mm
Track Gauge
1990 mm
Width Over Tracks
2525 mm
Track Height
NA
Counterweight Clearence
NA
Track Shoe Width
500 mm
The Sany SY120C-9 Excavator price in India ranges between ₹ 55 – 56 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.
You can buy the Sany SY120C-9 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Sany SY120C-9 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Sany SY120C-9 excavator is approximately 12400 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Sany SY120C-9 excavator is powered by a Cummins B3.9-100c engine, delivering 100.5 HP (75 kW) at 2200 rpm.
The Sany SY120C-9 excavator has a maximum digging depth of 4750 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Sany SY120C-9 Excavator is 0.65 cubic meters (m³).
The Sany SY120C-9 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Sany SY120C-9 excavator at authorized Sany dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Sany SY120C-9 excavator has a 240 litres diesel fuel tank, providing extended operation time without frequent refueling.
The Sany SY120C-9 excavator has an average fuel consumption of 10 litres per hour, depending on factors such as load, terrain, and operating conditions
