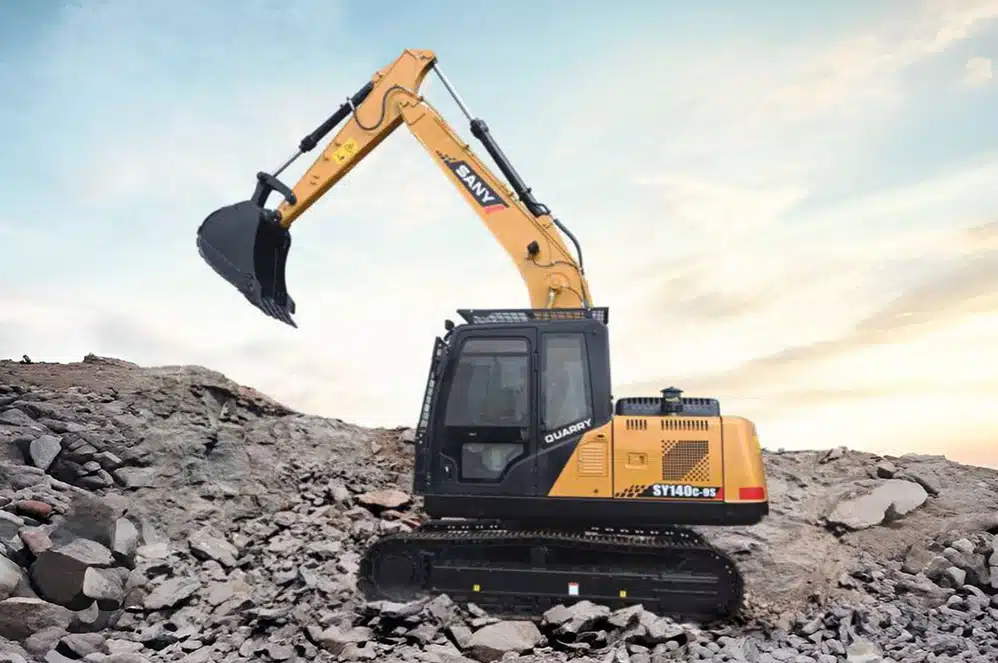

    Sany SY140C-9/9S Quarry Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Sany

    • Type

      Small (6-15 Ton)

    • Operating Cost

      ₹ 44-46 Lakhs

    • Ex-Showroom Price

      ₹ 44-46 Lakhs

    • Weight

      14030 Kg

    • Bucket

      0.72 m³

    • Digging Depth

      5119 mm

    • Engine

      Cummins 100.5 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      4600 mm

    Quick Overview:

    For quarrying solutions, Sany SY140C-9/9S Quarry small excavator comes with high-capacity functionality

    Connect With Us:

    Get the best price for the Sany SY140C-9/9S Quarry Small Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Cummins B3.9-100C, Isuzu 4BG 1-TABGC-03-C2

    Fuel Tank

    240 L

    Engine Displacement

    3.9 L/4.329 L

    Under Carriage

    3665 mm

    Hydraulic System

    2 x 121 L/min

    Arm

    2100 mm

    Max Digging Reach

    7952 mm

    Fuel Consumption

    12 L/hour

    Overall Width

    2510 mm

    Overall Length

    7700 mm

    Bucket Digging Force

    93.6 kN

    Tailswing Radius

    2285 mm

    Track Shoe Width

    500 mm

    AC Cabin

    Optional

    GPS

    Standard

    Features

    High on Performance

    High on Performance

    • Fitted with industry-proven and fuel-efficient Cummins/Isuzu engine

    • Optimized hydraulic system for quick and efficient movement of heavy material

    • Dynamic Optimization Matching Control System (DOMCS) for enhanced performance

    Advanced Hydraulic System

    Advanced Hydraulic System

    • Hydraulic valves ensure the availability of oil flow at the priority point, maximizing power with less fuel consumption.

    • Regeneration feature during boom lowering and arm operation for faster movement and reduced friction losses.

    • Prevents cavitation and enhances hydraulic cylinder speed for heavy-duty applications

    High on Reliability

    High on Reliability

    • Specially reinforced boom and arm for excellent wear resistance and durability

    • Heavy-duty upper frame and undercarriage designed to withstand external shocks

    • X Type frame and box-type structure for the improved overall strength of structural components

    Best in Class Operator Comfort

    Best in Class Operator Comfort

    • Focus on the machine’s industrial design with a philosophy of “Customer Care.”

    • Attention to detail and human-centric design for a productive operating environment

    • A first-class operating environment for operators to maximize productivity

    High on Performance

    • Fitted with industry-proven and fuel-efficient Cummins/Isuzu engine

    • Optimized hydraulic system for quick and efficient movement of heavy material

    • Dynamic Optimization Matching Control System (DOMCS) for enhanced performance

    Advanced Hydraulic System

    • Hydraulic valves ensure the availability of oil flow at the priority point, maximizing power with less fuel consumption.

    • Regeneration feature during boom lowering and arm operation for faster movement and reduced friction losses.

    • Prevents cavitation and enhances hydraulic cylinder speed for heavy-duty applications

    High on Reliability

    • Specially reinforced boom and arm for excellent wear resistance and durability

    • Heavy-duty upper frame and undercarriage designed to withstand external shocks

    • X Type frame and box-type structure for the improved overall strength of structural components

    Best in Class Operator Comfort

    • Focus on the machine’s industrial design with a philosophy of “Customer Care.”

    • Attention to detail and human-centric design for a productive operating environment

    • A first-class operating environment for operators to maximize productivity

    Specifications

    Product specification of Sany SY140C-9/9S Quarry Excavator

    ENGINE

    • Model

      Cummins B3.9-100C, Isuzu 4BG 1-TABGC-03-C2

    • Fuel

      Diesel

    • Type

      4 Cylinder, Inline, Water Cooled

    • Rated Engine Power

      100.5 HP (75 kW) @ 2200 rpm / 98 HP (72.7 kW) @ 2200 rpm

    • Maximum Torque

      385 Nm @ 1300 rpm / 357.6 Nm @ 1600 rpm

    • Piston Displacement

      3.9 L/4.329 L

    • Alternator

      NA

    • Battery

      12 V System (2-12V)

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      1

    • No of Bottom Rollers

      7

    • Track Shoes (Each Side)

      44

    • Track Guard

      1

    • Track Shoe Width

      500 mm

    • Ground Bearing Pressure

      43.1 kPa

    • Track Tensioning

      Grease

    • Gradeability

      70% (35°)

    • Travel Speed-Low

      3.5 Km/h

    • Travel Speed-High

      5.5 Km/h

    • Max Tracking Force

      124.1 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      2 Variable Displacement Axial Piston Pumps

    • Maximum Flow

      2 x 121 L/min

    • Pilot Pump

      1 Gear Pump

    • Implement Circuit

      31.4 MPa

    • Swing Circuit

      25.0 MPa

    • Travel Circuit

      31.4 MPa

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      2 Axial Piston Motor with Parking Brake

    • Swing

      1 Axial Piston Motor with Swing Holding Brake

    SERVICE CAPACITIES

    • Fuel Tank

      240 L

    • Engine Coolant

      6.7 L

    • Engine Oil

      9 L

    • Hydraulic System

      150 L

    • Hydraulic Tank

      120 L

    MACHINE WEIGHTS

    • Operating Weight

      14030 Kg

    WORKING RANGE

    • Boom Length

      4600 mm

    • Arm Length

      2100 mm

    • Max. Digging Reach

      7952 mm

    • Max. Digging Reach on Ground

      NA

    • Max. Digging Depth

      5119 mm

    • Max. Digging Height

      8324 mm

    • Max. Dumping Height

      5856 mm

    • Max. Vertical Wallcut Depth

      4127 mm

    • Min. Swing Radius

      2410 mm

    • Max. Height at Min Swing Radius

      6496 mm

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      93.6 kN

    • Arm Digging Force

      68.9 kN

    • Swing Speed

      12 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      0.72 m³

    STATIC DIMENSIONS

    • Overall Length

      7700 mm

    • Overall Width

      2510 mm

    • Overall Height

      2765 mm

    • Overall Height of Cab

      2825 mm

    • Upper Width

      2517 mm

    • Track Lengh on Ground

      2930 mm

    • Undercarriage Overall Length

      3665 mm

    • Tailswing Radius

      2285 mm

    • Min. Ground Clearance

      425 mm

    • Track Gauge

      1990 mm

    • Width Over Tracks

      2517 mm

    • Track Height

      NA

    • Counterweight Clearence

      NA

    • Track Shoe Width

      500 mm

    Frequently Asked Question

    01. What is the Sany SY140C-9/9S Quarry Excavator price in India?

    Ans.

    The Sany SY140C-9/9S Quarry Excavator price in India ranges between ₹ 44 – 46 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy a Sany SY140C-9/9S Quarry excavator?

    Ans.

    You can buy the Sany SY140C-9/9S Quarry excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Sany SY140C-9/9S Quarry Excavator come with financing and insurance options?

    Ans.

    Yes, the Sany SY140C-9/9S Quarry comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Sany SY140C-9/9S Quarry excavator?

    Ans.

    The operating weight of the Sany SY140C-9/9S Quarry excavator is approximately 14030 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Sany SY140C-9/9S Quarry excavator?

    Ans.

    The Sany SY140C-9/9S Quarry excavator is powered by a Cummins B3.9-100C, Isuzu 4BG 1-TABGC-03-C2 engine, delivering 100.5 HP (75 kW) at 2200 rpm. / 98 HP (72.7 kW) at 2200 rpm.

    06. What is the maximum digging depth of the Sany SY140C-9/9S Quarry excavator?

    Ans.

    The Sany SY140C-9/9S Quarry excavator has a maximum digging depth of 5119 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Sany SY140C-9/9S Quarry Excavator?

    Ans.

    The bucket capacity of the Sany SY140C-9/9S Quarry Excavator is 0.72 cubic meters (m³).

    08. What is the warranty period for the Sany SY140C-9/9S Quarry excavator?

    Ans.

    The Sany SY140C-9/9S Quarry Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Sany SY140C-9/9S Quarry excavator?

    Ans.

    You can find genuine spare parts for the Sany SY140C-9/9S Quarry excavator at authorized Sany dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Sany SY140C-9/9S Quarry Excavator?

    Ans.

    The Sany SY140C-9/9S Quarry excavator has a 240 litres diesel fuel tank, providing extended operation time without frequent refueling.

    11. What is the mileage of the Sany SY140C-9/9S Quarry excavator?

    Ans.

    The Sany SY140C-9/9S Quarry excavator has an average fuel consumption of 12 litres per hour, depending on factors such as load, terrain, and operating conditions
