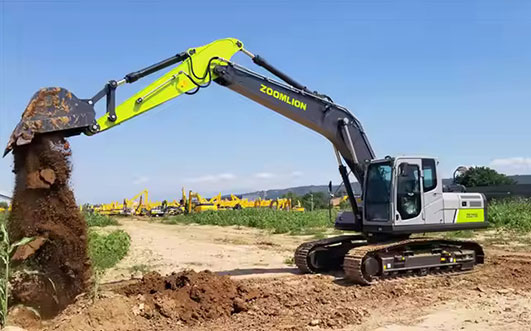

Zoomlion ZE215E Excavator

Name: Zoomlion ZE215E Excavator
Brand: Zoomlion
Rating: 4.5 (452 reviews)

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Zoomlion
Type
Medium (15-25 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
21300 Kg
Bucket
1.0 m³
Digging Depth
6610 mm
Engine
Cummins 150 HP
Warranty
1 Yr. / 2500 hr.
Boom
NA

Quick Overview:

The Zoomlion ZE215E medium excavator features advanced design and functionality for reliable construction and mining operations.

Connect With Us:

Get the best price for the Zoomlion ZE215E Medium Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins B5.9-C

Fuel Tank

Engine Displacement

5.9 L

Under Carriage

4180 mm

Hydraulic System

2 × 206 L/min

Arm

Max Digging Reach

9830 mm

Fuel Consumption

Overall Width

2800 mm

Overall Length

9555 mm

Bucket Digging Force

157 kN

Tailswing Radius

2840 mm

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features

Powerful Engine Performance

Equipped with a Cummins B5.9-C engine, delivering 150 HP (112 kW) @ 1950 rpm.
Provides robust bucket and arm digging forces of 157 kN and 110 kN, respectively, ensuring efficient material handling.
Designed to reduce fuel consumption by approximately 5%, contributing to cost savings and environmental sustainability.

Advanced Hydraulic System

Features a main hydraulic system with a maximum flow rate of 206 L/min, facilitating swift and precise operations.
The advanced hydraulic system ensures powerful digging force and fast operating speed, meeting demands of various working conditions.

Robust Structural Design

Weighs approximately 21,300 kg, providing stability and durability for heavy-duty tasks.
Offers a standard bucket capacity of 1.0 m³, suitable for a wide range of applications.
Designed with a high load-bearing capacity undercarriage, ensuring longevity and reliability in demanding environments.

Operator-Friendly Cabin

The cabin is designed for operator comfort, featuring adjustable seating and intuitive controls.
Equipped with a dashboard display offering nine language options, including English, to cater to diverse operators.
Includes air conditioning and heating systems to maintain a comfortable working environment.

Enhanced Performance and Efficiency

An upgraded bucket capacity and enhanced manoeuvrability contribute to increased productivity.
The undercarriage is designed to handle heavy loads, ensuring stability during operations.
Designed to reduce fuel consumption by approximately 5%, contributing to cost savings and environmental sustainability.

Versatile Applications

Ideal for building, road construction, and water conservancy projects.
Suitable for mining tasks requiring robust performance and durability.
Effective for electric power, oil, and natural gas pipeline laying projects.

Powerful Engine Performance

Equipped with a Cummins B5.9-C engine, delivering 150 HP (112 kW) @ 1950 rpm.
Provides robust bucket and arm digging forces of 157 kN and 110 kN, respectively, ensuring efficient material handling.
Designed to reduce fuel consumption by approximately 5%, contributing to cost savings and environmental sustainability.

Advanced Hydraulic System

Features a main hydraulic system with a maximum flow rate of 206 L/min, facilitating swift and precise operations.
The advanced hydraulic system ensures powerful digging force and fast operating speed, meeting demands of various working conditions.

Robust Structural Design

Weighs approximately 21,300 kg, providing stability and durability for heavy-duty tasks.
Offers a standard bucket capacity of 1.0 m³, suitable for a wide range of applications.
Designed with a high load-bearing capacity undercarriage, ensuring longevity and reliability in demanding environments.

Operator-Friendly Cabin

The cabin is designed for operator comfort, featuring adjustable seating and intuitive controls.
Equipped with a dashboard display offering nine language options, including English, to cater to diverse operators.
Includes air conditioning and heating systems to maintain a comfortable working environment.

Enhanced Performance and Efficiency

An upgraded bucket capacity and enhanced manoeuvrability contribute to increased productivity.
The undercarriage is designed to handle heavy loads, ensuring stability during operations.
Designed to reduce fuel consumption by approximately 5%, contributing to cost savings and environmental sustainability.

Versatile Applications

Ideal for building, road construction, and water conservancy projects.
Suitable for mining tasks requiring robust performance and durability.
Effective for electric power, oil, and natural gas pipeline laying projects.

Specifications

Product specification of Zoomlion ZE215E Excavator

ENGINE

Model

Cummins B5.9-C
Fuel

Diesel
Type

6 Cylinders
Rated Engine Power

150 HP (112 kW) @ 1950 rpm
Maximum Torque

NA
Piston Displacement

5.9 L
Alternator

NA
Battery

NA
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

600 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Gradeability

70% (35°)
Travel Speed-Low

3.3 Km/h
Travel Speed-High

5.5 Km/h
Max Tracking Force

192 kN

HYDRAULIC SYSTEM

Hydraulic Pump

NA
Maximum Flow

2 × 206 L/min
Pilot Pump

NA
Implement Circuit

34.3 MPa /37.3MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

NA
Swing

NA

SERVICE CAPACITIES

Fuel Tank

NA
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

NA
Hydraulic Tank

NA

MACHINE WEIGHTS

Operating Weight

21300 Kg

WORKING RANGE

Boom Length

NA
Arm Length

NA
Max. Digging Reach

9830 mm
Max. Digging Reach on Ground

9650 mm
Max. Digging Depth

6610 mm
Max. Digging Height

9615 mm
Max. Dumping Height

6785 mm
Max. Vertical Wallcut Depth

5580 mm
Min. Swing Radius

3290 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

157 kN
Arm Digging Force

110 kN
Swing Speed

11.5 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

1.0 m³

STATIC DIMENSIONS

Overall Length

9555 mm
Overall Width

2800 mm
Overall Height

3085 mm
Overall Height of Cab

2990 mm
Upper Width

2720 mm
Track Lengh on Ground

3380 mm
Undercarriage Overall Length

4180 mm
Tailswing Radius

2840 mm
Min. Ground Clearance

440 mm
Track Gauge

2200 mm
Width Over Tracks

2800 mm
Track Height

NA
Counterweight Clearence

1050 mm
Track Shoe Width

600 mm

Frequently Asked Question

01. What is the Zoomlion ZE215E Excavator price in India?

Ans.

The exact Zoomlion ZE215E Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Zoomlion ZE215E excavator?

Ans.

You can buy the Zoomlion ZE215E excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Zoomlion ZE215E Excavator come with financing and insurance options?

Ans.

Yes, the Zoomlion ZE215E comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Zoomlion ZE215E excavator?

Ans.

The operating weight of the Zoomlion ZE215E excavator is approximately 21300 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Zoomlion ZE215E excavator?

Ans.

The Zoomlion ZE215E excavator is powered by a Cummins B5.9-C engine, delivering 150 HP (112 kW) at 1950 rpm.

06. What is the maximum digging depth of the Zoomlion ZE215E excavator?

Ans.

The Zoomlion ZE215E excavator has a maximum digging depth of 6610 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Zoomlion ZE215E Excavator?

Ans.

The bucket capacity of the Zoomlion ZE215E Excavator is 1.0 cubic meters (m³).

08. What is the warranty period for the Zoomlion ZE215E excavator?

Ans.

The Zoomlion ZE215E Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Zoomlion ZE215E excavator?

Ans.

You can find genuine spare parts for the Zoomlion ZE215E excavator at authorized Zoomlion dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Zoomlion ZE215E Excavator?

Ans.

The Zoomlion ZE215E excavator has a NA diesel fuel tank, providing extended operation time without frequent refueling.
