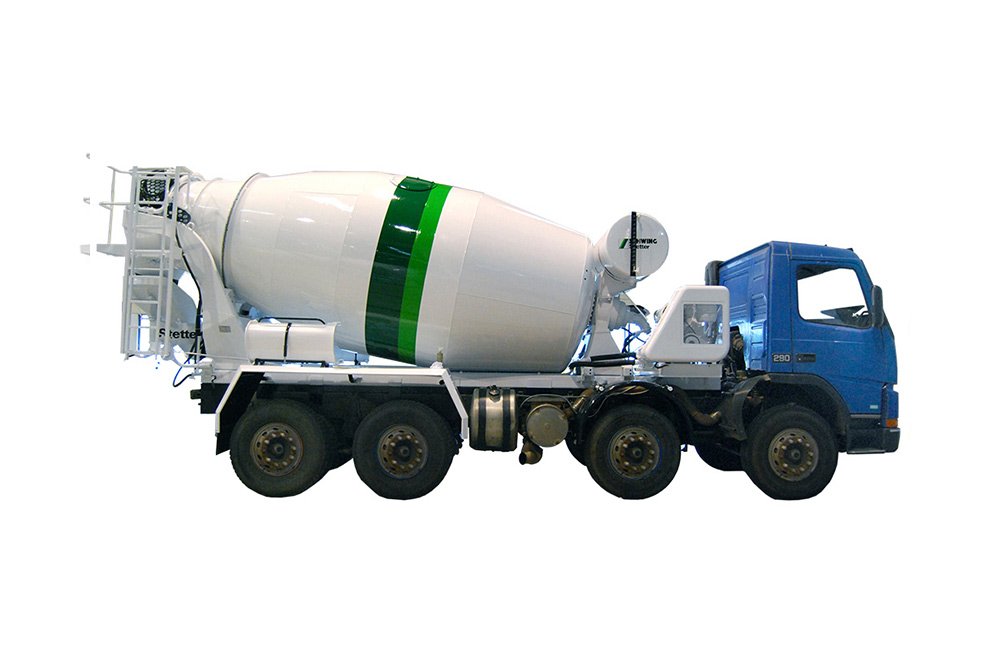

Schwing Stetter AM 9 (C2) Transit Mixer

A nominal mixing capacity of 9 m³, along with a total drum volume of about 15,850 L, ensures a large delivery of concrete per trip.

The waterline volume of approximately 10,010 L supports consistent mixing and longer drum work cycles.

A filling ratio of 57% achieves optimal load efficiency and maximizes payload use.

The drum and spiral geometry are designed for effective mixing and discharge, which reduces concrete segregation.

The drum speed reaches up to 12 rpm, allowing thorough blending of wet concrete, even under heavy loads.

High water lines and thick spirals provide uniform quality and reduce leftover concrete buildup.

A powerful 79 kW prime mover drives the system, making it ideal for PTO-driven or slave-engine setups.

The heavy-duty "C2" version offers excellent drive characteristics and stability.

PTO or auxiliary motor options provide greater versatility across different chassis types.

Wear-resistant plates and “Stetter-T protection” safeguard the drum’s feed hopper and spiral edges, ensuring a long service life.

Thick mixing spirals resist wear, resulting in low maintenance and increased operational uptime.

The discharge shell and chute are made of hardened steel to prevent early wear.

Equipped with a large 650 L water tank, the system enables on-site washout and drum cleaning.

An optional hydraulically tilting filling hopper allows high-pressure cleaning for better hygiene.

It maintains a consistent water supply, which is crucial for cement hydration and ensuring fresh concrete quality.

Side service openings with removable covers provide quick access to the drum and spirals for speedy maintenance.

A central greasing strip allows for easy, centralized lubrication, making routine upkeep simpler and reducing downtime.

Folding and swivel chutes, along with a ladder platform, provide safe and easy access for precise concrete placement.
