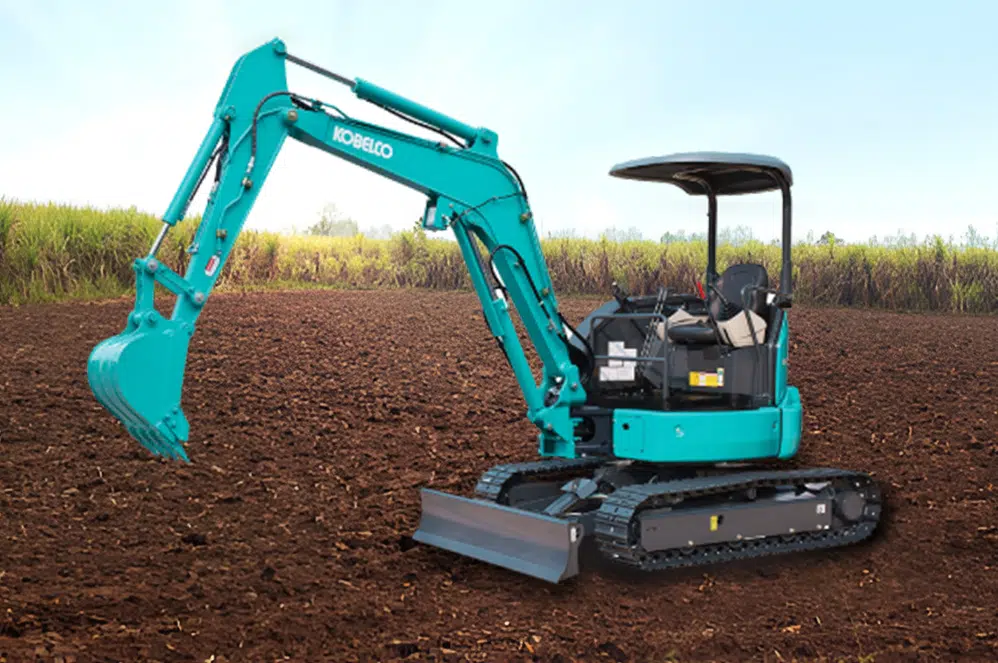

    Kobelco SK30SR Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Kobelco

    • Type

      Mini (0-6 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Weight

      3500 Kg

    • Bucket

      0.12 m³

    • Digging Depth

      2

    • Engine

      YANMAR 24.2 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      NA

    Quick Overview:

    Featuring precision and reliability, Kobelco SK30SR mini excavator is perfect for landscaping and small agricultural applications.

    Connect With Us:

    Get the best price for the Kobelco SK30SR Mini Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    YANMAR 3TNV82A-B

    Fuel Tank

    42 L

    Engine Displacement

    1.331 L

    Under Carriage

    2170 mm

    Hydraulic System

    2 x 38.4, 1 x 19.2 L/min

    Arm

    1320 mm

    Max Digging Reach

    5200 mm

    Fuel Consumption

    NA

    Overall Width

    1530 mm

    Overall Length

    4730 mm

    Bucket Digging Force

    27.7 kN

    Tailswing Radius

    775 mm

    Track Shoe Width

    300 mm

    AC Cabin

    Not Available

    Optional

    GPS

    Not Available

    Features

    Performance

    Performance

    • High strength bucket

    • Box construction dozer

    • Blade shaped dozer

    • Blade shaped dozer

    • Automatic 2-speed travel

    • Travel switch - Easy switching to H-Mode

    • Short tail swing

    • Wide working range

    • Energy conservation mode

    Reliability

    Reliability

    • Large and thick swing bracket

    • Hydraulic piping inside swing bracket

    Comfort & Safety

    Comfort & Safety

    • Integrated Noise & Dust Reduction cooling system (iNDr)

    • Spacious work environment

    • Color liquid crystal monitor (Optional)

    • Reliable canopy structure

    Maintenance

    Maintenance

    • Easy access to engine compartment

    • Easy access to component under the seat

    • Easy access to cooling unit

    Performance

    • High strength bucket

    • Box construction dozer

    • Blade shaped dozer

    • Blade shaped dozer

    • Automatic 2-speed travel

    • Travel switch - Easy switching to H-Mode

    • Short tail swing

    • Wide working range

    • Energy conservation mode

    Reliability

    • Large and thick swing bracket

    • Hydraulic piping inside swing bracket

    Comfort & Safety

    • Integrated Noise & Dust Reduction cooling system (iNDr)

    • Spacious work environment

    • Color liquid crystal monitor (Optional)

    • Reliable canopy structure

    Maintenance

    • Easy access to engine compartment

    • Easy access to component under the seat

    • Easy access to cooling unit

    Specifications

    Product specification of Kobelco SK30SR Excavator

    ENGINE

    • Model

      YANMAR 3TNV82A-B

    • Fuel

      Diesel

    • Type

      Water cooled, 4-cycle, 3-cylinder, direct injection

    • Rated Engine Power

      24.2 HP (18.1 kW) @ 2350 rpm

    • Maximum Torque

      79.4 Nm @ 1440 rpm

    • Piston Displacement

      1.331 L

    • Alternator

      NA

    • Battery

      NA

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      NA

    • No of Bottom Rollers

      NA

    • Track Shoes (Each Side)

      NA

    • Track Guard

      NA

    • Track Shoe Width

      300 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Gradeability

      58% (30°)

    • Travel Speed-Low

      2.5 Km/h

    • Travel Speed-High

      4.2 Km/h

    • Max Tracking Force

      39.6 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      Two variable displacement pumps + one gear pump

    • Maximum Flow

      2 x 38.4, 1 x 19.2 L/min

    • Pilot Pump

      Gear Pump

    • Implement Circuit

      23.0 MPa

    • Swing Circuit

      NA

    • Travel Circuit

      NA

    • Pilot Circuit

      NA

    HYDRAULIC MOTORS

    • Travel

      2 x axial-piston, two-step motors

    • Swing

      Oil disc brake per motor

    SERVICE CAPACITIES

    • Fuel Tank

      42 L

    • Engine Coolant

      NA

    • Engine Oil

      NA

    • Hydraulic System

      44.8 L

    • Hydraulic Tank

      20.4 L

    MACHINE WEIGHTS

    • Operating Weight

      3500 Kg

    WORKING RANGE

    • Boom Length

      NA

    • Arm Length

      1320 mm

    • Max. Digging Reach

      5200 mm

    • Max. Digging Reach on Ground

      5,040 mm

    • Max. Digging Depth

      2,820 mm

    • Max. Digging Height

      4,800 mm

    • Max. Dumping Height

      3,420 mm

    • Max. Vertical Wallcut Depth

      2,360 mm

    • Min. Swing Radius

      2,300 mm

    • Max. Height at Min Swing Radius

      1,910 mm

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      27.7 kN

    • Arm Digging Force

      19.1 kN

    • Swing Speed

      8.4 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      400 mm

    • Approach Angle

      NA

    • Width

      NA

    • Height

      470 mm

    BUCKET

    • Bucket Capacity

      0.12 m³

    STATIC DIMENSIONS

    • Overall Length

      4730 mm

    • Overall Width

      1530 mm

    • Overall Height

      2510 mm

    • Overall Height of Cab

      NA

    • Upper Width

      1530 mm

    • Track Lengh on Ground

      1770 mm

    • Undercarriage Overall Length

      2170 mm

    • Tailswing Radius

      775 mm

    • Min. Ground Clearance

      300 mm

    • Track Gauge

      1250 mm

    • Width Over Tracks

      NA

    • Track Height

      560 mm

    • Counterweight Clearence

      345 mm

    • Track Shoe Width

      300 mm

    Frequently Asked Question

    01. What is the Kobelco SK30SR Excavator price in India?

    Ans.

    The exact Kobelco SK30SR Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

    02. Where can I buy a Kobelco SK30SR excavator?

    Ans.

    You can buy the Kobelco SK30SR excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Kobelco SK30SR Excavator come with financing and insurance options?

    Ans.

    Yes, the Kobelco SK30SR comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Kobelco SK30SR excavator?

    Ans.

    The operating weight of the Kobelco SK30SR excavator is approximately 3500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Kobelco SK30SR excavator?

    Ans.

    The Kobelco SK30SR excavator is powered by a YANMAR 3TNV82A-B engine, delivering 24.2 HP (18.1 kW) at 2350 rpm.

    06. What is the maximum digging depth of the Kobelco SK30SR excavator?

    Ans.

    The Kobelco SK30SR excavator has a maximum digging depth of 2820 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Kobelco SK30SR Excavator?

    Ans.

    The bucket capacity of the Kobelco SK30SR Excavator is 0.12 cubic meters (m³).

    08. What is the warranty period for the Kobelco SK30SR excavator?

    Ans.

    The Kobelco SK30SR Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Kobelco SK30SR excavator?

    Ans.

    You can find genuine spare parts for the Kobelco SK30SR excavator at authorized Kobelco dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Kobelco SK30SR Excavator?

    Ans.

    The Kobelco SK30SR excavator has a 42 litres diesel fuel tank, providing extended operation time without frequent refueling.
