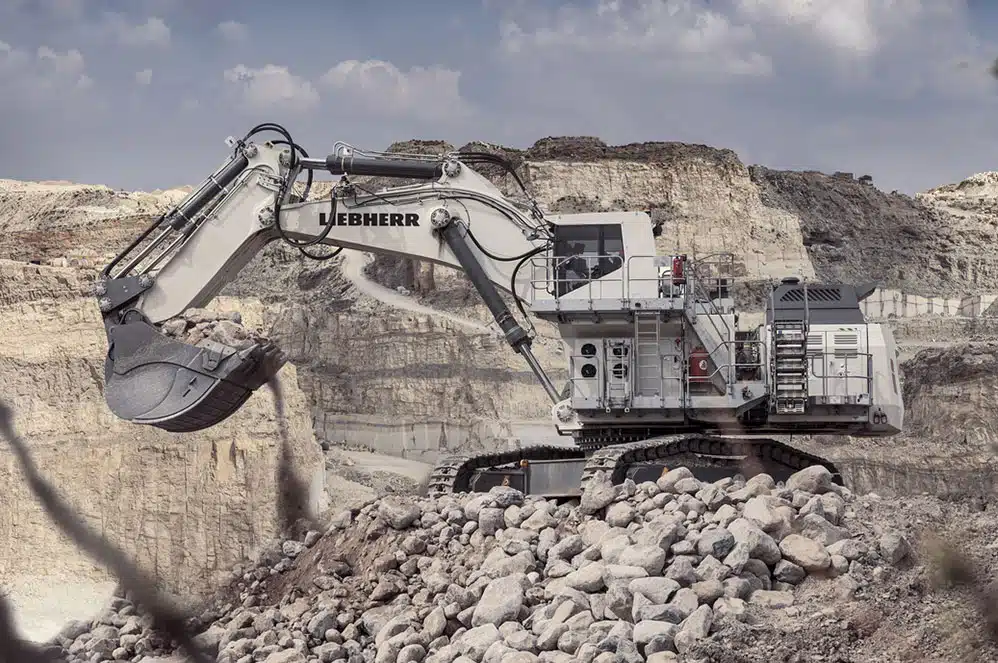

Liebherr R 9300 G8 Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Liebherr
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
252000 Kg
Bucket
16.5 m³
Digging Depth
8300 mm
Engine
Cummins 1350 HP
Warranty
1 Yr. / 2500 hr.
Boom
9000 mm

Quick Overview:

Offering unmatched performance for massive earthmoving and mining operations Liebherr R 9300 G8 extra-large excavator is best suited.

Connect With Us:

Get the best price for the Liebherr R 9300 G8 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins QSK38

Fuel Tank

4500 L

Engine Displacement

37.8 L

Under Carriage

8060 mm

Hydraulic System

4 x 512 L/min.

Arm

4000 mm

Max Digging Reach

Fuel Consumption

Overall Width

7590 mm

Overall Length

17400 mm

Bucket Digging Force

885 kN

Tailswing Radius

Track Shoe Width

850 mm

AC Cabin

Standard

GPS

Standard

Features

Advanced Design and Engineering

Features a lighter and stronger attachment, enhancing digging forces and overall productivity.
Incorporates the patented EVO bucket, increasing loading capacity by 5% and improving productivity by up to 15%.
Utilizes high-strength materials and intelligent design to ensure durability and longevity in harsh mining environments.
Facilitates easier maintenance and replacement, reducing downtime and operational costs.
Achieves optimal balance, enhancing stability and operational efficiency.
Designed to accommodate future advancements, including automation and zero-emission options.

Superior Performance

Offers a backhoe bucket capacity of 16.5 m³ and a face shovel capacity of 16.0 m³, enabling efficient material handling.
Delivers breakout forces of up to 980 kN, ensuring effective excavation in tough conditions.
Engineered for rapid operation cycles, contributing to increased productivity on-site.
Equipped with advanced assistance systems to support operator performance and machine utilization.
Designed to efficiently load mining trucks, improving overall fleet productivity.
Achieves a 33% increase in service life compared to its predecessor, the R 9250, enhancing reliability and reducing operational costs.

Fuel Efficiency and Environmental Compliance

Proprietary engine and hydraulic management system reduces fuel consumption by up to 15%.
Meets stringent international emission standards, minimizing environmental impact.
An electric powertrain version is under development, aiming to further reduce emissions.
Reduces hydraulic throttling, enhancing efficiency and component lifespan.
Designed to support greenhouse gas emission reduction targets, aligning with sustainable mining practices.
Achieves a fuel efficiency ratio of 9.22 BCM per litre of fuel burned, enhancing operational cost-effectiveness.

Operator Comfort and Safety

Features enhanced ergonomics, large touch screens, and improved control panels for operator comfort.
Provides a 45° stairway with handrails, ensuring safe access for maintenance personnel.
Includes systems like Truck Loading Assistant and Performance Monitoring Assistant to aid operators.
Offers improved visibility features, contributing to safer operation in mining environments.
Maintains optimal temperature, ensuring operator comfort in various climates.
Incorporates sound insulation to minimize operator fatigue and enhance safety.

Maintenance and Serviceability

Provides easy access to uppercarriage fluid compartments, reducing maintenance time.
Features refill and drain points accessible from the ground with fast couplings and depressurized valves.
Reduces the number of internal reinforcement plates, lowering stress levels and enhancing durability.
Includes a shift lever with an integrated greasing system for easier maintenance.
Ensures longevity of lubrication systems by safeguarding grease manifolds.
Design enhancements lead to increased component life, reducing the frequency of replacements.

Technological Innovations

Supports advanced onboard applications like Application Severity Assistant and Operational Conformance Assistant.
Offers semi-automatic bucket filling and anti-stalling functions, improving efficiency in challenging digging conditions.
Provides live data analysis to enhance operator performance and machine utilization.

Advanced Design and Engineering

Features a lighter and stronger attachment, enhancing digging forces and overall productivity.
Incorporates the patented EVO bucket, increasing loading capacity by 5% and improving productivity by up to 15%.
Utilizes high-strength materials and intelligent design to ensure durability and longevity in harsh mining environments.
Facilitates easier maintenance and replacement, reducing downtime and operational costs.
Achieves optimal balance, enhancing stability and operational efficiency.
Designed to accommodate future advancements, including automation and zero-emission options.

Superior Performance

Offers a backhoe bucket capacity of 16.5 m³ and a face shovel capacity of 16.0 m³, enabling efficient material handling.
Delivers breakout forces of up to 980 kN, ensuring effective excavation in tough conditions.
Engineered for rapid operation cycles, contributing to increased productivity on-site.
Equipped with advanced assistance systems to support operator performance and machine utilization.
Designed to efficiently load mining trucks, improving overall fleet productivity.
Achieves a 33% increase in service life compared to its predecessor, the R 9250, enhancing reliability and reducing operational costs.

Fuel Efficiency and Environmental Compliance

Proprietary engine and hydraulic management system reduces fuel consumption by up to 15%.
Meets stringent international emission standards, minimizing environmental impact.
An electric powertrain version is under development, aiming to further reduce emissions.
Reduces hydraulic throttling, enhancing efficiency and component lifespan.
Designed to support greenhouse gas emission reduction targets, aligning with sustainable mining practices.
Achieves a fuel efficiency ratio of 9.22 BCM per litre of fuel burned, enhancing operational cost-effectiveness.

Operator Comfort and Safety

Features enhanced ergonomics, large touch screens, and improved control panels for operator comfort.
Provides a 45° stairway with handrails, ensuring safe access for maintenance personnel.
Includes systems like Truck Loading Assistant and Performance Monitoring Assistant to aid operators.
Offers improved visibility features, contributing to safer operation in mining environments.
Maintains optimal temperature, ensuring operator comfort in various climates.
Incorporates sound insulation to minimize operator fatigue and enhance safety.

Maintenance and Serviceability

Provides easy access to uppercarriage fluid compartments, reducing maintenance time.
Features refill and drain points accessible from the ground with fast couplings and depressurized valves.
Reduces the number of internal reinforcement plates, lowering stress levels and enhancing durability.
Includes a shift lever with an integrated greasing system for easier maintenance.
Ensures longevity of lubrication systems by safeguarding grease manifolds.
Design enhancements lead to increased component life, reducing the frequency of replacements.

Technological Innovations

Supports advanced onboard applications like Application Severity Assistant and Operational Conformance Assistant.
Offers semi-automatic bucket filling and anti-stalling functions, improving efficiency in challenging digging conditions.
Provides live data analysis to enhance operator performance and machine utilization.

Specifications

Product specification of Liebherr R 9300 G8 Excavator

ENGINE

Model

Cummins QSK38
Fuel

Diesel/Electric
Type

12 cylinder V-engine, turbocharged after cooled, cooler with temperature controlled fans driven via hydraulic piston motor
Rated Engine Power

1350 HP (1007 kW) @ 1800 rpm
Maximum Torque

NA
Piston Displacement

37.8 L
Alternator

24 V / 260 A
Battery

4 x 180 Ah / 12 V + jump start connector
Starting Motor

24 V

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

8
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

850 mm
Ground Bearing Pressure

206 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

NA
Travel Speed-High

2.4 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

4 variable flow axial piston pumps
Maximum Flow

4 x 512 L/min.
Pilot Pump

NA
Implement Circuit

35.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

1 axial piston motor per side frame
Swing

2 Liebherr axial piston motors

SERVICE CAPACITIES

Fuel Tank

4500 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

3400 L
Hydraulic Tank

1800 L

MACHINE WEIGHTS

Operating Weight

252000 Kg

WORKING RANGE

Boom Length

9000 mm
Arm Length

4000 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

15600 mm
Max. Digging Depth

8300 mm
Max. Digging Height

14900 mm
Max. Dumping Height

9900 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

885 kN
Arm Digging Force

810 kN
Swing Speed

4.0 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

16.5 m³

STATIC DIMENSIONS

Overall Length

17400 mm
Overall Width

7590 mm
Overall Height

7450 mm
Overall Height of Cab

7360 mm
Upper Width

5450 mm
Track Lengh on Ground

6203 mm
Undercarriage Overall Length

8060 mm
Tailswing Radius

NA
Min. Ground Clearance

894 mm
Track Gauge

5000 mm
Width Over Tracks

6310 mm
Track Height

2222 mm
Counterweight Clearence

2380 mm
Track Shoe Width

850 mm

Frequently Asked Question

01. What is the Liebherr R 9300 G8 Excavator price in India?

Ans.

The exact Liebherr R 9300 G8 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Liebherr R 9300 G8 excavator?

Ans.

You can buy the Liebherr R 9300 G8 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Liebherr R 9300 G8 Excavator come with financing and insurance options?

Ans.

Yes, the Liebherr R 9300 G8 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Liebherr R 9300 G8 excavator?

Ans.

The operating weight of the Liebherr R 9300 G8 excavator is approximately 252000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Liebherr R 9300 G8 excavator?

Ans.

The Liebherr R 9300 G8 excavator is powered by a Cummins QSK38 engine, delivering 1350 HP (1007 kW) at 1800 rpm.

06. What is the maximum digging depth of the Liebherr R 9300 G8 excavator?

Ans.

The Liebherr R 9300 G8 excavator has a maximum digging depth of 8300 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Liebherr R 9300 G8 Excavator?

Ans.

The bucket capacity of the Liebherr R 9300 G8 Excavator is 16.5 cubic meters (m³).

08. What is the warranty period for the Liebherr R 9300 G8 excavator?

Ans.

The Liebherr R 9300 G8 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Liebherr R 9300 G8 excavator?

Ans.

You can find genuine spare parts for the Liebherr R 9300 G8 excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Liebherr R 9300 G8 Excavator?

Ans.

The Liebherr R 9300 G8 excavator has a 4500 litres diesel fuel tank, providing extended operation time without frequent refueling.

Popular Comparisons with Liebherr R 9300 G8

Liebherr

Liebherr R 9300 G8

4.5 rating

Price Available Soon

252000 Kg

Liebherr

Liebherr R 9350 G6

4.5 rating

Price Available Soon

302000 Kg

Compare

Liebherr

Liebherr R 9300 G8

4.5 rating

Price Available Soon

252000 Kg

Liebherr

Liebherr R 9250 G6

4.5 rating

Price Available Soon

250000 Kg

Compare

Liebherr

Liebherr R 9300 G8

4.5 rating

Price Available Soon

252000 Kg

Liebherr

Liebherr R 9200 G7

4.5 rating

Price Available Soon

205000 Kg

Compare

Liebherr

Liebherr R 9300 G8

4.5 rating

Price Available Soon

252000 Kg

Tata Hitachi

Tata Hitachi EX 2600-6

4.5 rating

Price Available Soon

260000 Kg

Compare

Liebherr

Liebherr R 9300 G8

4.5 rating

Price Available Soon

252000 Kg

desi-machines-komatsu-mining-excavator-pc3000-6-featured

L&T Komatsu

Komatsu PC3000-6

4.5 rating

Price Available Soon

252000 Kg

Compare

Are you interested in buying Liebherr R 9300 G8 Excavator

Products

Related Excavator

desi-machines-liebherr-excavators-r-9800-g6-featured

Liebherr R 9800 G6

Weight

800000 Kg
Bucket

47.5 m³
Dig. Depth

9000 mm

Price Available Soon^*

Extra-Large (>50 Ton)
