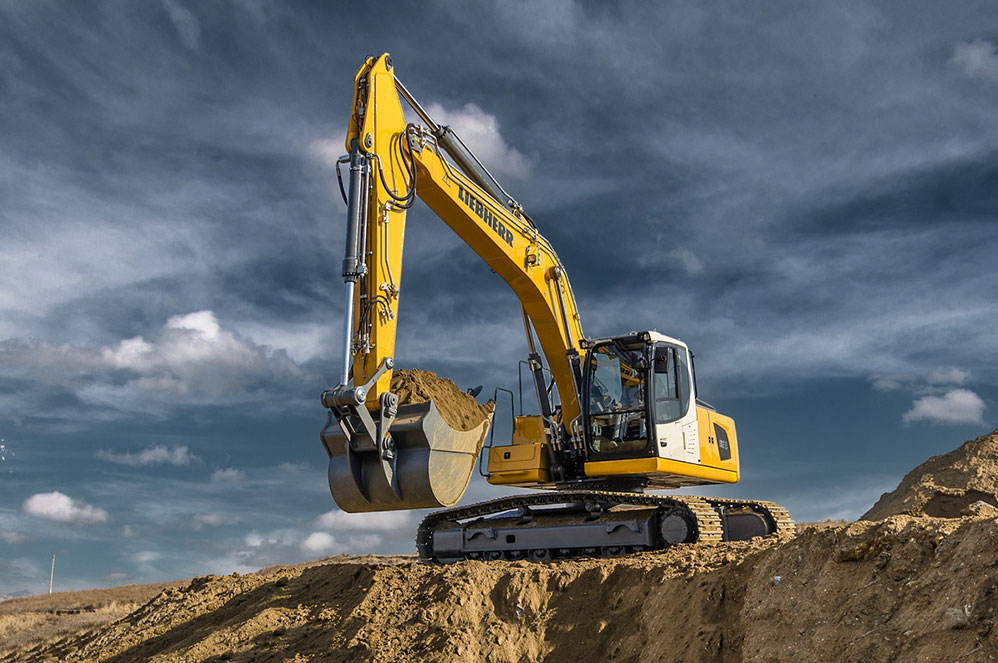

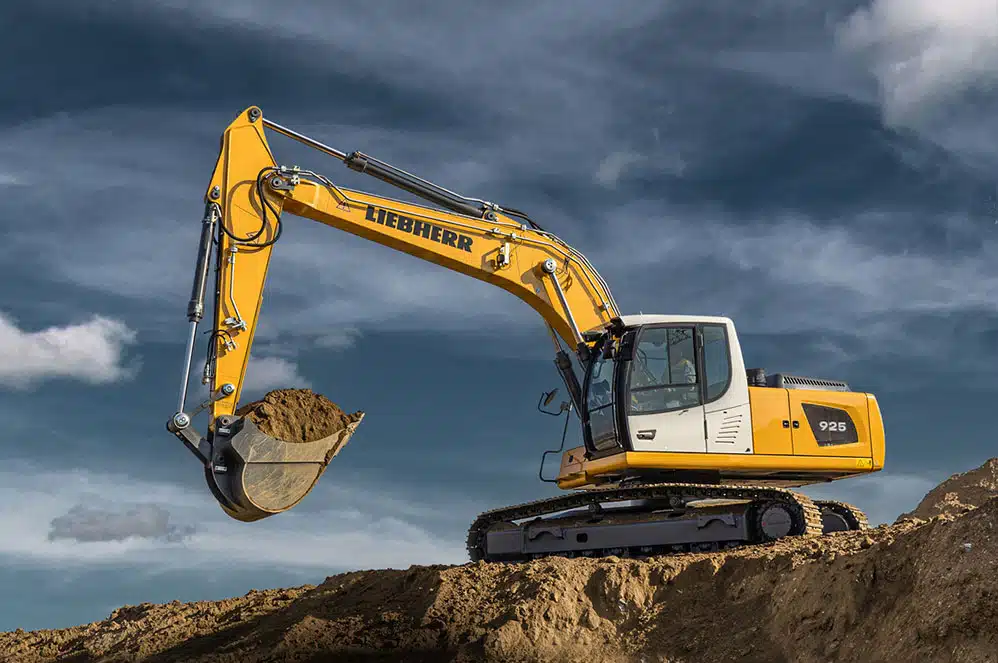

Liebherr R 925 Litronic Excavator

Name: Liebherr R 925 Litronic Excavator
Brand: Liebherr
Rating: 4.6 (74 reviews)

Robust performance and precision oriented large excavator Liebherr R 925 Litronic does mining and large-scale construction projects.

Liebherr R 925 Litronic Excavator | Desi Machines

Large (25-50 Ton)

desi-machines-liebherr-excavators-r-925-litronic-1

Large (25-50 Ton)

Weight
25650 Kg
Bucket
0.80 - 1.65 m³
Digging Depth
6890 mm
Engine
Cummins 170 HP
Warranty
1 Yr. / 2000 hr.
Boom
5900 mm

Download Brochure

Ex-Showroom Price
Price Available Soon
EMI Starts
Get Best Rate
Insurance
Check Availability

Connect With Us:

Planning to buy the Liebherr R 925 Litronic Excavator in India? Get the best price, EMI & finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of Liebherr R 925 Litronic

Engine Make

Cummins QSB6.7

Fuel Tank

580 L

Engine Displacement

6.7 L

Under Carriage

4630 mm

Hydraulic System

2 x 216 L/min

Arm

3000 mm

Max Digging Reach

Fuel Consumption

Overall Width

3190 mm

Overall Length

9950 mm

Bucket Digging Force

173 kN

Tailswing Radius

2820 mm

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features of Liebherr R 925 Litronic

Safety

Anti-slip coated access areas
Full all-around visibility – optional rear and side surveillance cameras
Emergency exit through the rear window in all excavator configurations
Laminated and tinted glass right window and windscreen

Comfort

Comfortable and spacious air-conditioned work area
Easy to use 9" high resolution colour touch screen
Large glass area
Fully retractable front window
New LED lighting as standard

Equipment

High digging and penetration force
Integrated regeneration system
Fast combined movements
Cast steel elements
Better resistance to stress
Longer life of parts due to grouping of lubrication points and reduced maintenance time

Engine

Cummins EU Stage IIIA / EPA Tier 3 equivalent engine
Low fuel consumption
Large fuel tank for long range
Steel engine hood and doors
Hydrostatically driven fan on request
Automatic idling and revving up

Maintenance

Maintenance concept with components accessible from the ground
Central lubrication of equipment – Automatic as an option

Frame

Reliable and robust X-shaped chassis, easy to secure with integrated eyelets
Special heat treatment for low sprocket wear
Maintenance-free undercarriage and greased-for-life track rollers
Easy to service

Are you interested in buying Liebherr R 925 Litronic Excavator

Specifications of Liebherr R 925 Litronic

ENGINE
UNDERCARRIAGE
HYDRAULIC SYSTEM
HYDRAULIC MOTORS
SERVICE CAPACITIES
MACHINE WEIGHTS
WORKING RANGE
DOZER BLADE
BUCKET
STATIC DIMENSIONS

ENGINE

Model

Cummins QSB6.7
Fuel

Diesel
Type

6 cylinder in-line, 4-stroke diesel Common-Rail, turbo, Emission standard equivalent to EU Stage IIIA / EPA Tier 3, Water-cooled and integrated motor oil cooler, aftercooled and water-cooled
Rated Engine Power

170 HP (125 kW) @ 1800 rpm
Maximum Torque

NA
Piston Displacement

6.7 L
Alternator

24 V / 70 A
Battery

12 V, 2 x 135 Ah
Starting Motor

24 V - 7.8 kW

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

9
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

600 mm
Ground Bearing Pressure

50.9 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

3.0 Km/h
Travel Speed-High

5.0 Km/h
Max Tracking Force

228 kN

HYDRAULIC SYSTEM

Hydraulic Pump

Variable double pump, in-line and swashplate
Maximum Flow

2 x 216 L/min
Pilot Pump

NA
Implement Circuit

35.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Liebherr swashplate motor with brake valves on both sides
Swing

Swashplate motor, shockless and antireaction

SERVICE CAPACITIES

Fuel Tank

580 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

300 L
Hydraulic Tank

100 L

MACHINE WEIGHTS

Operating Weight

25650 - 26200 Kg

WORKING RANGE

Boom Length

5900 mm
Arm Length

3000 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

10060 mm
Max. Digging Depth

6890 mm
Max. Digging Height

9690 mm
Max. Dumping Height

7010 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

173 kN
Arm Digging Force

119 kN
Swing Speed

11.3 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.80 - 1.65 m³

STATIC DIMENSIONS

Overall Length

9950 mm
Overall Width

3190 mm
Overall Height

3300 mm
Overall Height of Cab

3060 mm
Upper Width

2700 mm
Track Lengh on Ground

3830 mm
Undercarriage Overall Length

4630 mm
Tailswing Radius

2820 mm
Min. Ground Clearance

465 mm
Track Gauge

2590 mm
Width Over Tracks

3190 mm
Track Height

960 mm
Counterweight Clearence

1125 mm
Track Shoe Width

600 mm / 700 mm / 800 mm

Why Choose Liebherr R 925 Litronic

The R 925 is Liebherr's entry into the large class in India and the engine choice is interesting: a Cummins QSB6.7 producing 170 HP. Liebherr is known for using their own engines in larger machines, but at the 25-tonne entry level they pick Cummins for a specific reason.
Why Cummins at the entry size? Because the QSB6.7 is one of the most-serviced commercial engines in India through the truck network. For a buyer trying their first Liebherr machine, getting Cummins serviceability removes the engine-service risk from the decision. The Liebherr-engineered hydraulic system, undercarriage and operator cab carry over from the larger machines.
The Litronic electronic management system is what sets Liebherr apart at any size — load-adaptive pump tuning, intelligent power distribution, and operator-mode selection that meaningfully improves fuel economy versus standard hydraulic management. Across thousands of operating hours, the Litronic advantage compounds into real diesel saving.
Bucket force at 173 kN is appropriate for the class. For contractors wanting Liebherr build quality and Litronic electronics with the safety net of Cummins serviceability, the R 925 is the right entry-point Liebherr pick. Premium pricing reflects the European engineering.

Common Questions

FAQs about Liebherr R 925 Litronic

What is the Liebherr R 925 Litronic Excavator price in India?

The exact Liebherr R 925 Litronic Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

Where can I buy a Liebherr R 925 Litronic excavator?

You can buy the Liebherr R 925 Litronic excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

Does the Liebherr R 925 Litronic Excavator come with financing and insurance options?

Yes, the Liebherr R 925 Litronic comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

What is the operating weight of the Liebherr R 925 Litronic excavator?

The operating weight of the Liebherr R 925 Litronic excavator is approximately 25650 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

What type of engine is used in the Liebherr R 925 Litronic excavator?

The Liebherr R 925 Litronic excavator is powered by a Cummins QSB6.7 engine, delivering 170 HP (125 kW) at 1800 rpm.

What is the maximum digging depth of the Liebherr R 925 Litronic excavator?

The Liebherr R 925 Litronic excavator has a maximum digging depth of 6890 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

What is the bucket capacity of the Liebherr R 925 Litronic Excavator?

The bucket capacity of the Liebherr R 925 Litronic Excavator ranges from 0.80 to 1.65 cubic meters (m³).

What is the warranty period for the Liebherr R 925 Litronic excavator?

The Liebherr R 925 Litronic Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

Where can I find spare parts for the Liebherr R 925 Litronic excavator?

You can find genuine spare parts for the Liebherr R 925 Litronic excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
