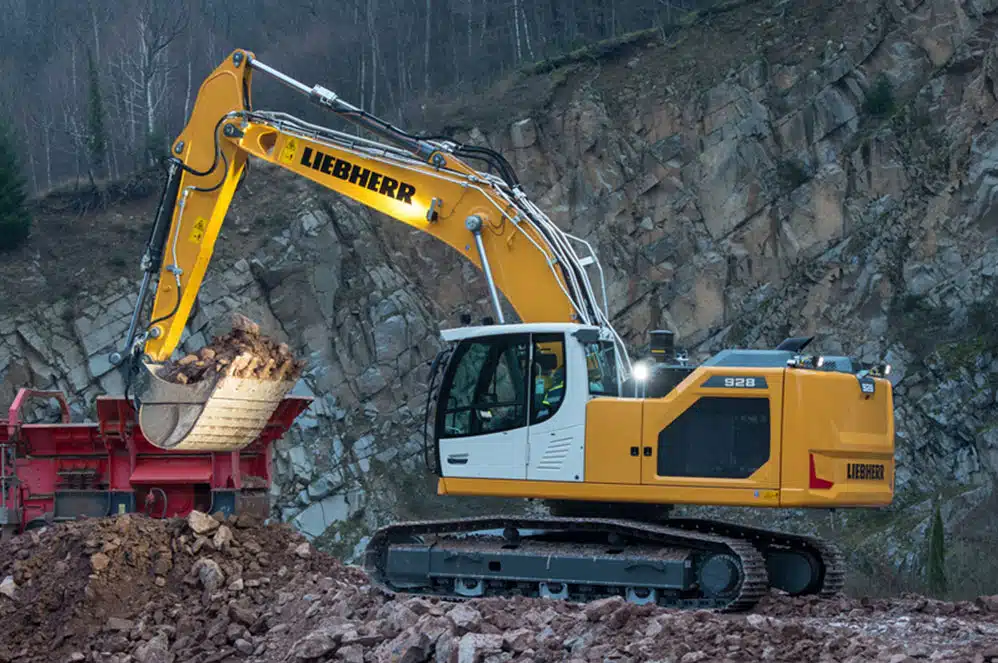

Liebherr R 928 Litronic Excavator

Name: Liebherr R 928 Litronic Excavator
Brand: Liebherr
Rating: 4.2 (57 reviews)

Catering to demanding mining activities and earthmoving operations Liebherr R 928 Litronic large excavator is best fit due to high-capacity performance.

Liebherr R 928 Litronic Excavator on Desi Machines

Large (25-50 Ton)

desi-machines-liebherr-excavators-r-928-litronic-1

Large (25-50 Ton)

Weight
28750 Kg
Bucket
0.55 - 1.75 m³
Digging Depth
6910 mm
Engine
Liebherr 204 HP
Warranty
1 Yr. / 2500 hr.
Boom
6000 mm

Download Brochure

Ex-Showroom Price
Price Available Soon
EMI Starts
Get Best Rate
Insurance
Check Availability

Connect With Us:

Get the best price for the Liebherr R 928 Litronic Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of Liebherr R 928 Litronic

Engine Make

Liebherr D934 A7-23

Fuel Tank

620 L

Engine Displacement

7.0 L

Under Carriage

4840 mm

Hydraulic System

2 x 265 L/min

Arm

3000 mm

Max Digging Reach

Fuel Consumption

16.92 L/hour

Overall Width

3190 mm

Overall Length

10100 mm

Bucket Digging Force

187 kN

Tailswing Radius

3200 mm

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features of Liebherr R 928 Litronic

Safety

Fully unobstructed all-round visibility – optional rear and side surveillance cameras
Tiltable console for easy and safe access to cab
Emergency exit via the rear cab window
Right window and windshield in laminated and tinted glass

Equipment

Large choice of sticks
Longer lifespan of components thanks to a grouping of the lubrication points
Safety check valves for hoist and stick cylinders (option)

Maintenance

Innovative servicing concept, with service points accessible from ground level
Engine oil, hydraulic oil and fuel levels visible on display

Comfort

Spacious, air-conditioned work space
Mechanical seat with vertical suspension as standard
Easy-to-use high resolution 9" colour touchscreen
Completely retractable front cab window
LED lighting as standard

Engine

Liebherr engine equivalent to EU Stage IIIA and EPA Tier 3
Automatic engine idling / speed increase, controlled via joystick sensors

Undercarriage

Robust, reliable X-frame undercarriage, easy to secure thanks to its integrated eyelets
Easy maintenance
Maintenance-free track chains and track rollers with lifetime lubrication

Are you interested in buying Liebherr R 928 Litronic Excavator

Specifications of Liebherr R 928 Litronic

ENGINE
UNDERCARRIAGE
HYDRAULIC SYSTEM
HYDRAULIC MOTORS
SERVICE CAPACITIES
MACHINE WEIGHTS
WORKING RANGE
DOZER BLADE
BUCKET
STATIC DIMENSIONS

ENGINE

Model

Liebherr D934 A7-23
Fuel

Diesel
Type

4 cylinder in-line, 4-stroke diesel Common-Rail Turbo-charged and after-cooler, Engine equivalent to EU Stage IIIA / EPA Tier 3: with EGR, Water-cooled and oil cooler, after-cooled and fuel cooled
Rated Engine Power

204 HP (150 kW) @ 1800 rpm
Maximum Torque

1245 Nm @ 1100 rpm
Piston Displacement

7.0 L
Alternator

24 V / 140 A
Battery

12 V, 2 x 135 Ah
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

9
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

600 mm
Ground Bearing Pressure

54.9 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

3.5 Km/h
Travel Speed-High

5.8 Km/h
Max Tracking Force

261 kN

HYDRAULIC SYSTEM

Hydraulic Pump

Liebherr, variable displacement, swashplate double pump
Maximum Flow

2 x 265 L/min
Pilot Pump

NA
Implement Circuit

38.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Liebherr swashplate motor with brake valves on both sides
Swing

Liebherr swashplate motor with integrated brake valve and torque control

SERVICE CAPACITIES

Fuel Tank

620 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

475 L
Hydraulic Tank

239 L

MACHINE WEIGHTS

Operating Weight

28750 - 30300 Kg

WORKING RANGE

Boom Length

6000 mm
Arm Length

3000 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

10010 mm
Max. Digging Depth

6910 mm
Max. Digging Height

9780 mm
Max. Dumping Height

7000 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

187 kN
Arm Digging Force

134 kN
Swing Speed

10.1 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.55 - 1.75 m³

STATIC DIMENSIONS

Overall Length

10100 mm
Overall Width

3190 mm
Overall Height

3150 mm
Overall Height of Cab

3150 mm
Upper Width

2990 mm
Track Lengh on Ground

3990 mm
Undercarriage Overall Length

4840 mm
Tailswing Radius

3200 mm
Min. Ground Clearance

505 mm
Track Gauge

2590 mm
Width Over Tracks

3190 mm
Track Height

1055 mm
Counterweight Clearence

1175 mm
Track Shoe Width

600 mm / 700 mm / 800 mm / 900 mm

Common Questions

FAQs about Liebherr R 928 Litronic

What is the Liebherr R 928 Litronic Excavator price in India?

The exact Liebherr R 928 Litronic Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

Where can I buy a Liebherr R 928 Litronic excavator?

You can buy the Liebherr R 928 Litronic excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

Does the Liebherr R 928 Litronic Excavator come with financing and insurance options?

Yes, the Liebherr R 928 Litronic comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

What is the operating weight of the Liebherr R 928 Litronic excavator?

The operating weight of the Liebherr R 928 Litronic excavator is approximately 28750 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

What type of engine is used in the Liebherr R 928 Litronic excavator?

The Liebherr R 928 Litronic excavator is powered by a Liebherr D934 A7-23 engine, delivering 204 HP (150 kW) at 1800 rpm.

What is the maximum digging depth of the Liebherr R 928 Litronic excavator?

The Liebherr R 928 Litronic excavator has a maximum digging depth of 6910 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

What is the bucket capacity of the Liebherr R 928 Litronic Excavator?

The bucket capacity of the Liebherr R 928 Litronic Excavator ranges from 0.55 to 1.75 cubic meters (m³).

What is the warranty period for the Liebherr R 928 Litronic excavator?

The Liebherr R 928 Litronic Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

Where can I find spare parts for the Liebherr R 928 Litronic excavator?

You can find genuine spare parts for the Liebherr R 928 Litronic excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

What is the fuel tank capacity of the Liebherr R 928 Litronic Excavator?

The Liebherr R 928 Litronic excavator has a 620 litres diesel fuel tank, providing extended operation time without frequent refueling.

What is the mileage of the Liebherr R 928 Litronic excavator?

The Liebherr R 928 Litronic excavator has an average fuel consumption of 16.92 litres per hour, depending on factors such as load, terrain, and operating conditions
