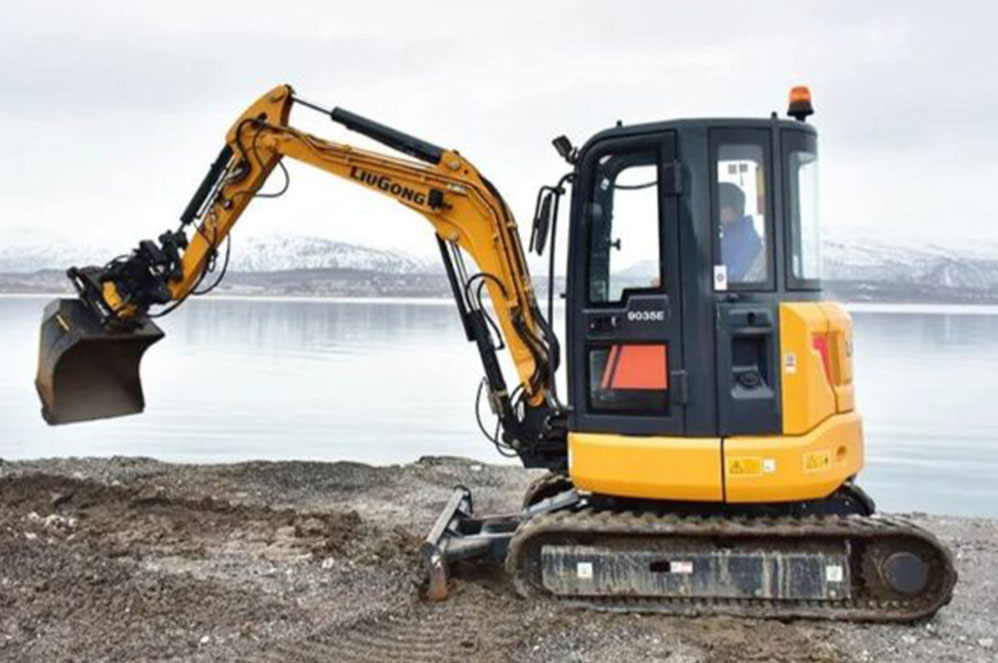

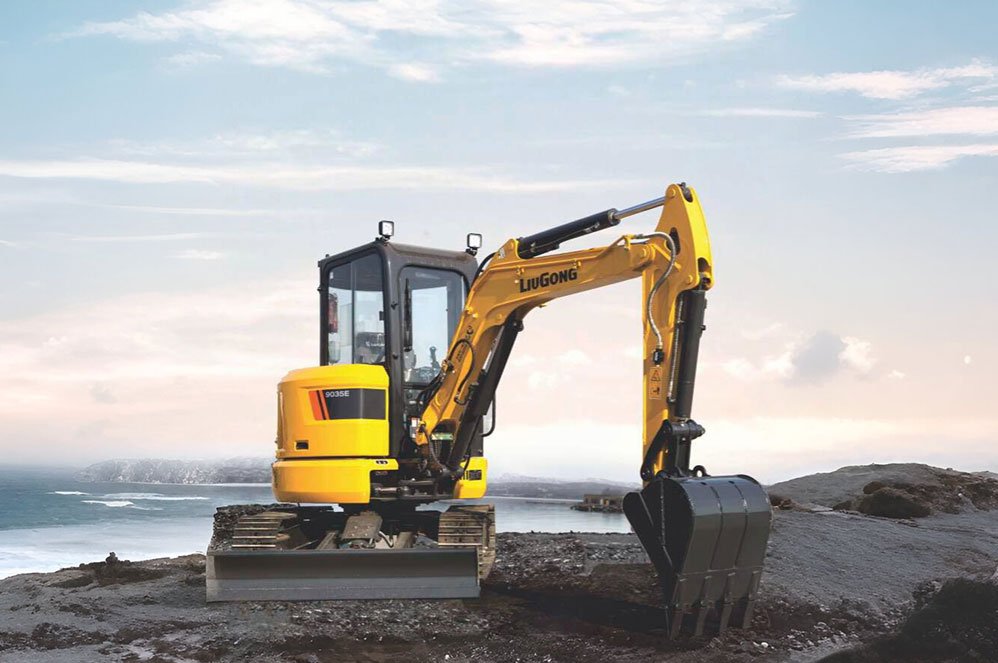

    Liugong 9035E Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Liugong

    • Type

      Mini (0-6 Ton)

    • Operating Cost

      ₹ 33-34 Lakhs

    • Ex-Showroom Price

      ₹ 33-34 Lakhs

    • Weight

      3980 Kg

    • Bucket

      0.11 m³

    • Digging Depth

      3085 mm

    • Engine

      Yanmar 28.4 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      2450 mm

    Quick Overview:

    For landscaping and urban construction, Liugong 9035E is a mini excavator featuring advanced hydraulics for efficient performance.

    Connect With Us:

    Get the best price for the Liugong 9035E Mini Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Yanmar 3TNV88-BPLY

    Fuel Tank

    40 L

    Engine Displacement

    1.6 L

    Under Carriage

    2100 mm

    Hydraulic System

    99 L/min

    Arm

    1320 mm

    Max Digging Reach

    5385 mm

    Fuel Consumption

    NA

    Overall Width

    1700 mm

    Overall Length

    4810 mm

    Bucket Digging Force

    30 kN

    Tailswing Radius

    850 mm

    Track Shoe Width

    300 mm

    AC Cabin

    Not Available

    GPS

    Not Available

    Features

    Performance​

    Performance​

    • The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque delivers excellent performance, without excess fuel consumption.

    Efficiency

    Efficiency

    • The LiuGong 9035E is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.

    Reliability

    Reliability

    • The use of thick, high-tensile strengthened, stress-relieved steel plates, makes the structures on E-series excavators, extra strong & reliable.

    Comfort

    Comfort

    • We understand how operators like to work. Our cabin is designed to ensure maximum operator comfort, enhanced productivity and excellent all around visibility with increased safety.

    Maximum Uptime

    Maximum Uptime

    • Machine availability enhanced, with use of world class reliable hydraulic components, engine designed to deliver high torque at low rpm, well designed rugged structures. Thereby making your work easier & faster throughout the operation. Easy visibility and accessibility to all service touch points from ground level, makes maintenance, safe, easy and fast.

    Performance​

    • The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque delivers excellent performance, without excess fuel consumption.

    Efficiency

    • The LiuGong 9035E is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.

    Reliability

    • The use of thick, high-tensile strengthened, stress-relieved steel plates, makes the structures on E-series excavators, extra strong & reliable.

    Comfort

    • We understand how operators like to work. Our cabin is designed to ensure maximum operator comfort, enhanced productivity and excellent all around visibility with increased safety.

    Maximum Uptime

    • Machine availability enhanced, with use of world class reliable hydraulic components, engine designed to deliver high torque at low rpm, well designed rugged structures. Thereby making your work easier & faster throughout the operation. Easy visibility and accessibility to all service touch points from ground level, makes maintenance, safe, easy and fast.

    Specifications

    Product specification of Liugong 9035E Excavator

    ENGINE

    • Model

      Yanmar 3TNV88-BPLY

    • Fuel

      Diesel

    • Type

      3 cylinders

    • Rated Engine Power

      28.4 HP (21.2 kW) @ 2400 rpm

    • Maximum Torque

      107 Nm @ 1440 rpm

    • Piston Displacement

      1.6 L

    • Alternator

      NA

    • Battery

      NA

    • Starting Motor

      12 V

    UNDERCARRIAGE

    • No of Top Rollers

      1

    • No of Bottom Rollers

      4

    • Track Shoes (Each Side)

      45

    • Track Guard

      NA

    • Track Shoe Width

      300 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Travel Speed-Low

      2.5 Km/h

    • Travel Speed-High

      4.2 Km/h

    • Gradeability

      NA

    • Max Tracking Force

      33 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      Variable Displacement Piston Pump

    • Max imum Flow

      99 L/min

    • Pilot Pump

      NA

    • Implement Circuit

      24.5 MPa

    • Swing Circuit

      NA

    • Travel Circuit

      NA

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      NA

    • Swing

      Axial Piston Motor

    SERVICE CAPACITIES

    • Fuel Tank

      40 L

    • Engine Coolant

      7 L

    • Engine Oil

      7 L

    • Hydraulic System

      NA

    • Hydraulic Tank

      58 L

    MACHINE WEIGHTS

    • Operating Weight

      3980 Kg

    WORKING RANGE

    • Boom Length

      2450 mm

    • Arm Length

      1320 mm

    • Max. Digging Reach

      5385 mm

    • Max. Digging Reach on Ground

      5270 mm

    • Max. Digging Depth

      3085 mm

    • Max. Digging Height

      4710 mm

    • Max. Dumping Height

      3310 mm

    • Max. Vertical Wallcut Depth

      2503 mm

    • Min. Swing Radius

      2416 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      2610 mm

    • Bucket Digging Force

      30 kN

    • Arm Digging Force

      22kN

    • Swing Speed

      10 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      390 mm

    • Vertical Lift from Ground level

      370 mm

    • Approach Angle

      NA

    • Width

      1700 mm

    • Height

      343 mm

    BUCKET

    • Bucket Capacity

      0.11 m³

    STATIC DIMENSIONS

    • Overall Length

      4810 mm

    • Overall Width

      1700 mm

    • Overall Height

      2500 mm

    • Overall Height of Cab

      NA

    • Upper Width

      1600 mm

    • Track Lenght on Ground

      1675 mm

    • Undercarriage Overall Length

      2100 mm

    • Tailswing Radius

      850 mm

    • Min. Ground Clearance

      NA

    • Track Gauge

      1400 mm

    • Width Over Tracks

      1700 mmm

    • Track Height

      NA

    • Counterweight Clearence

      580 mm

    • Track Shoe Width

      300 mm

    Frequently Asked Question

    01. What is the Liugong 9035E Excavator price in India?

    Ans.

    The Liugong 9035E Excavator price in India ranges between ₹ 33 – 34 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy a Liugong 9035E excavator?

    Ans.

    You can buy the Liugong 9035E excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Liugong 9035E Excavator come with financing and insurance options?

    Ans.

    Yes, the Liugong 9035E comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Liugong 9035E excavator?

    Ans.

    The operating weight of the Liugong 9035E excavator is approximately 3980 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Liugong 9035E excavator?

    Ans.

    The Liugong 9035E excavator is powered by a Yanmar 3TNV88-BPLY engine, delivering 28.4 HP (21.2 kW) at 2400 rpm.

    06. What is the maximum digging depth of the Liugong 9035E excavator?

    Ans.

    The Liugong 9035E excavator has a maximum digging depth of 3085 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Liugong 9035E Excavator?

    Ans.

    The bucket capacity of the Liugong 9035E Excavator is 0.11 cubic meters (m³).

    08. What is the warranty period for the Liugong 9035E excavator?

    Ans.

    The Liugong 9035E Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Liugong 9035E excavator?

    Ans.

    You can find genuine spare parts for the Liugong 9035E excavator at authorized Liugong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Liugong 9035E Excavator?

    Ans.

    The Liugong 9035E excavator has a 40 litres diesel fuel tank, providing extended operation time without frequent refueling.
