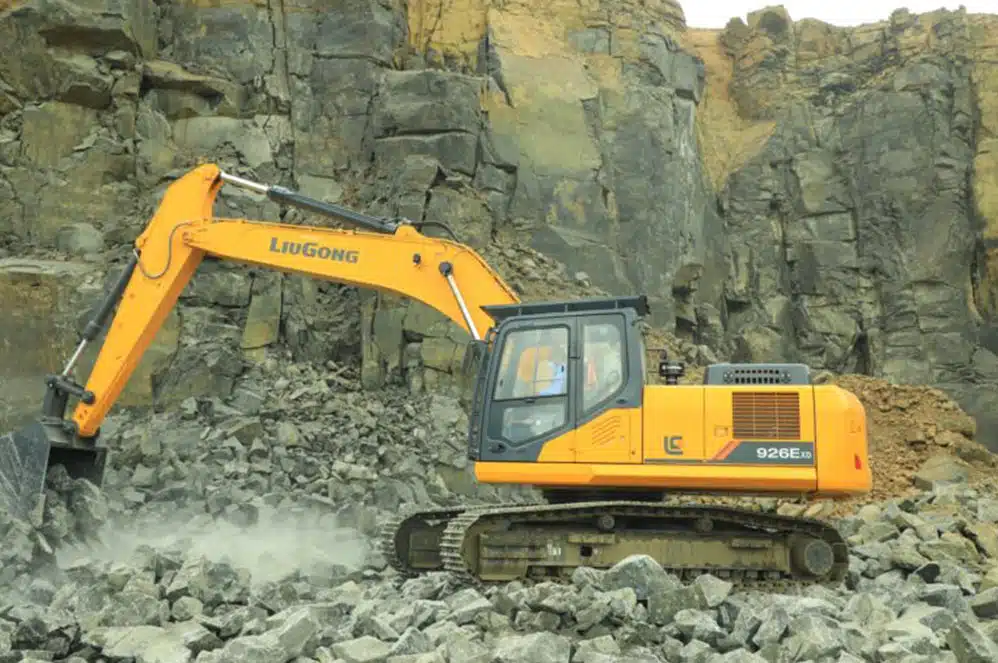

Liugong 926E XD Excavator

By · LiuGong Excavator →

Built heavier for rock and bad ground, the LiuGong 926E XD is a large excavator with a 26500 kg operating weight and buckets of 1.35-1.5 m³. Its six-cylinder turbocharged Cummins QSB7 makes 188 HP, digging force at the bucket is 179 kN, and it digs to 6915 mm.

Quarry loading, hard-soil infrastructure work and mining-support duty are where that heavier build pays off, and triple track guards protect the undercarriage in rocky footing. Owners get a 540 L fuel tank for full-shift running, a widely supported Cummins engine, and standard GPS with a 1-year/2000-hour warranty.

  • icon alt1
    Weight

    26500 Kg

  • featIcon2 (1) alt
    Bucket

    1.35 - 1.5 m³

  • Digging Depth

    6915 mm

  • Engine

    Cummins 188 HP

  • Warranty

    1 Yr. / 2000 hr.

  • Boom

    6000 mm

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of Liugong 926E XD

Engine Make

Cummins QSB7

Fuel Tank

540 L

Engine Displacement

6.7 L

Under Carriage

4635 mm

Hydraulic System

2 x 240 L/min

Arm

2980 mm

Max Digging Reach

10330 mm

Fuel Consumption

NA

Overall Width

3190 mm

Overall Length

10220 mm

Bucket Digging Force

179 kN

Tailswing Radius

3100 mm

Track Shoe Width

600 mm

air-conditioner-alt
AC Cabin

Standard

GPS Tracking
GPS

Standard

Features of Liugong 926E XD

Performance

  • The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque with liugong’s intelligent power control (IPC) system delivers excellent performance, without excess fuel consumption.

Efficiency

  • The LiuGong 926E XD is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.

Reliability

  • The use of thick, high-tensile strengthened, stress-relieved steel plates, makes the structures on E-series excavators, extra strong & reliable.

Comfort

  • We understand how operators like to work. Our cabin is designed to ensure maximum operator comfort, enhanced productivity and excellent all around visibility with increased safety.

Maximum Uptime

  • Machine availability enhanced, with use of world class reliable hydraulic components, engine designed to deliver high torque at low rpm, well designed rugged structures. Thereby making your work easier & faster throughout the operation. Easy visibility and accessibility to all service touch points from ground level, makes maintenance, safe, easy and fast.

Are you interested in buying Liugong 926E XD Excavator

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of Liugong 926E XD

    ENGINE

    • Model

      Cummins QSB7

    • Fuel

      Diesel

    • Type

      6 Cylinders Turbocharged

    • Rated Engine Power

      188 HP (140.1 kW) @ 2050 rpm

    • Maximum Torque

      800 Nm @ 1200 rpm

    • Piston Displacement

      6.7 L

    • Alternator

      NA

    • Battery

      12V, 120 Ah x 2

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      2

    • No of Bottom Rollers

      9

    • Track Shoes (Each Side)

      51

    • Track Guard

      3

    • Track Shoe Width

      600 mm

    • Ground Bearing Pressure

      56.4 kPa

    • Track Tensioning

      Grease

    • Gradeability

      70% (35°)

    • Travel Speed-Low

      3.3 Km/h

    • Travel Speed-High

      5.1 Km/h

    • Max Tracking Force

      248 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      Two Variable Displacement Piston Pumps

    • Maximum Flow

      2 x 240 L/min

    • Pilot Pump

      Gear Pump

    • Implement Circuit

      34.3 MPa / 37.3 MPa

    • Swing Circuit

      28.5 MPa

    • Travel Circuit

      34.3 MPa

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      Axial Piston Motor Planetary Gear

    • Swing

      Axial Piston Motor Planetary Gear

    SERVICE CAPACITIES

    • Fuel Tank

      540 L

    • Engine Coolant

      25 L

    • Engine Oil

      25 L

    • Hydraulic System

      330 L

    • Hydraulic Tank

      210 L

    MACHINE WEIGHTS

    • Operating Weight

      26500 Kg

    WORKING RANGE

    • Boom Length

      6000 mm

    • Arm Length

      2980 mm

    • Max. Digging Reach

      10330 mm

    • Max. Digging Reach on Ground

      10155 mm

    • Max. Digging Depth

      6915 mm

    • Max. Digging Height

      9815 mm

    • Max. Dumping Height

      6830 mm

    • Max. Vertical Wallcut Depth

      6060 mm

    • Min. Swing Radius

      3645 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      179 kN

    • Arm Digging Force

      134 kN

    • Swing Speed

      12 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      1.35 - 1.5 m³

    STATIC DIMENSIONS

    • Overall Length

      10220 mm

    • Overall Width

      3190 mm

    • Overall Height

      3200 mm

    • Overall Height of Cab

      3050 mm

    • Upper Width

      3150 mm

    • Track Lengh on Ground

      3840 mm

    • Undercarriage Overall Length

      4635 mm

    • Tailswing Radius

      3100 mm

    • Min. Ground Clearance

      440 mm

    • Track Gauge

      2590 mm

    • Width Over Tracks

      NA

    • Track Height

      NA

    • Counterweight Clearence

      1055 mm

    • Track Shoe Width

      600 mm

    Why Choose Liugong 926E XD

    • The 926E XD is Liugong's entry into the large class and the engine choice is the Cummins QSB7 producing 188 HP from 6.7 litres. That is a common-rail electronic Cummins commercial engine — the same family found on Liebherr R 922 Litronic, Liugong 924E XD and several other premium machines.
    • Why does this matter for a Liugong buyer? Because Liugong delivers the same proven Cummins engine that premium brands use, but at significantly lower upfront pricing. The QSB7's Indian service support runs through the Cummins commercial truck network — dense in tier 3-5 belts and reachable through any small-town diesel mechanic.
    • The XD reinforcement adds heavier-gauge steel at boom mounts, arm structure, and undercarriage attachment points — engineered for sustained heavy duty, breaker-attachment work, and rocky quarry operations where standard machines start showing wear at 3000-4000 hours.
    • Bucket force at 179 kN is appropriate for the 26-tonne class entry-level large machine. Liugong's hydraulic build quality at this size has matured significantly — joystick feel and operator cab refinement now competitive with Korean rivals.
    • For value-conscious contractors moving up from medium-class machines to their first large excavator, the 926E XD delivers Cummins reliability and XD heavy-duty engineering at sensible pricing.
    Common Questions

    FAQs about Liugong 926E XD

    What is the Liugong 926E XD Excavator price in India?

    The Liugong 926E XD Excavator price in India ranges from ₹62 – 68 lakh. The final price may vary based on location, dealer quotation, attachment configuration, and applicable taxes.

    Where can I buy a Liugong 926E XD excavator?

    You can buy the Liugong 926E XD excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    Does the Liugong 926E XD Excavator come with financing and insurance options?

    Yes, the Liugong 926E XD comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    What is the operating weight of the Liugong 926E XD excavator?

    The operating weight of the Liugong 926E XD excavator is approximately 26500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    What type of engine is used in the Liugong 926E XD excavator?

    The Liugong 926E XD excavator is powered by a Cummins QSB7 engine, delivering 188 HP (140.1 kW) at 2050 rpm.

    What is the maximum digging depth of the Liugong 926E XD excavator?

    The Liugong 926E XD excavator has a maximum digging depth of 6915 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    What is the bucket capacity of the Liugong 926E XD Excavator?

    The bucket capacity of the Liugong 926E XD Excavator ranges from 1.35 to 1.5 cubic meters (m³).

    What is the warranty period for the Liugong 926E XD excavator?

    The Liugong 926E XD Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    Where can I find spare parts for the Liugong 926E XD excavator?

    You can find genuine spare parts for the Liugong 926E XD excavator at authorized Liugong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    What is the fuel tank capacity of the Liugong 926E XD Excavator?

    The Liugong 926E XD excavator has a 540 litres diesel fuel tank, providing extended operation time without frequent refueling.
