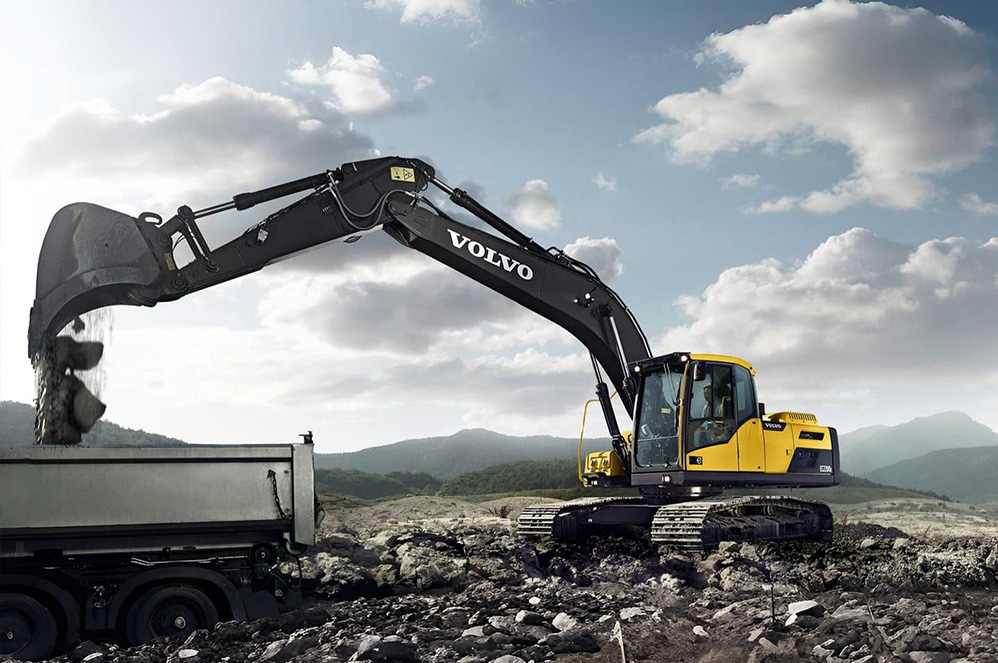

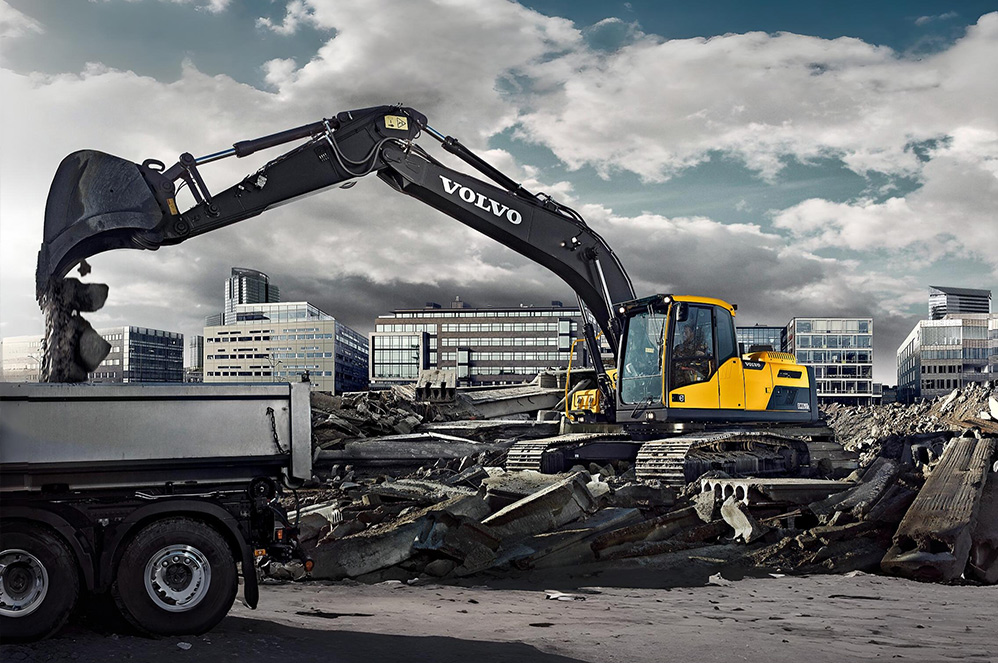

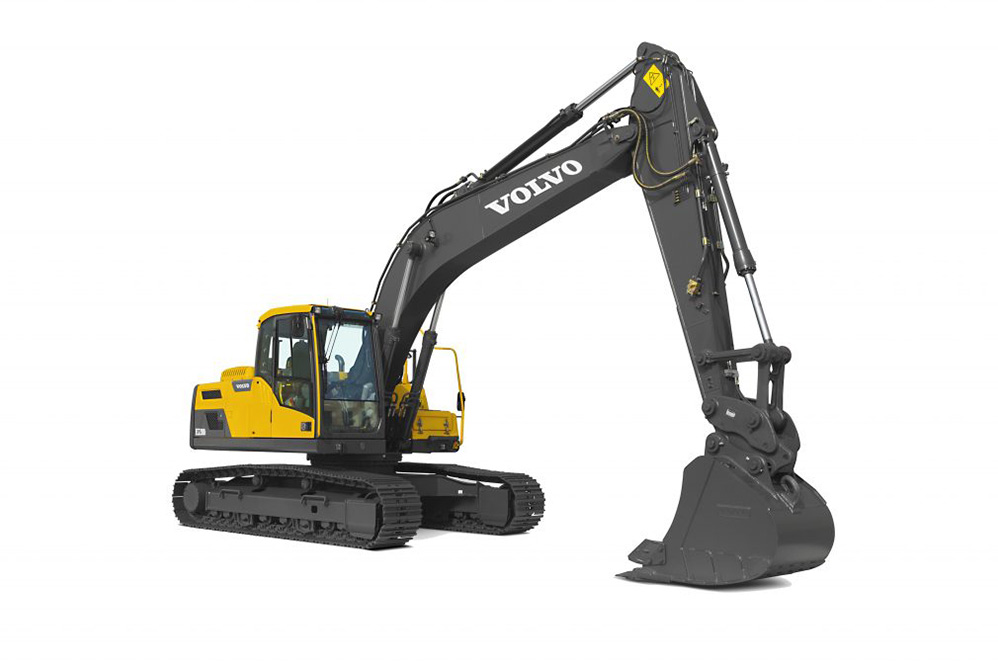

Volvo EC220D Excavator

Name: Volvo EC220D Excavator
Brand: Volvo
Price: 6400000 INR
Rating: 4.6 (74 reviews)

The Volvo EC220D is a 22-ton class crawler excavator known for its powerful performance, fuel efficiency, and durability.

Volvo 220 excavator price in india on road

Brand
Volvo
Type
Medium (15-25 Ton)
Operating Cost
₹ 64-68 Lakhs
Ex-Showroom Price
₹ 64-68 Lakhs

Weight
21000 kg
Bucket
0.48 - 1.44 m³
Digging Depth
6730 mm
Engine
Volvo 167 HP
Warranty
1 Yr. / 2000 hr.
Boom
5700 mm

Connect With Us:

Get the best price for the Volvo EC220D Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Volvo D6E

Fuel Tank

375 L

Engine Displacement

5.7 L

Under Carriage

4160 mm

Hydraulic System

2 x 207 L/min

Arm

2900 mm

Max Digging Reach

9930 mm

Fuel Consumption

Overall Width

2800 mm

Overall Length

9690 mm

Bucket Digging Force

130 kN

Tailswing Radius

2850 mm

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features

Exceptional Fuel Efficiency

Volvo ECO mode improves fuel savings by up to 10% without reducing power or performance on most job sites.
Advanced D6 engine delivers low fuel consumption and high efficiency, helping reduce operating costs over time.
Real-time fuel consumption display helps operators monitor fuel use and adjust performance for better savings.
Work modes like I, F, G, H, and P optimize fuel use based on the job and working condition.
Auto engine shutdown reduces idling and unnecessary fuel usage during machine inactivity.
Efficient hydraulic system reduces internal losses and delivers high output with less energy consumption.

Superior Operator Comfort

Spacious cab with wide glass windows offers all-around visibility for safe and stress-free machine operation.
Adjustable ergonomic seat with joystick console helps reduce fatigue and enhances control and comfort.
Integrated climate control system quickly circulates air through 14 vents for optimal cabin temperature.
Large color LCD monitor displays machine status, fuel usage, and service alerts in clear, simple format.
Slim cab pillars and noise insulation reduce sound and improve focus on long operating shifts.
ROPS-certified cab option increases safety in challenging terrains and heavy-duty conditions.

High-Performance Hydraulic System

Electro-hydraulic system delivers smooth and accurate control, improving cycle times and operational flow.
Boom float feature enhances control during grading by allowing natural ground-following movement.
Pressure preset system allows operator to set tool pressures using the onboard I-ECU display.
Attachment Management System (AMS) stores up to 20 hydraulic tool settings for easy switching.
Regeneration system reuses hydraulic oil for faster movements and better energy use.
Swing, boom, and arm priorities enhance multi-function control and digging power.

Easy Maintenance & Service Access

Large service doors and hood provide quick access to engine and critical components from ground level.
Centralized greasing points reduce maintenance time and ensure long-term durability and performance.
Filters and engine checkpoints are grouped for faster daily checks and preventive maintenance.
Electrical Distribution Box keeps fuses and relays clean, protected, and labeled for easy troubleshooting.
Extra water separator protects fuel system by filtering water and impurities for longer engine life.
Onboard toolbox stores essential tools and grease can for easy maintenance access on site.

Productivity Enhancing Attachments

Wide range of Volvo buckets ensures optimal digging, grading, trenching, and lifting for every terrain.
Hydraulic breakers deliver high impact force, ideal for demolition and tough jobsite materials.
Universal quick coupler allows easy attachment changes between Volvo and other brand tools.
General and ditching buckets work well for soft soil, landscaping, and light excavation tasks.
Heavy-duty buckets are built for hard rock, gravel, and mining operations.
Breaker tools and full breaker kits available for plug-and-play use on demanding construction tasks.

Reliable Support & Service Solutions

Volvo offers customer support agreements for scheduled maintenance, uptime monitoring, and repair packages.
Genuine Volvo Parts ensure long-term reliability and performance across the machine’s lifecycle.
Nationwide dealer and technician network provides fast parts availability and expert servicing.
CareTrack telematics helps monitor equipment health, fuel usage, and remote diagnostics for better decision-making.
Optional rearview camera, beacon, and anti-theft systems improve jobsite safety and machine security.
Long list of optional tools, lights, and attachments help adapt the EC220D to various site needs.

Exceptional Fuel Efficiency

Volvo ECO mode improves fuel savings by up to 10% without reducing power or performance on most job sites.
Advanced D6 engine delivers low fuel consumption and high efficiency, helping reduce operating costs over time.
Real-time fuel consumption display helps operators monitor fuel use and adjust performance for better savings.
Work modes like I, F, G, H, and P optimize fuel use based on the job and working condition.
Auto engine shutdown reduces idling and unnecessary fuel usage during machine inactivity.
Efficient hydraulic system reduces internal losses and delivers high output with less energy consumption.

Superior Operator Comfort

Spacious cab with wide glass windows offers all-around visibility for safe and stress-free machine operation.
Adjustable ergonomic seat with joystick console helps reduce fatigue and enhances control and comfort.
Integrated climate control system quickly circulates air through 14 vents for optimal cabin temperature.
Large color LCD monitor displays machine status, fuel usage, and service alerts in clear, simple format.
Slim cab pillars and noise insulation reduce sound and improve focus on long operating shifts.
ROPS-certified cab option increases safety in challenging terrains and heavy-duty conditions.

High-Performance Hydraulic System

Electro-hydraulic system delivers smooth and accurate control, improving cycle times and operational flow.
Boom float feature enhances control during grading by allowing natural ground-following movement.
Pressure preset system allows operator to set tool pressures using the onboard I-ECU display.
Attachment Management System (AMS) stores up to 20 hydraulic tool settings for easy switching.
Regeneration system reuses hydraulic oil for faster movements and better energy use.
Swing, boom, and arm priorities enhance multi-function control and digging power.

Easy Maintenance & Service Access

Large service doors and hood provide quick access to engine and critical components from ground level.
Centralized greasing points reduce maintenance time and ensure long-term durability and performance.
Filters and engine checkpoints are grouped for faster daily checks and preventive maintenance.
Electrical Distribution Box keeps fuses and relays clean, protected, and labeled for easy troubleshooting.
Extra water separator protects fuel system by filtering water and impurities for longer engine life.
Onboard toolbox stores essential tools and grease can for easy maintenance access on site.

Productivity Enhancing Attachments

Wide range of Volvo buckets ensures optimal digging, grading, trenching, and lifting for every terrain.
Hydraulic breakers deliver high impact force, ideal for demolition and tough jobsite materials.
Universal quick coupler allows easy attachment changes between Volvo and other brand tools.
General and ditching buckets work well for soft soil, landscaping, and light excavation tasks.
Heavy-duty buckets are built for hard rock, gravel, and mining operations.
Breaker tools and full breaker kits available for plug-and-play use on demanding construction tasks.

Reliable Support & Service Solutions

Volvo offers customer support agreements for scheduled maintenance, uptime monitoring, and repair packages.
Genuine Volvo Parts ensure long-term reliability and performance across the machine’s lifecycle.
Nationwide dealer and technician network provides fast parts availability and expert servicing.
CareTrack telematics helps monitor equipment health, fuel usage, and remote diagnostics for better decision-making.
Optional rearview camera, beacon, and anti-theft systems improve jobsite safety and machine security.
Long list of optional tools, lights, and attachments help adapt the EC220D to various site needs.

Specifications

Product specification of Volvo EC220D Excavator

ENGINE

Model

Volvo D6E
Fuel

Diesel
Type

Six cylinder, vertical, electronic-controlled high pressure fuel injectors, internal EGR* (*for certain regions), 6 liter in-line waste gate turbo charger, air-to-air intercooler and water cooled diesel engine type.
Rated Engine Power

167 HP (123 kW) @ 1800 rpm
Maximum Torque

730 Nm @ 1350 rpm
Piston Displacement

5.7 L
Alternator

28V/80A
Battery

2 x 12V / 150Ah
Starting Motor

24V/ 5.5 kW

UNDERCARRIAGE

No of Top Rollers

2 x 2
No of Bottom Rollers

2 x 7
Track Shoes (Each Side)

2 x 46
Track Shoe Width

600 mm
Ground Bearing Pressure

47.1 kPa
Track Tensioning

Grease
Travel Speed-Low

3.5 km/h
Travel Speed-High

5.7 km/h
Gradeability

35°
Max Tracking Force

183 kN

HYDRAULIC SYSTEM

Hydraulic Pump

2 x variable displacement axial piston pumps
Maximum Flow

2 x 207 L/min
Pilot Pump

Gear Pump
Implement Circuit

34.3 MPa
Swing Circuit

27.9 MPa
Travel Circuit

34.3 MPa
Pilot Circuit

3.9 MPa

HYDRAULIC MOTORS

Travel

Each track is powered by an automatic two-speed shift travel motor. The track brakes are multi-disc, spring-applied and hydraulic released. The travel motor, brake and planetary gears are well protected within the track frame.
Swing

The swing system uses an axial piston motors, driving a planetary gearbox for maximum torque. An automatic holding brake and antirebound valve are standard.

SERVICE CAPACITIES

Fuel Tank

375 L
Engine Coolant

32 L
Engine Oil

25 L
Hydraulic System

295 L
Hydraulic Tank

140 L

MACHINE WEIGHTS

Operating Weight

21000 kg

WORKING RANGE

Boom Length

5700 mm
Arm Length

2900 mm
Max. Digging Reach

9930 mm
Max. Digging Reach on Ground

9770 mm
Max. Digging Depth

6730 mm
Max. Digging Height

9460 mm
Max. Dumping Height

6650 mm
Max. Vertical Wallcut Depth

6470 mm
Min. Swing Radius

3640 mm
Bucket Digging Force

130 kN
Arm Digging Force

102 kN
Swing Speed

12.1 rpm

BUCKET

Bucket Capacity

0.48 - 1.44 m³

STATIC DIMENSIONS

Overall Length

9690 mm
Overall Width

2800 mm
Overall Height

2940 mm
Overall Height of Cab

2930 mm
Upper Width

2700 mm
Track Length on Ground

3370 mm
Undercarriage Overall Length

4160 mm
Tailswing Radius

2850 mm
Min. Ground Clearance

460 mm
Track Gauge

2200 mm
Width Over Tracks

2800 mm
Counterweight Clearence

1025 mm
Track Shoe Width

600 mm

Frequently Asked Question

01. What is the Volvo EC220D Excavator price in India?

Ans.

The Volvo EC220D Excavator price in India ranges between ₹ 64 – 68 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a Volvo EC220D excavator?

Ans.

You can buy the Volvo EC220D excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Volvo EC220D Excavator come with financing and insurance options?

Ans.

Yes, the Volvo EC220D comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Volvo EC220D excavator?

Ans.

The operating weight of the Volvo EC220D excavator is approximately 21000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Volvo EC220D excavator?

Ans.

The Volvo EC220D excavator is powered by a Volvo D6E engine, delivering 167 HP (123 kW) at 1800 rpm.

06. What is the maximum digging depth of the Volvo EC220D excavator?

Ans.

The Volvo EC220D excavator has a maximum digging depth of 6730 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Volvo EC220D Excavator?

Ans.

The bucket capacity of the Volvo EC210D Excavator ranges from 0.44 to 1.44 cubic meters (m³).

08. What is the warranty period for the Volvo EC220D excavator?

Ans.

The Volvo EC220D Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Volvo EC220D excavator?

Ans.

You can find genuine spare parts for the Volvo EC220D excavator at authorized Volvo dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Volvo EC220D Excavator?

Ans.

The Volvo EC220D excavator has a 375 litres diesel fuel tank, providing extended operation time without frequent refueling.

Popular Comparisons with Volvo EC220D

Volvo

Categories

Contact Us

Contact Info

Volvo EC220D Excavator

Connect With Us:

Download Brochure

Key Highlights

Engine Make

Fuel Tank

Engine Displacement

Under Carriage

Hydraulic System

Arm

Max Digging Reach

Fuel Consumption

Overall Width

Overall Length

Bucket Digging Force

Tailswing Radius

Track Shoe Width

AC Cabin

GPS

Features

Exceptional Fuel Efficiency

Exceptional Fuel Efficiency

Superior Operator Comfort

Superior Operator Comfort

High-Performance Hydraulic System

High-Performance Hydraulic System

Easy Maintenance & Service Access

Easy Maintenance & Service Access

Productivity Enhancing Attachments

Productivity Enhancing Attachments

Reliable Support & Service Solutions

Reliable Support & Service Solutions

Exceptional Fuel Efficiency

Superior Operator Comfort

High-Performance Hydraulic System

Easy Maintenance & Service Access

Productivity Enhancing Attachments

Reliable Support & Service Solutions

Specifications

ENGINE

UNDERCARRIAGE

HYDRAULIC SYSTEM

HYDRAULIC MOTORS

SERVICE CAPACITIES

MACHINE WEIGHTS

WORKING RANGE

BUCKET

STATIC DIMENSIONS

Frequently Asked Question

01. What is the Volvo EC220D Excavator price in India?

02. Where can I buy a Volvo EC220D excavator?

03. Does the Volvo EC220D Excavator come with financing and insurance options?

04. What is the operating weight of the Volvo EC220D excavator?

05. What type of engine is used in the Volvo EC220D excavator?

06. What is the maximum digging depth of the Volvo EC220D excavator?

07. What is the bucket capacity of the Volvo EC220D Excavator?

08. What is the warranty period for the Volvo EC220D excavator?

09. Where can I find spare parts for the Volvo EC220D excavator?

10. What is the fuel tank capacity of the Volvo EC220D Excavator?

Popular Comparisons with Volvo EC220D
