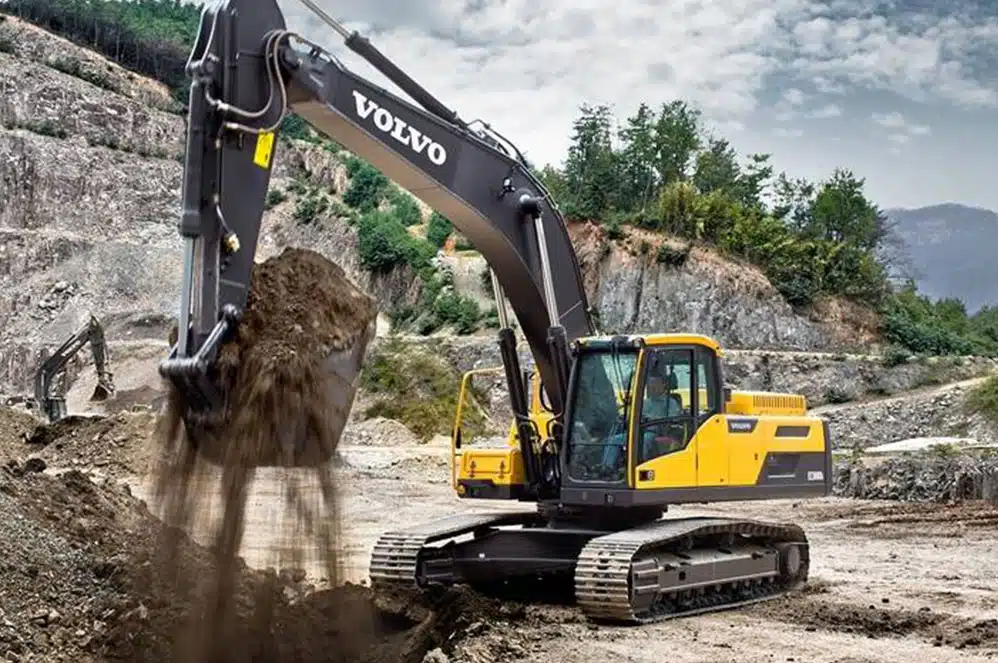

Volvo EC300D Excavator

Experience increased power and digging force as well as faster cycle times for greater productivity. Compared to the previous model, hydraulic pump flow has improved by 5% while digging force, swing torque and tractive force have increased by 3-5%. In the EC300D, engine power has increased by 11%.

For maximum durability and reliability, the boom and arm have been reinforced in critical areas to equally distribute mechanical stresses and handle the increased working power of these machines.

New electro-hydraulic system and main control valve (MCV) use intelligent technology to control on-demand flow and reduce internal losses in the hydraulic circuit. This provides increased controllability, shorter cycle times and improved fuel efficiency.

Both grading and combined operations have been improved thanks to Volvo’s smart hydraulic system which increases controllability. Benefit from smoother and easier movement when traveling and lifting simultaneously as well as better grading quality from the harmonized boom and arm movement.

Volvo’s unique ECO mode contributes to up to 5% of the machine’s total improved fuel efficiency – without any loss of performance in most operating conditions. The design features electronic pump control technology which reduces flow and pressure losses while maintaining digging power and maximizing swing torque.

Volvo’s state-of-the art D7 diesel engine is seamlessly integrated with all excavator systems. The premium, six cylinder engine delivers high performance and low fuel consumption. The D7 is available in two versions to comply with regional emission regulations.

The optional auto engine shutdown function automatically turns the engine off to reduce fuel consumption when the machine is inactive for a preset amount of time (five minutes is the default setting). The operator is informed one minute before this occurs.

A new gauge bar on the I-ECU measures instantaneous fuel consumption while average fuel consumption is displayed numerically per hour. This allows you to monitor fuel usage on different job sites and applications.

Volvo’s unique, integrated work mode system now includes the G4 mode for optimum fuel efficiency and machine performance. Operators can choose the best work mode to suit the task at hand – simply select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max) mode.

All-around visibility and an excellent operator environment are at the center of Volvo’s cab design. The EC250D and EC300D feature new Volvo styling. The spacious and safe environment has been built strong and includes slim cab pillars, large expanses of glass, an adjustable seat and easy to access controls for reduced fatigue and increased productivity.

The new, color LCD monitor displays machine status information including fuel consumption details and service interval alerts. The large, anti-glare, tiltable screen and conveniently placed navigation controls facilitate easy operation and high productivity.

Operators can set their ideal temperature with Volvo’s powerful climate control system which is integrated into the I-ECU. Industry-leading air circulation and defrosting is delivered quickly via 14 well-spaced vents for increased comfort and productivity.

Volvo recommends an optional Roll Over Protective Structure (ROPS) certified cab when working in challenging applications. This provides increased operator safety in the unlikely event of machine roll over.

The optional rearview camera is mounted on the counterweight and reduces the blind spot behind the machine for increased safety. The image projects through the colour I-ECU monitor in the cab – avoiding the need for a second screen.

The radiator, charged air cooler and hydraulic oil cooler are situated sideby- side on a single layer to maximize efficiency, reduce blockages and aid cleaning. The system is easily accessed for maintenance by simply opening the side door from ground level.

An additional water separator is available to further prevent water from entering the engine and impurities from contaminating the fuel. This feature provides increased water separation and filtration capacity for extra durability and reliability.

The fully-sealed Electrical Distribution Box contains all fuses and relays – inside the box cover these are identified on a map. The Volvo design protects against dirt and moisture for more machine uptime. It is accessible from ground level for easy service access.

Particularly useful when working in dusty environments, this feature provides an air nozzle to clean inside the cab, as well as other areas, for operator comfort and easy maintenance.

Large doors and engine hood – which can be fully opened – provide easy service access to components. Centralized filters and greasing points allow regular checks to be done faster for maximum machine uptime and productivity. Durable, steel anti-slip plates ensure safe access for maintenance in more weather conditions and over time.

Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine₹ By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.

Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.

In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.

The range of Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services. Volvo uses the latest technology to monitor machine operation and status, giving you advice to increase your profitability. By having a Customer Support Agreement you are in control of your service costs.
