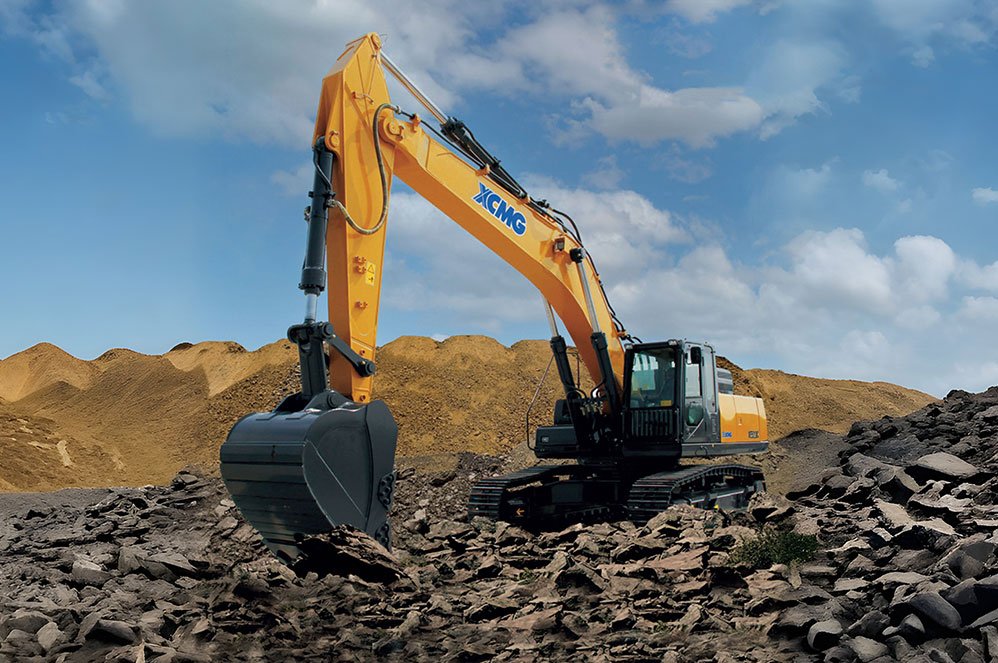

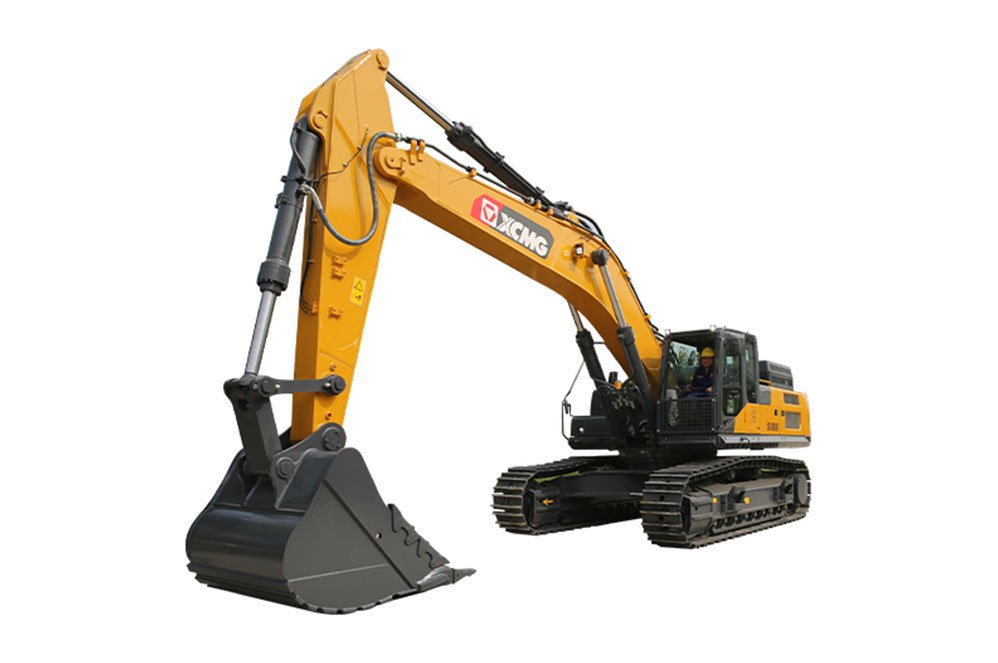

    XCMG XE520C Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      XCMG

    • Type

      Large (25-50 Ton)

    • Operating Cost

      ₹ 1.75-1.8 Crore

    • Ex-Showroom Price

      ₹ 1.75-1.8 Crore

    • Weight

      50000 Kg

    • Bucket

      2.3 - 3.1 m³

    • Digging Depth

      6530 mm

    • Engine

      Cummins 380.6 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      6670 mm

    Quick Overview:

    XCMG XE520C large excavator ensures heavy-duty performance for demanding large-scale mining and engineering.

    Connect With Us:

    Get the best price for the XCMG XE520C Large Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Cummins

    QSM 11

    Fuel Tank

    725 L

    Engine Displacement

    11 L

    Under Carriage

    5353 mm

    Hydraulic System

    2 x 360 L/min

    Arm

    2400 mm

    Max Digging Reach

    NA

    Fuel Consumption

    NA

    Overall Width

    3582 mm

    Overall Length

    11830 mm

    Bucket Digging Force

    NA

    Tailswing Radius

    3800 mm

    Track Shoe Width

    600 mm

    AC Cabin

    Standard

    GPS

    Not Available

    Features

    Efficient & Economical

    Efficient & Economical

    • Powerful Cummins Engine ensures optimum power

    • Low fuel Consumption & High Reliability

    Easy Serviceability

    Easy Serviceability

    • All Maintenance points are accessible from Ground level

    Robust Structure

    Robust Structure

    • Reinforced Boom, Arm & Bucket suitable for Indian conditions

    • Bucket link Single piece Casted for long life

    • Large capacity wear resistance HD buckets

    Intelligent Hydraulics

    Intelligent Hydraulics

    • XEICS intelligent control system saves additional Fuel & ensures Higher Productivity

    • 4 Different (L, B, S & H) Modes for all application

    • Globally Acclaimed Kawasaki Hydraulics for Long Life

    Strong Undercarriage

    Strong Undercarriage

    • Robust X frame undercarriage with additional reinforcement

    • High wear Resistance Sprocket, Idler, Rollers, track chain reduce cost

    Comrotable Operator Compartment

    Comrotable Operator Compartment

    • All Around 360 degree visibility

    • Spacious HVAC, less noice cabin with FM Radio

    • Integrated 7’’ instrument Cluster

    • ROPS/FOPS# Certified Cabin ensure Operator’s Safety

    Efficient & Economical

    • Powerful Cummins Engine ensures optimum power

    • Low fuel Consumption & High Reliability

    Easy Serviceability

    • All Maintenance points are accessible from Ground level

    Robust Structure

    • Reinforced Boom, Arm & Bucket suitable for Indian conditions

    • Bucket link Single piece Casted for long life

    • Large capacity wear resistance HD buckets

    Intelligent Hydraulics

    • XEICS intelligent control system saves additional Fuel & ensures Higher Productivity

    • 4 Different (L, B, S & H) Modes for all application

    • Globally Acclaimed Kawasaki Hydraulics for Long Life

    Strong Undercarriage

    • Robust X frame undercarriage with additional reinforcement

    • High wear Resistance Sprocket, Idler, Rollers, track chain reduce cost

    Comrotable Operator Compartment

    • All Around 360 degree visibility

    • Spacious HVAC, less noice cabin with FM Radio

    • Integrated 7’’ instrument Cluster

    • ROPS/FOPS# Certified Cabin ensure Operator’s Safety

    Specifications

    Product specification of XCMG XE520C Excavator

    ENGINE

    • Model

      Cummins, QSM 11

    • Fuel

      Diesel

    • Type

      6 Cylinder. Turbocharged, Air to air intercooler

    • Rated Engine Power

      380.6 HP (283.8 kW) @ 2000 rpm

    • Maximum Torque

      1898 Nm @ 1300 rpm

    • Piston Displacement

      11 L

    • Alternator

      NA

    • Battery

      12 V x 2

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      2

    • No of Bottom Rollers

      9

    • Track Shoes (Each Side)

      49

    • Track Guard

      NA

    • Track Shoe Width

      600 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Gradeability

      35°

    • Travel Speed-Low

      NA

    • Travel Speed-High

      5.4 Km/h

    • Max Tracking Force

      338 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      2 Variable Displacement Piston Pumps

    • Maximum Flow

      2 x 360 L/min

    • Pilot Pump

      1 Gear Pump

    • Implement Circuit

      34.3 MPa / 37 MPa

    • Swing Circuit

      31 MPa

    • Travel Circuit

      34.3 MPa

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      NA

    • Swing

      NA

    SERVICE CAPACITIES

    • Fuel Tank

      725 L

    • Engine Coolant

      50 L

    • Engine Oil

      40 L

    • Hydraulic System

      560 L

    • Hydraulic Tank

      430 L

    MACHINE WEIGHTS

    • Operating Weight

      50000 Kg

    WORKING RANGE

    • Boom Length

      6670 mm

    • Arm Length

      2400 mm

    • Max. Digging Reach

      NA

    • Max. Digging Reach on Ground

      NA

    • Max. Digging Depth

      6530 mm

    • Max. Digging Height

      9480 mm

    • Max. Dumping Height

      6800 mm

    • Max. Vertical Wallcut Depth

      3840 mm

    • Min. Swing Radius

      4550 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      NA

    • Arm Digging Force

      NA

    • Swing Speed

      NA

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      2.3 - 3.1 m³

    STATIC DIMENSIONS

    • Overall Length

      11830 mm

    • Overall Width

      3582 mm

    • Overall Height

      3770 mm

    • Overall Height of Cab

      NA

    • Upper Width

      3095 mm

    • Track Lengh on Ground

      4292 mm

    • Undercarriage Overall Length

      5353 mm

    • Tailswing Radius

      3800 mm

    • Min. Ground Clearance

      519 mm

    • Track Gauge

      2750 mm

    • Width Over Tracks

      3582 mm

    • Track Height

      1198 mm

    • Counterweight Clearence

      1324 mm

    • Track Shoe Width

      600 mm

    Frequently Asked Question

    01. What is the XCMG XE520C Excavator price in India?

    Ans.

    The XCMG XE520C Excavator price in India ranges between ₹ 1.75 – 1.8 Crore. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy a XCMG XE520C excavator?

    Ans.

    You can buy the XCMG XE520C excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the XCMG XE520C Excavator come with financing and insurance options?

    Ans.

    Yes, the XCMG XE520C comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the XCMG XE520C excavator?

    Ans.

    The operating weight of the XCMG XE520C excavator is approximately 50000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the XCMG XE520C excavator?

    Ans.

    The XCMG XE520C excavator is powered by a Cummins, QSM 11 engine, delivering 380.6 HP (283.8 kW) at 2000 rpm.

    06. What is the maximum digging depth of the XCMG XE520C excavator?

    Ans.

    The XCMG XE520C excavator has a maximum digging depth of 6530 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the XCMG XE520C Excavator?

    Ans.

    The bucket capacity of the XCMG XE520C Excavator ranges from 2.3 to 3.1 cubic meters (m³).

    08. What is the warranty period for the XCMG XE520C excavator?

    Ans.

    The XCMG XE520C Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the XCMG XE520C excavator?

    Ans.

    You can find genuine spare parts for the XCMG XE520C excavator at authorized XCMG dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the XCMG XE520C Excavator?

    Ans.

    The XCMG XE520C excavator has a 725 litres diesel fuel tank, providing extended operation time without frequent refueling.
