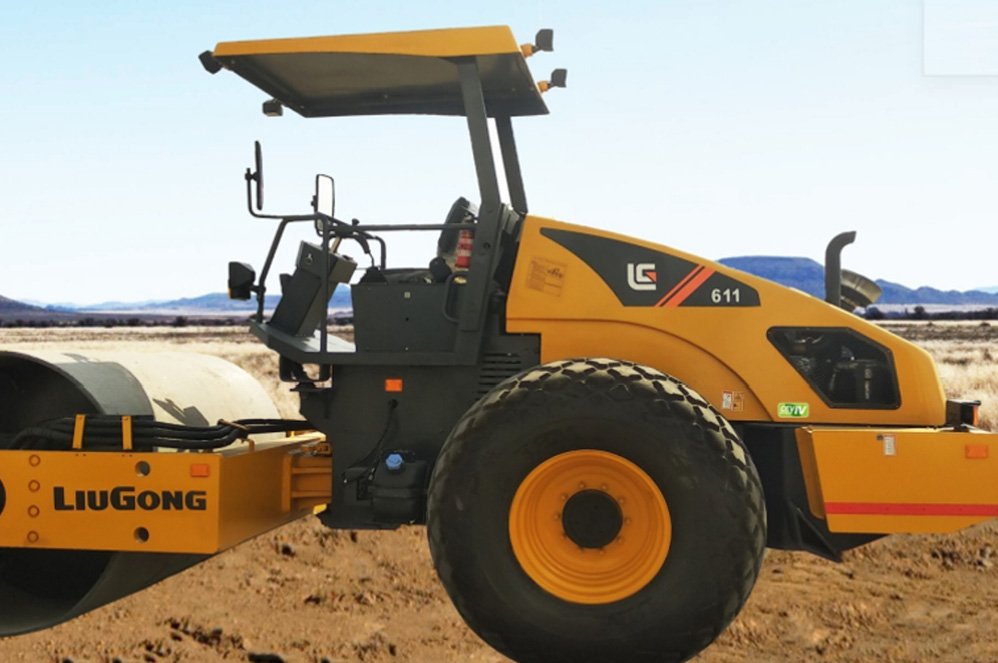

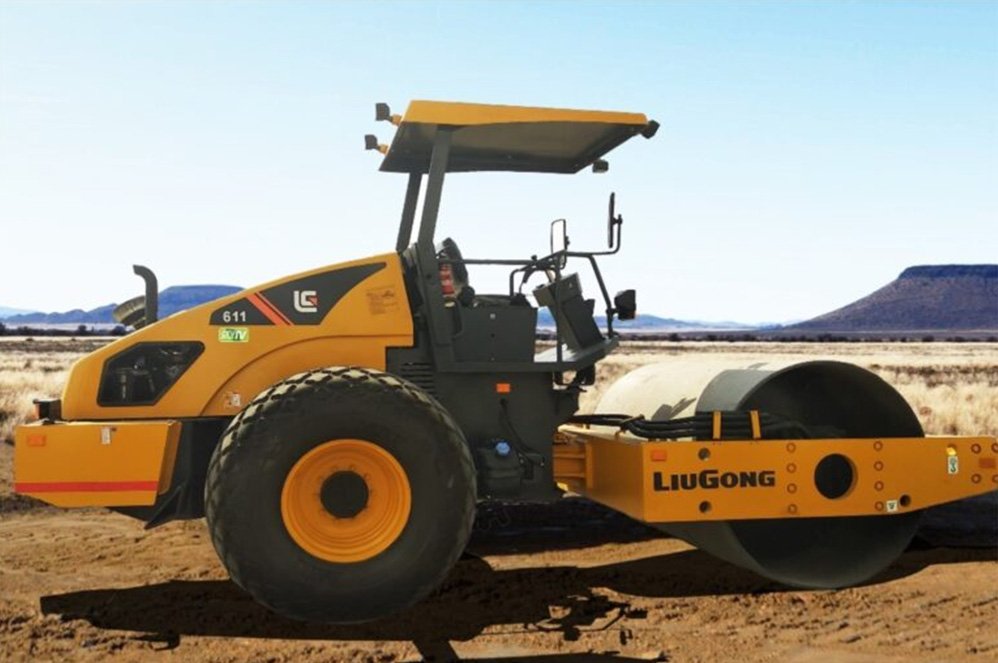

    LiuGong 611 Compactor

    The LiuGong 611 Soil Compactor is a rugged single drum roller designed for high-output compaction in roadworks, dams, airports, and infrastructure projects. Powered by a 110 HP Kirloskar engine with CEV Stage IV compliance, this vibratory roller generates up to 270 kN centrifugal force and has dual vibration amplitudes of 1.8 mm and 0.8 mm for versatile soil performance. With an operating weight of around 11,000 kg and a drum width of 2,130 mm, the LiuGong 611 roller compactor ensures deep, uniform density. Its articulation steering, hydrostatic drive, and spacious operator cabin include safety features, making it a dependable road roller suitable for demanding applications.

    LiuGong 611 Soil Compactor Roller | Desi Machines
    desi-machines-liugong-611-soil-compactor-gallery-1
    desi-machines-liugong-611-soil-compactor-gallery-2
    desi-machines-liugong-611-soil-compactor-gallery-4
    • Brand

      LiuGong

    • Type

      Soil Compactor

    • Operating Cost

      ₹ 34-36 Lakhs

    • Ex-Showroom Price

      ₹ 34-36 Lakhs

    • icon alt1
      Weight

      11000 kg

    • Drum Width

      2130 mm

    • Engine

      KOEL 110 HP

    • Static Load

      29.1 kg/cm

    • CF - Hi/Low

      270/125 kN

    • Travel Speed

      0-13 km/hr

    Connect With Us:

    Looking for the best LiuGong 611 Soil Compactor price in India? Connect with us today and unlock exclusive offers on this reliable road roller!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    KOEL 4R1190TA1

    Fuel Tank

    280 L

    Hydraulic Tank

    90 L

    Vibration Frequency

    32/34 Hz

    Nominal Amplitude

    1.8/0.8 mm

    Max Gradeability

    35%

    Steering Angle

    ± 35°

    Turning Radius

    6750 mm

    Wheel Base

    2900 mm

    Tyre Size

    23.1-26-12PR

    Overall Length

    5900 mm

    Overall Width

    2300 mm

    Overall Height

    3232 mm

    GPS Tracking
    Telematics

    Optional

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    Features

    Performance

    • LiuGong roller equipped with KOEL 4R1190NA engine i.e. fuel efficient HLA Series & high intake air density that leads fuel efficient working at uneven job sites in results of low operating cost.

    • Industry leading static linear load results best in class compaction force i.e. transmitted on ground which provide less compacting spacing on the roads.

    Efficiency

    • LiuGong advance compaction technology focused on roads quality that comes by better weight distribution on front and rear axle.

    • More weight on front axle ensure stability to vibration mass during compaction of roads.

    • LiuGong ensure the industry leading centrifugal force that control the number of passes for a given mat size.

    Reliability

    • Reliability is a factor which cannot come from the brand make but from the product presence and adaptability in the market due to its continuous operating hours.

    • CLG611’s advanced Indian localized technology leads machine quality and reliability which ensure customer maximum benefits and trust.

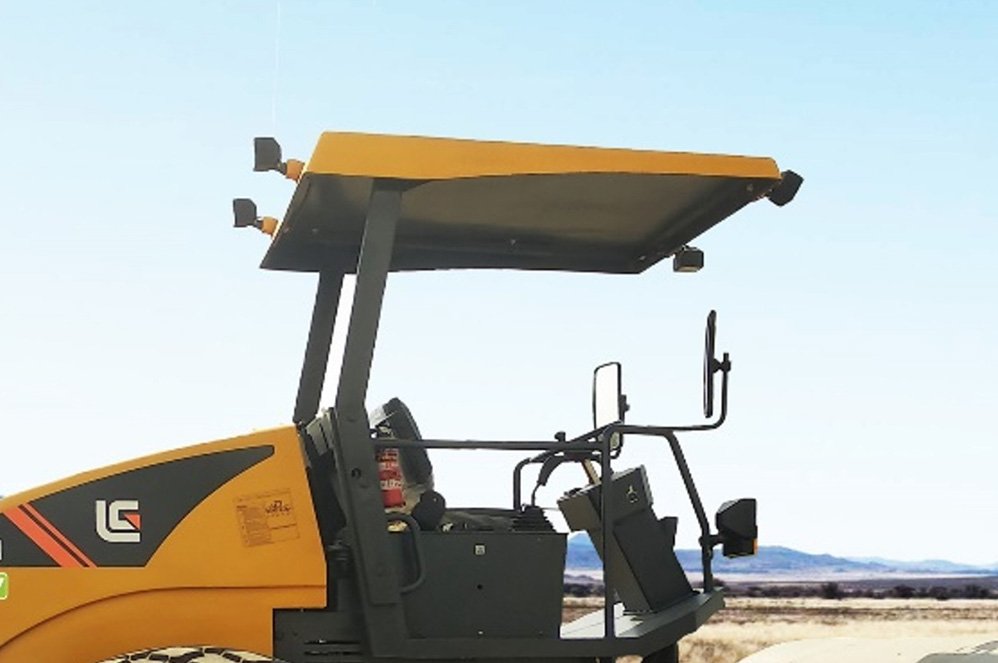

    Comfort

    • LiuGong always consider expert comfort.

    • Expert platform provides best view & offers space and operating comfort at highest level.

    • 1m x 1m visibility for safe working at tough job sites.

    Maximum Uptime

    • Ground level serviceability give easy access to service touch points and minimize the down time.

    • Regular maintenance is easier due to the simplicity of accessibility of spare parts.

    Are you interested in buying LiuGong 611 Compactor

      Note: Uncheck if you're not interested in finance or insurance deals.

      Specifications

      Product specification of LiuGong 611 Compactor

      ENGINE

      • Model

        KOEL 4R1190TA1

      • Type

        CEV-IV, 4 Cylinders, Turbocharged diesel engine

      • Max Power

        110 HP (82 kW) @ 2200 rpm

      • Battery

        12V / 150Ah

      COMPACTION

      • Static Linear Load

        29.1 kg/cm

      • Nominal Amplitude (High/Low)

        1.8/0.8 mm

      • Vibration Frequency (High/Low Amplitude)

        32/34 Hz

      • Centrifugal Force (High/Low Amplitude)

        270/125 kN

      DRIVETRAIN

      • Transmission Type

        Hydrostatic

      • Max Gradeability

        35%

      • Working Speed

        0-7 km/hr

      • Travel Speed

        0-13 km/hr

      HYDRAULIC SYSTEM

      • Travel System

        Variable Closed Loop Axial Piston Pump with Mechanical Servo Proportional control

      • Vibration System

        Variable Closed Loop Axial Piston Pump with Two Point Electric Control

      BRAKES

      • Service

        Hydrostatic Propulsion System

      • Parking/Emergency

        Spring Applied, Hydraulic Release

      SERVICE CAPACITIES

      • Fuel Tank

        280 L

      • Hydraulic Tank

        90 L

      • Engine Crank Case

        8.5 L

      • Coolant

        18 L

      • Adblue/ DEF tank

        16 L

      STEERING

      • Type

        Articulated with limited slip differential

      • Steering Angle

        ± 35°

      • Oscillation

        NA

      • Turning Radius, Outside

        6750 mm

      • Turning Radius, Inside

        NA

      WEIGHT

      • Operating Weight

        11000 kg

      DIMENSIONS

      • Overall Length

        5900 mm

      • Overall Width

        2300 mm

      • Overall Height

        3232 mm

      • Wheelbase

        2900 mm

      • Drum Diameter

        1500 mm

      • Drum Width

        2130 mm

      • Drum Shell Thickness

        NA

      • Ground Clearance

        480 mm

      • Curb Clearance

        NA

      • Tyre Size

        23.1-26-12PR

      Faq's

      Common Questions about LiuGong 611

      What is the price of the LiuGong 611 compactor in India?

      The LiuGong 611 compactor price in India ranges between ₹ 34 – 36 Lakhs. The final LiuGong 611 on-road price in India may vary based on state taxes, dealer location, and optional features.

      Where can I buy the LiuGong 611 compactor in India?

      You can buy the LiuGong 611 Soil compactor from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

      What is the operating weight of the LiuGong 611 compactor?

      The operating weight of the LiuGong 611 compactor is approximately 11000 kg. The weight may vary slightly depending on specific configurations and attachments.

      What is the drum width of the LiuGong 611 compactor?

      The drum width of the LiuGong 611 compactor is 2130 mm.

      What is the engine power of the LiuGong 611 compactor?

      The LiuGong 611 compactor is powered by a KOEL 4R1190TA1 CEV-IV engine, delivering 110 HP (82 kW) @ 2200 RPM.

      What is the fuel tank capacity of the LiuGong 611 compactor?

      The LiuGong 611 has a 280 litres diesel fuel tank, providing extended operation time without frequent refuelling.

      What is the turning radius of the LiuGong 611 compactor?

      The LiuGong 611 compactor has a turning radius of 6750 mm outer.

      What type of steering is used in the LiuGong 611 compactor?

      The LiuGong 611 soil compactor uses articulated steering with a limited slip differential.

      What is the warranty period of the LiuGong 611 compactor?

      The LiuGong 611 compactor typically comes with a 1-year or 2000 operating hours standard warranty. The warranty covers defects from faulty materials or workmanship, but terms may vary. For accurate details, check with authorized dealers, OEMs, or visit the official brand website.

      Where can I find spare parts for the LiuGong 611 compactor?

      You can find genuine spare parts for the LiuGong 611 compactor at authorized LiuGong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers and assist you in getting the best deals based on your location. Fill out the form now to get the best offers on compactor spare parts.
