Caterpillar
Medium (15-25 Ton)
Price Available Soon
Price Available Soon
19800 Kg
0.92 m³
5970 mm
Ashoke Leyland 114 HP
1 Year
5700 mm

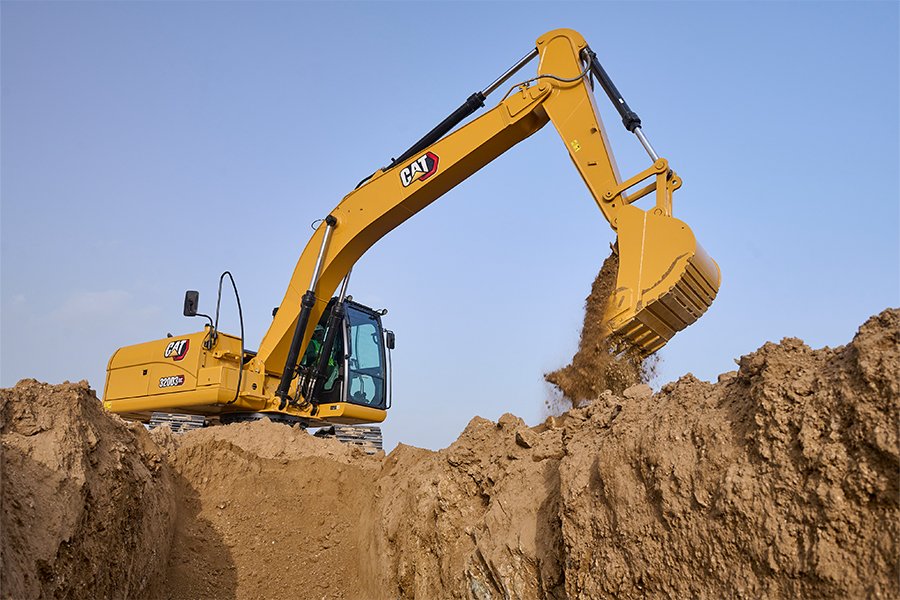

The CAT320D3 GC medium excavator, with advanced system reliability, provides cost efficiency and ensures smooth earthmoving operations.
Get the best price for the CAT 320D3 GC Medium Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Ashoke Leyland ALUW06DTI
350 L
5.76 L
4080 mm
400 L/min
2500 mm
NA
11-13 L/hour
2800 mm
9520 mm
134 kN
2750 mm
600 mm
Standard
Standard
Proven 6-cylinder mechanical engine with no electronic control module.
HD and reinforced stick compatible with hammer and bucket. No application restrictions.
Integrated pilot system for simpler hydraulics.
Greased track link between pins and bushings provides increased undercarriage life and noise reduction.
With the increased fuel efficiency, typical fuel consumption in earthmoving applications is between 11 to 13 liters per hour, lower than most comparable machines in the market.
Robust and easy-to-maintain fuel system filtration reduces risk of failure from contaminated fuel.
Caterpillar designed and built hydraulic pumps deliver superior performance.
Conserve power with new single-panel cooling system.
Save energy with boom and stick regeneration valves.
Optional Fuel Flow meter aids in predicting fuel consumption in various applications and provides timely information to the operator about the fuel consumption of the machine. Data can be reported in VisionLink.
6,000 hour hydraulic oil change, up to 12% less oil needed than previous generations.
Extended hydraulic oil filter change, up to 50% more than previous generations.
No drain filter needed, protection is provided by a screen and magnet.
Extended first engine oil change interval (500 hours).
Filters grouped together to reduce maintenance time.
Pressure taps and S•O•S ports help maximize uptime.
VisionLink™ comes standard so you can remotely monitor machine health, location, hours, and absolute fuel level on demand through the online interface. Show Less
Improved spacious, comfortably designed cab with easy-to-operate controls.
Engine Stop and Start now available with the key.
In-cab 203 mm (8 in) screen display is easy to use, intuitive, and user-friendly.
LED warning lights alert operator when machine is not within safe operating range.
Ergonomically designed seat to aid in operator comfort. Seat easily adjusts and is equipped with adjustable armrests and a non-retractable seatbelt.
Automated climate control helps maintain consistent cab temperature for improved operator comfort.
Low-effort joystick controls reduce operator fatigue.
Hydraulic activation lever locks out all hydraulic functions.
Anti?skid plating and countersunk bolts reduce slipping in severe conditions and during routine checks.
Grips on the track frame, service platform, cab and battery compartment for an easy climb up and down from the service platform and operator station.
A full-length firewall separates the pump compartment from the engine.
Improved muffler design reduces sound enabling the machines to work at night.
A ground-level fuel cutoff switch shuts down the engine in an emergency.
Large steps on track frame and storage box for easy climb.
Emergency exit in cab for operator safety.
LED lighting with brighter illumination allows for better visibility.
Proven 6-cylinder mechanical engine with no electronic control module.
HD and reinforced stick compatible with hammer and bucket. No application restrictions.
Integrated pilot system for simpler hydraulics.
Greased track link between pins and bushings provides increased undercarriage life and noise reduction.
With the increased fuel efficiency, typical fuel consumption in earthmoving applications is between 11 to 13 liters per hour, lower than most comparable machines in the market.
Robust and easy-to-maintain fuel system filtration reduces risk of failure from contaminated fuel.
Caterpillar designed and built hydraulic pumps deliver superior performance.
Conserve power with new single-panel cooling system.
Save energy with boom and stick regeneration valves.
Optional Fuel Flow meter aids in predicting fuel consumption in various applications and provides timely information to the operator about the fuel consumption of the machine. Data can be reported in VisionLink.
6,000 hour hydraulic oil change, up to 12% less oil needed than previous generations.
Extended hydraulic oil filter change, up to 50% more than previous generations.
No drain filter needed, protection is provided by a screen and magnet.
Extended first engine oil change interval (500 hours).
Filters grouped together to reduce maintenance time.
Pressure taps and S•O•S ports help maximize uptime.
VisionLink™ comes standard so you can remotely monitor machine health, location, hours, and absolute fuel level on demand through the online interface. Show Less
Improved spacious, comfortably designed cab with easy-to-operate controls.
Engine Stop and Start now available with the key.
In-cab 203 mm (8 in) screen display is easy to use, intuitive, and user-friendly.
LED warning lights alert operator when machine is not within safe operating range.
Ergonomically designed seat to aid in operator comfort. Seat easily adjusts and is equipped with adjustable armrests and a non-retractable seatbelt.
Automated climate control helps maintain consistent cab temperature for improved operator comfort.
Low-effort joystick controls reduce operator fatigue.
Hydraulic activation lever locks out all hydraulic functions.
Anti?skid plating and countersunk bolts reduce slipping in severe conditions and during routine checks.
Grips on the track frame, service platform, cab and battery compartment for an easy climb up and down from the service platform and operator station.
A full-length firewall separates the pump compartment from the engine.
Improved muffler design reduces sound enabling the machines to work at night.
A ground-level fuel cutoff switch shuts down the engine in an emergency.
Large steps on track frame and storage box for easy climb.
Emergency exit in cab for operator safety.
LED lighting with brighter illumination allows for better visibility.
Product specification of CAT 320D3 GC Excavator
Model
Ashoke Leyland ALUW06DTI
Fuel
Diesel
Type
NA
Rated Engine Power
114 HP (100 kW) @ 1700 rpm
Maximum Torque
NA
Piston Displacement
5.76 L
Alternator
24V
Battery
NA
Starting Motor
NA
No of Top Rollers
NA
No of Bottom Rollers
NA
Track Shoes (Each Side)
NA
Track Guard
NA
Track Shoe Width
600 mm
Ground Bearing Pressure
NA
Track Tensioning
Grease
Gradeability
NA
Travel Speed-Low
NA
Travel Speed-High
NA
Max Tracking Force
NA
Hydraulic Pump
NA
Maximum Flow
400 L/min
Pilot Pump
Gear Pump
Implement Circuit
35.0 MPa
Swing Circuit
25.0 MPa
Travel Circuit
35.0 MPa
Pilot Circuit
NA
Travel
NA
Swing
NA
Fuel Tank
350 L
Engine Coolant
19 L
Engine Oil
18 L
Hydraulic System
230 L
Hydraulic Tank
110 L
Operating Weight
19800 Kg
Boom Length
5700 mm
Arm Length
2500 mm
Max. Digging Reach
NA
Max. Digging Reach on Ground
9140 mm
Max. Digging Depth
5970 mm
Max. Digging Height
9110 mm
Max. Dumping Height
6250 mm
Max. Vertical Wallcut Depth
5350 mm
Min. Swing Radius
NA
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
134 kN
Arm Digging Force
112 kN
Swing Speed
10 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.92 m³
Overall Length
9520 mm
Overall Width
2800 mm
Overall Height
3100 mm
Overall Height of Cab
2915 mm
Upper Width
NA
Track Lengh on Ground
3270 mm
Undercarriage Overall Length
4080 mm
Tailswing Radius
2750 mm
Min. Ground Clearance
450 mm
Track Gauge
2200 mm
Width Over Tracks
NA
Track Height
NA
Counterweight Clearence
1020 mm
Track Shoe Width
600 mm
The exact CAT 320D3 GC Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the 320D3 GC excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the CAT 320D3 GC comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the CAT 320D3 GC excavator is approximately 19800 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The CAT 320D3 GC excavator is powered by a Ashoke Leyland ALUW06DTI engine, delivering 114 HP (100 kW) at 1700 rpm.
The CAT 320D3 GC excavator has a maximum digging depth of 5970 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the CAT 320D3 GC Excavator is 0.92 cubic meters (m³).
The CAT 320D3 GC Excavator in India typically comes with a standard warranty of 1 Year. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the CAT 320D3 GC excavator at authorized CAT dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The CAT 320D3 GC excavator has a 350 litres diesel fuel tank, providing extended operation time without frequent refueling.
The CAT 320D3 GC excavator has an average fuel consumption of 11 to 13 litres per hour, depending on factors such as load, terrain, and operating conditions
A versatile small excavator, Cat 316 GC is ideal for urban construction, ensuring fuel efficiency and reliable performance in compact spaces.
With advanced hydraulic technology, Cat 395 is an extra-large excavator ensuring maximum productivity in mining and large construction projects.
Designed for large-scale excavation, Cat 350 offers high efficiency for earthmoving, quarrying, and demolition tasks with precision engineering.
Cat 374 is an extra-large excavator built for heavy-duty mining and infrastructure projects, delivering superior power and long-lasting durability.
The CAT 313D2L is a compact and efficient small excavator, perfect for tight construction spaces and earthmoving applications.
High capacity performance, suited for mining and heavy duty tasks, the CAT 330GC is a large excavator built for tough applications.
The CAT 345 GC large excavator is designed for high-load tasks and delivers exceptional reliability in mining and earthmoving operations.
The CAT 323D3 is a medium excavator with powerful engineering, that delivers precision and versatility for earthmoving and heavy construction needs.
With a strong dealer network and robust after-sales support, Caterpillar India focuses on customer-centric solutions. Its equipment has ergonomic designs, modern safety measures, and telematics for real-time monitoring, which helps in infrastructure growth and sustainability in India.
With a solid vendor organization and robust after-sales support, Cat Machines India centers around a client-driven approach. Its equipment focuses on ergonomic designs, advanced safety measures, and telematics for real-time monitoring, driving infrastructure growth and sustainability in India.
Product Portfolio: Excavators, Backhoe Loaders, Motor Graders, Wheel Loaders
Summary JCB excavators and Tata Hitachi excavators are two leading...
Summary: This blog explores the top five excavator attachments that...
Summary: Poclain Machine is a common term for excavation machinery...
Summary: This blog explores how Komatsu excavator machines like PC210-10M0,...
Summary: This guide helps you choose the right Kobelco excavator...
Summary: This blog explores why contractors stay loyal to JCB...
Summary: This blog reveals 9 expert tips to avoid overpaying...
Summary: This blog lists the top monsoon-ready excavator machines in...
Summary: This blog compares the top 10 20-ton excavator machines...
Summary: This comprehensive guide explores the full range of Sany...
Summary: BEML excavators play a key role in India's infrastructure...
Summary: This blog compares top brands like JCB excavator, Tata...
Summary: This blog compares top mini excavator models in India...
Summary: For mining in India, Komatsu, CAT, and Tata Hitachi...
Summary: Hyundai excavators are gaining popularity in India for their...
Summary: Volvo excavators in India offer top-tier performance, durability, and...
Summary: Tata Hitachi excavators, including models like the EX 70...
Summary: This blog compares Komatsu vs CAT excavators for Indian...
Summary: Explore the top JCB excavator models in India for...
Summary: Looking to buy the best excavator machine in India...
Summary: Clamshell buckets are essential excavator machine attachments used in...
Summary: Long boom excavators are specialized excavation machines designed for...
Summary: This blog explores 10 types of excavator buckets—from general-purpose...
Summary: This blog highlights common issues in an excavator machine’s...
Summary: This guide highlights the top 10 excavator manufacturers in...
Summary: This blog highlights the top 10 largest excavator machines...
Summary: This blog compares mini excavator, standard, and large excavator...
Summary: This blog explores essential excavator machine attachments—like buckets, hammers,...
Summary: This blog explains how a hydraulic excavator works, its...
Summary: This blog explores the evolution of long boom excavators,...
Summary: This blog highlights the key differences between mining excavators...
Excavators are heavy construction machines categorized into several types based...
Summary: Long-reach excavators are specialized excavation machines ideal for deep...
Summary: Lifting loads with an excavator machine demands precision, safety,...
Summary: Long-reach excavators are specialized excavation machines ideal for deep...
Summary: Mid-size excavators, like the Tata Hitachi excavator, SANY excavator,...
Summary: Using fake parts in your excavator machine or poclain...
Summary: Selecting the right grade control system is vital for...
Summary: The SANY SY140C-9 and JCB NXT 140 are powerful...
Summary: The Sany SY 120C-9 and JCB 130 are two...
Summary: Choosing the right excavator machine for mining depends on...
Summary: Mini excavators are compact, efficient excavation machines ideal for...
Summary: Mini excavators are compact and powerful excavation machines ideal...
Summary: Choosing the right excavator machine requires understanding key specs...
Summary: Choosing between renting and purchasing an excavator machine depends...
Summary: Desi Machines offers a smarter way to buy heavy...
Summary: Off-highway vehicles (OHVs) like excavators, backhoe loaders, and poclain...
Summary: Buying a construction or excavation machine like a JCB...
Summary: Buying an excavation machine, excavator machine, or mini excavator...
Summary: Protecting your excavation machine, excavator machine, mini excavator, or...
Summary: Understanding the lifespan of heavy machinery is vital for...
Summary: Selecting the right excavation machine depends on the job...
Summary: Regular maintenance of your excavator machine is crucial for...
Summary: Backhoe loaders and excavators are vital excavation machines with...
Summary: Operating an excavator machine requires strict safety protocols to...
Price Available Soon
© 2025 Desi Machines All rights reserved.
Designed & Developed by PromotEdge
Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.
