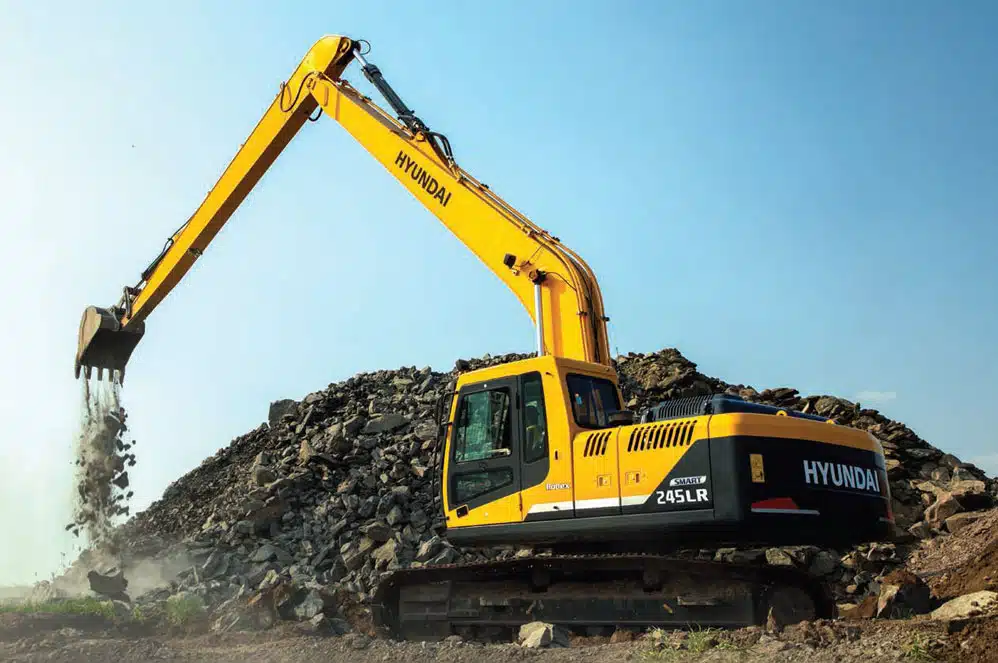

Hyundai R245LR Smart Plus Excavator

Name: Hyundai R245LR Smart Plus Excavator
Brand: Hyundai
Rating: 4.5 (71 reviews)

desi-machines-hyundai-excavator-r245lr-smart-plus-1

desi-machines-hyundai-excavator-r245lr-smart-plus-3

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Hyundai
Type
Long Reach
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
24500 Kg
Bucket
0.52 m³
Digging Depth
11760 mm
Engine
Cummins 139 HP
Warranty
1 Yr. / 2000 hr.
Boom
8200 mm

Quick Overview:

Long-reach excavator Hyundai R245LR Smart Plus ensures precision control and reliability for demanding dredging and mining tasks.

Connect With Us:

Get the best price for the Hyundai R245LR Smart Plus Long Reach Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins 6BT5.9-C

Fuel Tank

340 L

Engine Displacement

Under Carriage

4440 mm

Hydraulic System

2 x 220 L/min

Arm

6300 mm

Max Digging Reach

15220 mm

Fuel Consumption

12 L/hour

Overall Width

3190 mm

Overall Length

12030 mm

Bucket Digging Force

Tailswing Radius

2830 mm

Track Shoe Width

800 mm

AC Cabin

Standard

GPS

Standard

Features

Performance

The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, two work modes and two User Modes.
When a component is unoperational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.
Higher hydraulic oil flow to various components results in shorter cycle times and thus more profitability.
The Hydraulics and attachments are designed to offer high digging forces.

Efficiency

The sensors in this kit monitor undue loads and send signals to the Main Control Valve to cut down unnecessary fuel consumption. It helps to increase fuel efficiency.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.
Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.
Maintenance Management smart feature keeps a record of scheduled time interval for each maintenance area. This feature ensures maintenance of the machine by keeping the operator updated at all the times.

Durability

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.
Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces..
A wide track shoe of 800 mm provides better stability while working on heavy loads or in harsh terrains. It also helps to increase operator convenience and reduce fatigue.

Safety

Automatic Engine Heat Prevention feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the machine.
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
Anti-Restart System feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine.
Anti-Slip Pads & Handrail Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine. Handrails provide additional support and safety to the operator while entering or exiting the cabin.

Performance

The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, two work modes and two User Modes.
When a component is unoperational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.
Higher hydraulic oil flow to various components results in shorter cycle times and thus more profitability.
The Hydraulics and attachments are designed to offer high digging forces.

Efficiency

The sensors in this kit monitor undue loads and send signals to the Main Control Valve to cut down unnecessary fuel consumption. It helps to increase fuel efficiency.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.
Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.
Maintenance Management smart feature keeps a record of scheduled time interval for each maintenance area. This feature ensures maintenance of the machine by keeping the operator updated at all the times.

Durability

New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.
Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces..
A wide track shoe of 800 mm provides better stability while working on heavy loads or in harsh terrains. It also helps to increase operator convenience and reduce fatigue.

Safety

Automatic Engine Heat Prevention feature monitors coolant temperature and automatically lowers engine speed if it overheats, thereby preventing premature failure of the machine.
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
Anti-Restart System feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine.
Anti-Slip Pads & Handrail Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine. Handrails provide additional support and safety to the operator while entering or exiting the cabin.

Specifications

Product specification of Hyundai R245LR Smart Plus Excavator

ENGINE

Model

Cummins 6BT5.9-C
Fuel

Diesel
Type

NA
Rated Engine Power

139 HP (104 kW) @ 2000 rpm
Maximum Torque

564.9 Nm @ 1600 rpm
Piston Displacement

NA
Alternator

NA
Battery

NA
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

9
Track Shoes (Each Side)

49
Track Guard

2
Track Shoe Width

800 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Gradeability

70% (35°)
Travel Speed-Low

3.4 Km/h
Travel Speed-High

5.3 Km/h
Max Tracking Force

206.9 kN

HYDRAULIC SYSTEM

Hydraulic Pump

Two variable displacement piston pumps
Maximum Flow

2 x 220 L/min
Pilot Pump

Gear pump
Implement Circuit

32.4 MPa
Swing Circuit

23.5 MPa
Travel Circuit

32.4 MPa
Pilot Circuit

3.4 MPa

HYDRAULIC MOTORS

Travel

Two speed axial piston motor with counter balance valve and parking brake
Swing

Axial piston motor with automatic brake

SERVICE CAPACITIES

Fuel Tank

340 L
Engine Coolant

35 L
Engine Oil

15 L
Hydraulic System

290 L
Hydraulic Tank

180 L

MACHINE WEIGHTS

Operating Weight

24500 Kg

WORKING RANGE

Boom Length

8200 mm
Arm Length

6300 mm
Max. Digging Reach

15220 mm
Max. Digging Reach on Ground

15120 mm
Max. Digging Depth

11760 mm
Max. Digging Height

12550 mm
Max. Dumping Height

10280 mm
Max. Vertical Wallcut Depth

9610 mm
Min. Swing Radius

4870 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

NA
Arm Digging Force

NA
Swing Speed

11 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.52 m³

STATIC DIMENSIONS

Overall Length

12030 mm
Overall Width

3190 mm
Overall Height

3280 mm
Overall Height of Cab

2920 mm
Upper Width

2700 mm
Track Lengh on Ground

3640 mm
Undercarriage Overall Length

4440 mm
Tailswing Radius

2830 mm
Min. Ground Clearance

480 mm
Track Gauge

2390 mm
Width Over Tracks

3190 mm
Track Height

NA
Counterweight Clearence

1060 mm
Track Shoe Width

800 mm

Frequently Asked Question

01. What is the Hyundai R245LR Smart Plus Excavator price in India?

Ans.

The exact Hyundai R245LR Smart Plus Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Hyundai R245LR Smart Plus excavator?

Ans.

You can buy the Hyundai R245LR Smart Plus excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Hyundai R245LR Smart Plus Excavator come with financing and insurance options?

Ans.

Yes, the Hyundai R245LR Smart Plus comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Hyundai R245LR Smart Plus excavator?

Ans.

The operating weight of the Hyundai R245LR Smart Plus excavator is approximately 24500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Hyundai R245LR Smart Plus excavator?

Ans.

The Hyundai R245LR Smart Plus excavator is powered by a Cummins 6BT5.9-C engine, delivering 139 HP (104 kW) at 2000 rpm.

06. What is the maximum digging depth of the Hyundai R245LR Smart Plus excavator?

Ans.

The Hyundai R245LR Smart Plus excavator has a maximum digging depth of 11760 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Hyundai R245LR Smart Plus Excavator?

Ans.

The bucket capacity of the Hyundai R245LR Smart Plus Excavator is 0.52 cubic meters (m³).

08. What is the warranty period for the Hyundai R245LR Smart Plus excavator?

Ans.

The Hyundai R245LR Smart Plus Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Hyundai R245LR Smart Plus excavator?

Ans.

You can find genuine spare parts for the Hyundai R245LR Smart Plus excavator at authorized Hyundai dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Hyundai R245LR Smart Plus Excavator?

Ans.

The Hyundai R245LR Smart Plus excavator has a 340 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the Hyundai R245LR Smart Plus excavator?

Ans.

The Hyundai R245LR Smart Plus excavator has an average fuel consumption of 12 litres per hour, depending on factors such as load, terrain, and operating conditions
