JCB
Large (25-50 Ton)
₹ 1.25-1.27 Crore
₹ 1.25-1.27 Crore
37733 Kg
1.4 - 1.6 m³
6800 mm
JCB 284 HP
1 Yr. / 2000 hr.
6450 mm

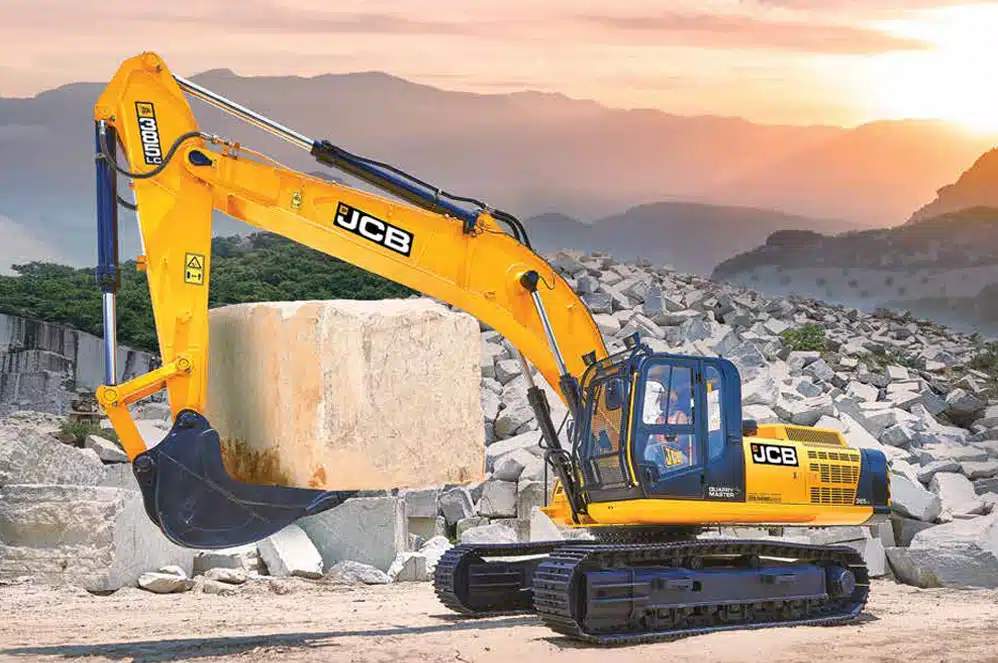

Made for tough environments, the JCB 385LC QUARRY MASTER large excavator excels in quarrying and mining projects.
Get the best price for the JCB 385LC QUARRY MASTER Large Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
JCB DIESELMAX 672 TCAE Electronic Engine.
590L
7.2 L
4960 mm
2 x 304 L/min
2630 mm
10560 mm
NA
2990 mm
11330 mm
265.8 kN
3570 mm
600 mm
Standard
Standard
The heavy-duty boom and arm made with high tensile strength steel and large sections can withstand high stress levels in most demanding usage.
Get a longer life and reduced maintenance cost with a heavy-duty track frame and reinforcement of idler mounting area. It ensures rigidity of track frames even in demanding applications.
Equipped with 3 track guides on each side, JCB 385LC QM Excavator minimises the sideways movement of the track chain to reduce damage of links and lower rollers.
Experience reduced repair cost and increased uptime with track motor covers that protect it from external damage.
With 8 power modes in the JCB 385LC QM Excavator, you have the power to do more.
Maximum engine power of 284 hp is attained by the powerful JCB Diesel Max 7.2 Litre CRDI Engine. High peak torque of 1150Nm ensures excellent engine response for high output.
JCB 385LC QM Excavator has an excellent lifting capacity owing to a combination of high hydraulic power and high operating weight. This enables the machine to easily lift heavy blocks of rocks.
High & powerful swing torque of 129 kNm provides ease of swing even with high loads.
JCB DIESELMAX engine provides high fuel efficiency & increases savings. and generates high torque at low speed to suit the job needs.
Common rail fuel injection system delivers high power with low fuel consumption while maximising output.
The advanced eco-hydraulic technology ensures that the machine always starts in idle for maximum fuel efficiency contributing to fuel savings.
Innovative hydraulic regeneration system recycles oil across cylinders for faster cycle time and reduced fuel consumption.
Auto idler reduces engine speed automatically when machine is not at work, thus saving fuel.
The state-of-the-art ergonomic cab offers comfort to the operator, giving him the power to do more productive operations, increasing profits.
Highly customisable and user-friendly 7” colour display easily monitors machine operating parameters. Engine dial control facilitates easy mode selection.
The roof hatch keeps the cab well ventilated which is aided by a rear sliding window.
The fully air-conditioned cab is with cooling and heating functions.
The deluxe operator seat provides high level of seating comfort and can be adjusted by the operator to keep him fatigue-free.
The cab is mounted on 6 viscous mounts to absorb vibrations thus, reducing the fatigue of the operator
With many protective features JCB 385LC QM Excavator ensures utmost safety of the operator even in arduous situations, giving you more peace of mind.
Advanced LiveLink provides easy & remote monitoring of the machine on & off-site. It helps machine owners to know service, operation & security aspects of the machine.
Anti-engine restart system saves starter from damage, preventing it from starting automatically while the engine is ON.
Safety lever lock fully isolates hydraulic functions to avoid unintended movements.
An emergency stop switch is provided to switch off the engine immediately, if required.
JCB 385LC QM Excavator is equipped with 2 lights on the boom, 2 on the cab top, 1 on the upper frame and 1 on the counterweight. They provide a well illuminated and a safer work site, ensuring 24x7 operations.
The heavy-duty boom and arm made with high tensile strength steel and large sections can withstand high stress levels in most demanding usage.
Get a longer life and reduced maintenance cost with a heavy-duty track frame and reinforcement of idler mounting area. It ensures rigidity of track frames even in demanding applications.
Equipped with 3 track guides on each side, JCB 385LC QM Excavator minimises the sideways movement of the track chain to reduce damage of links and lower rollers.
Experience reduced repair cost and increased uptime with track motor covers that protect it from external damage.
With 8 power modes in the JCB 385LC QM Excavator, you have the power to do more.
Maximum engine power of 284 hp is attained by the powerful JCB Diesel Max 7.2 Litre CRDI Engine. High peak torque of 1150Nm ensures excellent engine response for high output.
JCB 385LC QM Excavator has an excellent lifting capacity owing to a combination of high hydraulic power and high operating weight. This enables the machine to easily lift heavy blocks of rocks.
High & powerful swing torque of 129 kNm provides ease of swing even with high loads.
JCB DIESELMAX engine provides high fuel efficiency & increases savings. and generates high torque at low speed to suit the job needs.
Common rail fuel injection system delivers high power with low fuel consumption while maximising output.
The advanced eco-hydraulic technology ensures that the machine always starts in idle for maximum fuel efficiency contributing to fuel savings.
Innovative hydraulic regeneration system recycles oil across cylinders for faster cycle time and reduced fuel consumption.
Auto idler reduces engine speed automatically when machine is not at work, thus saving fuel.
The state-of-the-art ergonomic cab offers comfort to the operator, giving him the power to do more productive operations, increasing profits.
Highly customisable and user-friendly 7” colour display easily monitors machine operating parameters. Engine dial control facilitates easy mode selection.
The roof hatch keeps the cab well ventilated which is aided by a rear sliding window.
The fully air-conditioned cab is with cooling and heating functions.
The deluxe operator seat provides high level of seating comfort and can be adjusted by the operator to keep him fatigue-free.
The cab is mounted on 6 viscous mounts to absorb vibrations thus, reducing the fatigue of the operator
With many protective features JCB 385LC QM Excavator ensures utmost safety of the operator even in arduous situations, giving you more peace of mind.
Advanced LiveLink provides easy & remote monitoring of the machine on & off-site. It helps machine owners to know service, operation & security aspects of the machine.
Anti-engine restart system saves starter from damage, preventing it from starting automatically while the engine is ON.
Safety lever lock fully isolates hydraulic functions to avoid unintended movements.
An emergency stop switch is provided to switch off the engine immediately, if required.
JCB 385LC QM Excavator is equipped with 2 lights on the boom, 2 on the cab top, 1 on the upper frame and 1 on the counterweight. They provide a well illuminated and a safer work site, ensuring 24x7 operations.
Product specification of JCB 385LC Quarry Master Excavator
Model
JCB DIESELMAX 672 TCAE Electronic Engine.
Fuel
Diesel
Type
4-stroke, 6-Cylinder, High pressure common rail, ECU, turbocharged, intercooled.
Rated Engine Power
284 HP (212 kW) @ 2000 rpm
Maximum Torque
1150 Nm @ 1400 rpm
Piston Displacement
7.2 L
Alternator
24V / 55A
Battery
2 x 12V
Starting Motor
24V
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
48
Track Guard
3
Track Shoe Width
600 mm
Ground Bearing Pressure
70.6 kPa
Track Tensioning
Grease
Gradeability
70% (35 °) continuous.
Travel Speed-Low
2.2 Km/h
Travel Speed-High
5.3 Km/h
Max Tracking Force
287 kN
Hydraulic Pump
2 variable displacement axial piston type.
Maximum Flow
2 x 304 L/min
Pilot Pump
Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
28.4 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
4.5 MPa
Travel
Variable axial piston type, fully guarded within undercarriage frame.
Swing
Axial piston type.
Fuel Tank
590L
Engine Coolant
45 L
Engine Oil
25 L
Hydraulic System
430 L
Hydraulic Tank
239 L
Operating Weight
37733 Kg
Boom Length
6450 mm
Arm Length
2630 mm
Max. Digging Reach
10560 mm
Max. Digging Reach on Ground
10360 mm
Max. Digging Depth
6800 mm
Max. Digging Height
10030 mm
Max. Dumping Height
6870 mm
Max. Vertical Wallcut Depth
6215 mm
Min. Swing Radius
4490 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
265.8 kN
Arm Digging Force
224.6 kN
Swing Speed
8.9 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
1.4 - 1.6 m³
Overall Length
11330 mm
Overall Width
2990 mm
Overall Height
3840 mm
Overall Height of Cab
3240 mm
Upper Width
NA
Track Lengh on Ground
4020 mm
Undercarriage Overall Length
4960 mm
Tailswing Radius
3570 mm
Min. Ground Clearance
507 mm
Track Gauge
2600 mm
Width Over Tracks
3200 mm
Track Height
1010 mm
Counterweight Clearence
1160 mm
Track Shoe Width
600 mm
The JCB 385LC Quarry Master Excavator price in India ranges between ₹ 1.25 – 1.27 Crore. However, the exact price may vary depending on the location, dealer, taxes, and additional features.
You can buy the JCB 385LC Quarry Master excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the JCB 385LC Quarry Master comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the JCB 385LC Quarry Master excavator is approximately 37733 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The JCB 385LC Quarry Master excavator is powered by a JCB DIESELMAX 672 TCAE Electronic Engine. engine, delivering 284 HP (212 kW) at 2000 rpm.
The JCB 385LC Quarry Master excavator has a maximum digging depth of 6800 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the JCB 385LC Quarry Master Excavator ranges from 1.4 to 1.6 cubic meters (m³).
The JCB 385LC Quarry Master Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the JCB 385LC Quarry Master excavator at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The JCB 385LC Quarry Master excavator has a 590litres diesel fuel tank, providing extended operation time without frequent refueling.
