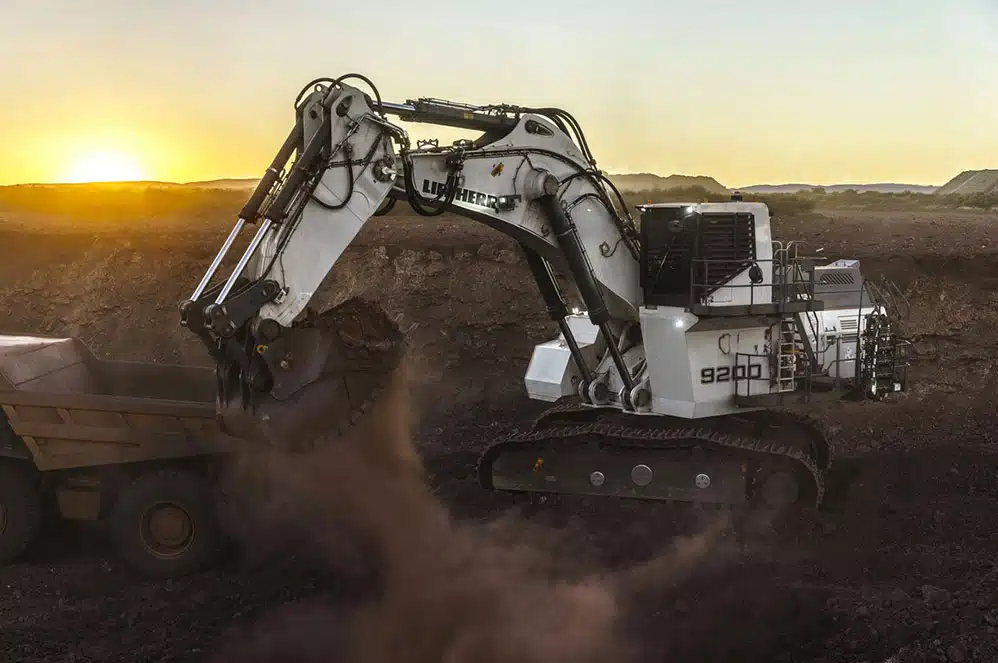

Liebherr R 9200 G7 Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Liebherr
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
205000 Kg
Bucket
12.5 m³
Digging Depth
8300 mm
Engine
Cummins 1086 HP
Warranty
1 Yr. / 2500 hr.
Boom
8500 mm

Quick Overview:

Excelling in demanding mining operations Liebherr R 9200 G7 extra-large excavator brings innovative engineering.

Connect With Us:

Get the best price for the Liebherr R 9200 G7 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins QSK38

Fuel Tank

4500 L

Engine Displacement

37.8 L

Under Carriage

7600 mm

Hydraulic System

4 x 512 L/min

Arm

3800 mm

Max Digging Reach

Fuel Consumption

Overall Width

7400 mm

Overall Length

16700 mm

Bucket Digging Force

740 kN

Tailswing Radius

Track Shoe Width

800 mm

AC Cabin

Standard

GPS

Standard

Features

Enhanced Productivity

Equipped with a 12.5 m³ bucket, the R 9200 G7 offers the largest payload in its class, enabling operators to move more material per cycle.
Designed for rapid operation, the excavator's swift cycle times contribute to increased overall productivity.
The machine delivers substantial digging and breakout forces, facilitating efficient material handling in various mining conditions.
An advanced hydraulic system ensures effective power delivery, enhancing digging performance and cycle efficiency.
The R 9200 G7 supports a range of attachments, allowing customization to specific mining tasks and further boosting productivity.
Designed to work harmoniously with Liebherr's mining trucks, the excavator ensures efficient loading and unloading operations.

Superior Fuel Efficiency

The proprietary LPE system adjusts power and hydraulic flow based on task requirements, reducing fuel consumption by up to 20%.
The excavator's engine operates efficiently, ensuring that fuel is used effectively during operations.
The design minimizes hydraulic throttling, contributing to lower fuel usage and enhanced component longevity.
Features like the closed-loop swing circuit recover kinetic energy, further improving fuel efficiency.
The excavator adjusts its power output to match operational demands, preventing unnecessary fuel consumption.
The focus on fuel efficiency reduces the carbon footprint of mining operations.

Robust Reliability

Constructed with high-quality materials, the R 9200 G7 is built to withstand the rigors of mining environments.
Liebherr's engineering expertise ensures that the excavator meets high standards of reliability and performance.
Ongoing development programs enhance the machine's durability and operational lifespan.
Precision manufacturing processes contribute to the overall reliability of the excavator.
Extensive testing procedures ensure that each unit meets stringent reliability criteria before deployment.
The R 9200 G7 has demonstrated consistent performance in various mining operations worldwide.

Advanced Technology Integration

The excavator is equipped with advanced assistance systems that enhance operational efficiency and safety.
Features like the closed-loop swing circuit optimize energy use, contributing to overall efficiency.
Integrated telematics allow for remote monitoring and diagnostics, facilitating proactive maintenance and reducing downtime.
The excavator's control systems are designed for ease of use, enhancing operator productivity and comfort.
Certain operations are automated to reduce operator workload and improve consistency.
The system collects operational data, providing insights for performance optimization and maintenance planning.

Enhanced Operator Comfort

The R 9200 G7 features a spacious and ergonomic cab, providing operators with a comfortable working environment
An efficient climate control system ensures optimal temperature and air quality inside the cab
The excavator operates with reduced noise levels, enhancing operator comfort and meeting environmental standards.
The seat is fully adjustable, allowing operators to customize their position for maximum comfort.
Large windows and strategically placed mirrors provide excellent visibility, reducing operator fatigue.
The control layout is designed for ease of use, minimizing operator effort and enhancing productivity.

Environmental Responsibility

The R 9200 G7 complies with stringent emission standards, contributing to cleaner air quality.
An electric drive version is available, offering zero emissions during operation.
Features like the closed-loop swing circuit recover energy, reducing overall energy consumption
Liebherr employs sustainable practices in the manufacturing process, reducing the environmental impact.
The excavator's design minimizes noise pollution, benefiting both operators and the surrounding environment

Enhanced Productivity

Equipped with a 12.5 m³ bucket, the R 9200 G7 offers the largest payload in its class, enabling operators to move more material per cycle.
Designed for rapid operation, the excavator's swift cycle times contribute to increased overall productivity.
The machine delivers substantial digging and breakout forces, facilitating efficient material handling in various mining conditions.
An advanced hydraulic system ensures effective power delivery, enhancing digging performance and cycle efficiency.
The R 9200 G7 supports a range of attachments, allowing customization to specific mining tasks and further boosting productivity.
Designed to work harmoniously with Liebherr's mining trucks, the excavator ensures efficient loading and unloading operations.

Superior Fuel Efficiency

The proprietary LPE system adjusts power and hydraulic flow based on task requirements, reducing fuel consumption by up to 20%.
The excavator's engine operates efficiently, ensuring that fuel is used effectively during operations.
The design minimizes hydraulic throttling, contributing to lower fuel usage and enhanced component longevity.
Features like the closed-loop swing circuit recover kinetic energy, further improving fuel efficiency.
The excavator adjusts its power output to match operational demands, preventing unnecessary fuel consumption.
The focus on fuel efficiency reduces the carbon footprint of mining operations.

Robust Reliability

Constructed with high-quality materials, the R 9200 G7 is built to withstand the rigors of mining environments.
Liebherr's engineering expertise ensures that the excavator meets high standards of reliability and performance.
Ongoing development programs enhance the machine's durability and operational lifespan.
Precision manufacturing processes contribute to the overall reliability of the excavator.
Extensive testing procedures ensure that each unit meets stringent reliability criteria before deployment.
The R 9200 G7 has demonstrated consistent performance in various mining operations worldwide.

Advanced Technology Integration

The excavator is equipped with advanced assistance systems that enhance operational efficiency and safety.
Features like the closed-loop swing circuit optimize energy use, contributing to overall efficiency.
Integrated telematics allow for remote monitoring and diagnostics, facilitating proactive maintenance and reducing downtime.
The excavator's control systems are designed for ease of use, enhancing operator productivity and comfort.
Certain operations are automated to reduce operator workload and improve consistency.
The system collects operational data, providing insights for performance optimization and maintenance planning.

Enhanced Operator Comfort

The R 9200 G7 features a spacious and ergonomic cab, providing operators with a comfortable working environment
An efficient climate control system ensures optimal temperature and air quality inside the cab
The excavator operates with reduced noise levels, enhancing operator comfort and meeting environmental standards.
The seat is fully adjustable, allowing operators to customize their position for maximum comfort.
Large windows and strategically placed mirrors provide excellent visibility, reducing operator fatigue.
The control layout is designed for ease of use, minimizing operator effort and enhancing productivity.

Environmental Responsibility

The R 9200 G7 complies with stringent emission standards, contributing to cleaner air quality.
An electric drive version is available, offering zero emissions during operation.
Features like the closed-loop swing circuit recover energy, reducing overall energy consumption
Liebherr employs sustainable practices in the manufacturing process, reducing the environmental impact.
The excavator's design minimizes noise pollution, benefiting both operators and the surrounding environment

Specifications

Product specification of Liebherr R 9200 G7 Excavator

Enhanced Productivity

Model

Cummins QSK38
Fuel

Diesel
Type

12 cylinder V-engine, turbocharged after cooled, cooler with temperature controlled fans driven via hydraulic piston motor
Rated Engine Power

1086 HP (810 kW) @ 1800 rpm
Maximum Torque

NA
Piston Displacement

37.8 L
Alternator

24 V / 260 A
Battery

4 x 180 Ah / 12 V
Starting Motor

24 V, 25 V

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

8
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

800 mm
Ground Bearing Pressure

194.2 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

NA
Travel Speed-High

2.8 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

4 variable flow axial piston pumps
Maximum Flow

4 x 512 L/min
Pilot Pump

NA
Implement Circuit

35.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

1 axial piston motor per side frame
Swing

2 Liebherr axial piston motors

SERVICE CAPACITIES

Fuel Tank

4500 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

3400 L
Hydraulic Tank

1800 L

MACHINE WEIGHTS

Operating Weight

205000 Kg

WORKING RANGE

Boom Length

8500 mm
Arm Length

3800 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

14800 mm
Max. Digging Depth

8300 mm
Max. Digging Height

14000 mm
Max. Dumping Height

9700 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

740 kN
Arm Digging Force

650 kN
Swing Speed

5.0 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

12.5 m³

STATIC DIMENSIONS

Overall Length

16700 mm
Overall Width

7400 mm
Overall Height

7400 mm
Overall Height of Cab

7400 mm
Upper Width

5400 mm
Track Lengh on Ground

5862 mm
Undercarriage Overall Length

7600 mm
Tailswing Radius

NA
Min. Ground Clearance

800 mm
Track Gauge

4700 mm
Width Over Tracks

NA
Track Height

2040 mm
Counterweight Clearence

2175 mm
Track Shoe Width

800 mm

Frequently Asked Question

01. What is the Liebherr R 9200 G7 Excavator price in India?

Ans.

The exact Liebherr R 9200 G7 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Liebherr R 9200 G7 excavator?

Ans.

You can buy the Liebherr R 9200 G7 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Liebherr R 9200 G7 Excavator come with financing and insurance options?

Ans.

Yes, the Liebherr R 9200 G7 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Liebherr R 9200 G7 excavator?

Ans.

The operating weight of the Liebherr R 9200 G7 excavator is approximately 205000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Liebherr R 9200 G7 excavator?

Ans.

The Liebherr R 9200 G7 excavator is powered by a Cummins QSK38 engine, delivering 1086 HP (810 kW) at 1800 rpm.

06. What is the maximum digging depth of the Liebherr R 9200 G7 excavator?

Ans.

The Liebherr R 9200 G7 excavator has a maximum digging depth of 8300 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Liebherr R 9200 G7 Excavator?

Ans.

The bucket capacity of the Liebherr R 9200 G7 Excavator is 12.5 cubic meters (m³).

08. What is the warranty period for the Liebherr R 9200 G7 excavator?

Ans.

The Liebherr R 9200 G7 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Liebherr R 9200 G7 excavator?

Ans.

You can find genuine spare parts for the Liebherr R 9200 G7 excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Liebherr R 9200 G7 Excavator?

Ans.

The Liebherr R 9200 G7 excavator has a 4500 litres diesel fuel tank, providing extended operation time without frequent refueling.
