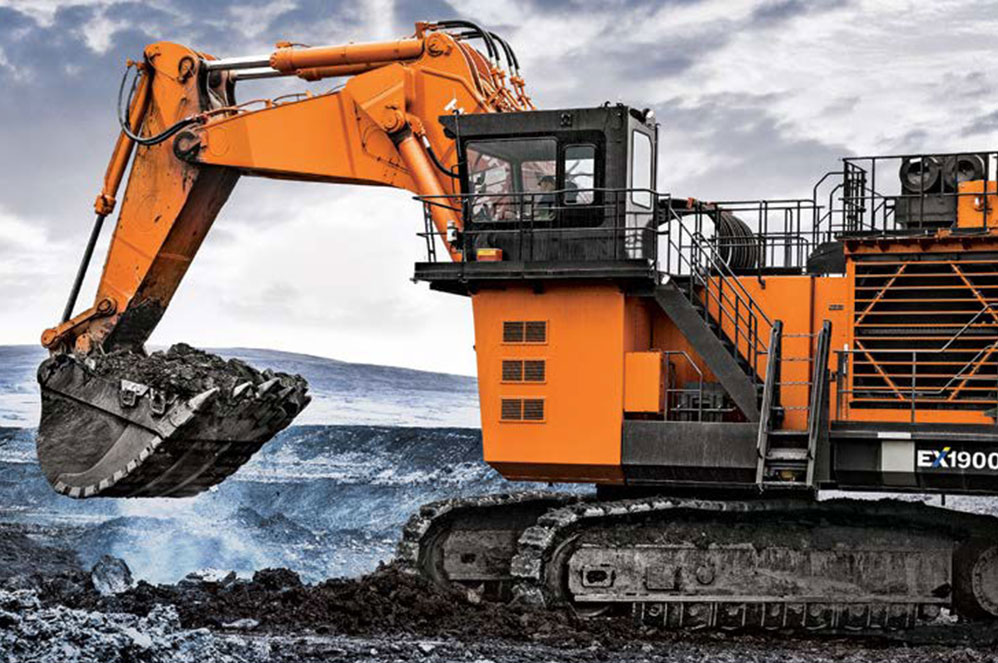

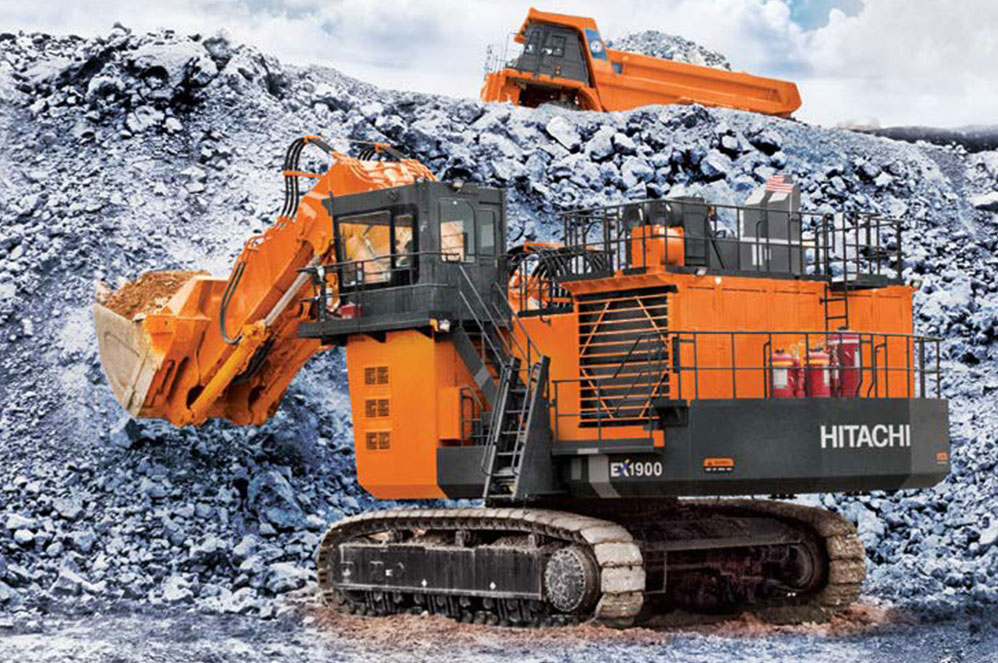

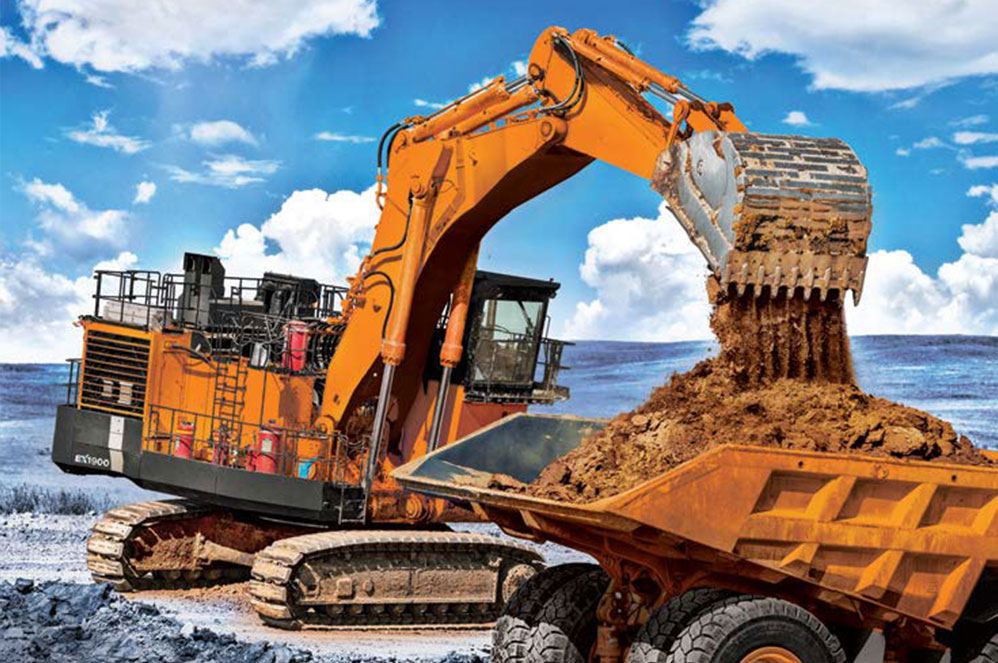

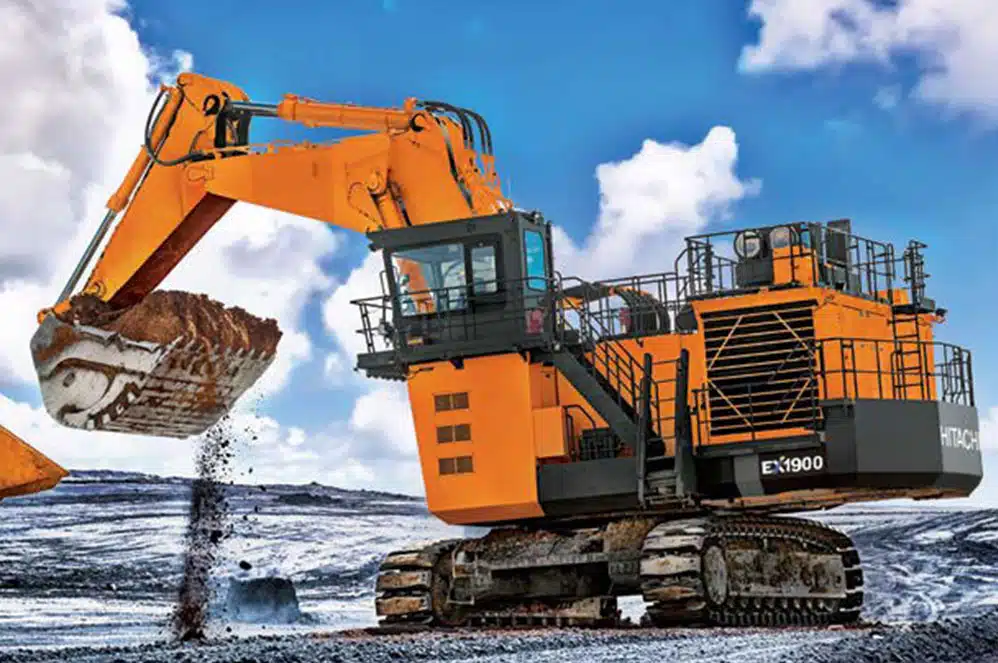

Tata Hitachi EX 1900-6 Excavator

Powerful Engine: A Cummins QSKTA38–CE diesel engine meets U.S. EPA Tier 2 emission regulations.

The computer-aided Engine- Pump Control (E-P Control) system senses load demand and adjusts power to the work being performed.

The large bucket is shaped specifically to enhance digging and loading operations. Its sharp tilt angle helps boost operating efficiency by allowing the operator better use of the bucket digging forces, and after digging, keeping more of the material in the bucket while loading the haul truck.

Auto-Level Mechanism: An exclusive Hitachi feature available on front shovel attachments, the one-lever leveling control boosts productivity through efficient operation of the bucket through the dig cycle.

The rigid box design resists bending and twisting forces, giving you stability and strength on any job.

High-mounted compact travel motors are protected from rock damage. Optional travel motor guards provide an even higher level of protection from damage.

The cast steel structures, integrated into the center track frame, assist in avoiding stress concentration and increase reliability.

The oil cooler is strategically positioned far from the engine radiator for even better cooling potential.

The sturdy cab protects operators from falling objects. The cab’s top guard meets OPG Level II (ISO) standards. The entire cab sits on a package of fluid-filled elastic mounts that absorb vibration for a more comfortable ride.

The six-meter high, forwardsloping cab provides a clear view of the work site – even when loading trucks.

The air suspension, multiposition seat can be customized to the operator’s needs and adjusted according to operator weight.

The well-insulated, pressurized cab keeps out dust and is air conditioned.

Electric joystick control levers provide precise and almost effortless operation.

The multi-display, color LCD monitor provides machine data, operating status and alerts at a glance. The monitor can be preset to indicate replacement intervals for engine oil, hydraulic oil and filters.

Four optional outside cameras can be mounted around the machine for enhanced visibility and help eliminate blind spots.

Optional folding stairs with wide steps allow for easy accessibility, servicing and maintenance.

The centralized filter system makes inspection and maintenance quicker and more convenient.

contamination sensor alerts the operator before it’s too late of accumulated contaminants in the oil that could cause damage.

walkway around the entire counterweight provides easy access to rear areas for faster, safer inspections and maintenance.

Located at the center of the machine, a wide-open service area gives you access to the engine as well as hydraulic and electrical systems.

The compartment floor slides down to lower a grease drum can for quick replacement.

An ejector automatically expels dust from the air cleaner, giving you one less maintenance task.

The auto-lubrication system for the front joint pins and swing circle saves you time.

Remote Machine Management with Global e-Service. This online machine management system allows you to access each on-site machine from a PC in your office. You can get its operating information and location to increase productivity. Operating data and log are sent to a Hitachi server for processing, and then to customer and dealers. This system is available 24/7/365.
