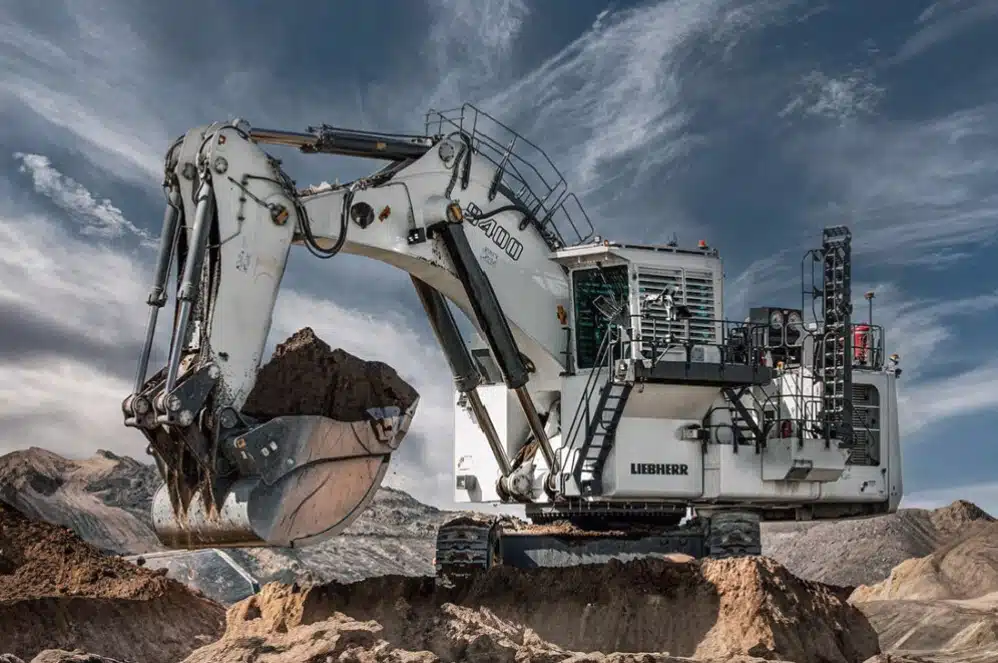

Liebherr R 9400 G6 Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Liebherr
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
345500 Kg
Bucket
24.0 m³
Digging Depth
9300 mm
Engine
Cummins 1675 HP
Warranty
1 Yr. / 2500 hr.
Boom
9300 mm

Quick Overview:

Engineered with exceptional durability Liebherr R 9400 G6 extra-large excavator is efficient for large-scale mining projects.

Connect With Us:

Get the best price for the Liebherr R 9400 G6 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins QSK50

Fuel Tank

6908 L

Engine Displacement

50.3 L

Under Carriage

8800 mm

Hydraulic System

4 x 751 L/min

Arm

4200 mm

Max Digging Reach

Fuel Consumption

Overall Width

8520 mm

Overall Length

18530 mm

Bucket Digging Force

1000 kN

Tailswing Radius

Track Shoe Width

1000 mm

AC Cabin

Standard

GPS

Standard

Features

Power and Performance

Equipped with diesel (Liebherr D9812 or Cummins QSK50) or electric drive options with up to 1,350 kW (1,810 HP) power output.
Bucket payload of up to 40 tonnes (44 tons) in face shovel configuration and 43.5 tonnes (48 tons) in backhoe configuration.
Innovative hydraulic system with a closed-loop swing circuit for faster cycle times and precise control.
High digging forces ensure productivity in demanding conditions, with maximum breakout force up to 1,195 kN.
Designed to pair with mining trucks of 140–240 tonnes capacity.
Intelligent energy management optimizes power distribution and improves fuel efficiency.

Bucket and Attachments

Bucket capacities: up to 24 m³ (31.4 ydm³) for face shovel and 26 m³ (34 ydm³) for backhoe attachments.
Reinforced designs using Smart Components to increase payload and wear protection.
General Purpose (GP), Heavy Duty (HD), and Extreme Heavy Duty (XHD) buckets available for different material densities.
Advanced kinematics provide optimal penetration and fill factors.
Integrated lubrication systems ensure durability and reduce maintenance.
Stick wear protection and reinforced high-stress areas enhance longevity.

Operator Comfort and Safety

Spacious cabin with tinted, laminated safety glass and optional sound attenuation for noise reduction.
Ergonomic operator’s seat with joystick controls integrated into armrests.
Pressurized air conditioning system prevents dust penetration and ensures comfort.
Safety-first design with emergency stops and fire suppression systems.
Comprehensive visibility with LED lighting and rear/side cameras.
Hydraulic-actuated access systems and slip-resistant surfaces for safe machine access.

Advanced Technology and Automation

Integrated IoMine technology for real-time data monitoring and fleet management.
Assistance systems, including Truck Loading Assistant and Operational Analytics, enhance efficiency.
Modular connectivity enables remote operation and advanced automation options.
Proactive maintenance systems maximize machine availability and minimize downtime.
Digital controls with the Litronic Plus electronic control system for precise machine operations.
Optional electric drive system offers energy efficiency and lower emissions.

Environmental Sustainability

Engines compliant with US EPA Tier 4f/EU Stage V standards for reduced emissions.
Eco-Mode setting minimizes engine load to improve fuel consumption and lower emissions.
Advanced cooling systems maintain optimal operating temperatures.
High-efficiency hydraulic systems reduce environmental impact.
Modular maintenance options reduce waste and promote sustainable operations.
Noise attenuation packages available for environmentally sensitive areas.

Maintenance and Support

Centralized lubrication systems simplify maintenance and ensure continuous operation.
Service points are accessible at ground level with hydraulic-actuated service flaps.
Long maintenance intervals due to fine filtration and optimized oil systems.
Modular components facilitate easy repairs and reduce downtime.
Comprehensive training programs for operators and maintenance staff.
Global service network ensures quick spare parts availability and expert support.

Power and Performance

Equipped with diesel (Liebherr D9812 or Cummins QSK50) or electric drive options with up to 1,350 kW (1,810 HP) power output.
Bucket payload of up to 40 tonnes (44 tons) in face shovel configuration and 43.5 tonnes (48 tons) in backhoe configuration.
Innovative hydraulic system with a closed-loop swing circuit for faster cycle times and precise control.
High digging forces ensure productivity in demanding conditions, with maximum breakout force up to 1,195 kN.
Designed to pair with mining trucks of 140–240 tonnes capacity.
Intelligent energy management optimizes power distribution and improves fuel efficiency.

Bucket and Attachments

Bucket capacities: up to 24 m³ (31.4 ydm³) for face shovel and 26 m³ (34 ydm³) for backhoe attachments.
Reinforced designs using Smart Components to increase payload and wear protection.
General Purpose (GP), Heavy Duty (HD), and Extreme Heavy Duty (XHD) buckets available for different material densities.
Advanced kinematics provide optimal penetration and fill factors.
Integrated lubrication systems ensure durability and reduce maintenance.
Stick wear protection and reinforced high-stress areas enhance longevity.

Operator Comfort and Safety

Spacious cabin with tinted, laminated safety glass and optional sound attenuation for noise reduction.
Ergonomic operator’s seat with joystick controls integrated into armrests.
Pressurized air conditioning system prevents dust penetration and ensures comfort.
Safety-first design with emergency stops and fire suppression systems.
Comprehensive visibility with LED lighting and rear/side cameras.
Hydraulic-actuated access systems and slip-resistant surfaces for safe machine access.

Advanced Technology and Automation

Integrated IoMine technology for real-time data monitoring and fleet management.
Assistance systems, including Truck Loading Assistant and Operational Analytics, enhance efficiency.
Modular connectivity enables remote operation and advanced automation options.
Proactive maintenance systems maximize machine availability and minimize downtime.
Digital controls with the Litronic Plus electronic control system for precise machine operations.
Optional electric drive system offers energy efficiency and lower emissions.

Environmental Sustainability

Engines compliant with US EPA Tier 4f/EU Stage V standards for reduced emissions.
Eco-Mode setting minimizes engine load to improve fuel consumption and lower emissions.
Advanced cooling systems maintain optimal operating temperatures.
High-efficiency hydraulic systems reduce environmental impact.
Modular maintenance options reduce waste and promote sustainable operations.
Noise attenuation packages available for environmentally sensitive areas.

Maintenance and Support

Centralized lubrication systems simplify maintenance and ensure continuous operation.
Service points are accessible at ground level with hydraulic-actuated service flaps.
Long maintenance intervals due to fine filtration and optimized oil systems.
Modular components facilitate easy repairs and reduce downtime.
Comprehensive training programs for operators and maintenance staff.
Global service network ensures quick spare parts availability and expert support.

Specifications

Product specification of Liebherr R 9400 G6 Excavator

ENGINE

Model

Cummins QSK50
Fuel

Diesel/Electric
Type

16 cylinder turbocharged V-engine after-cooler separate water cooling circuits common-rail
Rated Engine Power

1675 HP (1250 kW) @ 1800 rpm
Maximum Torque

NA
Piston Displacement

50.3 L
Alternator

24 V / 260 A
Battery

4 x 180 Ah / 12 V service systems
Starting Motor

24 V

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

9
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

1000 mm
Ground Bearing Pressure

233.4 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

NA
Travel Speed-High

2.7 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

4 variable flow axial piston pumps
Maximum Flow

4 x 751 L/min
Pilot Pump

NA
Implement Circuit

32.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

2 axial piston motors per side frame
Swing

2 Liebherr axial piston motors

SERVICE CAPACITIES

Fuel Tank

6908 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

4200 L
Hydraulic Tank

2200 L

MACHINE WEIGHTS

Operating Weight

345500 Kg

WORKING RANGE

Boom Length

9300 mm
Arm Length

4200 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

16300 mm
Max. Digging Depth

9300 mm
Max. Digging Height

15700 mm
Max. Dumping Height

10600 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

1000 kN
Arm Digging Force

965 kN
Swing Speed

3.9 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

24 m m³

STATIC DIMENSIONS

Overall Length

18530 mm
Overall Width

8520 mm
Overall Height

8585 mm
Overall Height of Cab

8045 mm
Upper Width

6300 mm
Track Lengh on Ground

6645 mm
Undercarriage Overall Length

8800 mm
Tailswing Radius

NA
Min. Ground Clearance

1190 mm
Track Gauge

5520 mm
Width Over Tracks

6930 mm
Track Height

3000 mm
Counterweight Clearence

2385 mm
Track Shoe Width

1000 mm

Frequently Asked Question

01. What is the Liebherr R 9400 G6 Excavator price in India?

Ans.

The exact Liebherr R 9400 G6 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Liebherr R 9400 G6 excavator?

Ans.

You can buy the Liebherr R 9400 G6 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Liebherr R 9400 G6 Excavator come with financing and insurance options?

Ans.

Yes, the Liebherr R 9400 G6 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Liebherr R 9400 G6 excavator?

Ans.

The operating weight of the Liebherr R 9400 G6 excavator is approximately 345500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Liebherr R 9400 G6 excavator?

Ans.

The Liebherr R 9400 G6 excavator is powered by a Cummins QSK50 engine, delivering 1675 HP (1250 kW) at 1800 rpm.

06. What is the maximum digging depth of the Liebherr R 9400 G6 excavator?

Ans.

The Liebherr R 9400 G6 excavator has a maximum digging depth of 9300 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Liebherr R 9400 G6 Excavator?

Ans.

The bucket capacity of the Liebherr R 9400 G6 Excavator is 24 m cubic meters (m³).

08. What is the warranty period for the Liebherr R 9400 G6 excavator?

Ans.

The Liebherr R 9400 G6 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Liebherr R 9400 G6 excavator?

Ans.

You can find genuine spare parts for the Liebherr R 9400 G6 excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Liebherr R 9400 G6 Excavator?

Ans.

The Liebherr R 9400 G6 excavator has a 6908 litres diesel fuel tank, providing extended operation time without frequent refueling.
