Tata Hitachi
Extra-Large (>50 Ton)
Price Available Soon
Price Available Soon
260000 Kg
17.0 m³
8250 mm
Cummins 1500 HP
1 Yr. / 2000 hr.
8700 mm

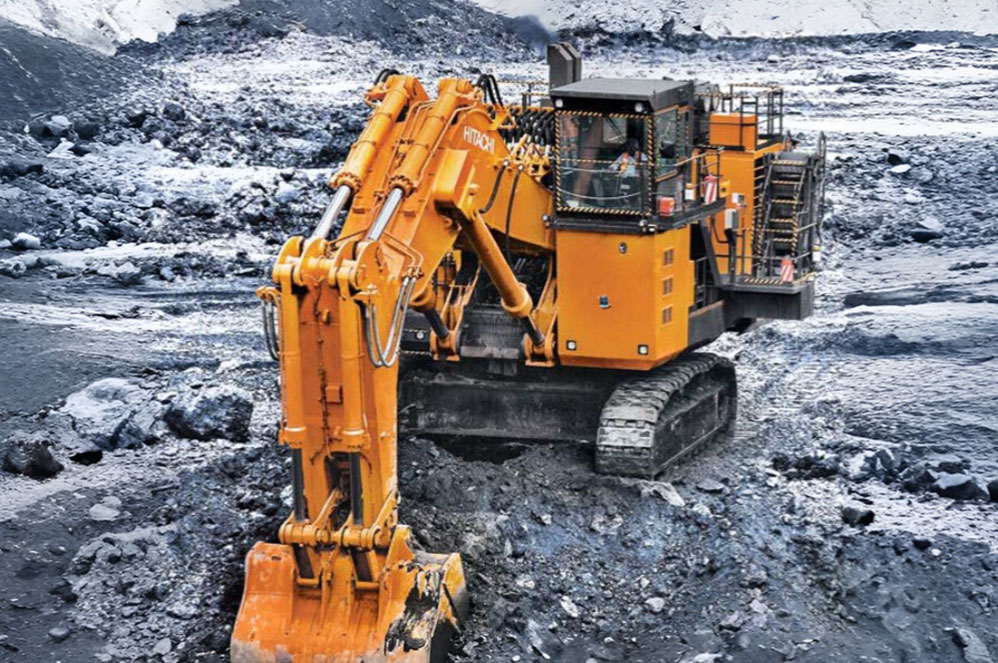

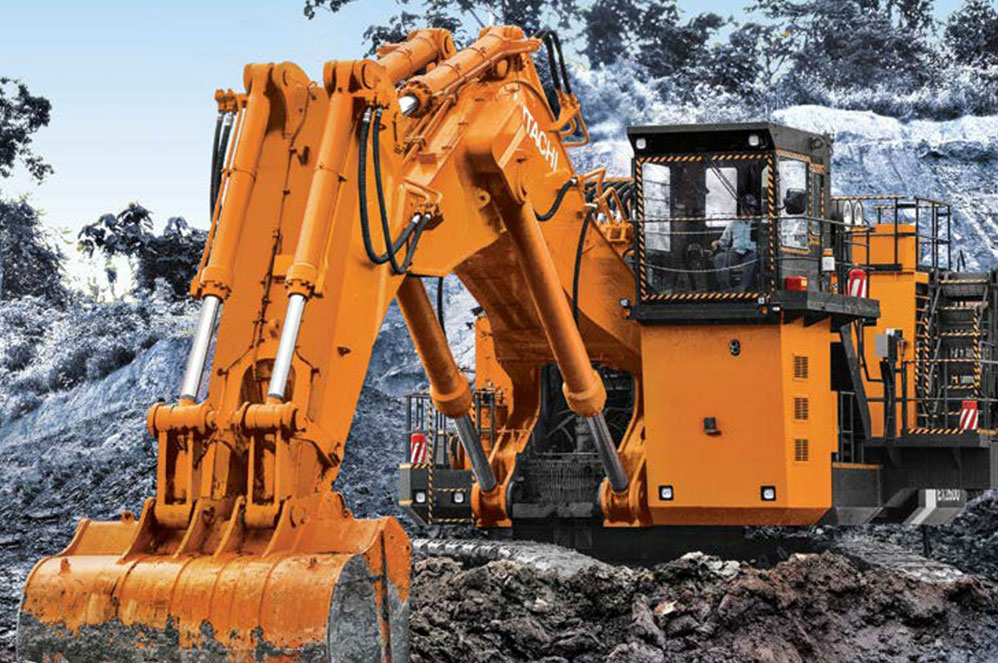

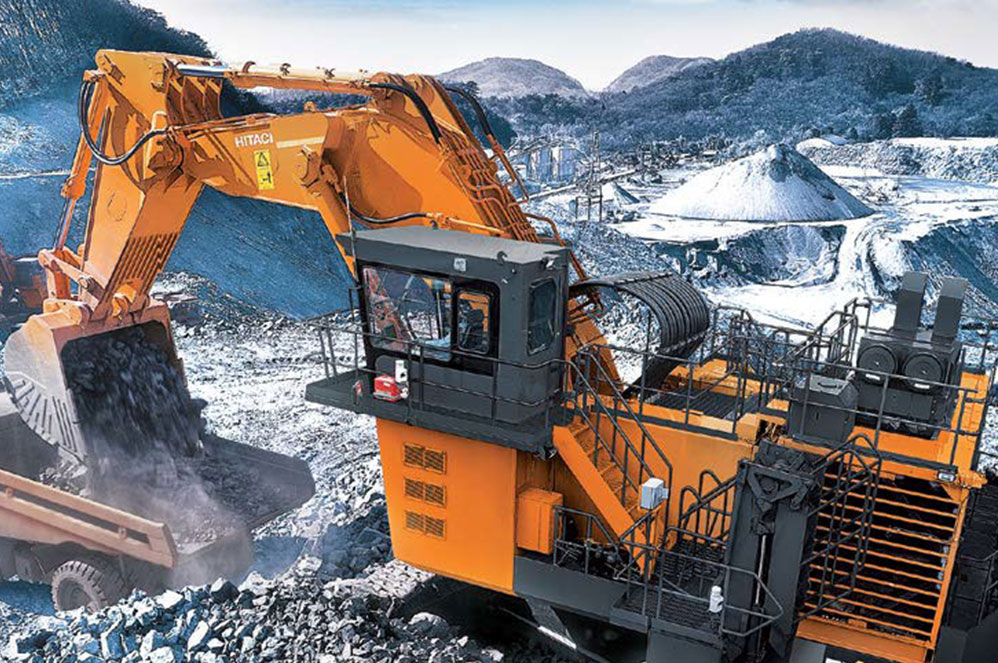

The EX 2600-6 extra-large excavator integrates innovative systems and high-capacity performance for heavy-duty mining.
Get the best price for the Tata Hitachi EX 2600-6 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Cummins QSKTA50-CE
5300 L
50 L
7870 mm
4 x 375 L/min
3900 mm
16600 mm
NA
8040 mm
NA
760 kN
6290 mm
1000 mm
Standard
Standard
Powerful Engine: A Cummins QSKTA50-CE diesel engine meets U.S. EPA Tier 2 emission regulations.
The computer-aided Engine- Pump Control (E-P Control) system senses load demand and adjusts power to the work being performed
The large bucket is shaped specifically to enhance digging and loading operations. Its sharp tilt angle helps boost operating efficiency by allowing the operator better use of the bucket digging forces, and after digging, keeping more of the material in the bucket while loading the haul truck.
Auto-Level Mechanism: An exclusive Hitachi feature available on front shovel attachments, the one-lever leveling control boosts productivity through efficient operation of the bucket through the dig cycle.
The rigid box design resists bending and twisting forces, giving you stability and strength on any job.
High-mounted compact travel motors are protected from rock damage. Optional travel motor guards provide an even higher level of protection from damage.
The cast steel structures, integrated into the center track frame, assist in avoiding stress concentration and increase reliability.
The oil cooler is strategically positioned far from the engine radiator for even better cooling potential.
The sturdy cab protects operators from falling objects. The cab’s top guard meets OPG Level II (ISO) standards. The entire cab sits on a package of fluid-filled elastic mounts that absorb vibration for a more comfortable ride.
The 6.4-meter (21 ft.) high, forward-sloping cab provides a clear view of the work site – even when loading trucks.
The air suspension, multiposition seat can be customized to the operator’s needs and adjusted according to operator weight.
The well-insulated, pressurized cab keeps out dust and is air conditioned.
Electric joystick control levers provide precise and almost effortless operation.
The multi-display, color LCD monitor provides machine data, operating status and alerts at a glance. The monitor can be preset to indicate replacement intervals for engine oil, hydraulic oil and filters.
Four optional outside cameras can be mounted around the machine for enhanced visibility and help eliminate blind spots.
Folding stairs with wide steps allow for easy accessibility, servicing and maintenance.
The centralized filter system makes inspection and maintenance quicker and more convenient.
A contamination sensor alerts the operator before it’s too late of accumulated contaminants in the oil that could cause damage.
A walkway around the entire counterweight provides easy access to rear areas for faster, safer inspections and maintenance.
Located at the center of the you one less maintenance task. machine, a wide-open service area gives you access to the engine as well as hydraulic and electrical systems.
The compartment floor slides down to lower a grease drum can for quick replacement.
An ejector automatically expels dust from the air cleaner, giving n Located at the center of the you one less maintenance task.
The auto-lubrication system for the front joint pins and swing circle saves you time.
Remote Machine Management with Global e-Service.: This online machine management system allows you to access each on-site machine from a PC in your office. You can get its operating information and location to increase productivity. Operating data and log are sent to a Hitachi server for processing, and then to customer and dealers. This system is available 24/7/365.
Powerful Engine: A Cummins QSKTA50-CE diesel engine meets U.S. EPA Tier 2 emission regulations.
The computer-aided Engine- Pump Control (E-P Control) system senses load demand and adjusts power to the work being performed
The large bucket is shaped specifically to enhance digging and loading operations. Its sharp tilt angle helps boost operating efficiency by allowing the operator better use of the bucket digging forces, and after digging, keeping more of the material in the bucket while loading the haul truck.
Auto-Level Mechanism: An exclusive Hitachi feature available on front shovel attachments, the one-lever leveling control boosts productivity through efficient operation of the bucket through the dig cycle.
The rigid box design resists bending and twisting forces, giving you stability and strength on any job.
High-mounted compact travel motors are protected from rock damage. Optional travel motor guards provide an even higher level of protection from damage.
The cast steel structures, integrated into the center track frame, assist in avoiding stress concentration and increase reliability.
The oil cooler is strategically positioned far from the engine radiator for even better cooling potential.
The sturdy cab protects operators from falling objects. The cab’s top guard meets OPG Level II (ISO) standards. The entire cab sits on a package of fluid-filled elastic mounts that absorb vibration for a more comfortable ride.
The 6.4-meter (21 ft.) high, forward-sloping cab provides a clear view of the work site – even when loading trucks.
The air suspension, multiposition seat can be customized to the operator’s needs and adjusted according to operator weight.
The well-insulated, pressurized cab keeps out dust and is air conditioned.
Electric joystick control levers provide precise and almost effortless operation.
The multi-display, color LCD monitor provides machine data, operating status and alerts at a glance. The monitor can be preset to indicate replacement intervals for engine oil, hydraulic oil and filters.
Four optional outside cameras can be mounted around the machine for enhanced visibility and help eliminate blind spots.
Folding stairs with wide steps allow for easy accessibility, servicing and maintenance.
The centralized filter system makes inspection and maintenance quicker and more convenient.
A contamination sensor alerts the operator before it’s too late of accumulated contaminants in the oil that could cause damage.
A walkway around the entire counterweight provides easy access to rear areas for faster, safer inspections and maintenance.
Located at the center of the you one less maintenance task. machine, a wide-open service area gives you access to the engine as well as hydraulic and electrical systems.
The compartment floor slides down to lower a grease drum can for quick replacement.
An ejector automatically expels dust from the air cleaner, giving n Located at the center of the you one less maintenance task.
The auto-lubrication system for the front joint pins and swing circle saves you time.
Remote Machine Management with Global e-Service.: This online machine management system allows you to access each on-site machine from a PC in your office. You can get its operating information and location to increase productivity. Operating data and log are sent to a Hitachi server for processing, and then to customer and dealers. This system is available 24/7/365.
Product specification of Tata Hitachi EX 2600-6 Excavator
Model
Cummins QSKTA50-CE
Fuel
Diesel
Type
Water-cooled, 16-cylinder, turbocharged and aftercooled, direct-injection chamber-type diesel engine U.S. EPA Tier 2
Rated Engine Power
1500 HP (1119 KW) @ 1800 rpm
Maximum Torque
6570 Nm @ 1400 rpm
Piston Displacement
50 L
Alternator
140A
Battery
4 x 12V, 4 x 220 Ah
Starting Motor
24V electric motor
No of Top Rollers
3
No of Bottom Rollers
8
Track Shoes (Each Side)
39
Track Guard
NA
Track Shoe Width
1000 mm
Ground Bearing Pressure
185 kPa
Track Tensioning
Grease
Gradeability
58% (30°) Max
Travel Speed-Low
1.6 Km/h
Travel Speed-High
2.3 Km/h
Max Tracking Force
1330 kN
Hydraulic Pump
6 variable-displacement, axial piston pumps for front attachment, travel and swing
Maximum Flow
4 x 375 L/min
Pilot Pump
Gear pump
Implement Circuit
29.4 MPa
Swing Circuit
27.4 MPa
Travel Circuit
29.4 MPa
Pilot Circuit
3.9 MPa
Travel
Each track driven by high-torque, axial piston motors, allowing counter rotation of tracks.
Swing
Two high-torque, axial-piston motors with planetary gear bathed in oil. S
Fuel Tank
5300 L
Engine Coolant
476 L
Engine Oil
205 L
Hydraulic System
3170 L
Hydraulic Tank
1320 L
Operating Weight
258000 - 260000 Kg
Boom Length
8700 mm
Arm Length
3900 mm
Max. Digging Reach
16600 mm
Max. Digging Reach on Ground
16050 mm
Max. Digging Depth
8250 mm
Max. Digging Height
15800 mm
Max. Dumping Height
10100 mm
Max. Vertical Wallcut Depth
4110 mm
Min. Swing Radius
7990 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
760 kN
Arm Digging Force
765 kN
Swing Speed
3.8 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
17.0 m³
Overall Length
NA
Overall Width
8040 mm
Overall Height
7250 mm
Overall Height of Cab
6400 mm
Upper Width
8040 mm
Track Lengh on Ground
6120 mm
Undercarriage Overall Length
7870 mm
Tailswing Radius
6290 mm
Min. Ground Clearance
800 mm
Track Gauge
5000 mm
Width Over Tracks
NA
Track Height
2060 mm
Counterweight Clearence
2160 mm
Track Shoe Width
1000 mm
The exact Tata Hitachi EX 2600-6 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Tata Hitachi EX 2600-6 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Tata Hitachi EX 2600-6 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Tata Hitachi EX 2600-6 excavator is approximately 260000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Tata Hitachi EX 2600-6 excavator is powered by a Cummins QSKTA50-CE engine, delivering 1500 HP (1119 KW) at 1800 rpm.
The Tata Hitachi EX 2600-6 excavator has a maximum digging depth of 8250 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Tata Hitachi EX 2600-6 Excavator is 17.0 cubic meters (m³).
The Tata Hitachi EX 2600-6 Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Tata Hitachi EX 2600-6 excavator at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Tata Hitachi EX 2600-6 excavator has a 5300 litres diesel fuel tank, providing extended operation time without frequent refueling.
