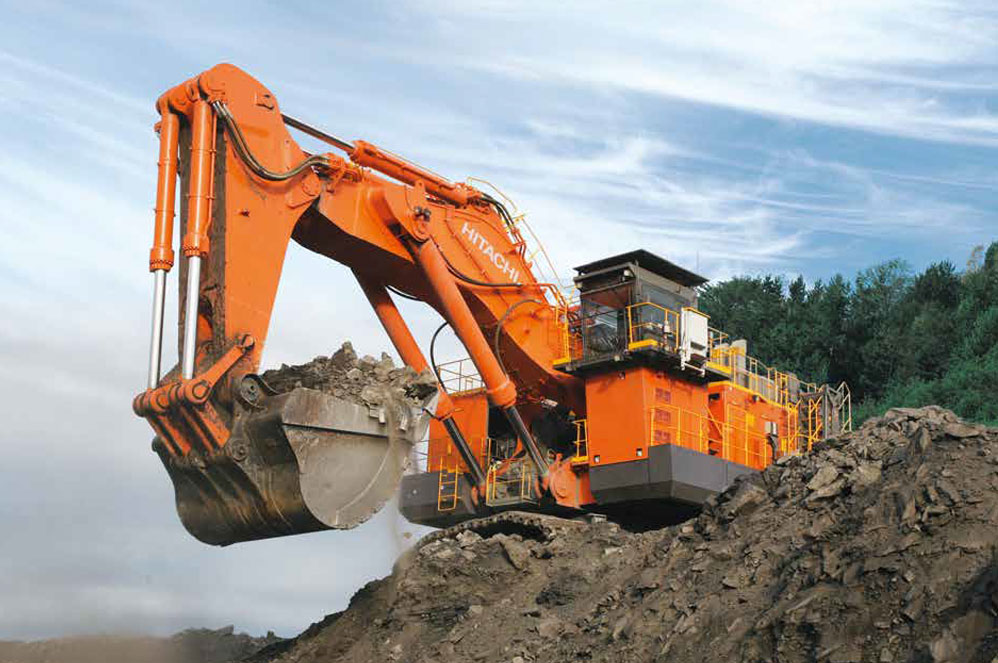

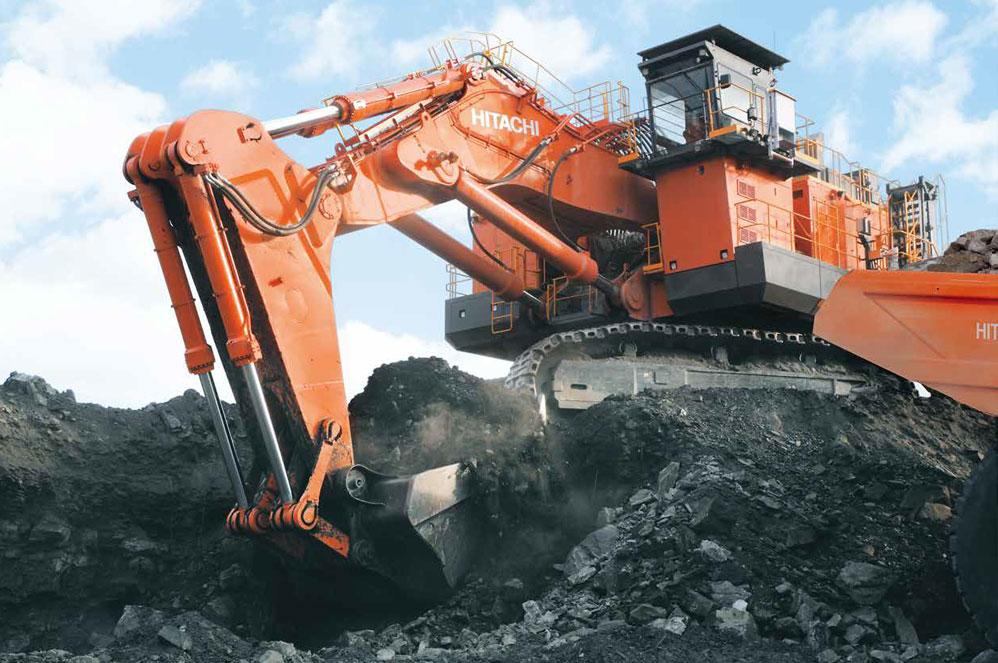

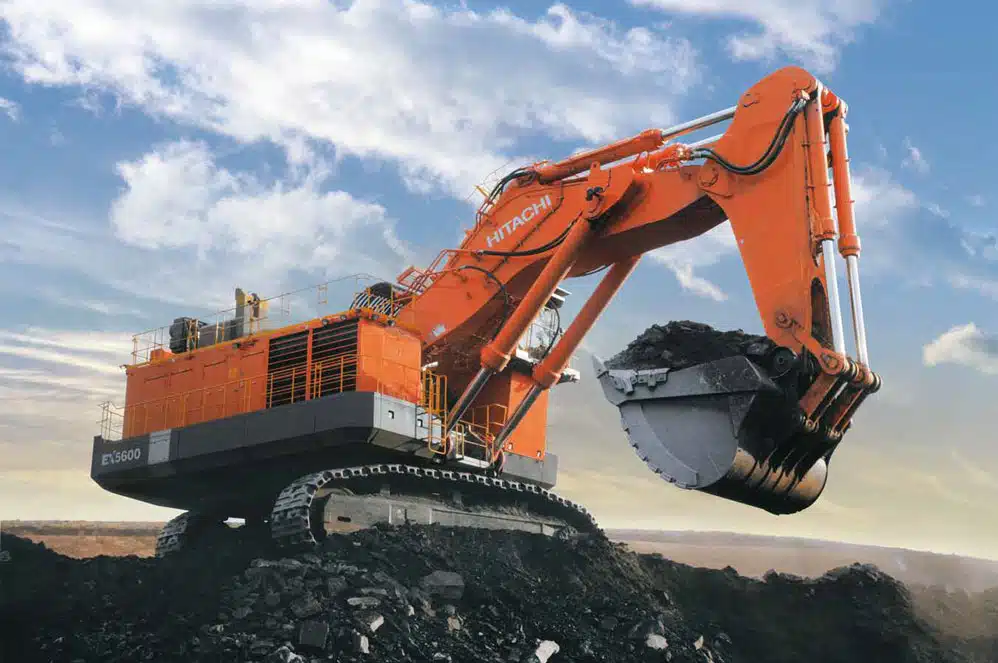

Tata Hitachi EX 5600-7 Excavator

Powerful Engines: Equipped with time-proven Cummins diesel engines delivering a total power of 2 x 1,119 kW (2 x 1,500 HP), these engines are built to tackle the toughest excavation tasks with ease.

Emission Control Engines: Designed to protect the environment, these engines comply with U.S. EPA Tier II emission regulations.

Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

Hitachi's computer-aided Engine-Pump Control (E-P Control) coaxes optimum efficiency from the engines and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating efficiency.

Larger Bucket for Enhanced Work Capacity: The loading shovel bucket offers a capacity of 29.0 m³, while the backhoe bucket provides an impressive capacity of 34.0 m³, ensuring efficient and high-volume material handling.

Maximum Excavating Force: The machine delivers exceptional power, with a loading shovel arm crowding force of 1,520 kN and bucket digging force of 1,590 kN, and a backhoe arm force of up to 1,300 kN and bucket force of 1,480 kN.

The large bucket has been shaped specifically to enhance scooping and loading operations. Its sharp tilt angle helps boost operating efficiency.

Productivity-Boosting Auto-Leveling Mechanism: This is another unique Hitachi function developed exclusively for more efficient leveling operations.

Rigid Box Design: Computer-assisted analysis was used to check that the frame box can withstand heavy-duty excavation work.

High-Mounted Compact Travel Motors and Optional Travel Motor Guard Help to boost durability at rugged work sites.

Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

Center Track Frame: The center track frame of integral cast steel structure can avoid stress concentration and increase reliability.

Rugged Track Links: This design has proven itself on Hitachi's popular Giant EX Series. The roller guides have been added to help extend service life.

Strategically Positioned Oil Coolers: Two oil coolers are used for optimal cooling efficiency. They are positioned far from the engine radiators for even better cooling potential.

Improved Radiators and Oil Coolers: Materials of radiators and oil coolers are changed for higher heat dissipation than the conventional model.

Constant Correct Track Tension: Helps prevent abnormal track tension from causing damage. Travel is automatically stopped if accumulator pressure exceeds a preset level.

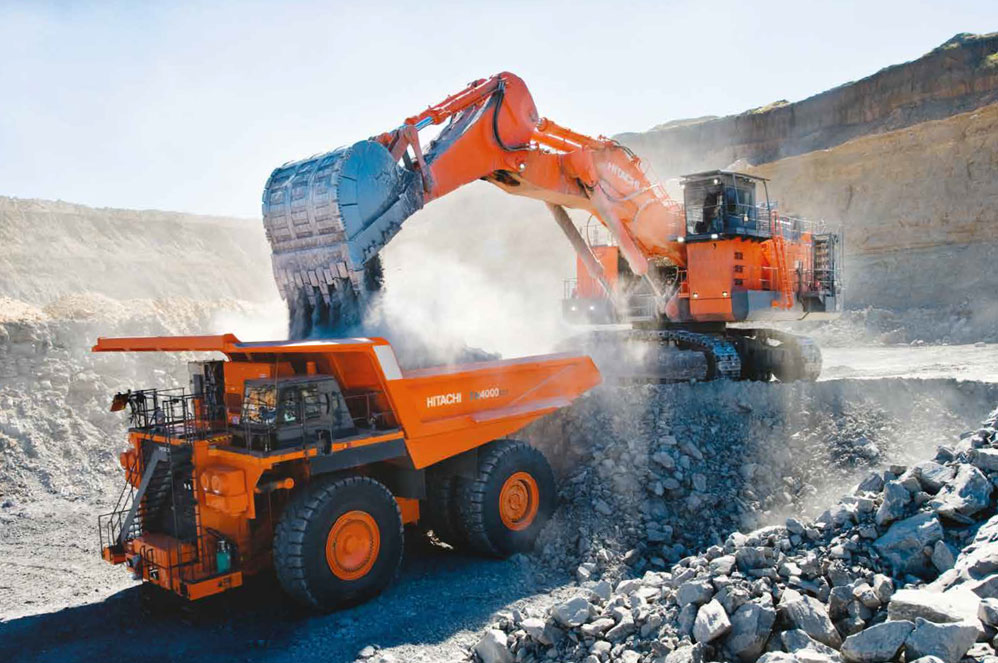

High Visibility 7.64 Meter Cab Height: Gives the operator a clear view, even when a large 220 tonnes class dump truck is being loaded. This high height and forward-sloping cab provides a view that boosts productivity.

Rugged Comfortable Cab: Fluid filled elastic mounts help absorb vibration to provide durability and a comfortable ride. The OPG* top guard level II (ISO) is provided on the cab roof.

Efficient Cab Layout: The ergonomic layout of the cab means the operator will do less stretching and reaching when operating the controls. This adds up to less operator fatigue and greater operating efficiency.

Electric joystick control levers have a feather-touch allowing long periods of effortless operation. Its stroke is much shorter than that of hydraulic control.

Air Suspension Seat with Auto Operator Weight Adjuster: The operator seat cushion can automatically be adjusted according to the operator weight. This is convenient for a machine operated by two or more operators.

Adjustable Sliding Cockpit: The operator can adjust the position of the levers and the seat to custom fit his size and operating style.

Constant-Cab-Comfort Air Conditioner Keeps the cab pressurized to keep out dust while maintaining comfortable temperature.

Intelligent Multi-Display Monitor: The operator can monitor machine conditions and operating status with a 10.5-inch color LCD. The controller provides instant fault diagnosis through all sensors, displaying warnings and countermeasures if failure arises.

Outside Cameras (Optional): The operator can monitor around the machine, using four optional cameras to eliminate blind spots.

Easy Access and Maintenance: Streamlined design ensures quick inspections and maintenance, with accessible components including engines, radiators, hydraulic pumps, control valves, cooling systems, and essential units like the fuel tank, battery, and cab.

Counterweight with walkway: A walkway around the entire counterweight provides easy access to key rear areas. This means faster and safer inspection and maintenance.

Convenient Centralized Filter System: Centralized position means that inspection and maintenance can be performed quickly and easily.

Low Maintenance Dust Ejector: This is one less time-consuming task during routine maintenance.

Folding Stairs with Wide Steps: Folding stairs are designed for easy access to the machine for servicing and maintenance.

The Centralized Lubrication System for Fast Filling System

Contamination sensor: This system detects accumulated contaminants that could cause damage and alerts the operator before trouble occurs.

Wide-Open Service Area: This area is conveniently located at the center of the body and provides access to the engines as well as the hydraulic and electrical systems.

Auto Lubrication System: This system automatically lubricates the front joint pins and swing circle. This eliminates cumbersome daily lubrication

The MIC Mining comprises the DLU (Datalogging unit) on the machine DLU continuously records performance of the engine and the hydraulic system. The record can be download by PC and PDA*.
