Liebherr R 9100 G6 Excavator

Name: Liebherr R 9100 G6 Excavator
Brand: Liebherr
Rating: 4.6 (76 reviews)

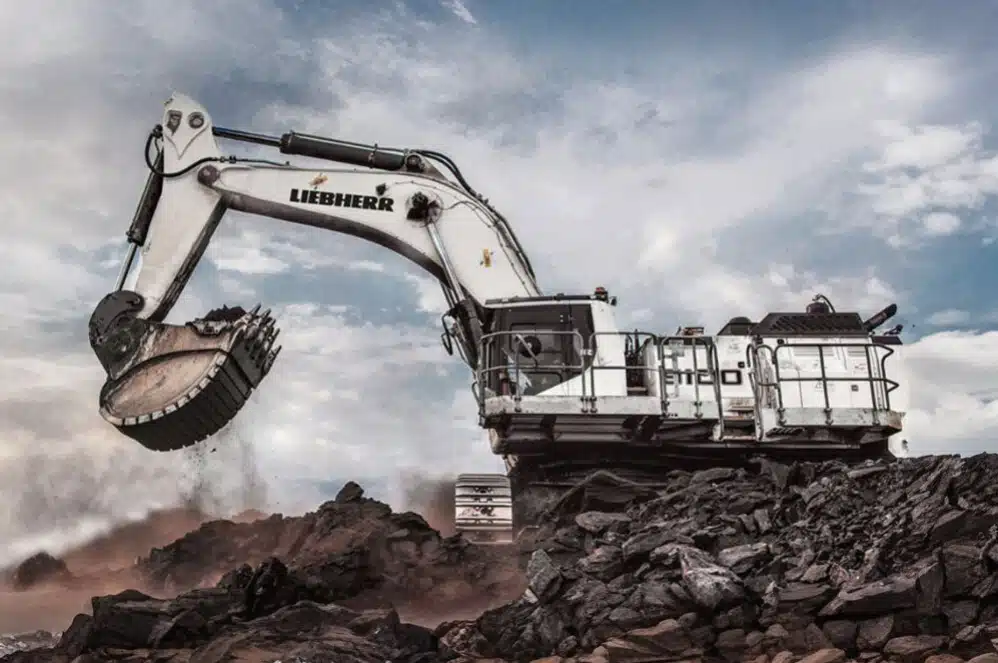

desi-machines-liebherr-excavators-r-9100-g6-featured

desi-machines-liebherr-excavators-r-9100-g6-1

desi-machines-liebherr-excavators-r-9100-g6-1-1

desi-machines-liebherr-excavators-r-9100-g6-2

desi-machines-liebherr-excavators-r-9100-g6-3

desi-machines-liebherr-excavators-r-9100-g6-4

desi-machines-liebherr-excavators-r-9100-g6-5

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Liebherr
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
122464 Kg
Bucket
7.5 m³
Digging Depth
7150 mm
Engine
Liebherr 757 HP
Warranty
1 Yr. / 2500 hr.
Boom
7600 mm

Quick Overview:

Offering exceptional reliability and power Liebherr R 9100 G6 extra-large excavator works best in the toughest mining environments.

Connect With Us:

Get the best price for the Liebherr R 9100 G6 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Liebherr D9512

Fuel Tank

1478 L

Engine Displacement

24.24 L

Under Carriage

6107 mm

Hydraulic System

3 x 435 L/min

Arm

3200 mm

Max Digging Reach

Fuel Consumption

Overall Width

5856 mm

Overall Length

14560 mm

Bucket Digging Force

560 kN

Tailswing Radius

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features

Performance

Productive, efficient, and reliable for loading 45t to 100t off-highway trucks.
Fast and precise movements for optimized job performance.
Liebherr V12 diesel engine designed for extreme conditions.
Closed-loop swing circuit ensures fast cycle time and flexibility.
Hydraulic control system for precise combined machine motions.
High digging and lifting capabilities with power-oriented energy management.

Quality

Maximized component lifetime through automatic single-line lubrication.
Liebherr components integrated for robustness and reliability.
Structure and undercarriage built specifically for extreme mining conditions.
Advanced welding techniques reinforce machine structure.
Quality control across production stages to ensure optimal performance.
Arctic package option for enhanced performance in extreme temperatures.

Service

Troubleshoot advisor platform with easy-to-use interface for efficient problem-solving.
MyLiebherr customer portal for 24/7 online parts access and ordering.
Remanufacturing program offering OEM quality with reduced costs.
International service network providing fast availability of exchange components.
Genuine parts for optimal machine performance and reliability.
Complete training programs to ensure productive and safe mining operations.

Safety

Ergonomic service access with wide catwalks for easy maintenance.
Automatic fire suppression system to protect the machine.
E-stops strategically placed for safety during maintenance.
Working environment control with rear and side camera systems.
User-friendly maintenance features like wide walkways and hydraulic-driven access stair.
Commitment to employee safety with protected access to components.

Sustainability

Eco-Mode selector for improved fuel efficiency and reduced engine load.
Designed for minimal environmental impact in harsh working conditions.
Independent cooling systems to enhance hydraulic component life.
Reduced fuel consumption through energy-recovery systems.
Low emissions with compliance to US EPA Tier 4f and EU Stage V.
Commitment to reducing overall carbon footprint while maintaining productivity.

Built for Maximum Profitability

Advanced hydraulic system to maximize energy efficiency.
Closed-loop swing circuit to recover kinematic energy and reduce fuel consumption.
Optimized pipe and hose layout for efficient hydraulic power transmission.
Independent cooling system to extend hydraulic component life.
Designed for extreme mining conditions, ensuring high operational availability.
Robust undercarriage with efficient ground bearing pressure management.

Performance

Productive, efficient, and reliable for loading 45t to 100t off-highway trucks.
Fast and precise movements for optimized job performance.
Liebherr V12 diesel engine designed for extreme conditions.
Closed-loop swing circuit ensures fast cycle time and flexibility.
Hydraulic control system for precise combined machine motions.
High digging and lifting capabilities with power-oriented energy management.

Quality

Maximized component lifetime through automatic single-line lubrication.
Liebherr components integrated for robustness and reliability.
Structure and undercarriage built specifically for extreme mining conditions.
Advanced welding techniques reinforce machine structure.
Quality control across production stages to ensure optimal performance.
Arctic package option for enhanced performance in extreme temperatures.

Service

Troubleshoot advisor platform with easy-to-use interface for efficient problem-solving.
MyLiebherr customer portal for 24/7 online parts access and ordering.
Remanufacturing program offering OEM quality with reduced costs.
International service network providing fast availability of exchange components.
Genuine parts for optimal machine performance and reliability.
Complete training programs to ensure productive and safe mining operations.

Safety

Ergonomic service access with wide catwalks for easy maintenance.
Automatic fire suppression system to protect the machine.
E-stops strategically placed for safety during maintenance.
Working environment control with rear and side camera systems.
User-friendly maintenance features like wide walkways and hydraulic-driven access stair.
Commitment to employee safety with protected access to components.

Sustainability

Eco-Mode selector for improved fuel efficiency and reduced engine load.
Designed for minimal environmental impact in harsh working conditions.
Independent cooling systems to enhance hydraulic component life.
Reduced fuel consumption through energy-recovery systems.
Low emissions with compliance to US EPA Tier 4f and EU Stage V.
Commitment to reducing overall carbon footprint while maintaining productivity.

Built for Maximum Profitability

Advanced hydraulic system to maximize energy efficiency.
Closed-loop swing circuit to recover kinematic energy and reduce fuel consumption.
Optimized pipe and hose layout for efficient hydraulic power transmission.
Independent cooling system to extend hydraulic component life.
Designed for extreme mining conditions, ensuring high operational availability.
Robust undercarriage with efficient ground bearing pressure management.

Specifications

Product specification of Liebherr R 9100 G6 Excavator

ENGINE

Model

Liebherr D9512
Fuel

Diesel
Type

V12 cylinder engine, 4-stroke diesel common-rail direct injection turbo-charged, water-cooled, hydrostatic fan drive
Rated Engine Power

757 HP (565 kW) @1800 rpm
Maximum Torque

NA
Piston Displacement

24.24 L
Alternator

24 V / 140 A
Battery

4 x 75 Ah / 12 V
Starting Motor

24 V - 8.4 kW

UNDERCARRIAGE

No of Top Rollers

2
No of Bottom Rollers

8
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

600 mm
Ground Bearing Pressure

174.5 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

NA
Travel Speed-High

3.5 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

3 Liebherr variable flow axial piston pumps
Maximum Flow

3 x 435 L/min
Pilot Pump

NA
Implement Circuit

35.0 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Liebherr swashplate motors
Swing

2 Liebherr axial piston motors

SERVICE CAPACITIES

Fuel Tank

1478 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

1500 L
Hydraulic Tank

1000 L

MACHINE WEIGHTS

Operating Weight

122464 - 113480 Kg

WORKING RANGE

Boom Length

7600 mm
Arm Length

3200 mm
Max. Digging Reach

NA
Max. Digging Reach on Ground

13000 mm
Max. Digging Depth

7150 mm
Max. Digging Height

12700 mm
Max. Dumping Height

8650 mm
Max. Vertical Wallcut Depth

NA
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

560 kN
Arm Digging Force

415 kN
Swing Speed

6.0 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

7.5 m m³

STATIC DIMENSIONS

Overall Length

14560 mm
Overall Width

5856 mm
Overall Height

6035 mm
Overall Height of Cab

4143 mm
Upper Width

4059 mm
Track Lengh on Ground

4810 mm
Undercarriage Overall Length

6107 mm
Tailswing Radius

NA
Min. Ground Clearance

812 mm
Track Gauge

3900 mm
Width Over Tracks

4995 mm
Track Height

1663 mm
Counterweight Clearence

1803 mm
Track Shoe Width

500 mm / 600 mm / 750 mm

Frequently Asked Question

01. What is the Liebherr R 9100 G6 Excavator price in India?

Ans.

The exact Liebherr R 9100 G6 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Liebherr R 9100 G6 excavator?

Ans.

You can buy the Liebherr R 9100 G6 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Liebherr R 9100 G6 Excavator come with financing and insurance options?

Ans.

Yes, the Liebherr R 9100 G6 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Liebherr R 9100 G6 excavator?

Ans.

The operating weight of the Liebherr R 9100 G6 excavator is approximately 122464 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Liebherr R 9100 G6 excavator?

Ans.

The Liebherr R 9100 G6 excavator is powered by a Liebherr D9512 engine, delivering 757 HP (565 kW) at1800 rpm.

06. What is the maximum digging depth of the Liebherr R 9100 G6 excavator?

Ans.

The Liebherr R 9100 G6 excavator has a maximum digging depth of 7150 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Liebherr R 9100 G6 Excavator?

Ans.

The bucket capacity of the Liebherr R 9100 G6 Excavator is 7.5 m cubic meters (m³).

08. What is the warranty period for the Liebherr R 9100 G6 excavator?

Ans.

The Liebherr R 9100 G6 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Liebherr R 9100 G6 excavator?

Ans.

You can find genuine spare parts for the Liebherr R 9100 G6 excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Liebherr R 9100 G6 Excavator?

Ans.

The Liebherr R 9100 G6 excavator has a 1478 litres diesel fuel tank, providing extended operation time without frequent refueling.

Popular Comparisons with Liebherr R 9100 G6

Liebherr

Liebherr R 9100 G6

4.5 rating

Price Available Soon

122464 Kg

Liebherr

Liebherr R 9150 G7

4.5 rating

Price Available Soon

129700 Kg

Compare

Liebherr

Liebherr R 9100 G6

4.5 rating

Price Available Soon

122464 Kg

Tata Hitachi

Tata Hitachi EX 1200V

4.5 rating

Price Available Soon

109000 Kg

Compare

Liebherr

Liebherr R 9100 G6

4.5 rating

Price Available Soon

122464 Kg

desi-machines-komatsu-mining-excavator-pc1250-8r-featured

L&T Komatsu

Komatsu PC1250-8R

4.5 rating

Price Available Soon

106500 Kg

Compare

Are you interested in buying Liebherr R 9100 G6 Excavator

Note: Uncheck if you're not interested in finance or insurance deals.

Products

Related Excavator

desi-machines-liebherr-excavators-r-9800-g6-featured

Liebherr R 9800 G6

Weight

800000 Kg
Bucket

47.5 m³
Dig. Depth

9000 mm

Price Available Soon^*

Extra-Large (>50 Ton)
