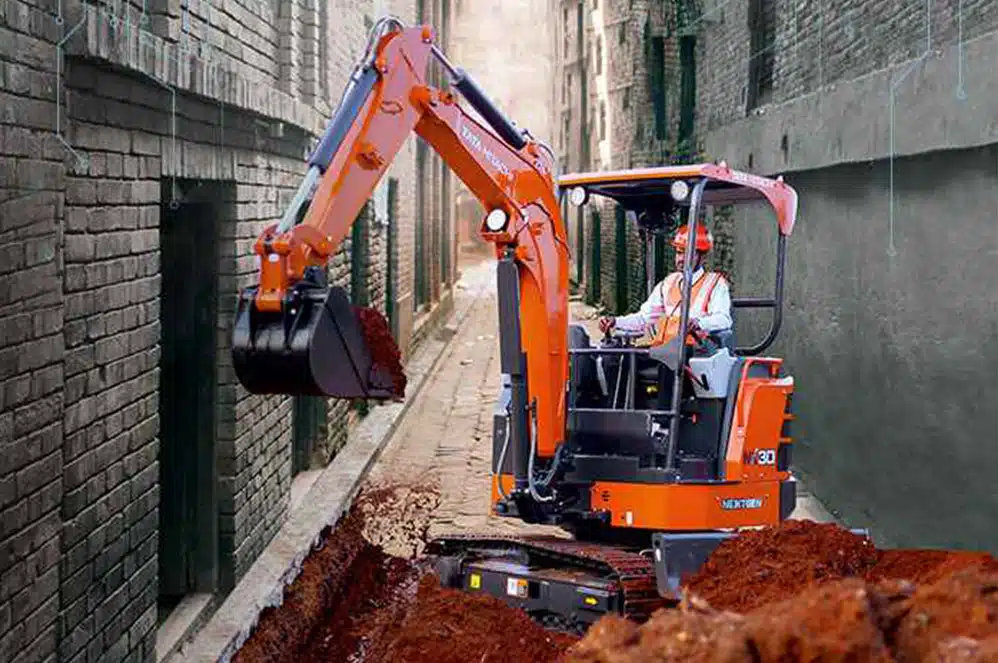

    Tata Hitachi NX30 Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Tata Hitachi

    • Type

      Mini (0-6 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      ₹ 27 - 28 Lakhs

    • Weight

      2900 Kg

    • Bucket

      0.04-0.07 m³

    • Digging Depth

      2625 mm

    • Engine

      Yanmar 27.4 HP

    • Warranty

      1 Yr. / 2000 hr.

    • Boom

      2100 mm

    Quick Overview:

    Engineered with fuel efficiency the Tata Hitachi NX30 mini excavator is perfect for small-scale earthmoving and agricultural applications.

    Connect With Us:

    Get the best price for the Tata Hitachi NX30 Mini Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Yanmar 3TNV88-BSTAH

    Fuel Tank

    32 L

    Engine Displacement

    1.642 L

    Under Carriage

    1926 mm

    Hydraulic System

    68 L/min

    Arm

    1200 mm

    Max Digging Reach

    4555 mm

    Fuel Consumption

    3.4 L/hour

    Overall Width

    1500 mm

    Overall Length

    4150 mm

    Bucket Digging Force

    21.9 kN

    Tailswing Radius

    980 mm

    Track Shoe Width

    280 mm

    AC Cabin

    Not Available

    GPS

    Not Available

    Features

    Step Ahead with Next Gen Performance

    Step Ahead with Next Gen Performance

    • NX30 - combination of power, fuel efficiency and productivity. NX30 is powered by a next generation Yanmar engine that churns out a class leading 27.4HP, This power is channelised through our new Next Gen - intelligent load adapted hydraulic flow control system to deliver next gen performance.

    • The Next Gen Hydraulics is powered by the all new Quadra Flow Hydraulic System, a unique (patent registered) 4 pump system that delivers variable displacements to match the load and speed requirements of various applications to deliver peak performance at the least possible fuel consumption. The system is very simple and easy to maintain and delivers: 100% pilot controlled operations, Independent speed operations, Faster attachment speeds, Smoother combined operations & Lower Fuel Consumption

    Step Ahead with Next Gen Dependability

    Step Ahead with Next Gen Dependability

    • Built to last

    • Quality components tested and validated to Hitachi's global standards makes this machine highly reliable delivering maximum uptime for customers.

    • A tough complete sheet metal body provides excellent wear resistance & shields all vital components. It also gives the machine good stability & durability.

    • This machine has heavy duty undercarriage comprising of HD track frame, HD track chain with bolted shoes, durable rollers. All these give the machine a sturdy base to perform in demanding applications.

    Step Ahead with Next Gen Versatility

    Step Ahead with Next Gen Versatility

    • Designed and developed to work in harmony with a range of attachments which makes this machine a highly versatile one.

    • The machine comes in tailor made options and is easily customizable with various attachments

    • Option of factory fitted rock breaker piping kit

    Step Ahead with Next Gen Comfort

    Step Ahead with Next Gen Comfort

    • Canopy with insulated roof liner for minimizing heat in work station

    • LED lamps

    • Fully Pilot controlled operations

    • 12V electric socket

    • Weight adjustable suspension seat with 8 options

    • Intuitive fingertip controls

    • Smooth pilot levers

    • Wrist rest, seat belt, fan, USB charging port

    Step Ahead with Next Gen Support & Maintenance

    Step Ahead with Next Gen Support & Maintenance

    • Achieve higher performance and peace of mind through extended warranty and with Tata Hitachi Genuine Spare Parts, strategically located warehouses and Field Diagnostic Vehicles for quicker after-sales support.

    • Extensive dealership network and trained engineers to support and carry out on the maintenance activities.

    Step Ahead with Higher Savings

    Step Ahead with Higher Savings

    • The Tata Hitachi NX30 ensures minimal fuel consumption with its NGOS technology, fuel-saving pump, and dual work modes.

    • The Tata Hitachi NX30 ensures the lowest maintenance cost with features like a 4000-hour long-drain hydraulic oil, an air pre-cleaner for extended engine life, a fuel pre-filter for efficient filtration, and an HP return line filter for prolonged hydraulic aggregate life.

    • The Tata Hitachi NX 30 is easily transportable on a small carrier or pickup vehicle, with a compact transport length of 4150mm and width of 1500mm.

    Step Ahead with Next Gen Performance

    • NX30 - combination of power, fuel efficiency and productivity. NX30 is powered by a next generation Yanmar engine that churns out a class leading 27.4HP, This power is channelised through our new Next Gen - intelligent load adapted hydraulic flow control system to deliver next gen performance.

    • The Next Gen Hydraulics is powered by the all new Quadra Flow Hydraulic System, a unique (patent registered) 4 pump system that delivers variable displacements to match the load and speed requirements of various applications to deliver peak performance at the least possible fuel consumption. The system is very simple and easy to maintain and delivers: 100% pilot controlled operations, Independent speed operations, Faster attachment speeds, Smoother combined operations & Lower Fuel Consumption

    Step Ahead with Next Gen Dependability

    • Built to last

    • Quality components tested and validated to Hitachi's global standards makes this machine highly reliable delivering maximum uptime for customers.

    • A tough complete sheet metal body provides excellent wear resistance & shields all vital components. It also gives the machine good stability & durability.

    • This machine has heavy duty undercarriage comprising of HD track frame, HD track chain with bolted shoes, durable rollers. All these give the machine a sturdy base to perform in demanding applications.

    Step Ahead with Next Gen Versatility

    • Designed and developed to work in harmony with a range of attachments which makes this machine a highly versatile one.

    • The machine comes in tailor made options and is easily customizable with various attachments

    • Option of factory fitted rock breaker piping kit

    Step Ahead with Next Gen Comfort

    • Canopy with insulated roof liner for minimizing heat in work station

    • LED lamps

    • Fully Pilot controlled operations

    • 12V electric socket

    • Weight adjustable suspension seat with 8 options

    • Intuitive fingertip controls

    • Smooth pilot levers

    • Wrist rest, seat belt, fan, USB charging port

    Step Ahead with Next Gen Support & Maintenance

    • Achieve higher performance and peace of mind through extended warranty and with Tata Hitachi Genuine Spare Parts, strategically located warehouses and Field Diagnostic Vehicles for quicker after-sales support.

    • Extensive dealership network and trained engineers to support and carry out on the maintenance activities.

    Step Ahead with Higher Savings

    • The Tata Hitachi NX30 ensures minimal fuel consumption with its NGOS technology, fuel-saving pump, and dual work modes.

    • The Tata Hitachi NX30 ensures the lowest maintenance cost with features like a 4000-hour long-drain hydraulic oil, an air pre-cleaner for extended engine life, a fuel pre-filter for efficient filtration, and an HP return line filter for prolonged hydraulic aggregate life.

    • The Tata Hitachi NX 30 is easily transportable on a small carrier or pickup vehicle, with a compact transport length of 4150mm and width of 1500mm.

    Specifications

    Product specification of Tata Hitachi NX30 Excavator

    ENGINE

    • Model

      Yanmar 3TNV88-BSTAH

    • Fuel

      Diesel

    • Type

      Water cooled, 3-cylinder diesel engine, direct injection

    • Rated Engine Power

      27.4 HP (20.4 kW) @ 2200 rpm

    • Maximum Torque

      106 Nm @ 1200 rpm

    • Piston Displacement

      1.642 L

    • Alternator

      NA

    • Battery

      12V

    • Starting Motor

      NA

    UNDERCARRIAGE

    • No of Top Rollers

      1

    • No of Bottom Rollers

      3

    • Track Shoes (Each Side)

      40

    • Track Guard

      NA

    • Track Shoe Width

      280 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Gradeability

      58% (30°)

    • Travel Speed-Low

      1.6 Km/h

    • Travel Speed-High

      3.2 kmph

    • Max Tracking Force

      29.3 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      2 Variable displacement axial piston pumps 1 gear pump

    • Maximum Flow

      68 L/min

    • Pilot Pump

      3

    • Implement Circuit

      17.0 MPa

    • Swing Circuit

      14.2 MPa

    • Travel Circuit

      17.0 MPa

    • Pilot Circuit

      2.4 MPa

    HYDRAULIC MOTORS

    • Travel

      NA

    • Swing

      NA

    SERVICE CAPACITIES

    • Fuel Tank

      32 L

    • Engine Coolant

      3.5 L

    • Engine Oil

      6.7 L

    • Hydraulic System

      67 L

    • Hydraulic Tank

      42 L

    MACHINE WEIGHTS

    • Operating Weight

      2900 Kg

    WORKING RANGE

    • Boom Length

      2100 mm

    • Arm Length

      1200 mm

    • Max. Digging Reach

      4555 mm

    • Max. Digging Reach on Ground

      4428 mm

    • Max. Digging Depth

      2625 mm

    • Max. Digging Height

      3922 mm

    • Max. Dumping Height

      2666 mm

    • Max. Vertical Wallcut Depth

      1862 mm

    • Min. Swing Radius

      2107 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      21.9 kN

    • Arm Digging Force

      14.3 kN

    • Swing Speed

      10.5 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      341 mm

    • Vertical Lift from Ground level

      385 mm

    • Approach Angle

      NA

    • Width

      1450 mm

    • Height

      333 mm

    BUCKET

    • Bucket Capacity

      0.04-0.07 m³

    STATIC DIMENSIONS

    • Overall Length

      4150 mm

    • Overall Width

      1500 mm

    • Overall Height

      2527 mm

    • Overall Height of Cab

      2527 mm

    • Upper Width

      1457 mm

    • Track Lengh on Ground

      1490 mm

    • Undercarriage Overall Length

      1926 mm

    • Tailswing Radius

      980 mm

    • Min. Ground Clearance

      268 mm

    • Track Gauge

      1220 mm

    • Width Over Tracks

      1500 mm

    • Track Height

      495 mm

    • Counterweight Clearence

      574 mm

    • Track Shoe Width

      280 mm

    Frequently Asked Question

    01. What is the Tata Hitachi NX30 Excavator price in India?

    Ans.

    The exact Tata Hitachi NX30 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

    02. Where can I buy a Tata Hitachi NX30 excavator?

    Ans.

    You can buy the Tata Hitachi NX30 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Tata Hitachi NX30 Excavator come with financing and insurance options?

    Ans.

    Yes, the Tata Hitachi NX30 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Tata Hitachi NX30 excavator?

    Ans.

    The operating weight of the Tata Hitachi NX30 excavator is approximately 2900 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Tata Hitachi NX30 excavator?

    Ans.

    The Tata Hitachi NX30 excavator is powered by a Yanmar 3TNV88-BSTAH engine, delivering 27.4 HP (20.4 kW) at 2200 rpm.

    06. What is the maximum digging depth of the Tata Hitachi NX30 excavator?

    Ans.

    The Tata Hitachi NX30 excavator has a maximum digging depth of 2625 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Tata Hitachi NX30 Excavator?

    Ans.

    The bucket capacity of the Tata Hitachi NX30 Excavator ranges from 0.04 to 0.07 cubic meters (m³).

    08. What is the warranty period for the Tata Hitachi NX30 excavator?

    Ans.

    The Tata Hitachi NX30 Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Tata Hitachi NX30 excavator?

    Ans.

    You can find genuine spare parts for the Tata Hitachi NX30 excavator at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Tata Hitachi NX30 Excavator?

    Ans.

    The Tata Hitachi NX30 excavator has a 32 litres diesel fuel tank, providing extended operation time without frequent refueling.

    11. What is the mileage of the Tata Hitachi NX30 excavator?

    Ans.

    The Tata Hitachi NX30 excavator has an average fuel consumption of 3.4 litres per hour, depending on factors such as load, terrain, and operating conditions
