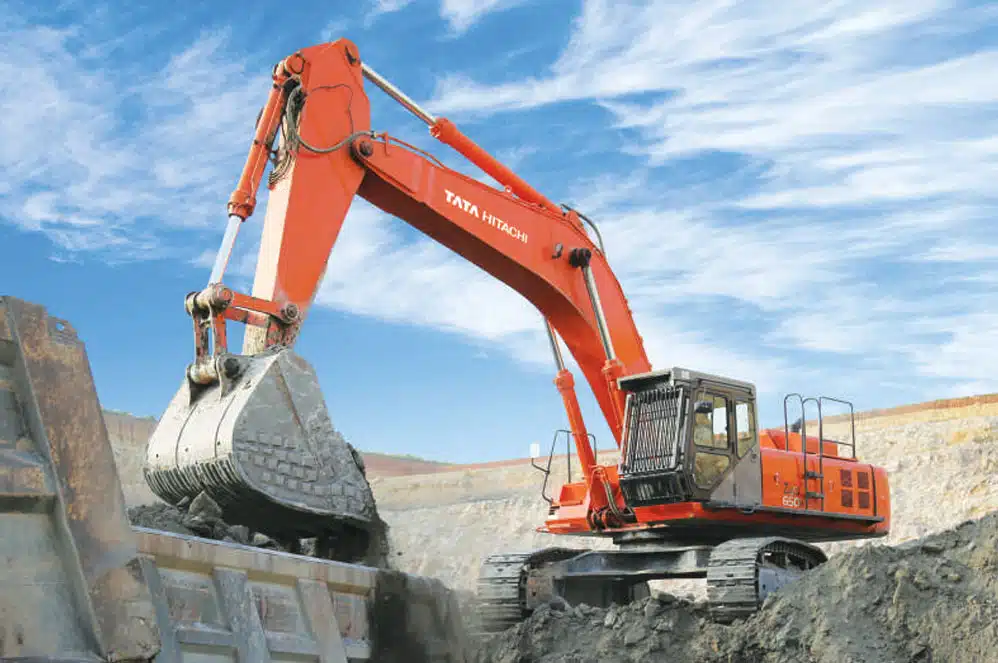

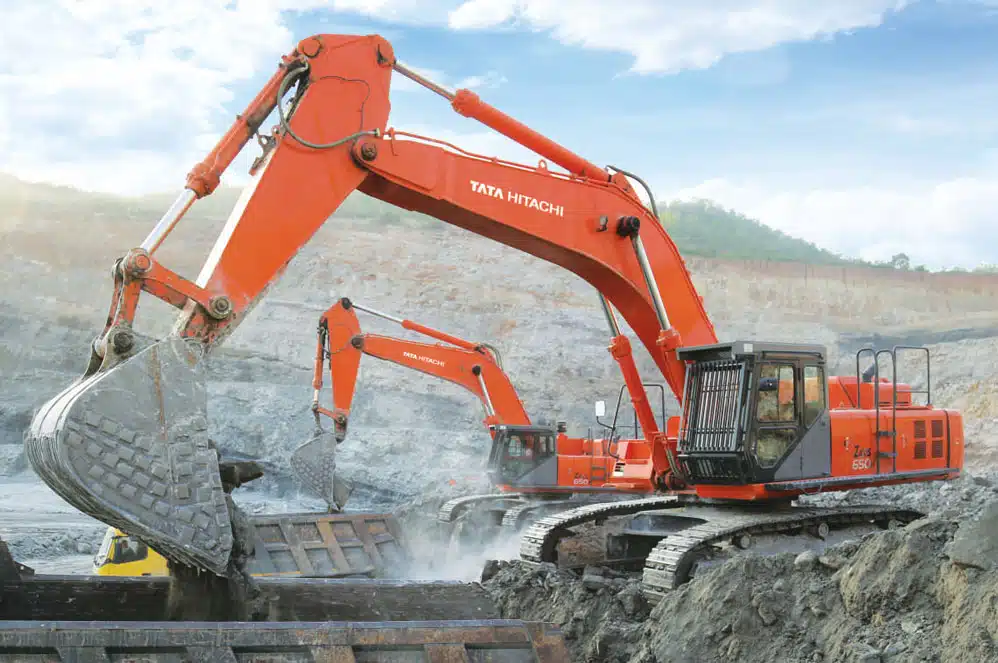

Tata Hitachi ZAXIS 650H Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Tata Hitachi
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
58340 Kg
Bucket
3.3 - 3.8 m³
Digging Depth
7080 mm
Engine
Isuzu 395 HP
Warranty
1 Yr. / 2000 hr.
Boom
6600 mm

Quick Overview:

Delivering power-intensive tasks, best suited for mining and large engineering projects is Tata Hitachi ZAXIS 650H extra-large excavator.

Connect With Us:

Get the best price for the Tata Hitachi ZAXIS 650H Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

ISUZU BB-6WG1X

Fuel Tank

740 L

Engine Displacement

15.68 L

Under Carriage

5330 mm

Hydraulic System

2 x 434 L/min

Arm

2900 mm

Max Digging Reach

11540 mm

Fuel Consumption

40 L/hour

Overall Width

3990 mm

Overall Length

13030 mm

Bucket Digging Force

308 kN

Tailswing Radius

3800 mm

Track Shoe Width

600 mm

AC Cabin

Standard

GPS

Standard

Features

Futuristic Performance

High productivity capabilities ensure maximum output in every operation.
Lower operational costs are achieved through enhanced engine efficiency and a stronger structural component design.
Reduced maintenance costs, with optimized designs that also minimize maintenance time and expenses, making it highly cost-effective in the long run.
Rugged, pressurized cab equipped with an integrated head guard for increased safety and durability in challenging working conditions.

Enhanced productivity and Faster Completion

The large displacement engine generates immense power, enabling the machine to tackle high-productivity tasks with ease.
Enhanced excavating power allows for efficient performance even on the toughest and most demanding job sites.
A larger bucket capacity contributes to a significant boost in productivity by enabling the handling of more material per load.
Reliable travel power and impressive speed ensure consistent performance, allowing for quicker job completion in various terrains.

Minimum Effort, Maximum Efficiency

Spacious, large-sized FOPS cab designed for maximum operator comfort, providing an optimal working environment.
Auto-controlled air conditioner adjusts to maintain a comfortable climate inside the cab for operators working long hours.
Boom mode selector optimizes operation by reducing shaking and jerking during scraping tasks, resulting in smoother handling and greater efficiency.

Functional and Durable

Robust, durable bucket joint designed to withstand the harshest working conditions, ensuring longevity and reliability.
Reinforced side steps provide added safety and support for operators entering or exiting the machine.
The rugged undercarriage is engineered to handle tough jobs, maintaining stability and durability even on uneven or challenging terrains.
Travel device is built to resist damage, ensuring continuous performance even under demanding usage conditions.

Smart Saving

Maintenance is made easy with user-friendly doors, providing quick and efficient access to essential components for routine checks and repairs.

Environmentally Friendly Design

Plastic parts are clearly labeled to facilitate efficient recycling, contributing to eco-friendly practices in disposal.
Anti-slip reinforced arm dual-type guard enhances safety while also supporting sustainable design, paired with a larger bucket for greater productivity.

Futuristic Performance

High productivity capabilities ensure maximum output in every operation.
Lower operational costs are achieved through enhanced engine efficiency and a stronger structural component design.
Reduced maintenance costs, with optimized designs that also minimize maintenance time and expenses, making it highly cost-effective in the long run.
Rugged, pressurized cab equipped with an integrated head guard for increased safety and durability in challenging working conditions.

Enhanced productivity and Faster Completion

The large displacement engine generates immense power, enabling the machine to tackle high-productivity tasks with ease.
Enhanced excavating power allows for efficient performance even on the toughest and most demanding job sites.
A larger bucket capacity contributes to a significant boost in productivity by enabling the handling of more material per load.
Reliable travel power and impressive speed ensure consistent performance, allowing for quicker job completion in various terrains.

Minimum Effort, Maximum Efficiency

Spacious, large-sized FOPS cab designed for maximum operator comfort, providing an optimal working environment.
Auto-controlled air conditioner adjusts to maintain a comfortable climate inside the cab for operators working long hours.
Boom mode selector optimizes operation by reducing shaking and jerking during scraping tasks, resulting in smoother handling and greater efficiency.

Functional and Durable

Robust, durable bucket joint designed to withstand the harshest working conditions, ensuring longevity and reliability.
Reinforced side steps provide added safety and support for operators entering or exiting the machine.
The rugged undercarriage is engineered to handle tough jobs, maintaining stability and durability even on uneven or challenging terrains.
Travel device is built to resist damage, ensuring continuous performance even under demanding usage conditions.

Smart Saving

Maintenance is made easy with user-friendly doors, providing quick and efficient access to essential components for routine checks and repairs.

Environmentally Friendly Design

Plastic parts are clearly labeled to facilitate efficient recycling, contributing to eco-friendly practices in disposal.
Anti-slip reinforced arm dual-type guard enhances safety while also supporting sustainable design, paired with a larger bucket for greater productivity.

Specifications

Product specification of Tata Hitachi ZAXIS 650H Excavator

ENGINE

Model

ISUZU BB-6WG1X
Fuel

Diesel
Type

4 Cycle Water Cooled, Direct Injection, Turbocharged, 6 Cylinders
Rated Engine Power

395 HP (295 kW) @ 1800 rpm
Maximum Torque

1540 Nm @ 1500 rpm
Piston Displacement

15.68 L
Alternator

50A
Battery

2 x 12 V, 170 Ah
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

3
No of Bottom Rollers

8
Track Shoes (Each Side)

48
Track Guard

2
Track Shoe Width

600 mm
Ground Bearing Pressure

102 kPa
Track Tensioning

Grease
Gradeability

70% (35°) Continuous
Travel Speed-Low

3.5 Km/h
Travel Speed-High

5.0 Km/h
Max Tracking Force

415 kN

HYDRAULIC SYSTEM

Hydraulic Pump

2 Variable Displacement Axial Piston Pumps
Maximum Flow

2 x 434 L/min
Pilot Pump

1 Gear Pump
Implement Circuit

30.9 MPa
Swing Circuit

29.4 MPa
Travel Circuit

34.3 MPa
Pilot Circuit

3.9 MPa

HYDRAULIC MOTORS

Travel

2 Axial Piston Motors with Parking Brake
Swing

2 Axial Piston Motors

SERVICE CAPACITIES

Fuel Tank

740 L
Engine Coolant

98 L
Engine Oil

55 L
Hydraulic System

618 L
Hydraulic Tank

310 L

MACHINE WEIGHTS

Operating Weight

58340 Kg

WORKING RANGE

Boom Length

6600 mm
Arm Length

2900 mm
Max. Digging Reach

11540 mm
Max. Digging Reach on Ground

11350 mm
Max. Digging Depth

7080 mm
Max. Digging Height

10770 mm
Max. Dumping Height

6980 mm
Max. Vertical Wallcut Depth

5140 mm
Min. Swing Radius

4930 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

308 kN
Arm Digging Force

258 kN
Swing Speed

7.0 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

3.3 - 3.8 m³

STATIC DIMENSIONS

Overall Length

13030 mm
Overall Width

3990 mm
Overall Height

4270 mm
Overall Height of Cab

3500 mm
Upper Width

3310 mm
Track Lengh on Ground

4250 mm
Undercarriage Overall Length

5330 mm
Tailswing Radius

3800 mm
Min. Ground Clearance

810 mm
Track Gauge

3200 mm
Width Over Tracks

NA
Track Height

NA
Counterweight Clearence

1450 mm
Track Shoe Width

600 mm

Frequently Asked Question

01. What is the Tata Hitachi ZAXIS 650H Excavator price in India?

Ans.

The exact Tata Hitachi ZAXIS 650H Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a Tata Hitachi ZAXIS 650H excavator?

Ans.

You can buy the Tata Hitachi ZAXIS 650H excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Tata Hitachi ZAXIS 650H Excavator come with financing and insurance options?

Ans.

Yes, the Tata Hitachi ZAXIS 650H comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Tata Hitachi ZAXIS 650H excavator?

Ans.

The operating weight of the Tata Hitachi ZAXIS 650H excavator is approximately 58340 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Tata Hitachi ZAXIS 650H excavator?

Ans.

The Tata Hitachi ZAXIS 650H excavator is powered by a ISUZU BB-6WG1X engine, delivering 395 HP (295 kW) at 1800 rpm.

06. What is the maximum digging depth of the Tata Hitachi ZAXIS 650H excavator?

Ans.

The Tata Hitachi ZAXIS 650H excavator has a maximum digging depth of 7080 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Tata Hitachi ZAXIS 650H Excavator?

Ans.

The bucket capacity of the Tata Hitachi ZAXIS 650H Excavator ranges from 3.3 to 3.8 cubic meters (m³).

08. What is the warranty period for the Tata Hitachi ZAXIS 650H excavator?

Ans.

The Tata Hitachi ZAXIS 650H Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Tata Hitachi ZAXIS 650H excavator?

Ans.

You can find genuine spare parts for the Tata Hitachi ZAXIS 650H excavator at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Tata Hitachi ZAXIS 650H Excavator?

Ans.

The Tata Hitachi ZAXIS 650H excavator has a 740 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the Tata Hitachi ZAXIS 650H excavator?

Ans.

The Tata Hitachi ZAXIS 650H excavator has an average fuel consumption of 40 litres per hour, depending on factors such as load, terrain, and operating conditions
