Tata Hitachi
Small (6-15 Ton)
Price Available Soon
₹ 52 - 54 Lakhs
13360 Kg
0.45 - 0.7 m³
5150 mm
Isuzu 86 HP
1 Yr. / 2000 hr.
4600 mm

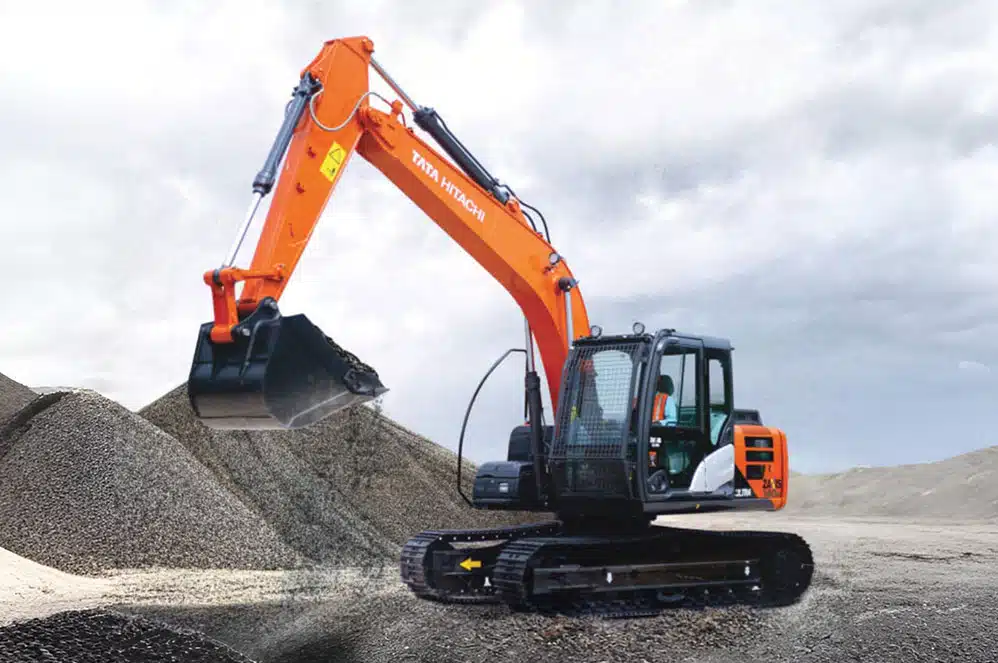

Built for durability and precision Tata Hitachi ZAXIS 140H Ultra small excavator is ideal for construction and compact engineering projects.
Get the best price for the Tata Hitachi ZAXIS 140H Ultra Small Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Isuzu C-4BG1T
250 L
4.329 L
3580 mm
2 x 105 L/min
2100 mm
7900 mm
10 L/hour
2490 mm
7658 mm
104 kN
2190 mm
500 mm
Standard
Standard
Higher Production with Less Fuel
Lower Fuel Consumption in ECO Mode
Rapid Arm Roll-in
Fast Arm Speed During Boom Lowering
Powerful Lifting of Material
Enhanced Power Boost
State-of-the-art R&D and Quality Contro
Reliable and Durable Engine
Rock-Solid, Durable Front Attachment
Strengthened Undercarriage
Proven Upperstructure
HIOS III Hydraulic System
New-age Micro-Processor Based Controls
Consite Telematics Suite
Global e-Service
Easily customizable with attachments, such as, rock breaker, auger, orange peel grab, quick coupler, etc.
Well Ventilated and Spacious Cabin
Auto control type Air Conditioner
Ergonomically Placed Controls
Suspension Seat
AM/FM, Bluetooth Music System with Powerful Speakers
OPG Cabin
Powerful LED lights
Extended Warranty
Wide-Spread Dealer Network
Full Diagnostic Vehicle
Mobile Workshop
Higher Production with Less Fuel
Lower Fuel Consumption in ECO Mode
Rapid Arm Roll-in
Fast Arm Speed During Boom Lowering
Powerful Lifting of Material
Enhanced Power Boost
State-of-the-art R&D and Quality Contro
Reliable and Durable Engine
Rock-Solid, Durable Front Attachment
Strengthened Undercarriage
Proven Upperstructure
HIOS III Hydraulic System
New-age Micro-Processor Based Controls
Consite Telematics Suite
Global e-Service
Easily customizable with attachments, such as, rock breaker, auger, orange peel grab, quick coupler, etc.
Well Ventilated and Spacious Cabin
Auto control type Air Conditioner
Ergonomically Placed Controls
Suspension Seat
AM/FM, Bluetooth Music System with Powerful Speakers
OPG Cabin
Powerful LED lights
Extended Warranty
Wide-Spread Dealer Network
Full Diagnostic Vehicle
Mobile Workshop
Product specification of Tata Hitachi ZAXIS 140H Ultra Excavator
Model
Isuzu C-4BG1T
Fuel
Diesel
Type
4 Cycle water cooled, indirect injection Turbocharges, intercooled, 4 Cylinders
Rated Engine Power
86 HP (66.0 kW) @ 2150 rpm
Maximum Torque
347 Nm @ 1600 rpm
Piston Displacement
4.329 L
Alternator
NA
Battery
2 x 12 V, 55 Ah
Starting Motor
NA
No of Top Rollers
1
No of Bottom Rollers
7
Track Shoes (Each Side)
44
Track Guard
1
Track Shoe Width
500 mm
Ground Bearing Pressure
NA
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.4 Km/h
Travel Speed-High
5.5 Km/h
Max Tracking Force
102 kN
Hydraulic Pump
2 variable displacement axial piston type.
Maximum Flow
2 x 105 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
32.3 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
4.0 MPa
Travel
2 variable displacement axial piston motors
Swing
1 Axial Piston Motor
Fuel Tank
250 L
Engine Coolant
19 L
Engine Oil
18.5 L
Hydraulic System
170 L
Hydraulic Tank
69 L
Operating Weight
13360 Kg
Boom Length
4600 mm
Arm Length
2100 mm
Max. Digging Reach
7900 mm
Max. Digging Reach on Ground
7770 mm
Max. Digging Depth
5150 mm
Max. Digging Height
8370 mm
Max. Dumping Height
5960 mm
Max. Vertical Wallcut Depth
4650 mm
Min. Swing Radius
2310 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
104 kN
Arm Digging Force
77 kN
Swing Speed
13.7 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.45 - 0.7 m³
Overall Length
7658 mm
Overall Width
2490 mm
Overall Height
2718 mm
Overall Height of Cab
2718 mm
Upper Width
2431 mm
Track Lengh on Ground
2880 mm
Undercarriage Overall Length
3580 mm
Tailswing Radius
2190 mm
Min. Ground Clearance
440 mm
Track Gauge
1990 mm
Width Over Tracks
2490 mm
Track Height
790 mm
Counterweight Clearence
865 mm
Track Shoe Width
500 mm
The exact Tata Hitachi ZAXIS 140H Ultra Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Tata Hitachi ZAXIS 140H Ultra excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Tata Hitachi ZAXIS 140H Ultra comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Tata Hitachi ZAXIS 140H Ultra excavator is approximately 13360 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Tata Hitachi ZAXIS 140H Ultra excavator is powered by a Isuzu C-4BG1T engine, delivering 86 HP (66.0 kW) at 2150 rpm.
The Tata Hitachi ZAXIS 140H Ultra excavator has a maximum digging depth of 5150 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Tata Hitachi ZAXIS 140H Ultra Excavator ranges from 0.45 to 0.7 cubic meters (m³).
The Tata Hitachi ZAXIS 140H Ultra Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Tata Hitachi ZAXIS 140H Ultra excavator at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Tata Hitachi ZAXIS 140H Ultra excavator has a 250 litres diesel fuel tank, providing extended operation time without frequent refueling.
The Tata Hitachi ZAXIS 140H Ultra excavator has an average fuel consumption of 10 litres per hour, depending on factors such as load, terrain, and operating conditions
