Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Hyundai
Medium (15-25 Ton)
Price Available Soon
Price Available Soon
23300 Kg
0.87 - 1.7 m³
6220 mm
Cummins 148 HP
1 Yr. / 2000 hr.
5680 mm

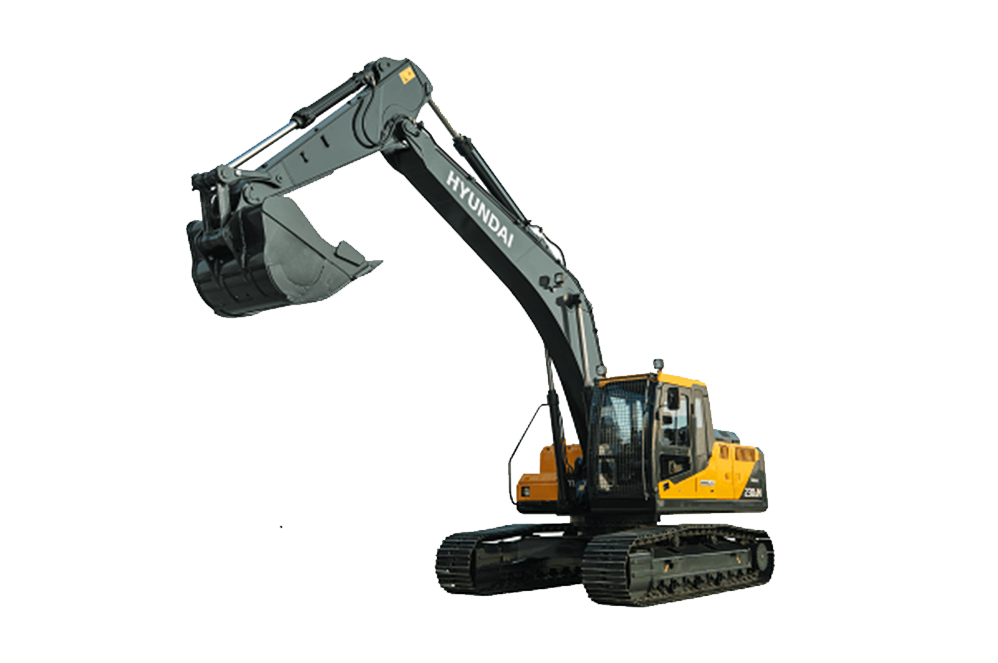

Optimized for mining and construction purposes, Hyundai R230LM SMART PLus is noted for power and precision.
Get the best price for the Hyundai R230LM SMART Plus Medium Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Cummins 6BTAA-5.9C
340 L
5.88 L
4440 mm
2 x 220 L/min
2400 mm
9500 mm
NA
2990 mm
9570 mm
152 kN
2830 mm
600 mm
Standard
Standard
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, three work modes and two User Modes.
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.
The Hydraulics and attachments are designed to offer high digging forces.
A long crawler and high operating weight facilitates better stability to the machine while working on heavy loads and in harsh terrains. It helps to increase operator convenience and comfort.
When a component is not in operational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state e=when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.
The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to withstand wear and tear, which extends component life.
New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.
A bigger rod provides more strength for digging as well as increases component life.
Automatic Engine Overheat Prevention feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking.
The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine.
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, three work modes and two User Modes.
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.
The Hydraulics and attachments are designed to offer high digging forces.
A long crawler and high operating weight facilitates better stability to the machine while working on heavy loads and in harsh terrains. It helps to increase operator convenience and comfort.
When a component is not in operational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state e=when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.
The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to withstand wear and tear, which extends component life.
New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.
A bigger rod provides more strength for digging as well as increases component life.
Automatic Engine Overheat Prevention feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking.
The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine.
Product specification of Hyundai R230LM SMART Plus Excavator
Model
Cummins 6BTAA-5.9C
Fuel
Diesel
Type
NA
Rated Engine Power
148 HP (110 KW) @ 2000 rpm
Maximum Torque
625 Nm @ 1300 rpm
Piston Displacement
5.88 L
Alternator
24V
Battery
2 x 12V, 100 AH
Starting Motor
24V
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
49
Track Guard
3
Track Shoe Width
600 mm
Ground Bearing Pressure
49 kPa
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.4 Km/h
Travel Speed-High
5.3 Km/h
Max Tracking Force
206.9 kN
Hydraulic Pump
Two variable displacement piston pumps
Maximum Flow
2 x 220 L/min
Pilot Pump
Gear pump
Implement Circuit
32.3 MPa
Swing Circuit
23.5 MPa
Travel Circuit
32.3 MPa
Pilot Circuit
3.4 MPa
Travel
Two speed axis piston motor with counter balance valve and parking brake
Swing
Axial piston motor with automatic brake
Fuel Tank
340 L
Engine Coolant
25.5 L
Engine Oil
21 L
Hydraulic System
260 L
Hydraulic Tank
150 L
Operating Weight
23300 Kg
Boom Length
5680 mm
Arm Length
2400 mm
Max. Digging Reach
9500 mm
Max. Digging Reach on Ground
9330 mm
Max. Digging Depth
6220 mm
Max. Digging Height
6010 mm
Max. Dumping Height
6520 mm
Max. Vertical Wallcut Depth
5720 mm
Min. Swing Radius
3470 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
152 kN
Arm Digging Force
117.7 kN
Swing Speed
11 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.87 - 1.7 m³
Overall Length
9570 mm
Overall Width
2990 mm
Overall Height
3110 mm
Overall Height of Cab
2920 mm
Upper Width
2700 mm
Track Lengh on Ground
3640 mm
Undercarriage Overall Length
4440 mm
Tailswing Radius
2830 mm
Min. Ground Clearance
480 mm
Track Gauge
2390 mm
Width Over Tracks
NA
Track Height
NA
Counterweight Clearence
1060 mm
Track Shoe Width
600 mm
The exact Hyundai R230LM SMART Plus Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Hyundai R230LM SMART Plus excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Hyundai R230LM SMART Plus comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Hyundai R230LM SMART Plus excavator is approximately 23300 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Hyundai R230LM SMART Plus excavator is powered by a Cummins 6BTAA-5.9C engine, delivering 148 HP (110 kW) at 2000 rpm.
The Hyundai R230LM SMART Plus excavator has a maximum digging depth of 6220 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Hyundai R230LM SMART Plus Excavator ranges from 0.87 to 1.7 cubic meters (m³).
The Hyundai R230LM SMART Plus Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Hyundai R230LM SMART Plus excavator at authorized Hyundai dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Hyundai R230LM SMART Plus excavator has a 340 litres diesel fuel tank, providing extended operation time without frequent refueling.
