Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Tata Hitachi
Medium (15-25 Ton)
₹ 69-71 Lakhs
₹ 69-71 Lakhs
21300 Kg
0.90 - 1.22 m³
6160 mm
Isuzu 167 HP
1 Yr. / 2000 hr.
5680 mm

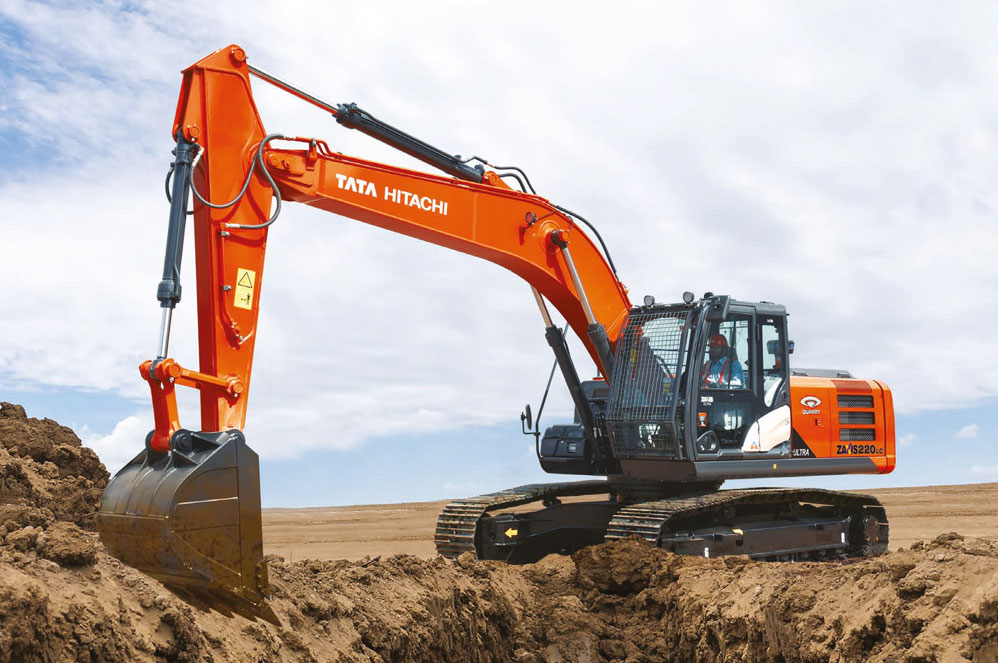

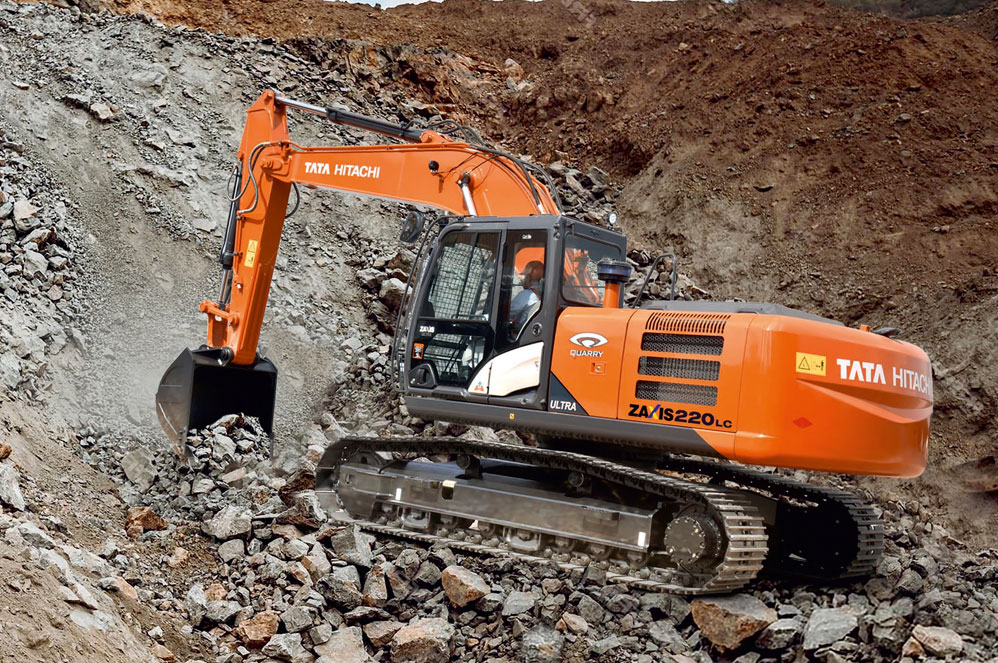

Equipped with ultra-modern features, the Tata Hitachi ZAXIS 220LC Ultra medium excavator delivers exceptional reliability for demanding construction tasks.
Get the best price for the Tata Hitachi Zaxis 220LC Ultra Medium Excavator from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Isuzu CC-6BG1T
400 L
6.494 L
4460 mm
2 x 212 L/min
2400 mm
9435 mm
NA
2990 mm
9760 mm
158 kN
2910 mm
600 mm
Standard
Standard
Regeneration Circuits
Enhanced Power Boost
Best-in-class Swing Speed
Auto Power Life Mode
High Production with Low Fuel Consumption
Faster Cycle Time
Swift Front Attachment Movements
Reliable Japanese Engine
Robust Structures
Strengthened Undercarriage
Reliable Pump and Motors
Proven Upper Structures
Reinforced Front Attachments
Durable Components
HIOS III Hydraulic System
New-age Micro-Processor Based Controls
Consite Telematics Suite
Global e-Service
Factory fitted rock breaker piping kit
Easily customizable with attachments, such as, rock breaker, auger, orange peel grab, quick coupler, etc.
Well Ventilated and Spacious Cabin
Auto control Air Conditioner
Ergonomically Placed Controls
Suspension Seat
AM/FM, Bluetooth Music System with Powerful Speakers
OPG Cabin & Powerful LED Lights
Regeneration Circuits
Enhanced Power Boost
Best-in-class Swing Speed
Auto Power Life Mode
High Production with Low Fuel Consumption
Faster Cycle Time
Swift Front Attachment Movements
Reliable Japanese Engine
Robust Structures
Strengthened Undercarriage
Reliable Pump and Motors
Proven Upper Structures
Reinforced Front Attachments
Durable Components
HIOS III Hydraulic System
New-age Micro-Processor Based Controls
Consite Telematics Suite
Global e-Service
Factory fitted rock breaker piping kit
Easily customizable with attachments, such as, rock breaker, auger, orange peel grab, quick coupler, etc.
Well Ventilated and Spacious Cabin
Auto control Air Conditioner
Ergonomically Placed Controls
Suspension Seat
AM/FM, Bluetooth Music System with Powerful Speakers
OPG Cabin & Powerful LED Lights
Product specification of Tata Hitachi ZAXIS 220LC Ultra Excavator
Model
Isuzu CC-6BG1T
Fuel
Diesel
Type
4 Cycle Water Cooled, Direct Injection, 6 Cylinder Turbocharged
Rated Engine Power
167 HP (125 kW) @ 2100 rpm
Maximum Torque
637 Nm @ 1800 rpm
Piston Displacement
6.494 L
Alternator
NA
Battery
2 x 12V, 88 Ah
Starting Motor
NA
No of Top Rollers
2
No of Bottom Rollers
8
Track Shoes (Each Side)
49
Track Guard
2
Track Shoe Width
600 mm
Ground Bearing Pressure
48 kPa
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.5 Km/h
Travel Speed-High
5.0 Km/h
Max Tracking Force
184 kN
Hydraulic Pump
variable displacement axial piston pumps
Maximum Flow
2 x 212 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
30.4 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
3.9 MPa
Travel
2 variable displacement swash plate piston motors
Swing
1 axial piston motor
Fuel Tank
400 L
Engine Coolant
23 L
Engine Oil
25 L
Hydraulic System
240 L
Hydraulic Tank
135 L
Operating Weight
21300-21700 Kg
Boom Length
5680 mm
Arm Length
2400 mm
Max. Digging Reach
9435 mm
Max. Digging Reach on Ground
9260 mm
Max. Digging Depth
6160 mm
Max. Digging Height
9700 mm
Max. Dumping Height
6870 mm
Max. Vertical Wallcut Depth
5720 mm
Min. Swing Radius
3180 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
158 kN
Arm Digging Force
147 kN
Swing Speed
13.0 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.90 - 1.22 m³
Overall Length
9760 mm
Overall Width
2990 mm
Overall Height
3150 mm
Overall Height of Cab
2940 mm
Upper Width
2700 mm
Track Lengh on Ground
3660 mm
Undercarriage Overall Length
4460 mm
Tailswing Radius
2910 mm
Min. Ground Clearance
450 mm
Track Gauge
2390 mm
Width Over Tracks
NA
Track Height
920 mm
Counterweight Clearence
1040 mm
Track Shoe Width
600 mm
The Tata Hitachi ZAXIS 220LC Ultra Excavator price in India ranges between ₹ 69 – 71 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.
You can buy the Tata Hitachi ZAXIS 220LC Ultra excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Tata Hitachi ZAXIS 220LC Ultra comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Tata Hitachi ZAXIS 220LC Ultra excavator is approximately 21300 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Tata Hitachi ZAXIS 220LC Ultra excavator is powered by a Isuzu CC-6BG1T engine, delivering 167 HP (125 kW) at 2100 rpm.
The Tata Hitachi ZAXIS 220LC Ultra excavator has a maximum digging depth of 6160 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Tata Hitachi ZAXIS 220LC Ultra Excavator ranges from 0.90 to 1.22 cubic meters (m³).
The Tata Hitachi ZAXIS 220LC Ultra Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Tata Hitachi ZAXIS 220LC Ultra excavator at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Tata Hitachi ZAXIS 220LC Ultra excavator has a 400 litres diesel fuel tank, providing extended operation time without frequent refueling.
