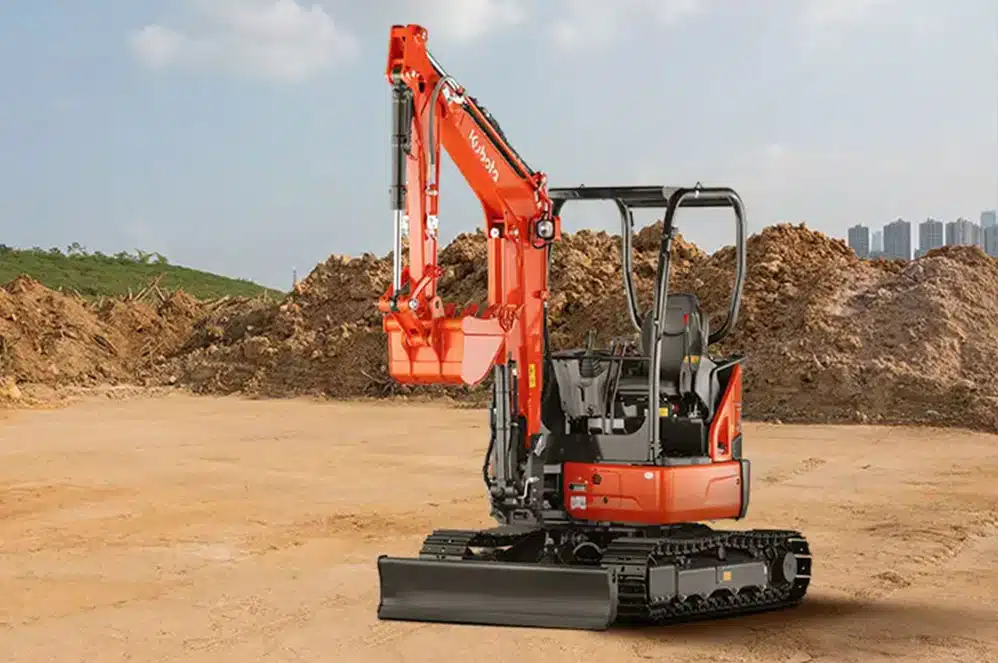

Kubota U30-6S Excavator

desi-machines-kubota-excavator-u30-6s-featured

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Escorts Kubota
Type
Mini (0-6 Ton)
Operating Cost
₹ 21-22 lakhs
Ex-Showroom Price
₹ 21-22 lakhs

Weight
3195 Kg
Bucket
0.1 m³
Digging Depth
2805 mm
Engine
Kubota 27.5 HP
Warranty
1 Yr. / 2500 hr.
Boom
NA

Quick Overview:

Ideal for landscaping and small agricultural tasks, Kubota’s U30-6S mini excavator integrates advanced technology and energy efficiency.

Connect With Us:

Get the best price for the Kubota U30-6S Mini Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Kubota D1803-M-DI-E2-BH-TH1

Fuel Tank

41.5 L

Engine Displacement

1.826 L

Under Carriage

2125 mm

Hydraulic System

Arm

Max Digging Reach

4905 mm

Fuel Consumption

4 L/hour

Overall Width

1550 mm

Overall Length

4545 mm

Bucket Digging Force

30.1 kN

Tailswing Radius

790 mm

Track Shoe Width

300 mm

AC Cabin

Not Available

GPS

Standard

Features

Performance

The new hydraulic system maximizes efficiency in tasks like drilling, lifting, and traveling, ensuring faster and smoother operations.
A service port located at the end of the arm allows hydraulic power to be easily directed to attachments such as breakers.
The new load sensing system adjusts hydraulic pressure based on load changes, ensuring precise reactions to control lever movements for smoother operations.
The U30-65 has improved fuel economy by 5% compared to the previous model, helping reduce fuel consumption and operating costs.

Safety & Comfort

The ROPS/FOPS canopy, complete with seat belts, provides excellent protection for the operator, ensuring maximum safety during operation.
Kubota's Auto Idle system helps reduce fuel consumption by up to 10% by automatically idling the engine when control levers are idle.
The travel motor features a disc brake that locks the tracks, ensuring the excavator stays securely in place when parked on a slope or during transport.
The engine start safety system prevents accidental operation by ensuring the safety lever is locked before starting, reducing the risk of unintended movement.

Hydraulic Efficiency

Improved hose positioning significantly reduces slack in the boom cylinder hose, minimizing the risk of damage and ensuring smoother hydraulic flow.
The third-line hydraulic return system efficiently directs oil back to the tank when using one-way hydraulic attachments like breakers, improving performance.
The 2-speed travel switch, located on the dozer lever, makes dozing operations faster and more efficient, improving overall operational speed.
Auto-shift functionality automatically adjusts the travel speed based on traction and terrain, ensuring smoother and more efficient movement without manual adjustments.

User-Friendliness

The front digital panel offers easy access with clear, easy-to-read indicators, making it simple to monitor the excavator’s status and settings.
The operation history feature automatically records up to 90 days of machine usage, allowing operators to review past activity for maintenance or operational analysis.
The dial-type accelerator enables easy control of engine speed, allowing operators to adjust engine performance smoothly and efficiently with a simple twist.
Clear indicators and alerts on the digital panel keep the operator informed about the machine's status, helping to avoid potential problems.

Maintenance

The simplified maintenance layout includes easy access to essential components such as the air cleaner, fuel filter, battery, and hydraulic oil tank for quicker service.
Full-open bonnet design gives operators easy access to the engine, control valves, and other critical components, simplifying maintenance and reducing downtime.
Kubota's innovative two-piece hose design for the dozer blade drastically reduces maintenance time, especially hose replacements, making repairs quicker and less complicated.
The “X”-shaped frame and slanted track frame design help minimize soil accumulation, improving the durability and cleanliness of the undercarriage for smoother operation.

Durability

Kubota’s commitment to durability ensures that the U30-65 is built with robust components that can withstand tough working conditions and offer long-lasting performance.
Genuine Kubota parts ensure the machine performs optimally, providing both safety and reliability over extended periods of use, reducing the need for frequent repairs.
Stress analysis on the ROPS and FOPS confirms that the structure can handle required load and energy absorption, keeping the operator safe in hazardous conditions.
The travel and parking stability systems, such as the travel motor and swivel lock, ensure the machine stays secure and steady when parked or in transit, improving overall durability.

Performance

The new hydraulic system maximizes efficiency in tasks like drilling, lifting, and traveling, ensuring faster and smoother operations.
A service port located at the end of the arm allows hydraulic power to be easily directed to attachments such as breakers.
The new load sensing system adjusts hydraulic pressure based on load changes, ensuring precise reactions to control lever movements for smoother operations.
The U30-65 has improved fuel economy by 5% compared to the previous model, helping reduce fuel consumption and operating costs.

Safety & Comfort

The ROPS/FOPS canopy, complete with seat belts, provides excellent protection for the operator, ensuring maximum safety during operation.
Kubota's Auto Idle system helps reduce fuel consumption by up to 10% by automatically idling the engine when control levers are idle.
The travel motor features a disc brake that locks the tracks, ensuring the excavator stays securely in place when parked on a slope or during transport.
The engine start safety system prevents accidental operation by ensuring the safety lever is locked before starting, reducing the risk of unintended movement.

Hydraulic Efficiency

Improved hose positioning significantly reduces slack in the boom cylinder hose, minimizing the risk of damage and ensuring smoother hydraulic flow.
The third-line hydraulic return system efficiently directs oil back to the tank when using one-way hydraulic attachments like breakers, improving performance.
The 2-speed travel switch, located on the dozer lever, makes dozing operations faster and more efficient, improving overall operational speed.
Auto-shift functionality automatically adjusts the travel speed based on traction and terrain, ensuring smoother and more efficient movement without manual adjustments.

User-Friendliness

The front digital panel offers easy access with clear, easy-to-read indicators, making it simple to monitor the excavator’s status and settings.
The operation history feature automatically records up to 90 days of machine usage, allowing operators to review past activity for maintenance or operational analysis.
The dial-type accelerator enables easy control of engine speed, allowing operators to adjust engine performance smoothly and efficiently with a simple twist.
Clear indicators and alerts on the digital panel keep the operator informed about the machine's status, helping to avoid potential problems.

Maintenance

The simplified maintenance layout includes easy access to essential components such as the air cleaner, fuel filter, battery, and hydraulic oil tank for quicker service.
Full-open bonnet design gives operators easy access to the engine, control valves, and other critical components, simplifying maintenance and reducing downtime.
Kubota's innovative two-piece hose design for the dozer blade drastically reduces maintenance time, especially hose replacements, making repairs quicker and less complicated.
The “X”-shaped frame and slanted track frame design help minimize soil accumulation, improving the durability and cleanliness of the undercarriage for smoother operation.

Durability

Kubota’s commitment to durability ensures that the U30-65 is built with robust components that can withstand tough working conditions and offer long-lasting performance.
Genuine Kubota parts ensure the machine performs optimally, providing both safety and reliability over extended periods of use, reducing the need for frequent repairs.
Stress analysis on the ROPS and FOPS confirms that the structure can handle required load and energy absorption, keeping the operator safe in hazardous conditions.
The travel and parking stability systems, such as the travel motor and swivel lock, ensure the machine stays secure and steady when parked or in transit, improving overall durability.

Specifications

Product specification of Kubota U30-6S Excavator

ENGINE

Model

Kubota D1803-M-DI-E2-BH-TH1
Fuel

Diesel
Type

NA
Rated Engine Power

27.5 HP (20.5 kW) @ 2,200 rpm
Maximum Torque

NA
Piston Displacement

1.826 L
Alternator

NA
Battery

12V
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

300 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Gradeability

30°
Travel Speed-Low

2.5 Km/h
Travel Speed-High

4.4 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

Variable pump × 1
Maximum Flow

NA
Pilot Pump

Gear Pump
Implement Circuit

NA
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Hydraulic piston motor: 2F
Swing

Hydraulic piston motor

SERVICE CAPACITIES

Fuel Tank

41.5 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

NA
Hydraulic Tank

NA

MACHINE WEIGHTS

Operating Weight

3195 Kg

WORKING RANGE

Boom Length

NA
Arm Length

NA
Max. Digging Reach

4905 mm
Max. Digging Reach on Ground

NA
Max. Digging Depth

2805 mm
Max. Digging Height

4265 mm
Max. Dumping Height

2880 mm
Max. Vertical Wallcut Depth

2275 mm
Min. Swing Radius

2290 mm
Max. Height at Min Swing Radius

1,845 mm
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

30.1 kN
Arm Digging Force

NA
Swing Speed

8.6 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

360 mm
Vertical Lift from Ground level

335 mm
Approach Angle

NA
Width

1550 mm
Height

340 mm

BUCKET

Bucket Capacity

0.1 m³

STATIC DIMENSIONS

Overall Length

4545 mm
Overall Width

1550 mm
Overall Height

2485 mm
Overall Height of Cab

2485 mm
Upper Width

NA
Track Lengh on Ground

1666 mm
Undercarriage Overall Length

2125 mm
Tailswing Radius

790 mm
Min. Ground Clearance

290 mm
Track Gauge

NA
Width Over Tracks

NA
Track Height

NA
Counterweight Clearence

NA
Track Shoe Width

300 mm

Frequently Asked Question

01. What is the Kubota U30-6S Excavator price in India?

Ans.

The Kubota U30-6S Excavator price in India ranges between ₹ 21 – 22 lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a Kubota U30-6S excavator?

Ans.

You can buy the Kubota U30-6S excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Kubota U30-6S Excavator come with financing and insurance options?

Ans.

Yes, the Kubota U30-6S comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Kubota U30-6S excavator?

Ans.

The operating weight of the Kubota U30-6S excavator is approximately 3195 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Kubota U30-6S excavator?

Ans.

The Kubota U30-6S excavator is powered by a Kubota D1803-M-DI-E2-BH-TH1 engine, delivering 27.5 HP (20.5 kW) at 2200 rpm.

06. What is the maximum digging depth of the Kubota U30-6S excavator?

Ans.

The Kubota U30-6S excavator has a maximum digging depth of 2805 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Kubota U30-6S Excavator?

Ans.

The bucket capacity of the Kubota U30-6S Excavator is 0.1 cubic meters (m³).

08. What is the warranty period for the Kubota U30-6S excavator?

Ans.

The Kubota U30-6S Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Kubota U30-6S excavator?

Ans.

You can find genuine spare parts for the Kubota U30-6S excavator at authorized L&T Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Kubota U30-6S Excavator?

Ans.

The Kubota U30-6S excavator has a 41.5 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the Kubota U30-6S excavator?

Ans.

The Kubota U30-6S excavator has an average fuel consumption of 4 litres per hour, depending on factors such as load, terrain, and operating conditions
