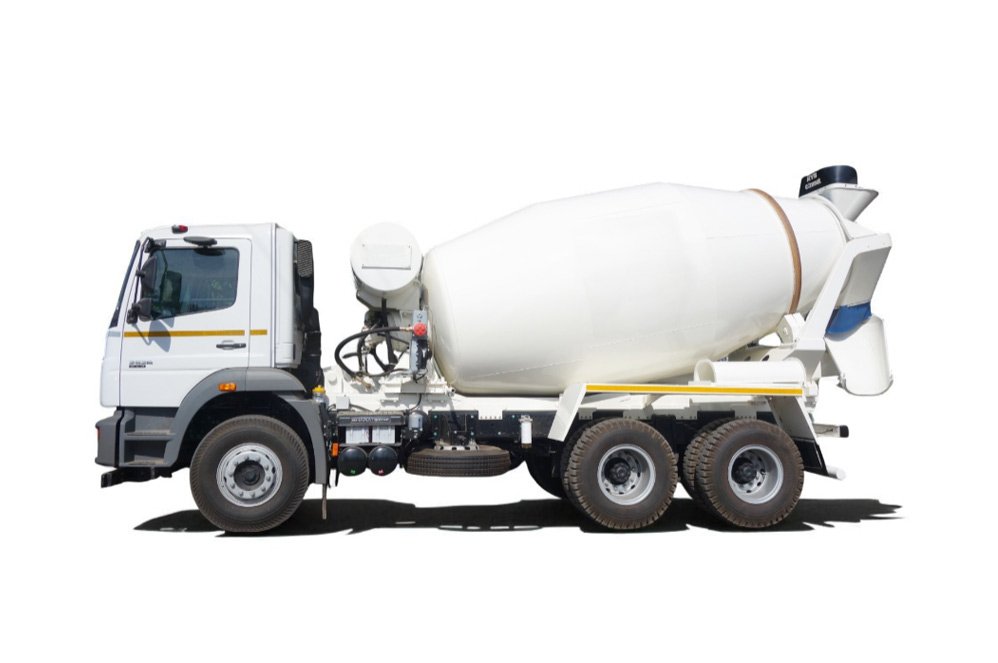

Conmat MR 60C Concrete Mixer

The nominal drum capacity of 6 m³ allows for transporting large volumes of concrete in one trip.

The geometric drum volume of 11.1 m³ supports efficient batching and consistent mixes.

A 450 L onboard water tank enables precise water dosing for better concrete quality.

The unique C-shaped spiral blade design allows for rapid concrete loading and quicker discharge.

The wider flute blade reduces friction and increases volume per drum revolution.

It lowers power consumption through low-resistance flow and even mix turnover.

It is designed to handle extra-low slump concrete, which is common in slip-form paving and dam work.

High discharge efficiency with stiff mixes guarantees a smooth continuous pour.

The agitation system keeps concrete workable during transit delays for high-quality delivery.

Anti-clockwise drum rotation follows India’s left-side travel norms for safer highways.

The low center-of-gravity chassis ensures greater stability on rough or uneven roads.

A chute-locking mechanism and wear-proof bars prevent accidental discharge and component wear.

The drum, spirals, hopper, and chute are made from high-wear, corrosion-resistant steel.

Precision-formed C-spirals hold their shape under heavy loads, minimizing wear over time.

The rear-end design allows easy access for cleaning and reduces maintenance downtime.

The detachable charge hopper and split flow guide make cleaning and routine servicing easier.

Stairs and an inspection platform provide safe, ergonomic access to the top of the drum.

The PTO-driven design with a powerful 52 kW engine offers reliable power and easy inspection.
