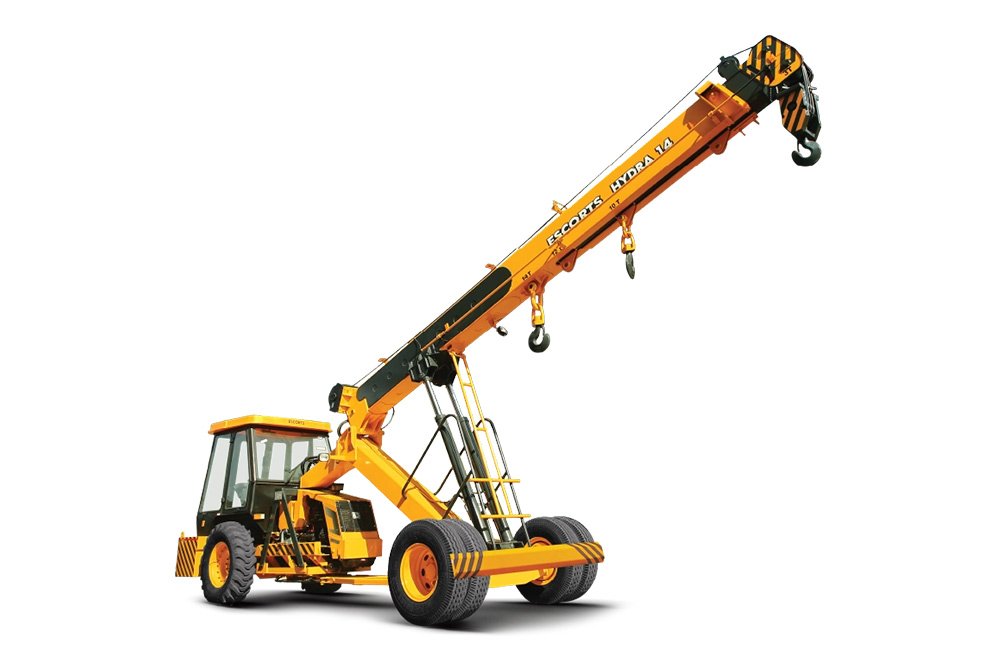

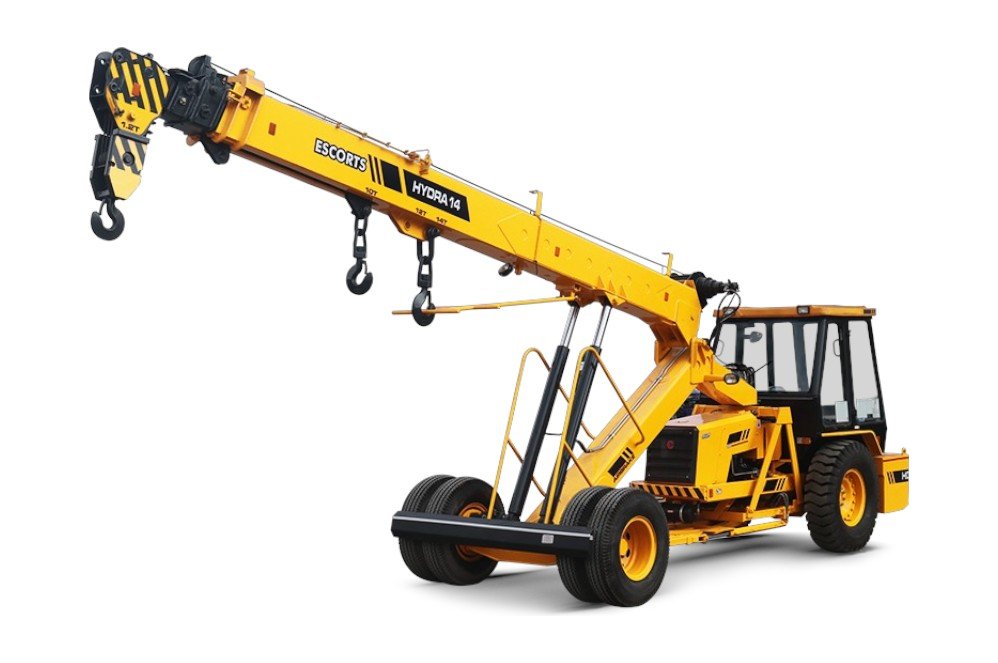

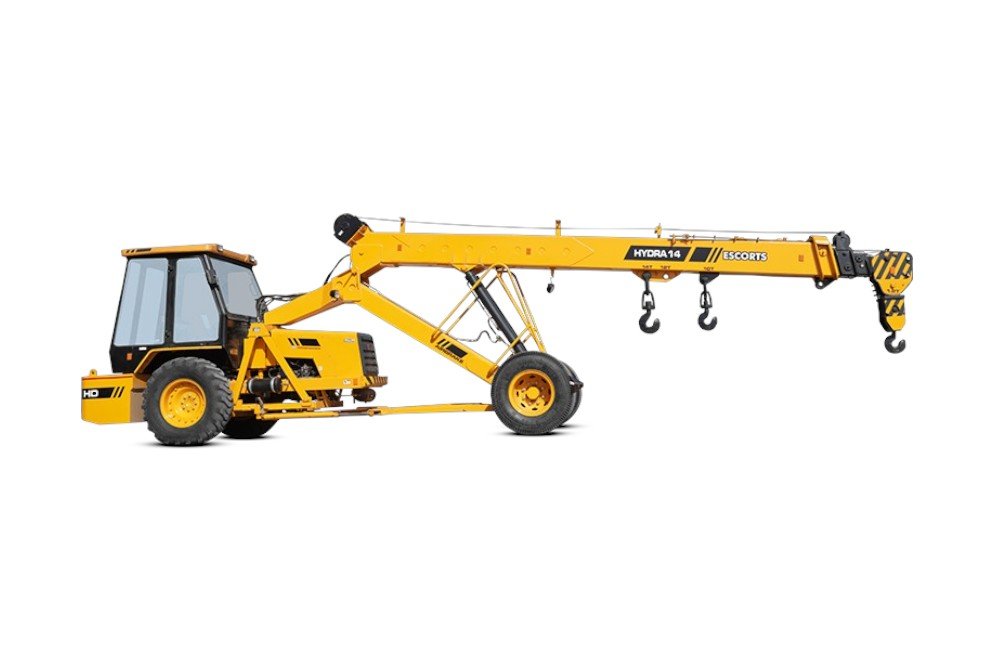

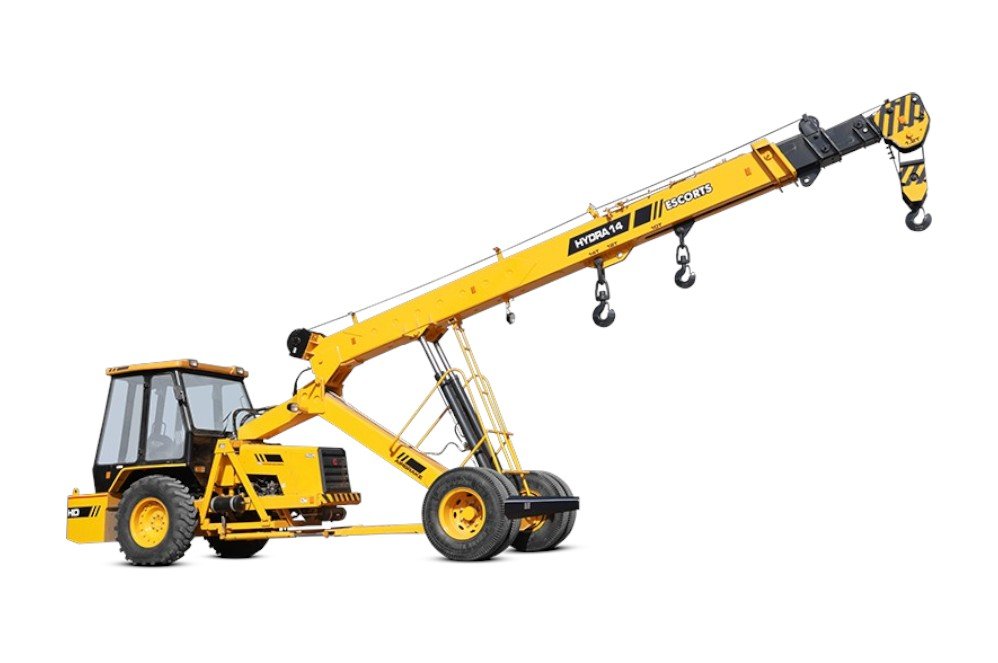

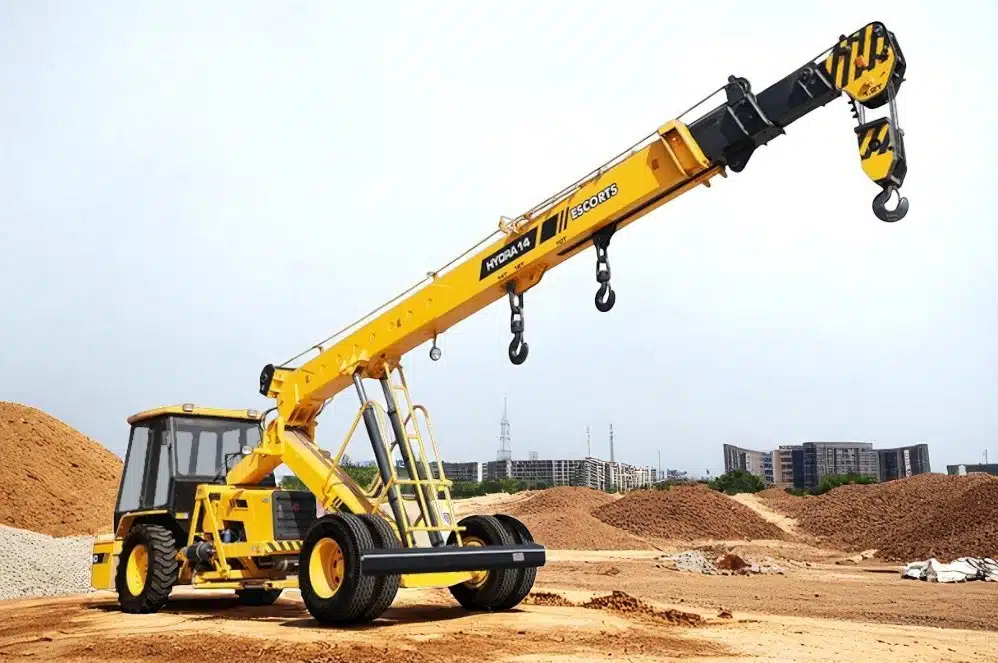

Escorts HYDRA 14 Crane

Equipped with Simpson S-433 diesel engine delivering 49–59 HP at 2200 RPM for reliable and consistent lifting performance.

Achieves a top travel speed of 29 km/h and a low-speed mode of 1.9 km/h for controlled mobility.

6.5-meter turning radius ensures better maneuverability in tight spaces, ideal for urban construction and industrial material handling sites.

Lifts up to 14 tons at 1.6-meter radius, reducing to 1.9 tons at extended 10-meter radius.

Features a three-part telescopic boom with rope compensation and double-acting derrick cylinders for enhanced stability and reach.

Hoist winch supports six-fall lifting with a 13 mm rope, providing a high hook height for superior vertical reach.

90-liter hydraulic tank powers high-performance vane pump and 4-spool control valve, enabling smooth multi-function hydraulic operations.

Delivers hoist line speed of 53 meters per minute, supporting efficient load lifting with minimal cycle time delays.

Winch configuration allows four-fall (10T) or six-fall (12T) operation, adaptable to heavy-duty lifting and construction needs.

Pneumatic-hydraulic front brakes and mechanical shoe-type rear brakes ensure controlled stopping even under heavy load conditions.

Includes mechanical parking brake, hoist safety brake, and derrick cylinder guard for improved operator safety.

Features such as overload audio alarm, hose burst protection, and optional Safe Load Indicator (SLI) enhance operational safety.

Operating weight around 11,200 kg with wide front and rear track widths ensures solid ground grip and balance.

Fitted with 11.00x20-16PR front and 13.00x24-12PR water-ballasted rear tyres for improved off-road traction.

Compact dimensions with 3.25-meter height and 2.55-meter width allow better mobility and transportation across work sites.

45-liter diesel tank offers fuel efficiency, reducing refueling downtime and enhancing overall productivity on long work shifts.

Gearbox includes six forward and two reverse speeds with high-low selector for smooth power transmission and adaptability.

Hydraulic system uses inline suction and return filters for longer service life and reduced maintenance-related breakdowns.
