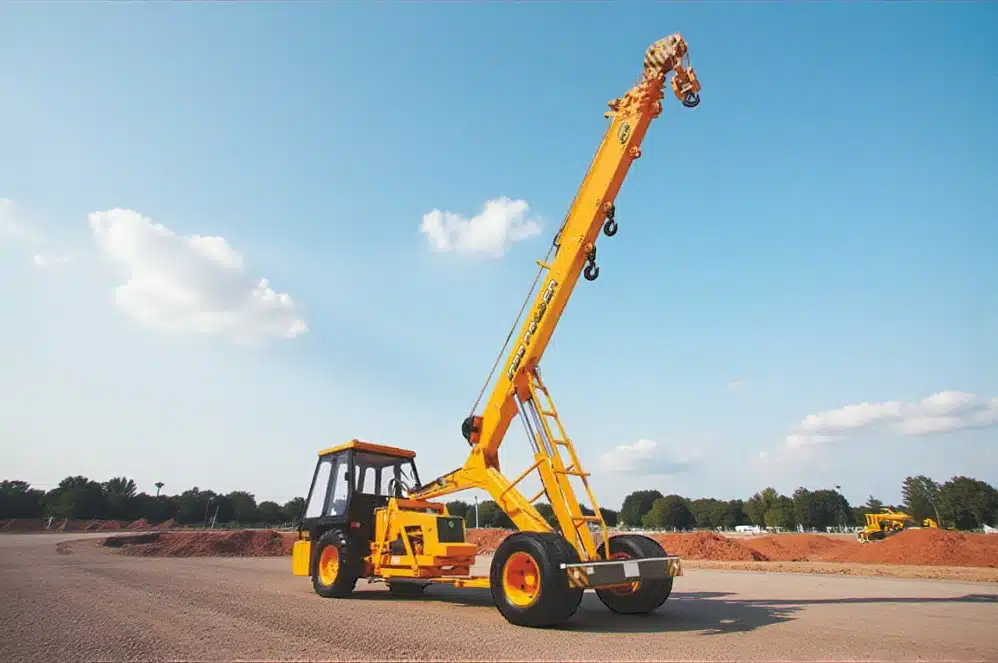

Indo Power 14AV Crane

The overload audio warning system alerts operators immediately to help prevent accidents during heavy lifting.

Safety brakes on the hoist ensure secure load handling and reduce the risk of unintended movement during pick-and-carry tasks.

Cylinder guards and counterbalance valves protect hydraulic components, contributing to longevity, safe operation, and lower maintenance time for heavy-duty use.

The straight rear axle improves stability, allowing for safe lifting of heavy loads in challenging construction or industrial sites.

The heavy-duty main frame offers durability and supports repeated operations, maintaining crane integrity over extended use.

High ground clearance and a heavy-duty winch enable smooth movement across rugged terrains and uneven job sites.

Powered by the Indo Farm 3052 DI, a 3-cylinder water-cooled diesel engine, this machine delivers 50 HP at 2200 rpm for reliable lifting performance.

It has efficient fuel consumption and a 60-litre tank capacity, supporting long operating hours with less downtime for refueling.

The engine provides consistent torque and power for industrial and construction tasks, ensuring productivity and smooth crane operation.

The heavy-duty sliding mesh spur gear transmission offers 8 forward and 2 reverse speeds, along with a high-low selector for flexibility on different terrains.

Articulated power steering, controlled hydraulically through dual cylinders, allows for precise maneuverability even in tight spaces.

The turning radius of 6.5 meters enables agile operation and easy positioning of the crane on complex job sites.

The 4-part telescopic boom with hydraulic-assisted extension offers flexible reach, effectively accommodating various lifting heights and horizontal loads.

A 4-spool hydraulic control valve with built-in pressure relief ensures smooth and safe boom and hoist operations.

The hoist mechanism with 4/6 falls and a fail-safe brake allows for secure lifting and lowering of heavy loads under high pressure.

Boom height ranges from 11.16 m to 16.76 m, with a horizontal reach of 7.9 m to 13.7 m, making it suitable for various sites.

The operating weight between 9,880 and 10,430 Kg ensures stability while handling heavy loads without risking safety or performance.

With a hydraulic tank capacity of 120 litres, engine oil capacity of 7.5 litres, and a reliable braking system, the machine delivers seamless and efficient operation.
