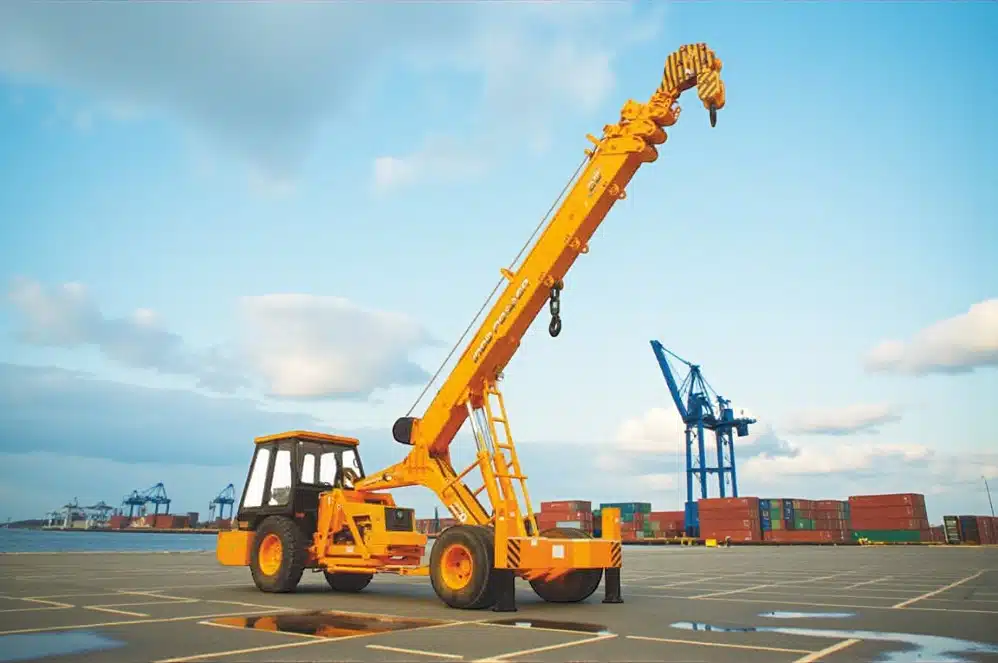

The Indo Power 20T hydra crane is a high performance hydraulic crane designed for maximum lifting efficiency and reliability. It features a 60/70 HP Indo Farm engine, providing strong torque and smooth handling. With its 4-part telescopic boom, articulated steering, and air-operated brakes, this crane machine offers great stability, safety, and precise control for tough industrial and construction lifting jobs.
Indo Farm
Pick & Carry Crane
₹ 28 - 32 Lakhs
₹ 28 - 32 Lakhs
20 Tonnes
19.81 m
Indo Farm 70 HP
13750 kg
6500 mm
2WD
Get the best Indo Power 20T hydra crane price in India from authorized dealers. Contact us now for exclusive deals!
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Indo Farm
Upto 53°
30 km/h
60 L
140 L
NA
NA
NA
NA
1 Year
Supports a maximum lifting capacity of 20 tonnes, making it ideal for heavy-duty construction work.
Achieves a boom height of 19.81 m, enabling substantial vertical lift for various job-site conditions.
Offers a horizontal reach of up to 17.16 m, allowing extended outreach for load placement and site flexibility.
Powered by a four-cylinder, water-cooled diesel engine rated at 60/70 hp at 2200 rpm, providing reliable power for lifting tasks.
Equipped with a heavy-duty crane-specific transmission featuring 8 forward and 2 reverse speeds and oil-immersed brakes for smooth operation.
Top travel speed is around 30 km/h on site, ensuring mobility between job zones without compromise.
Articulated power steering controlled by dual hydraulic cylinders offers responsive handling in mobile crane operations.
The turning radius is just 6.5 m, making it easier to maneuver in tight construction zones and confined site layouts.
The boom raises in 18 to 20 seconds and lowers in 13 to 15 seconds, enabling quick setup and cycle times.
Features a 4-part telescopic boom, with the 2nd and 3rd parts hydraulically actuated and the 4th part operated by rope for precise extension control.
Equipped with a six-fall hoist mechanism and fail-safe brakes for secure lifting tasks and added safety.
The hydraulic system includes a vane-type pump, a 4-spool control valve with built-in pressure relief, and filters (100-mesh suction, 25 µm return) for trouble-free operation.
An overload audio warning system alerts the operator when the load capacity approaches limits, enhancing job-site safety.
Safety brakes on the hoist and a counter-balance valve on the lift cylinder protect against unintended free-fall or uncontrolled descent.
The all-weather cabin, tool kit, rear-view mirrors, and steering-cylinder guard are standard accessories that improve operator comfort and control.
The heavy-duty main frame and full-length chassis are built to withstand the rigors of pick-and-carry crane applications and rough terrain.
The straight rear axle design and high ground clearance ease movement across uneven construction ground and over obstacles.
Air brakes, including a fully pneumatic ‘S’-cam at the front and dual circuit, along with mechanical disc brakes at the rear, ensure reliable stopping power under heavy loads.
Product specification of Indo Power 20T Crane
Model
Indo Farm
Type
4 Cylinder DI, Water Cooled Diesel Engine
Max. Power
70 HP (52 kW) @ 2200 RPM
Battery
12V Single battery negative earth.
Alternator
NA
Max. Lifiting Capacity
20 tonnes
Drive
2WD
Type
Indo Farm 3090 DI Heavy duty transmission with oil immersed brakes for crane application. Sliding mesh Spur teeth gearbox, Eight forward and two reverse speeds with high and low selector.
Creep Speed
NA
Axles
Front axle is rigidly mounted, and the Rear axle is mounted with two semielliptical springs.
Max. Speed (Without Load)
30 km/h
Clutch
Single plate, heavy duty dry friction type clutch plate especially designed for crane application.
Type
Articulated power steering, hydraulically controlled through two double acting hydraulic cylinders.
Articulation
Upto 53°
Min. Turning Radius
6500 mm
Hoist
Six falls with fail safe brake.
Hoist Speed
55 Mtrs./Min (Line Speed)
Front Wheel
Fully air operated 'S' cam dual circuit brakes.
Rear Wheel
Mechanical disc brakes, actuated through pneumatic brake chamber.
Parking Brake
Air operated fail safe brakes on front wheels.
Pump Type
Vane type hydraulic pump.
Control Valve
4 spool control valve with built in pressure relief valve for trouble free operation.
Hydraulic Filter
Suction line has a 100 mesh inline strainer while return line has 25 micron full flow filter.
Engine Oil
12 L
Fuel Tank
60 L
Hydraulic Tank
140 L
Transmission Oil
45 L
Overall Length
NA
Overall Width
NA
Overall Height
NA
Wheel Base
NA
Operating Weight
13750 kg
Front Track
2080 mm
Rear Track
1630 mm
Front Tyres
12.00 x 20 - 18 PR (4 Nos.)
Rear Tyres
14.00 x 25 - 20 PR (2 Nos.)
Telescoping
4 part, 2nd & 3rd parts are actuated by hydraulic cylinders and 4th part by hydraulic assisted rope.
Derricking
Through two double acting cylinders.
Boom Luffing Time
18-20 seconds
Boom Luffing Range
NA
Height
19.81 m
The Indo Power 20T hydra crane price in India ranges between ₹ 28 – 32 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.
The Indo Power 20T crane is powered by a Indo Farm diesel engine, delivering 70 HP (52 kW) @ 2200 RPM.
The Indo Power 20T crane has a lifting capacity of 20 tonnes.
The maximum boom height of the Indo Power 20T crane is 19.81 m (when fully extended).
The operating weight of the Indo Power 20T crane is approximately 13750 kg.
You can buy the Indo Power 20T hydra crane from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.
The Indo Power 20T in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the exact details, check with authorized dealers or visit the official brand website.
You can find genuine spare parts for the Indo Power 20T at authorized Indo Farm dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on crane spare parts.
Indo Farm Equipment Limited is amongst the major Indian manufacturers of easy-to-handle hydraulic pick and carry crane machines that are committed to performance, reliability, and value for money. With lifting capacities ranging from 12 tons to 30 tons, Indo Farm cranes, comprising hydra cranes and farana cranes, are extremely strong, highly mobile, and require minimal maintenance. Manufactured in India with a fast-growing international presence, the company integrates advanced technology, ergonomic design, and innovation driven by safety. With an extensive dealer and service network, Indo Farm is a name trusted for all lifting requirements of construction, infrastructure, and industries in India.
