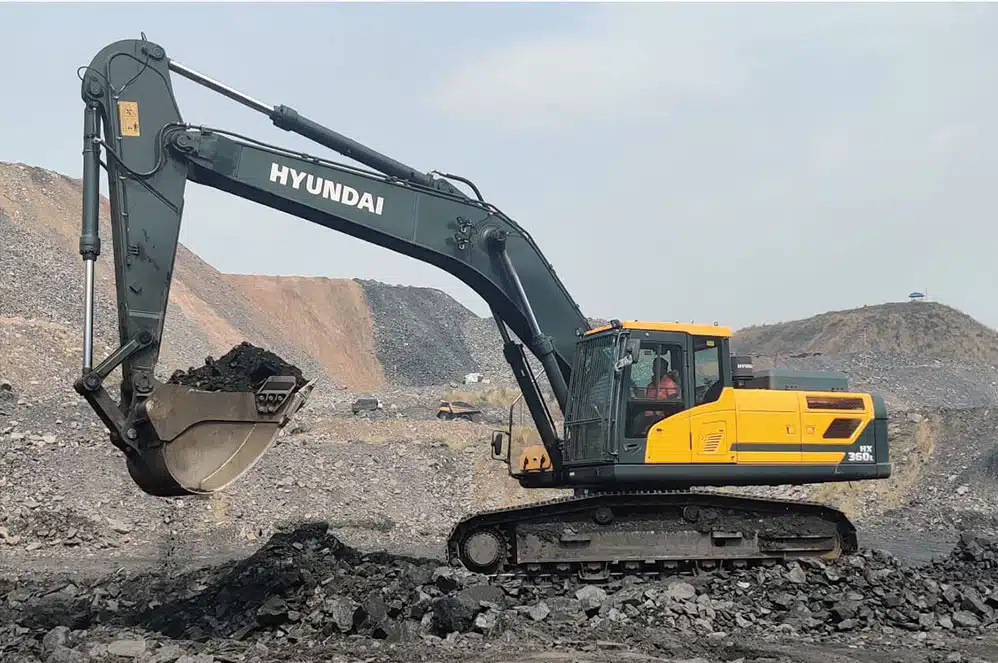

Hyundai HX360L Excavator

The HX360L comes with Hyundai HM8.3 Engine with Proven Performance & Reliability while delivering high Productivity & Fuel Efficiency. The Salient Features of this Engine are; a. Higher Torque delivery at Low Engine RPMs for High Productivity b. Heavy Duty Pistons with Ni-Resist inserts for Longer Life c. Low Engine Oil and Fuel Consumption

The HX360L introduces fuel saving Hydraulics & Control Features which ensures minimum fuel consumption without compromising on productivity. In Addition to Fuel Savings, these Features enhances the overall Performance of the machine. a. Variable Power Control b. Intelligent Power Control c. Electric Pump Independent Control

The HX360L comes with a heavy duty & reliable Undercarriage which is built to withstand Heavy Duty Cycles & Extreme Loads. The Salient Features of this Undercarriage are; a. Best in class 50T Undercarriage b. Highly Durable Casted Idlers and Rollers c. Hyundai Design Travel & Swing System

The HX360L comes with heavy duty structures which are designed for maximum power, performance & reliability. Made of High Tensile Steel Material to Withstand Heavy Loads, these structures have Proven Performance Through Rigorous Testing & Validation. a. Highly Durable Boom & Arm designed for Heavy Lifting and Delivering High Performance, Reliability & Longer Life b. Wide Range of Reinforced Buckets suitable for various Applications (Refer Applications Section) Such as 2.1, 2.3 m3 GP / 1.62 m3 RB / 1.86 m3 HD. These Buckets are designed for High Productivity, Performance and Longer Life.

The 8" interactive touchscreen display comes with centralized switches. The various menu provide quicker access and controls for high convenience.

The INTEGRATED audio system includes an AM/FM radio, a USB-based MP3 player, a Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.

HX Series excavators feature comfortable operator seat with multiple adjustments, arm rests and control consoles. Cabin comes with wide leg and head room for comfortable operation.

Variable Power Control comes with three Speed modes to ensure the highest performance in any operating environment. P (power mode) for Heavy Loads maximizes speed and power for heavy duty work. S (standard mode) optimizes performance and fuel efficiency for general work. E (economy mode) improves control and efficiency for light work.

IPC Analyzes the Joystick Control Patterns & Automatically adjusts Engine RPM & Pump Flow to Deliver the Maximum Fuel Economy & Higher Productivity. IPC comes with Selection Option as ON/OFF in Display. It Controls Pump flow reduction when a small amount of flow is needed. Hence Better Fuel Efficiency is achieved in Loading Operations.

EPIC mode optimizes the Engine Speed, Pump & Control Valve flow to get the best of fuel consumption with maximum productivity.

Engine Auto Deceleration & One Touch Deceleration feature ensure Engine Speed Reduction to Low Idle in no load condition to reduce fuel consumption. Engine Speed goes back to operating Mode as selected by Operator as soon as joystick lever is operated.

Hi-MATE Hyundai's newly developed remote management system, utilizes GPS satellite technology to provide customers with the highest level of service & product support available. Hi-MATE enables users to remotely evaluate machine performance, access diagnostic information, and verify machine locations at the touch of a button. Key Benefits of Remote Management System are; a. Maintenance Management: Timely Service Alerts b. Self-Diagnostic: Helps resolve issue faster c.Warning Indicators: Ensure Safe Working

The Engine & Hydraulic Filters are conveniently Located in one place for ease of Accessibility & Serviceability. Clear Access area given for Engine and Hydraulic aggregates such as Control Valve, Swing Motor, and Rotary Joint.

Air filter & Fuse box are located in one place and are conveniently accessible from ground level by way of a lockable door on the cab.

HX360L Excavator is equipped with large grab rails, guard rails and a proprietary anti-slip surface on the upper structure that make accessing key service areas easier and safer.

Integrally Welded Cabin with Low-Stress using High Strength Steel to withstand Site Operating Conditions

Provides Safe Operating & Service Environment. It Prevents attachment from drifting against prolong overhang due to gravity

Engine Overheat Protection Feature Enhances Engine Internal component life by providing Safe Operating & Service environment to Operator & Machine

Arm Base is equipped with Reinforcement Bars to safeguard against arm base Wear & Tear during Load Handling at Site. This improves Arm bottom area protection & Overall Life & Performance of the Arm & Bucket Joint.

Hyundai's proprietary, patented anti-slip surface uniquely designed to prevent accidental slips and falls that can result in injury when working or inspecting the upper structure of the machine. HX360L is provided with Anti-slip plates on the Upper Frame Walkway area to Safeguard operator against such events.
