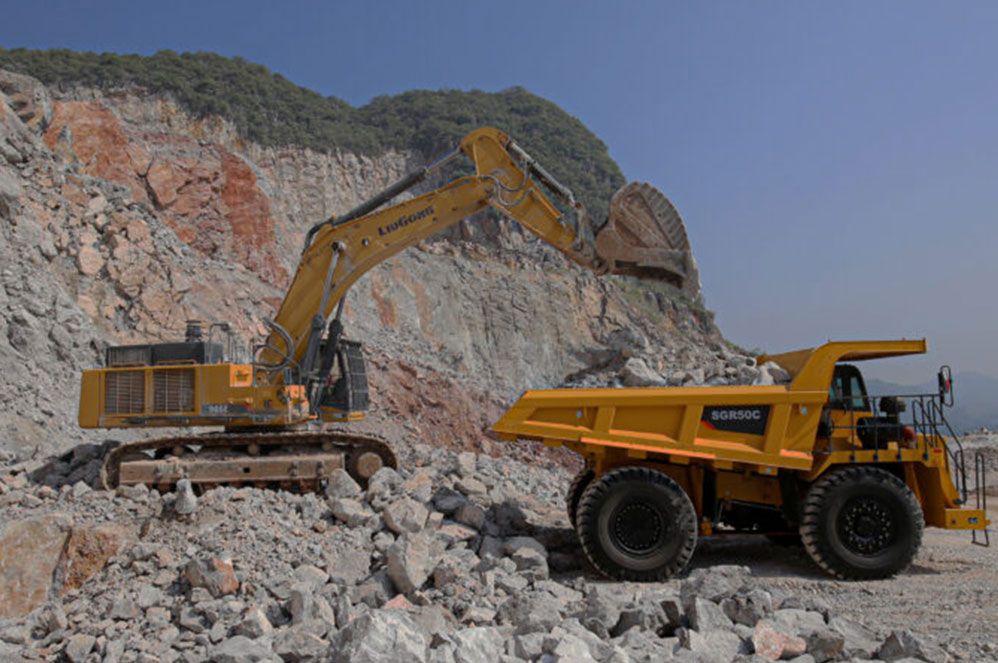

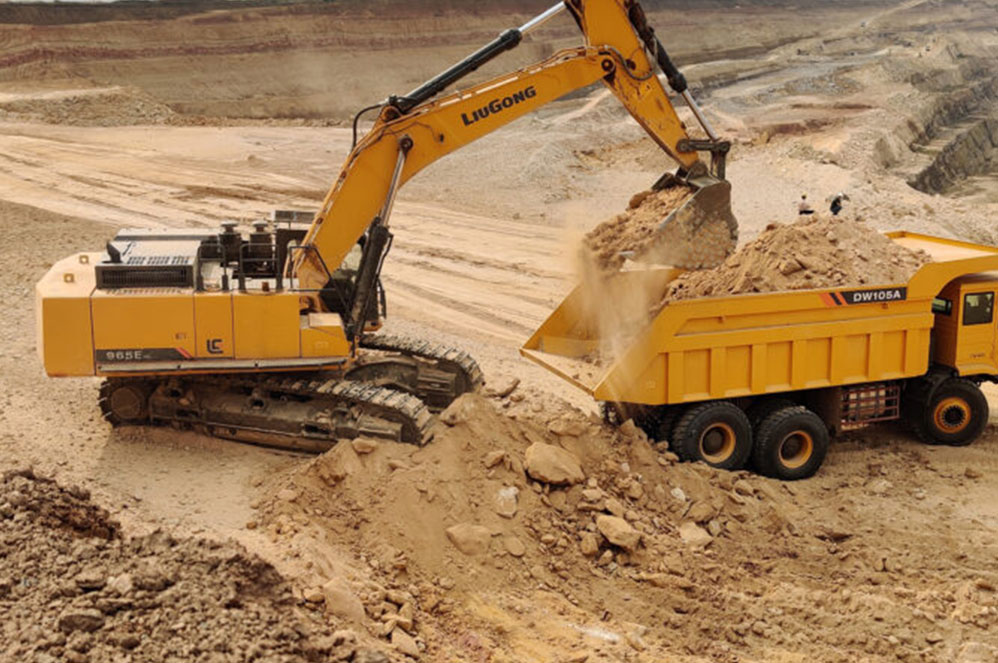

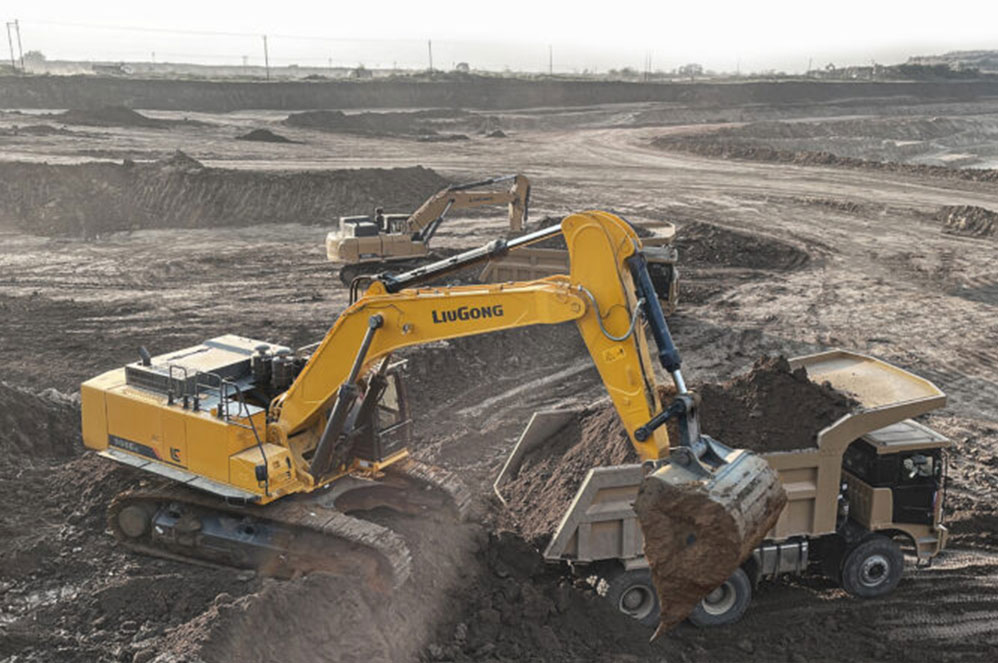

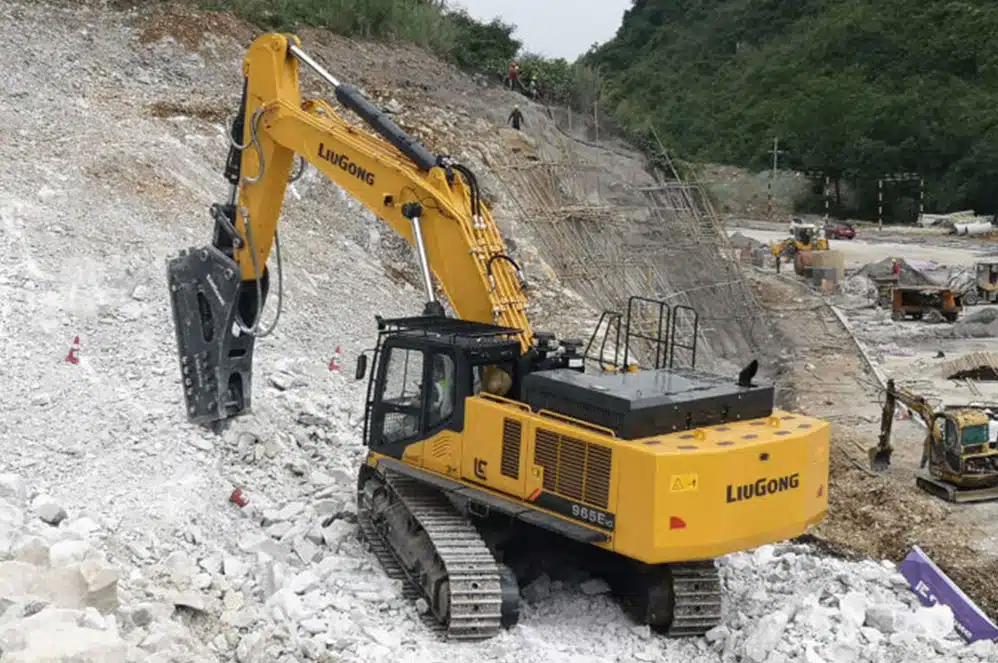

    Liugong 965E HD Excavator

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Liugong

    • Type

      Extra-Large (>50 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Weight

      62600 Kg

    • Bucket

      4.1 m³

    • Digging Depth

      6830 mm

    • Engine

      Scania 444 HP

    • Warranty

      1 Yr. / 2500 hr.

    • Boom

      6500 m

    Quick Overview:

    Mining and large earthmoving operations benefit from Liugong 965E HD, an extra-large excavator with superior digging capacity.

    Connect With Us:

    Get the best price for the Liugong 965E HD Extra Large Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Scania DC13076A

    Fuel Tank

    880 L

    Engine Displacement

    12.7L

    Under Carriage

    5800 mm

    Hydraulic System

    2 x 448 L/min

    Arm

    2550 mm

    Max Digging Reach

    11020 mm

    Fuel Consumption

    NA

    Overall Width

    3950 mm

    Overall Length

    11870 mm

    Bucket Digging Force

    315 kN/345 kN

    Tailswing Radius

    3910 mm

    Track Shoe Width

    600 mm

    AC Cabin

    Standard

    GPS

    NA

    Features

    Performance​

    Performance​

    • The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque with liugong’s intelligent power control (IPC) system delivers excellent performance, without excess fuel consumption.

    Performance​

    • The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque with liugong’s intelligent power control (IPC) system delivers excellent performance, without excess fuel consumption.

    Efficiency

    • The LiuGong 965E HD is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.

    Reliability

    • The use of thick, high-tensile strengthened, stress-relieved steel plates, makes the structures on E-series excavators, extra strong & reliable.

    Comfort

    • We understand how operators like to work. Our cabin is designed to ensure maximum operator comfort, enhanced productivity and excellent all around visibility with increased safety.

    Maximum Uptime

    • Machine availability enhanced, with use of world class reliable hydraulic components, engine designed to deliver high torque at low rpm, well designed rugged structures. Thereby making your work easier & faster throughout the operation. Easy visibility and accessibility to all service touch points from ground level, makes maintenance, safe, easy and fast.

    Specifications

    Product specification of Liugong 965E HD Excavator

    ENGINE

    • Model

      Scania DC13076A

    • Fuel

      Diesel

    • Type

      Scania EPA Tier 3 / EU Stage IIIA, Inline, 6-cylinder, turbocharged, electronically controlled direct injection.

    • Rated Engine Power

      444 HP (331 kW) @ 2100 rpm

    • Maximum Torque

      2007 Nm @1600 rpm

    • Piston Displacement

      12.7L

    • Alternator

      28 V-100 A

    • Battery

      2 x 12 V

    • Starting Motor

      24 V-6 kW

    UNDERCARRIAGE

    • No of Top Rollers

      3

    • No of Bottom Rollers

      9

    • Track Shoes (Each Side)

      53

    • Track Guard

      NA

    • Track Shoe Width

      600 mm

    • Ground Bearing Pressure

      NA

    • Track Tensioning

      Grease

    • Travel Speed-Low

      3.0 Km/h

    • Travel Speed-High

      4.6 Km/h

    • Gradeability

      70% (35°)

    • Max Tracking Force

      460 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      Two variable displacement piston pumps

    • Max imum Flow

      2 x 448 L/min

    • Pilot Pump

      Gear Pump

    • Implement Circuit

      35 MPa

    • Swing Circuit

      32.4 MPa

    • Travel Circuit

      35 MPa

    • Pilot Circuit

      3.9 MPa

    HYDRAULIC MOTORS

    • Travel

      2 Speed axial piston motors with oil disk brakes.

    • Swing

      Planetary gear reduction is driven by a high torque axial piston motor with oil disc brake

    SERVICE CAPACITIES

    • Fuel Tank

      880 L

    • Engine Coolant

      39 L

    • Engine Oil

      39 L

    • Hydraulic System

      510 L

    • Hydraulic Tank

      310 L

    MACHINE WEIGHTS

    • Operating Weight

      62600 Kg

    WORKING RANGE

    • Boom Length

      6500 m

    • Arm Length

      2550 mm

    • Max. Digging Reach

      11020 mm

    • Max. Digging Reach on Ground

      10780 mm

    • Max. Digging Depth

      6830 mm

    • Max. Digging Height

      10190 mm

    • Max. Dumping Height

      6840 mm

    • Max. Vertical Wallcut Depth

      4360 mm

    • Min. Swing Radius

      4880 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      315 kN/345 kN

    • Arm Digging Force

      280 kN/300 kN

    • Swing Speed

      8.4 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      4.1 m³

    STATIC DIMENSIONS

    • Overall Length

      11870 mm

    • Overall Width

      3950 mm

    • Overall Height

      4030 mm

    • Overall Height of Cab

      3508 mm

    • Upper Width

      3960 mm

    • Track Lenght on Ground

      4755 mm

    • Undercarriage Overall Length

      5800 mm

    • Tailswing Radius

      3910 mm

    • Min. Ground Clearance

      788 mm

    • Track Gauge

      3350 mm

    • Width Over Tracks

      3950 mm

    • Track Height

      NA

    • Counterweight Clearence

      1,793 mm

    • Track Shoe Width

      600 mm

    Frequently Asked Question

    01. What is the Liugong 965E HD Excavator price in India?

    Ans.

    The exact Liugong 965E HD Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

    02. Where can I buy a Liugong 965E HD excavator?

    Ans.

    You can buy the Liugong 965E HD excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    03. Does the Liugong 965E HD Excavator come with financing and insurance options?

    Ans.

    Yes, the Liugong 965E HD comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    04. What is the operating weight of the Liugong 965E HD excavator?

    Ans.

    The operating weight of the Liugong 965E HD excavator is approximately 62600 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What type of engine is used in the Liugong 965E HD excavator?

    Ans.

    The Liugong 965E HD excavator is powered by a Scania DC13076A engine, delivering 444 HP (331 kW) at 2100 rpm.

    06. What is the maximum digging depth of the Liugong 965E HD excavator?

    Ans.

    The Liugong 965E HD excavator has a maximum digging depth of 6830 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    07. What is the bucket capacity of the Liugong 965E HD Excavator?

    Ans.

    The bucket capacity of the Liugong 965E HD Excavator is 4.1 cubic meters (m³).

    08. What is the warranty period for the Liugong 965E HD excavator?

    Ans.

    The Liugong 965E HD Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    09. Where can I find spare parts for the Liugong 965E HD excavator?

    Ans.

    You can find genuine spare parts for the Liugong 965E HD excavator at authorized Liugong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    10. What is the fuel tank capacity of the Liugong 965E HD Excavator?

    Ans.

    The Liugong 965E HD excavator has a 880 litres diesel fuel tank, providing extended operation time without frequent refueling.

    Popular Comparisons with Liugong 965E HD

    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Liugong

    Liugong 975E HD

    4.5 rating
    Price Available Soon
    75000 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Caterpillar

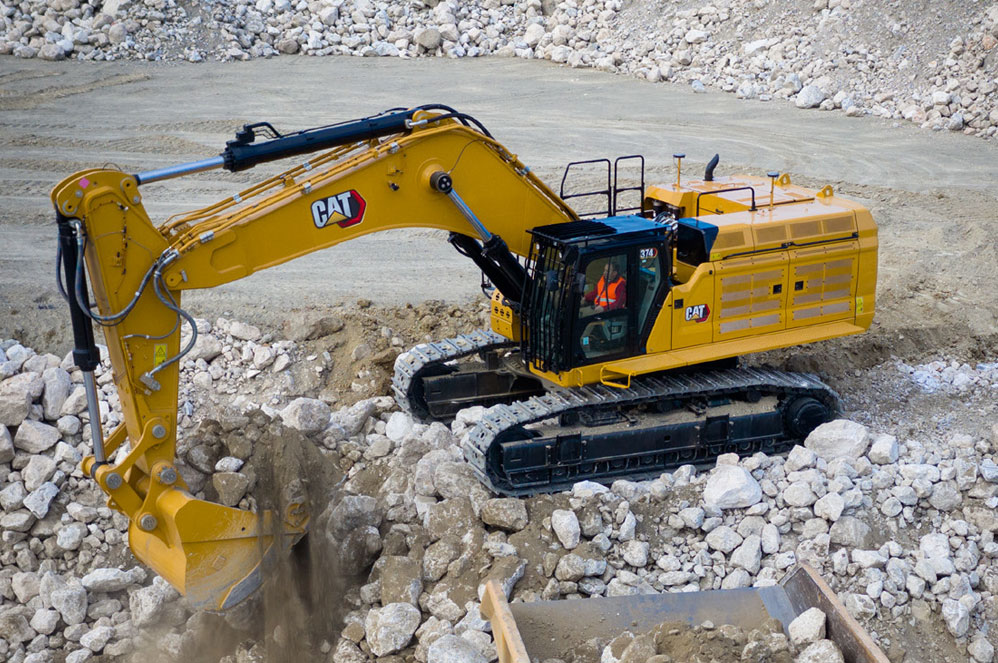

    CAT 374

    4.5 rating
    Price Available Soon
    74000 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    BEML

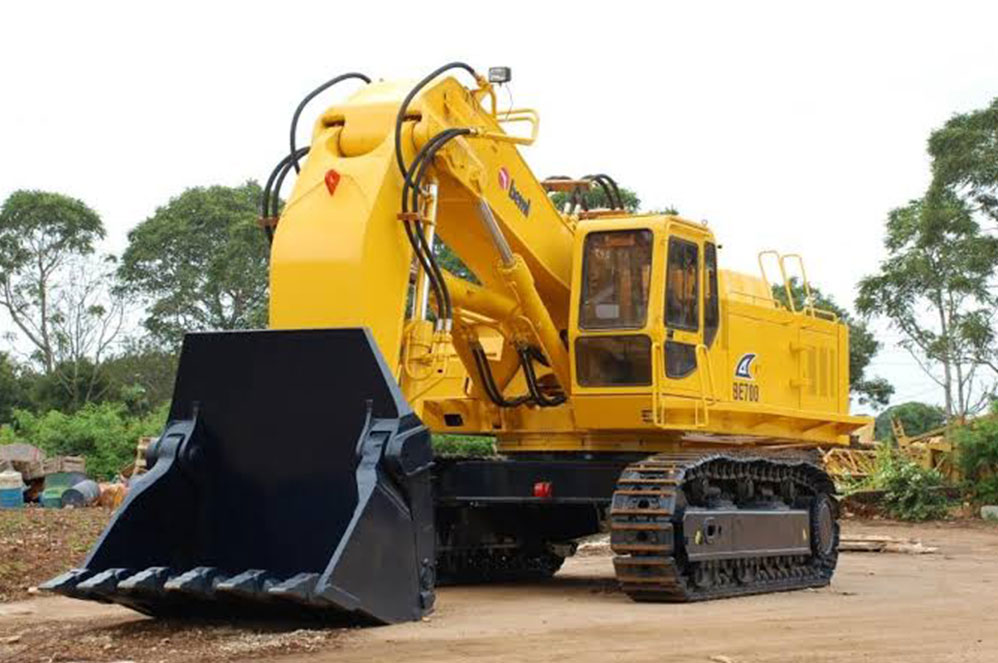

    BEML BE700

    4.5 rating
    Price Available Soon
    69500 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Liebherr

    Liebherr R 972 Litronic

    4.5 rating
    Price Available Soon
    68450 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Liebherr

    Liebherr R 960 SME Litronic

    4.5 rating
    Price Available Soon
    60000 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Liebherr

    Liebherr R 956 Litronic

    4.5 rating
    Price Available Soon
    53100 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Sany

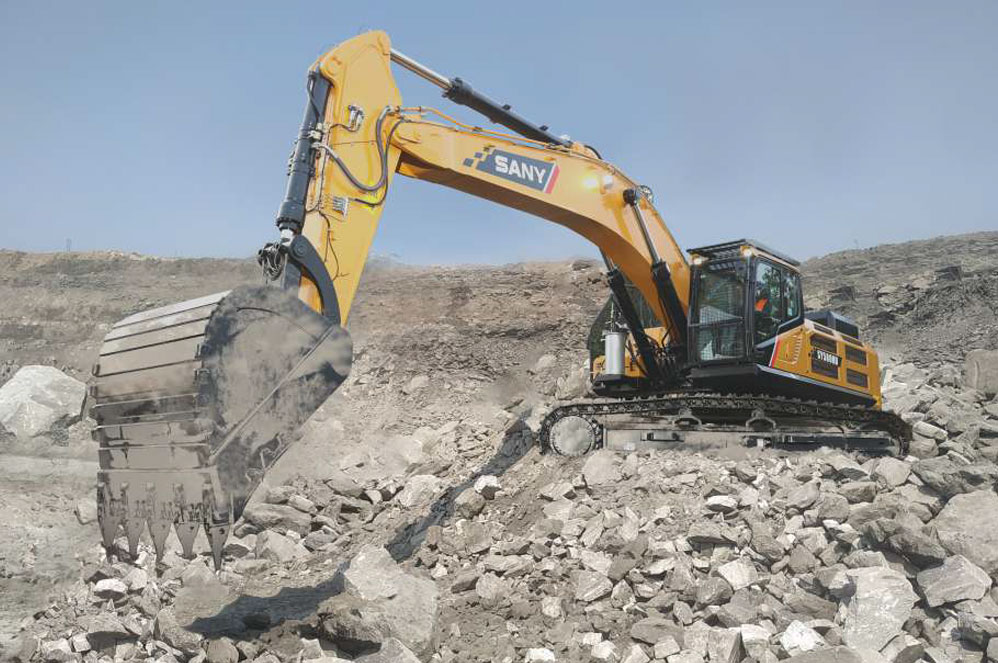

    Sany SY580C-10HD

    4.5 rating
    ₹ 1.85-1.90 Crore
    52000 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Volvo

    Volvo EC750D

    4.5 rating
    Price Available Soon
    72700 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Volvo

    Volvo EC550E

    4.5 rating
    Price Available Soon
    54500 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Tata Hitachi

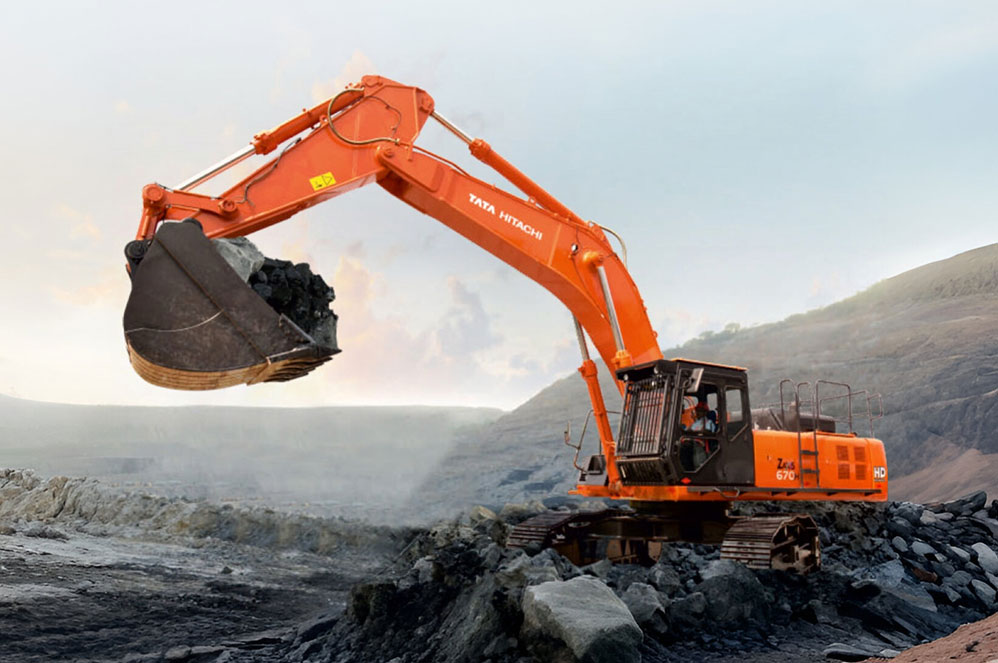

    Tata Hitachi ZAXIS 670H

    4.5 rating
    Price Available Soon
    63500 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    Tata Hitachi

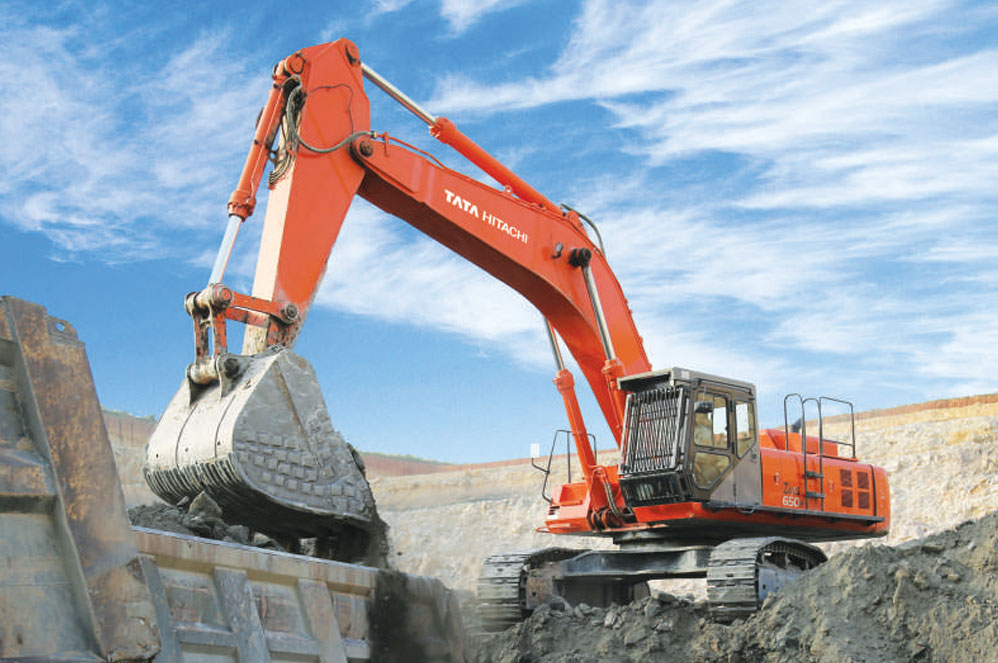

    Tata Hitachi ZAXIS 650H

    4.5 rating
    Price Available Soon
    58340 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    L&T Komatsu

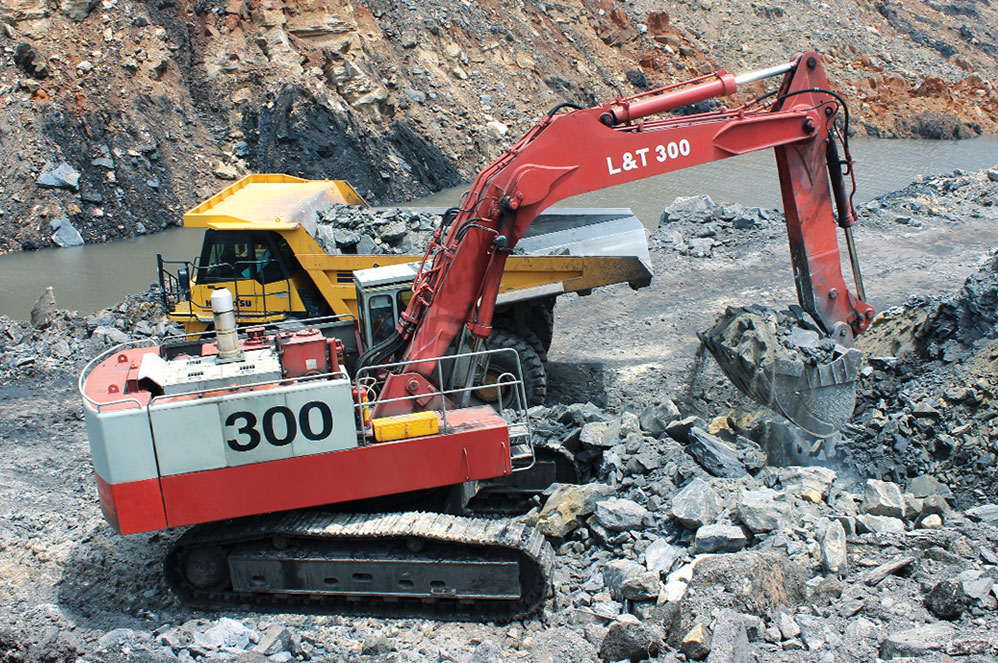

    L&T LT-300

    4.5 rating
    Price Available Soon
    61450 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    L&T Komatsu

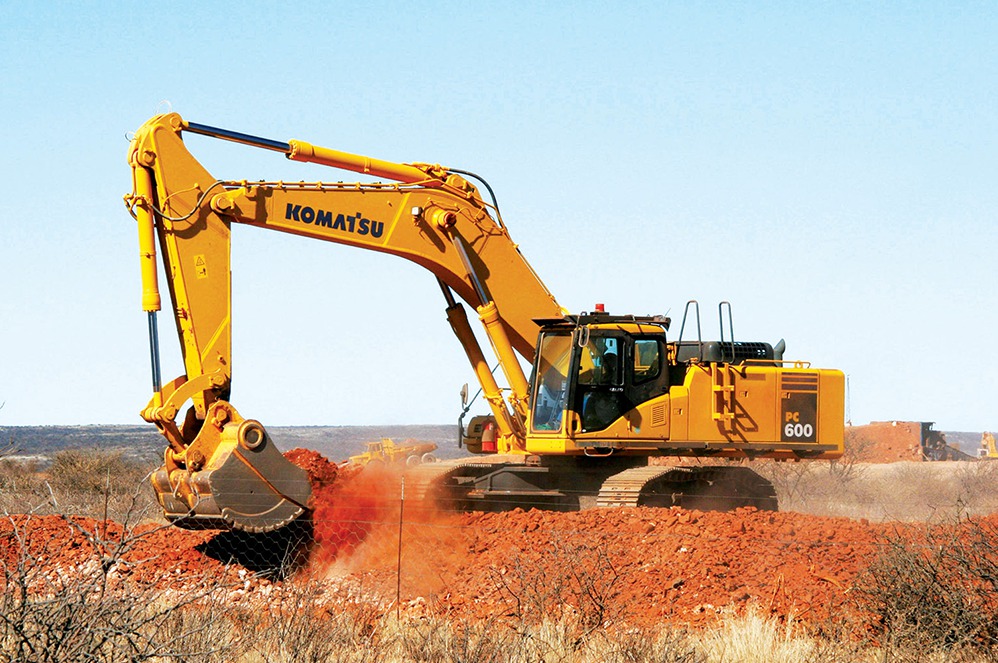

    Komatsu PC600-8R1

    4.5 rating
    Price Available Soon
    61900 Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    L&T Komatsu

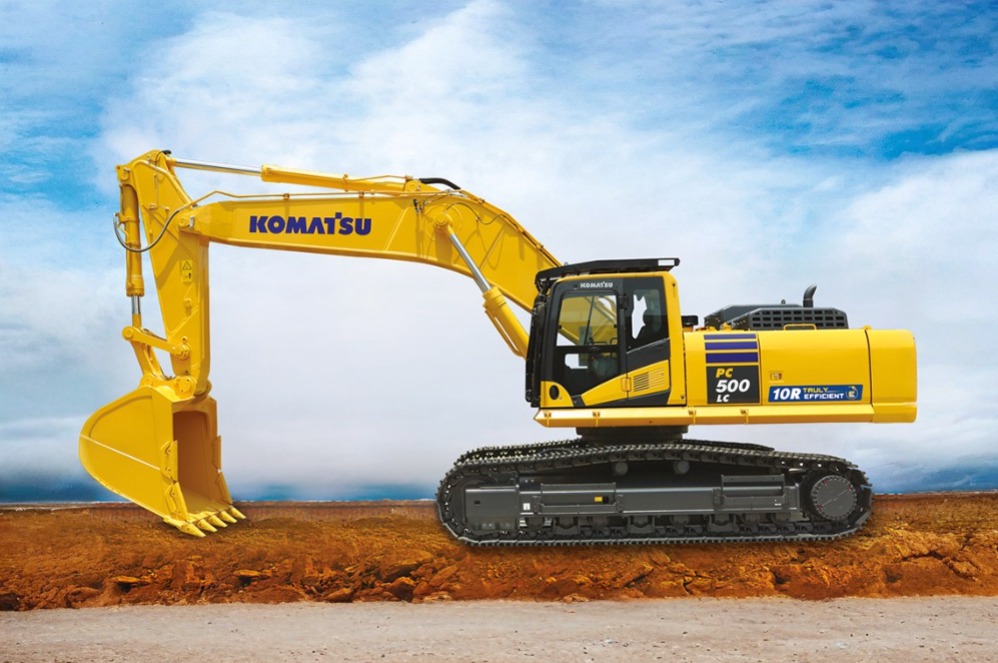

    Komatsu PC500LC-10R

    4.5 rating
    Price Available Soon
    51300Kg
    VS
    Liugong

    Liugong 965E HD

    4.5 rating
    Price Available Soon
    62600 Kg
    L&T Komatsu

    Komatsu PC800-8R

    4.5 rating
    Price Available Soon
    74200 Kg

    Products

    Related Excavator

    About Liugong

    LiuGong India is a leading player in the construction equipment industry. It’s a subsidiary of the globally renowned LiuGong Machinery Corporation. Established in India, in 2002, the company offers a wide range of high-quality construction and material handling equipment, including excavators, wheel loaders, motor graders, and more. Its focus on innovation, reliability, and customer satisfaction has been a big contributor to the company of LiuGong India as it has been supporting diverse infrastructure projects across the country. LiuGong India’s extensive dealer network and dedicated after-sales service support customers well.

    Product Portfolio : Excavators

    LiuGong Construction Equipments

    Related Blogs

    Exploring the Different Types of Clamshell Buckets & Advantages

    The expansion of the construction industry put forth the need...

    Apr 10, 2025

    Long Boom Excavators: The Power of Long Reach in Construction

    Have you ever wondered how construction, dredging, and mining are...

    Apr 09, 2025

    10 Types of Excavator Buckets and How They Help Your Projects

    Have you ever wondered what makes an excavator so efficient?...

    Apr 08, 2025

    Common Problems in an Excavator's Hydraulic System and How to Fix Them

    The hydraulic system is the heart of an excavator. It...

    Apr 05, 2025

    Top 10 Excavator Manufacturers in India: A Complete Guide

    The construction and mining industries have been growing substantially since...

    Apr 03, 2025

    Top 10 Largest Excavators in India: Specs & Features

    Have you ever wondered how powerful an excavator can be?...

    Apr 02, 2025

    Excavator Price Comparison: Mini, Standard, and Large Excavators

    The excavator plays a crucial role in the construction industry....

    Apr 02, 2025

    Everything About Excavator Attachments: Types, Uses, and Benefits

    Excavator attachments are specialized equipment that adds to an excavator,...

    Mar 26, 2025

    What is a Hydraulic Excavator? Understanding its Working and Benefits

    What is a Hydraulic Excavator? A hydraulic excavator is a...

    Mar 25, 2025

    The Evolution of Long Reach Excavators: From Early Models to Modern Machines

    Long-reach excavators are needed to reach high and low in...

    Mar 25, 2025

    How Mining Excavators Differ from Standard Construction Excavators

    Excavators constitute an important machine in mining and construction industries...

    Mar 25, 2025

    Types of Excavators Used in Construction Sites & Their Applications

    Introduction  The most important equipment in the construction industry is...

    Mar 25, 2025

    Safely Lift and Move Loads With an Excavator

    Did you know that lifting and moving heavy loads using...

    Mar 17, 2025

    The Best Choice for Deep Excavation Projects

    What's the secret to achieving maximum efficiency, safety, and accuracy...

    Mar 17, 2025

    Complete Guide to Medium Excavators

    Introduction Excavators come in essential in construction from all angles,...

    Mar 17, 2025

    Why You Should Avoid Fake Excavator Parts

    In recent times, with the surge in the infrastructure, mining,...

    Mar 17, 2025

    The Best Excavator Grade Control System

    Excavation is a primary and most demanding task for an...

    Mar 17, 2025

    Comparison of SANY SY140C-9 Excavator vs JCB NXT 140 Excavator

    Sany and JCB Excavators are the most commonly used construction...

    Feb 21, 2025

    Top 2 Excavators of 2025: Specification & Price in India

    Sany 120C-9 Excavator vs JCB 130 Excavator The construction and...

    Feb 21, 2025

    Mining Excavators: How to Choose the Best Model for Your Heavy-Duty Needs

    The mining industry has been evolving since its inception. In...

    Feb 21, 2025

    Use of Mini Excavators in Construction Operations

    Excavators are the most commonly used construction equipment. Excavators come...

    Feb 15, 2025

    Why Mini Excavators Are a Smart Investment for Small & Mid-Scale Projects.

    Mini excavators are among the leading products in the construction...

    Feb 15, 2025

    Excavator Specifications: A First-Time Buyer’s Roadmap to Success

    Excavator is the leading and primary product in the construction...

    Feb 15, 2025

    Excavator Rental vs. Purchase: Which Is the Best Option for Your Business?

    The construction industry is in a growth stage, and construction...

    Feb 15, 2025

    How is it Beneficial to Buy from Desi Machines Rather Than Directly from Brands?

    Ever wondered why buying from Desi Machines might be a...

    Feb 04, 2025

    What is an Off-Highway Vehicle (OHV)? (A Complete Guide)

    India is undergoing a transformation period and off-highway vehicles play...

    Jan 31, 2025

    Can I buy Construction Equipment from another state or location in India?

    In India, there is a current surge in demand for...

    Jan 31, 2025

    How Much Down Payment Do You Need Buying Construction Equipment?

    The demand for heavy machinery which is commonly used in...

    Jan 28, 2025

    What Kind of Insurance Should You Buy to Protect Construction Equipment?

    The construction and mining industries are at a growing stage...

    Jan 28, 2025

    Understanding the Lifespan of Heavy Machinery and Construction Equipment

    The construction and mining industry are continuously growing in India...

    Jan 28, 2025

    How to Choose the Right Excavator for Your Project: Key Factors to Consider

    Excavators are a very essential equipment in the construction and...

    Jan 21, 2025

    5 Essential Maintenance Tips for Your Excavators

    Excavators are one of the most important machinery in the...

    Jan 20, 2025

    Backhoe vs Excavator - Which is Better for your project?

    Backhoe loaders and excavators are machineries that are very prominent...

    Jan 20, 2025

    5 Safety Tips Every Excavator Operator Should Follow

    Excavators are the most demanding equipment in the construction and...

    Jan 19, 2025

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    Help Us Reach You!

      Your Captcha*

      captcha

        Kindly fill out the below form. Our representative will get in touch with you

        Or

        Yes

        No

        Your Captcha*

        captcha

        Let's get started

        Disclaimer

        Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

        Compare
