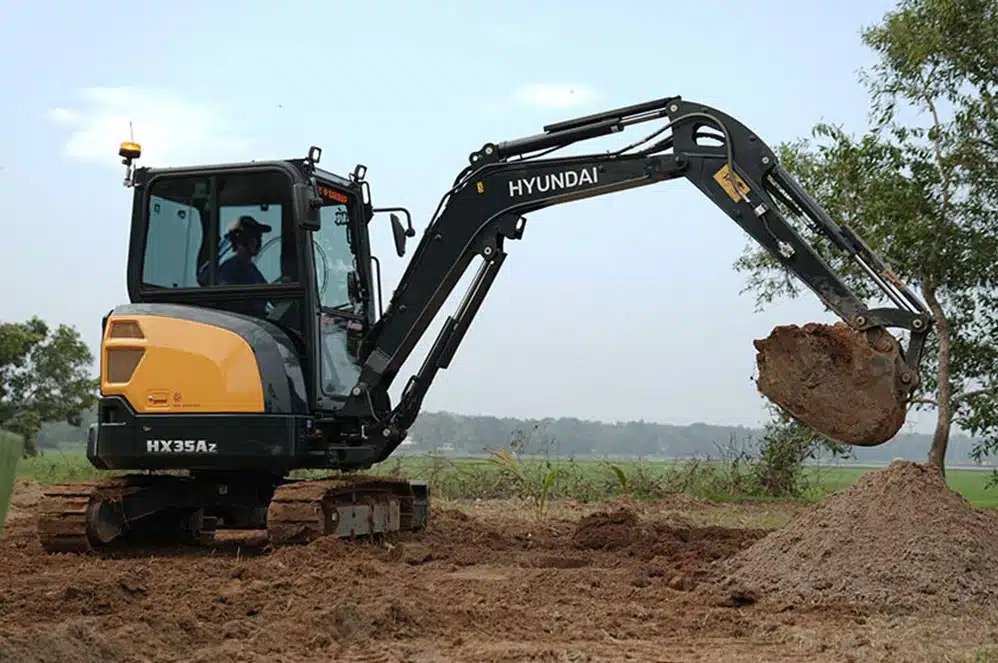

    Hyundai HX35AZ Excavator

    The Hyundai HX35Az is a premium 4-ton mini excavator and a winner of the prestigious Red Dot Award 2022 for product design. Powered by a fuel-efficient Kubota D1703 Tier-4 engine, it delivers smooth performance, low emissions, and reduced operating costs. Designed for superior operator comfort, it features a 5-inch LCD display, ergonomic controls, a wide boom angle, and a rugged upper and lower frame for durability. Ideal for agriculture, land development, and urban infrastructure, the HX35Az offers excellent productivity and a competitive mini excavator price in India from Hyundai Construction Equipment.

    desi-machines-excavator-hyundai-hx35az-featured
    desi-machines-excavator-hyundai-hx35az-1
    desi-machines-excavator-hyundai-hx35az-2
    desi-machines-excavator-hyundai-hx35az-3
    • Brand

      Hyundai

    • Type

      Mini (0-6 Ton)

    • Operating Cost

      ₹ 34-36 Lakhs

    • Ex-Showroom Price

      ₹ 34-36 Lakhs

    • icon alt1
      Weight

      4130 Kg

    • featIcon2 (1) alt
      Bucket

      0.11 m³

    • Digging Depth

      3280 mm

    • Engine

      Kubota 25 HP

    • Warranty

      1 Yr. / 2000 hr.

    • Boom

      2400 mm

    Connect With Us:

    Get the best price for the Hyundai HX35AZ Mini Excavator from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Kubota D1703

    Fuel Tank

    46.8 L

    Engine Displacement

    1.647 L

    Under Carriage

    2140 mm

    Hydraulic System

    2 x 3 7.4 + 2 3.1 L/min

    Arm

    1600 mm

    Max Digging Reach

    5580 mm

    Fuel Consumption

    NA

    Overall Width

    1740 mm

    Overall Length

    4783 mm

    Bucket Digging Force

    32.2 kN

    Tailswing Radius

    2425 mm

    Track Shoe Width

    300 mm

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    NA

    Features

    Performance

    • The Kubota D1703, Tier-4 engine is built with a gross power of 25 HP to provide optimum power, high fuel efficiency, low noise and reduced maintenance cost.

    • Open centre hydraulic system for fast synchronisation between the joystick and Main Control Valve, resulting in faster response & smooth operation.

    • The Hydraulics and attachments are designed to offer high digging forces for high productivity.

    • Dozer height automatically adjusted by turn ON Dozer Float function. Enable smooth drive over ground surface that ensures precise finish

    Efficiency

    • Wide Boom Swing Angle function provides wider boom swing angle for efficient work in congested residential and urban areas.

    • The zero tail swing allows the operator work without problems in narrow spaces, like alleys, in urban areas.

    • Auto engine idle feature reduces the engine RPM when equipment not in use. This helps in optimizing fuel efficiency.

    • Auto Shift Travel Speed feature automatically shifts high to low travel speed when machine is travelling upwards on gradient, to increase travel torque. Improves overall work efficiency.

    Convenience

    • The operator cabin is smartly designed to increase operator’s productivity. The adjustable seat improve comfort and easier joystick controls and smartly placed pedal positions enable convenient operation. It comes with an option to choose from AC Cabin or Canopy.

    • New 5” LCD display improves operator convenience. It displays key information like fuel level, hour meter, engine oil pressure, battery, engine rpm, engine coolant temperature and warning indicators. Maintenance management feature helps in better upkeep of machine. Diagnostic Trouble Codes (DTC) helps in faster troubleshooting.

    • The cabin has centralized switches & controls for easy access. This helps in improved operator convenience and higher productivity.

    • All pedals are foldable for additional floor space. Footrest, attachment pedal, left and right travel pedals and boom swing pedal are arranged for convenient access.

    Durability

    • Low stress, high strength steel is integrally welded to form a stronger, more durable upper and lower frame. Structural Integrity tested by Finite Element Analysis.

    • Made with high tensile strength steel and with advanced welding techniques, the boom & arm are reinforced with steel bearings to maximize impact strength & longevity.

    • The machine comes with heavy guards installed on Boom, Arm & Bucket cylinders for increased protection from external hit. This helps reduce the risk of downtime & repair expenses.

    • The Cabin & Canopy of HX35Az meets ROPS standard under ISO certification. Integrally welded low-stress & high strength steel and tested by FEM analysis and long-term durability tests.

    Safety

    • The machine comes with a password protected ignition, to prevent unauthorized machine operation. This feature can be enabled always, at intervals or can be disabled by ESL mode setting in the cluster.

    • The machine comes with an additional bolted counterweight for enhanced stability when working in rough terrain and heavy load lifting.

    • Safety Lever & Emergency Stop feature acts as a lock against any unintended machine movements. When locked, it prevents hydraulic functions of the machine, thus adding an extra layer of safety. Emergency engine stop switch below operator seat, for emergency situations.

    • Disconnects battery with machine’s complete electrical system. Master Switch improves machine electrical parts & wiring safety, especially when machine is idle or under maintenance.

    Easy Serviceability

    • The cowl is fully open type giving easy access to Engine & MCV. All daily checks & filters at ground level for easy checks & maintenance.

    • The new HX35Az has TILT Cabin as standard feature for easy access to components like Swing Motor. This improves serviceability and reduces down time.

    • Dozer of HX35Az is designed with 2-piece type hydraulic hose. This improves convenience with easy replacement of individual hoses, in case of damage.

    • The hydraulic & engine service intervals are longest in the industry. Engine service at 400 Hours, hydraulic filter @ 1000 hours and hydraulic oil @ 5000 Hours. Longer service intervals -> less downtime and lower maintenance cost.

    Are you interested in buying Hyundai HX35AZ Excavator

      Note: Uncheck if you're not interested in finance or insurance deals.

      Specifications

      Product specification of Hyundai HX35AZ Excavator

      ENGINE

      • Model

        Kubota D1703

      • Fuel

        Diesel

      • Type

        Vertical, water-cooled, 3 cylinders in-line, 4-cycle DI Diesel engine, low noise

      • Rated Engine Power

        25 HP (18.5 kW)

      • Maximum Torque

        97 Nm @ 1320 rpm

      • Piston Displacement

        1.647 L

      • Alternator

        12 V - 30A

      • Battery

        12 V

      • Starting Motor

        12 V - 1.2 kW

      UNDERCARRIAGE

      • No of Top Rollers

        1

      • No of Bottom Rollers

        4

      • Track Shoes (Each Side)

        NA

      • Track Guard

        NA

      • Track Shoe Width

        300 mm

      • Ground Bearing Pressure

        35.3 kPa

      • Track Tensioning

        Grease

      • Travel Speed-Low

        1.6 Km/h

      • Travel Speed-High

        4.3 Km/h

      • Gradeability

        35 °

      • Max Tracking Force

        29.8 kN

      HYDRAULIC SYSTEM

      • Hydraulic Pump

        Variable displacement piston pumps

      • Max imum Flow

        2 x 3 7.4 + 2 3.1 L/min

      • Pilot Pump

        NA

      • Implement Circuit

        22.5 MPa

      • Swing Circuit

        20.6 MPa

      • Travel Circuit

        22.5 MPa

      • Pilot Circuit

        3.9 MPa

      HYDRAULIC MOTORS

      • Travel

        Two speed axial piston motor with counter balance valve and parking brake

      • Swing

        Axial piston motor with automatic brake

      SERVICE CAPACITIES

      • Fuel Tank

        46.8 L

      • Engine Coolant

        9.5 L

      • Engine Oil

        7 L

      • Hydraulic System

        63 L

      • Hydraulic Tank

        36 L

      MACHINE WEIGHTS

      • Operating Weight

        4130 Kg

      WORKING RANGE

      • Boom Length

        2400 mm

      • Arm Length

        1600 mm

      • Max. Digging Reach

        5580 mm

      • Max. Digging Reach on Ground

        5460 mm

      • Max. Digging Depth

        3280 mm

      • Max. Digging Height

        5020 mm

      • Max. Dumping Height

        3615 mm

      • Max. Vertical Wallcut Depth

        2540 mm

      • Min. Swing Radius

        2425 mm

      • Max. Height at Min Swing Radius

        NA

      • Max. Height (Above Ground)

        NA

      • Dig Depth (Below Ground)

        NA

      • Bucket Digging Force

        32.2 kN

      • Arm Digging Force

        15.9 kN

      • Swing Speed

        9.4 rpm

      DOZER BLADE

      • Dozer Type

        NA

      • Dozer Length

        NA

      • Digging Depth for Ground Level

        447 mm

      • Vertical Lift from Ground level

        NA

      • Approach Angle

        NA

      • Width

        NA

      • Height

        371 mm

      BUCKET

      • Bucket Capacity

        0.11 m³

      STATIC DIMENSIONS

      • Overall Length

        4783 mm

      • Overall Width

        1740 mm

      • Overall Height

        2505 mm

      • Overall Height of Cab

        2505 mm

      • Upper Width

        1540 mm

      • Track Lenght on Ground

        1680 mm

      • Undercarriage Overall Length

        2140 mm

      • Tailswing Radius

        2425 mm

      • Min. Ground Clearance

        167 mm

      • Track Gauge

        1440 mm

      • Width Over Tracks

        NA

      • Track Height

        NA

      • Counterweight Clearence

        525 mm

      • Track Shoe Width

        300 mm

      Faq's

      Common Questions about Hyundai HX35AZ

      What is the Hyundai HX35AZ Excavator price in India?

      The Hyundai HX35AZ Excavator price in India ranges between ₹ 34 – 35 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

      Where can I buy a Hyundai HX35AZ excavator?

      You can buy the Hyundai HX35AZ excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

      Does the Hyundai HX35AZ Excavator come with financing and insurance options?

      Yes, the Hyundai HX35AZ comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

      What is the operating weight of the Hyundai HX35AZ excavator?

      The operating weight of the Hyundai HX35AZ excavator is approximately 4130 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

      What type of engine is used in the Hyundai HX35AZ excavator?

      The Hyundai HX35AZ excavator is powered by a Kubota D1703 engine, delivering 25 HP (18.5 kW)

      What is the maximum digging depth of the Hyundai HX35AZ excavator?

      The Hyundai HX35AZ excavator has a maximum digging depth of 3280 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

      What is the bucket capacity of the Hyundai HX35AZ Excavator?

      The bucket capacity of the Hyundai HX35AZ Excavator is 0.11 cubic meters (m³).

      What is the warranty period for the Hyundai HX35AZ excavator?

      The Hyundai HX35AZ Excavator in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

      Where can I find spare parts for the Hyundai HX35AZ excavator?

      You can find genuine spare parts for the Hyundai HX35AZ excavator at authorized Hyundai dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

      What is the fuel tank capacity of the Hyundai HX35AZ Excavator?

      The Hyundai HX35AZ excavator has a 46.8 litres diesel fuel tank, providing extended operation time without frequent refueling.
